Beagle Camera v2 Mount for the Prusa Enclosure (FreeCAD)

If you want something more compact, have a look at this very similar model: https://www.printables.com/model/662578-generic-mount-for-tripod-heads-fits-the-prusa-encl

I got the Beagle Camera v2 so that I could watch my Mk4 while printing. The tripod that comes with the camera is OK, but I wanted the camera a bit further away - and I don't like stuff like tripods in the enclosure.

In order to use this mount, you'll need three additional parts:

• 1x M3n nut
• 1x M3x8 screw
• 1x ¼" 20 UNC camera tripod screw

The M3n and M3x8 i used where leftovers from the enclosure assembly.

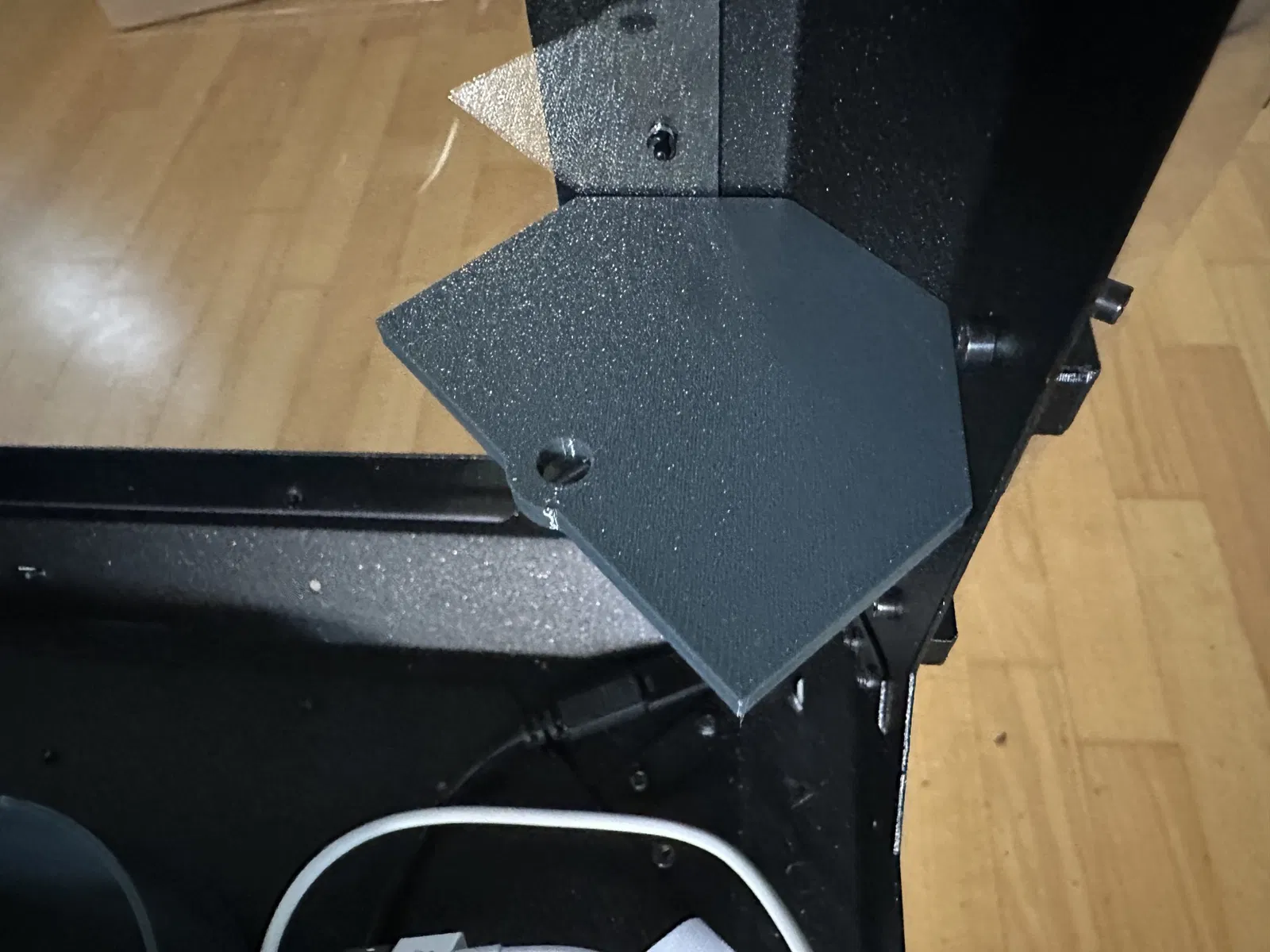

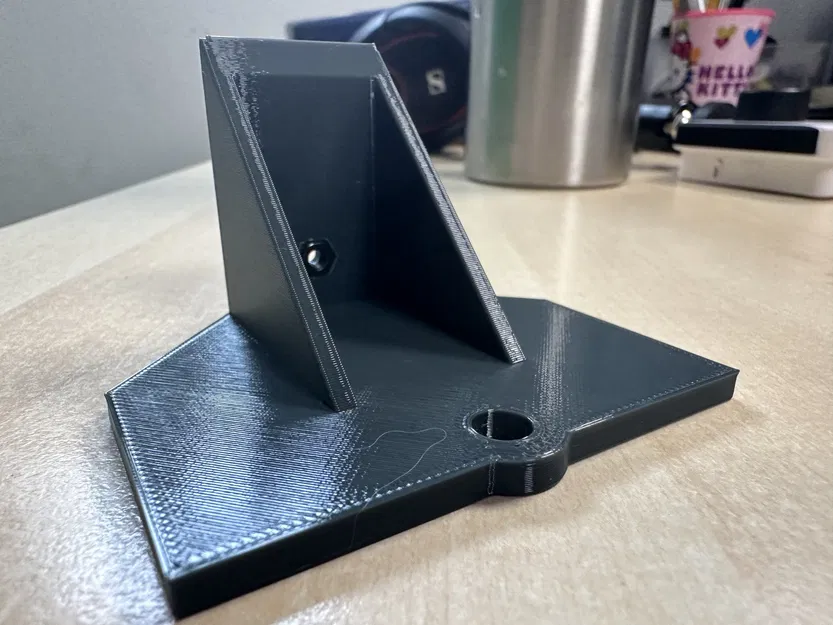

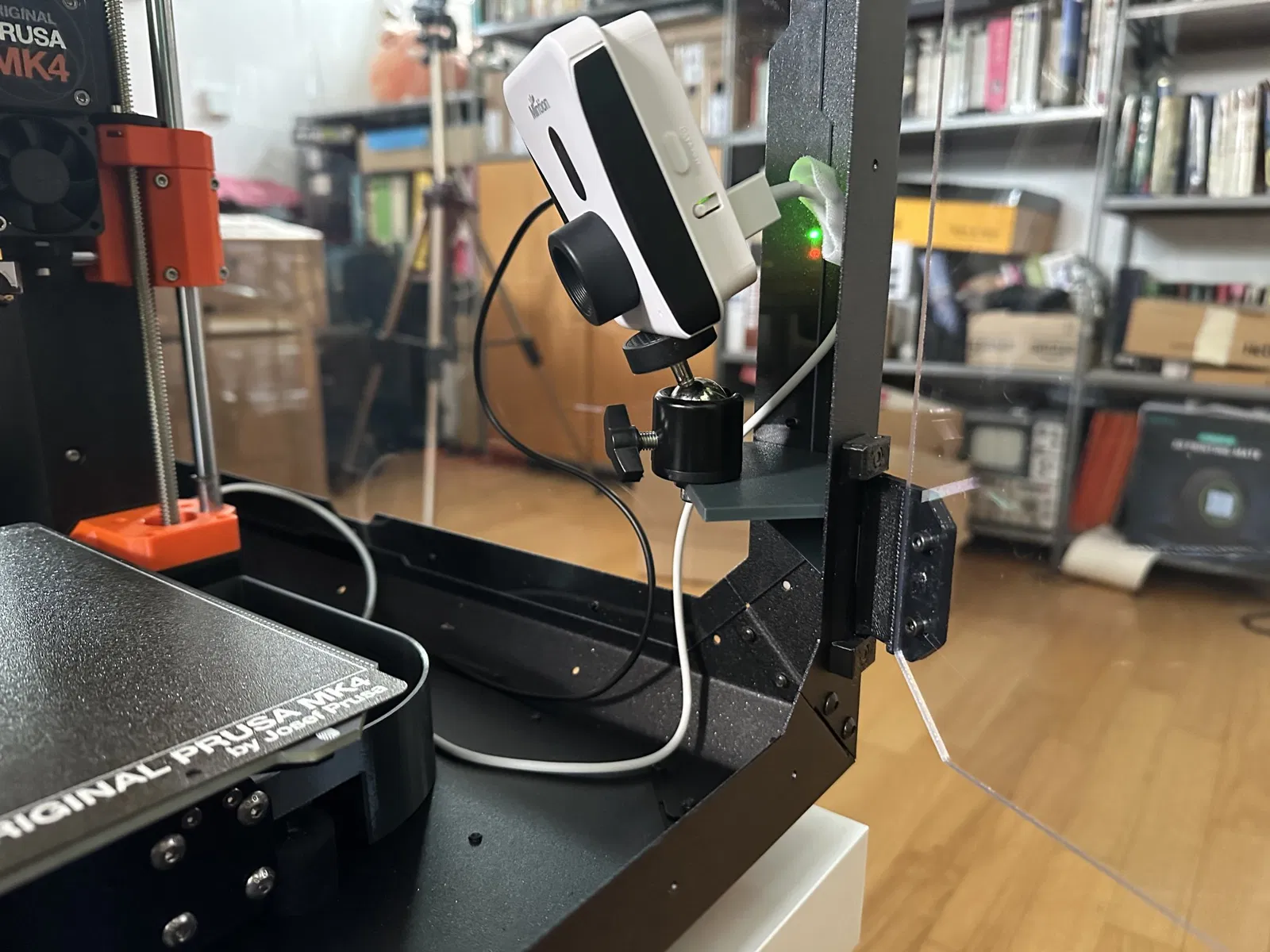

Print the mount, push the M3n nut into the hexagonal pocket in the mounting bracket, use the M3x8 screw to attach it to one of the posts of the enclosure. I used the right post because the fan is always in front of the nozzle when filming from the left. Even when using the right post, there's still plenty of space for a spool in the holder that comes with the enclosure.

If you like this and want to make me happy, please leave me a like and publish a make. It would mean a lot to me. :)
