Measuring spoon/scoop/cup set (10, 25, 50 ml)

Updates

• 2023/08: Updated the handles and the base on the 25 and 50 ml variant (v1.4). The new handles are scaled according to the cup size, are sturdier and look more appropriate. The base has been widened slightly, making them stand more securely.

Description

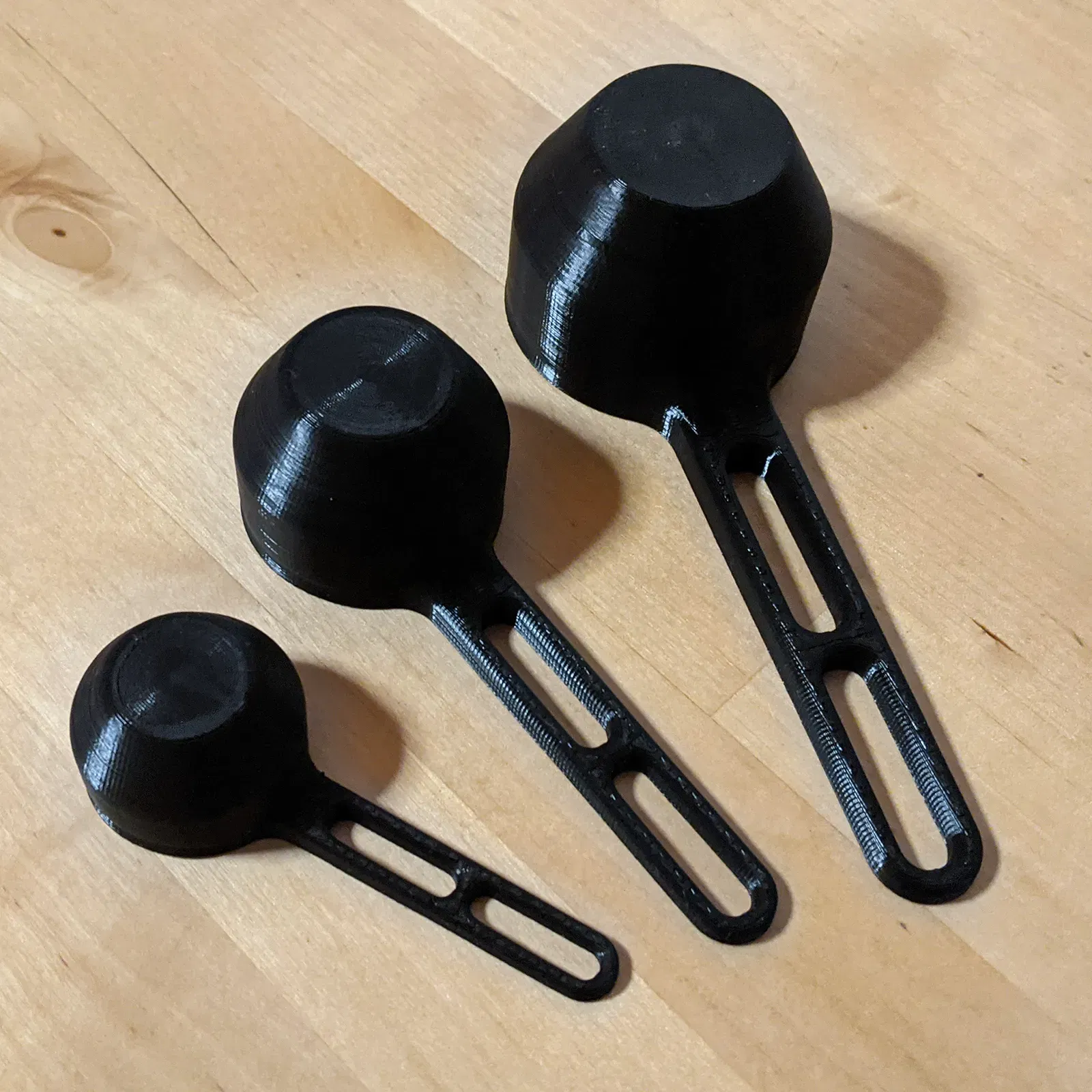

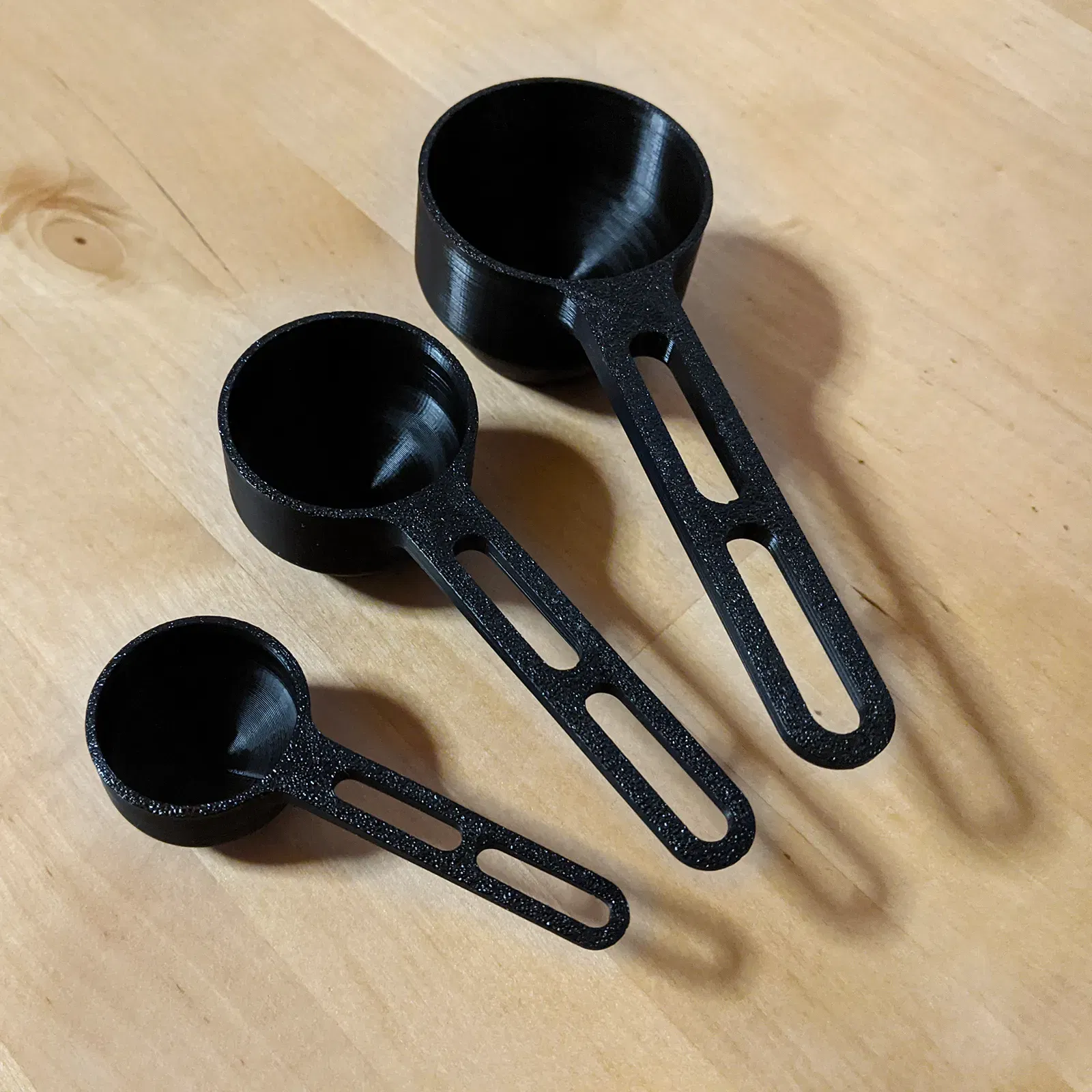

A set of measuring spoons with 10, 25 and 50 ml of volume, optimized for FFF/FDM printing. The spoons require no supports - the inner cone angle of 55° will work fine without support material on almost all printers.

The spoons stand upright on their own, making it easy to set them aside even when full, without spilling the contents. The actual volume of each spoon is about 10% higher than the name suggests, allowing you to measure fluids up to the nominal volume without spilling the goods.

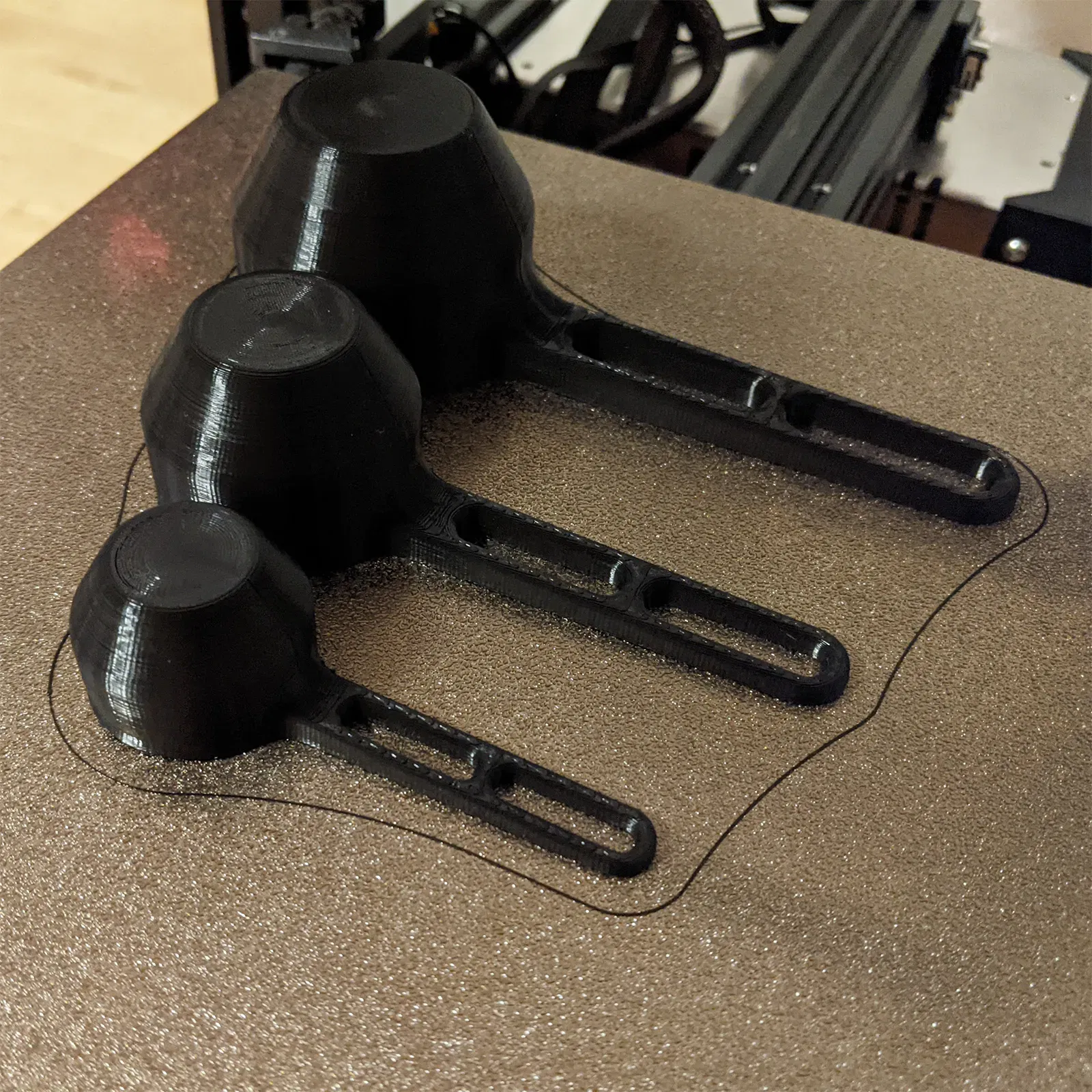

Print settings

• Layer height 0.16 - 0.2 mm
• Line width 0.42 mm
• Infill 15 - 25% ("Lines" recommended)
• 3 - 5 bottom layers
• 5 - 7 top layers
• 4 wall lines
• Supports not required

Approximate print times @ 60 mm/s: 10 ml 0:35 h/25 ml 1:00 h/50 ml 1:40 h
