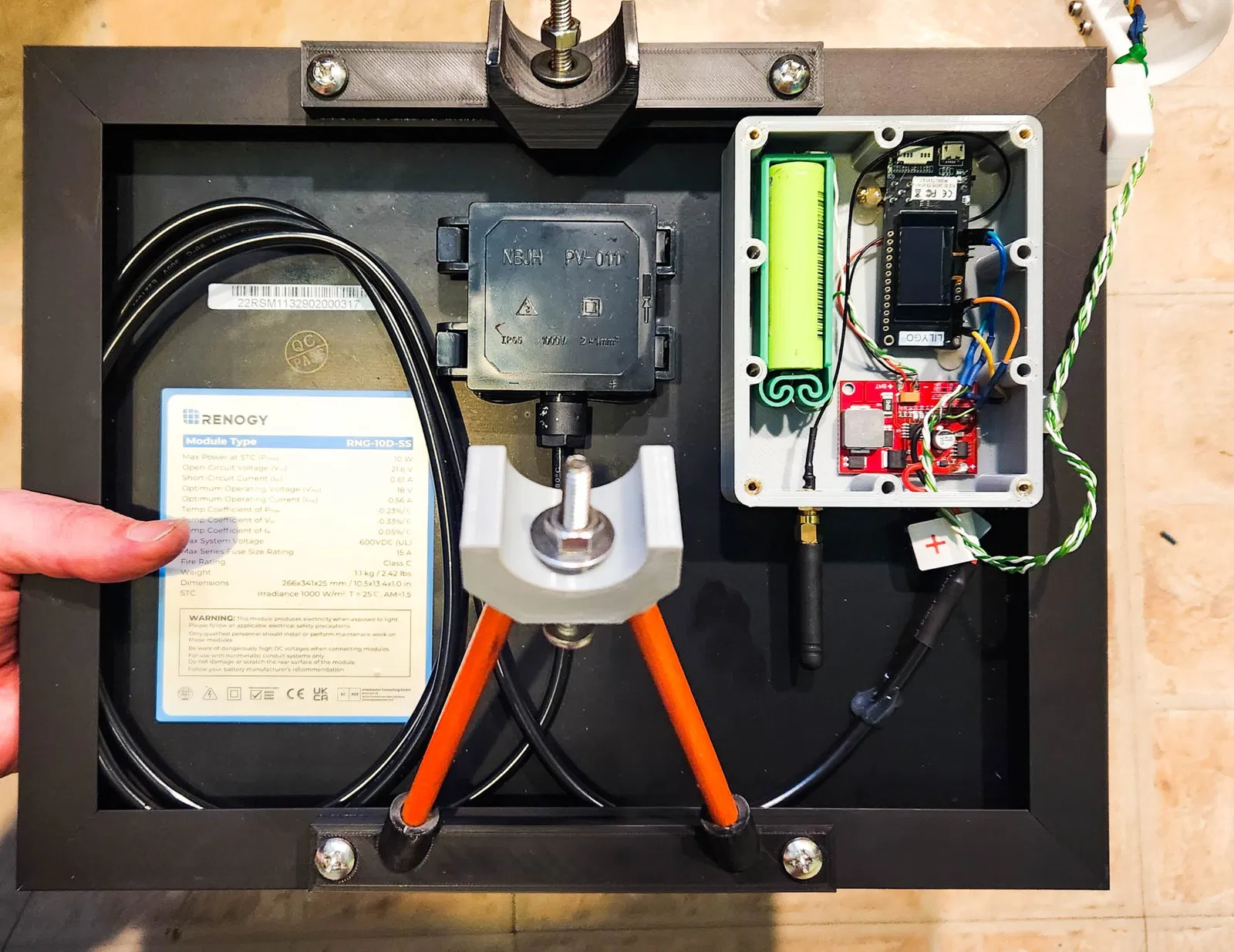

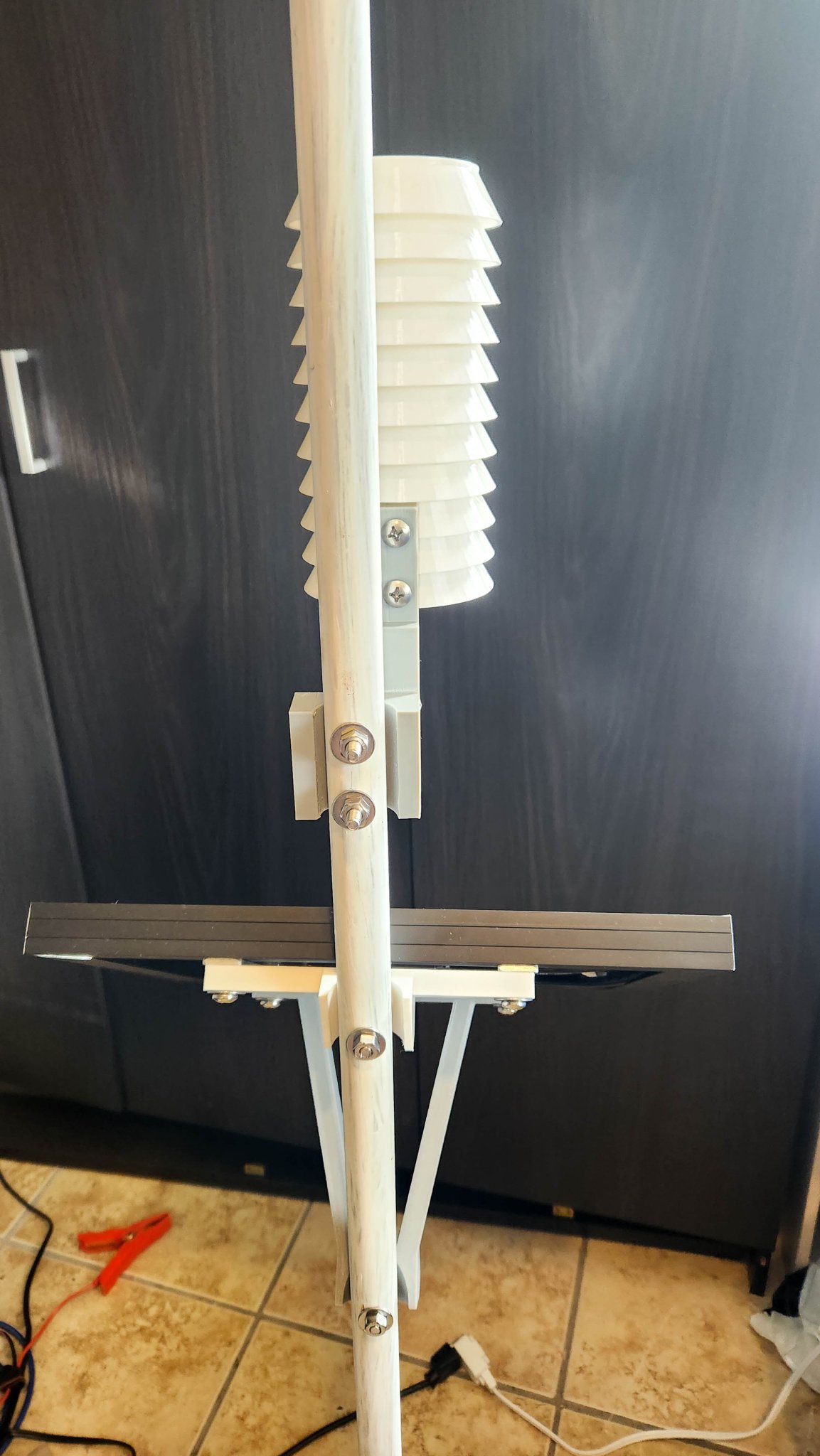

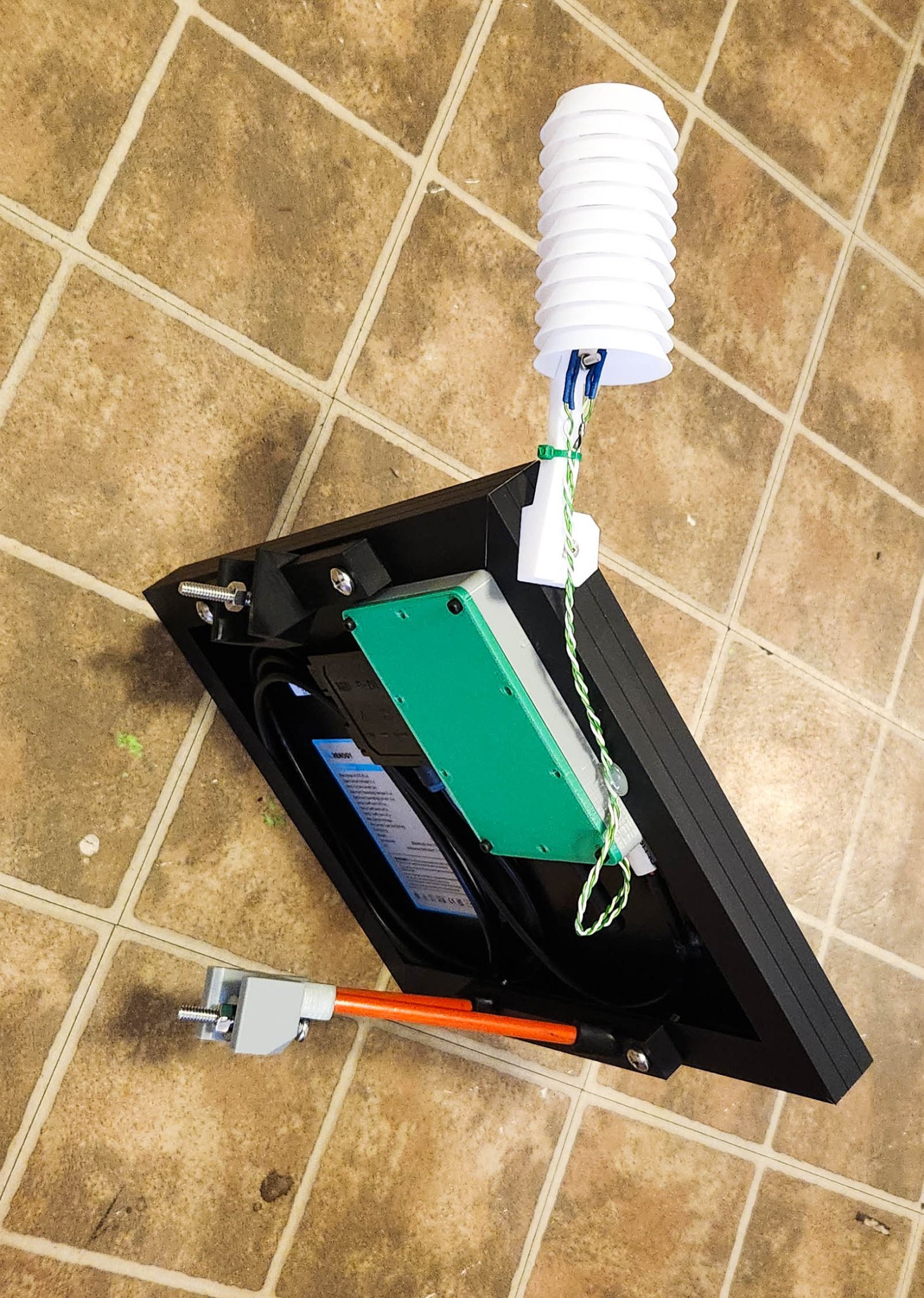

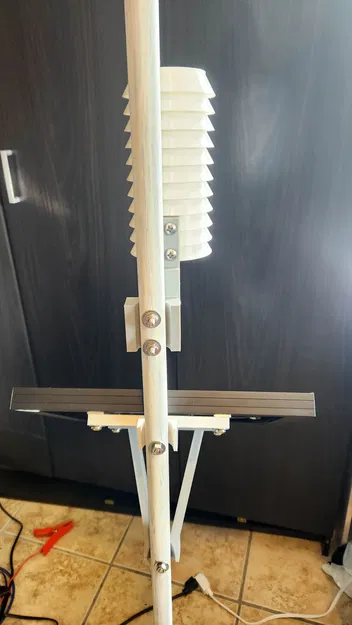

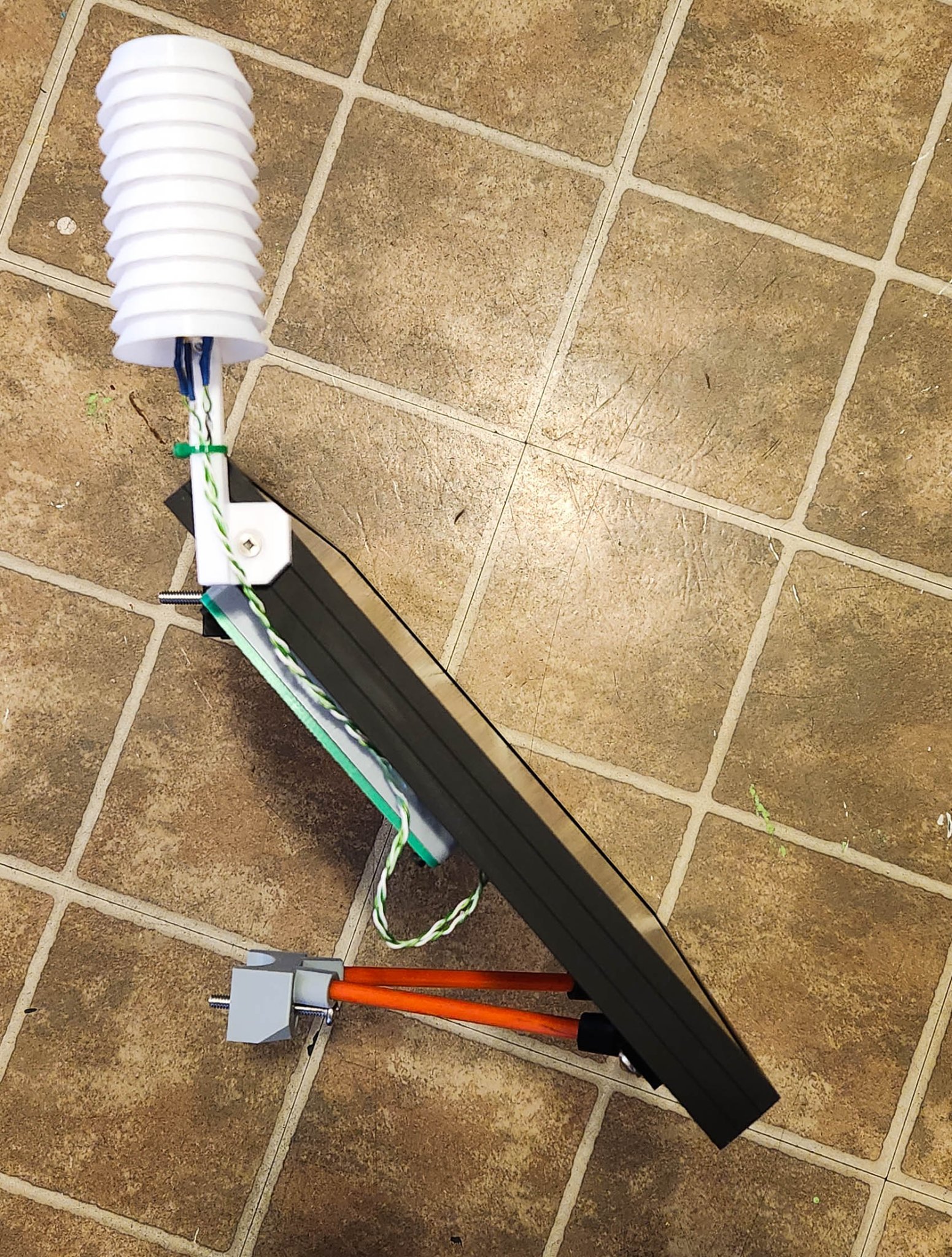

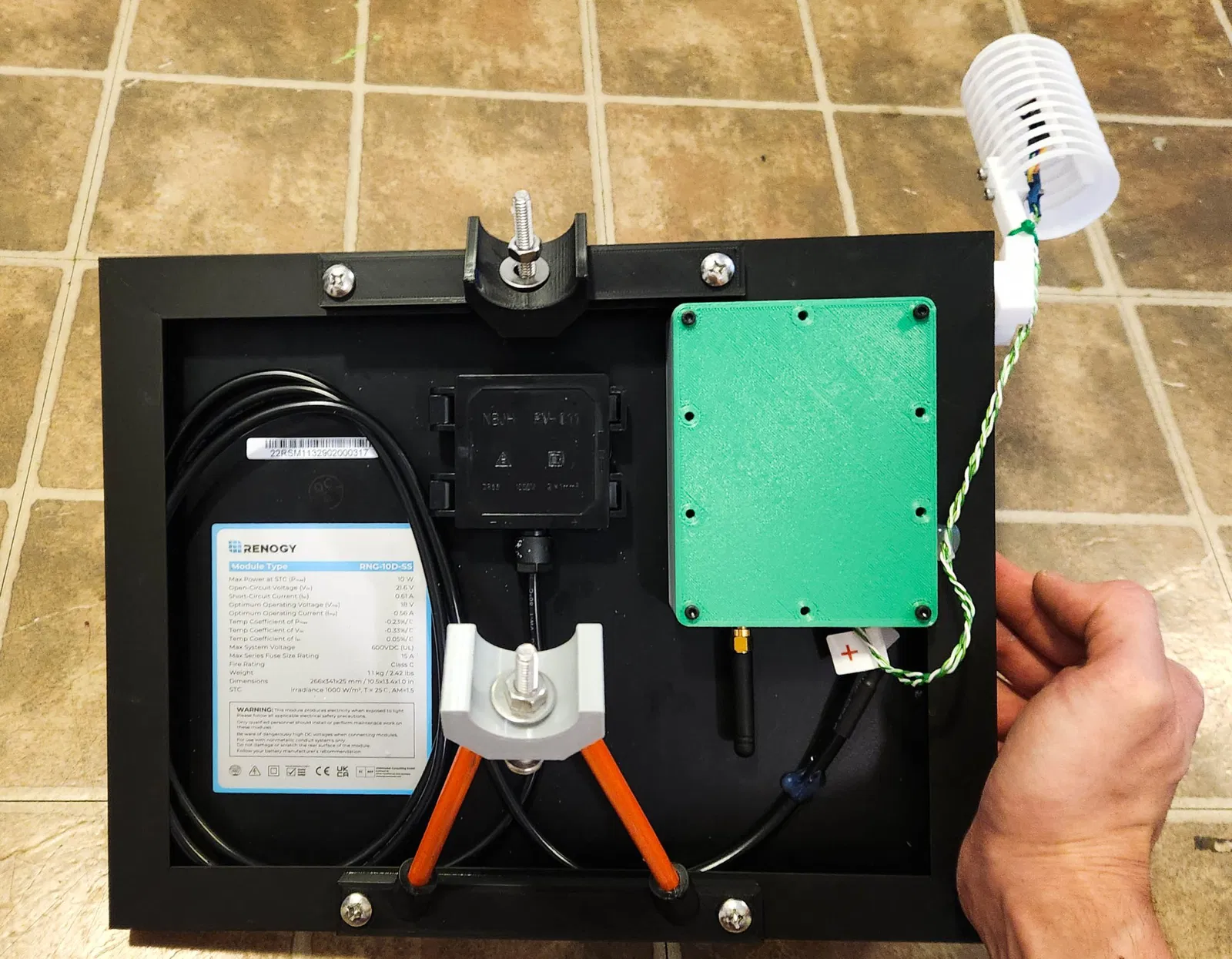

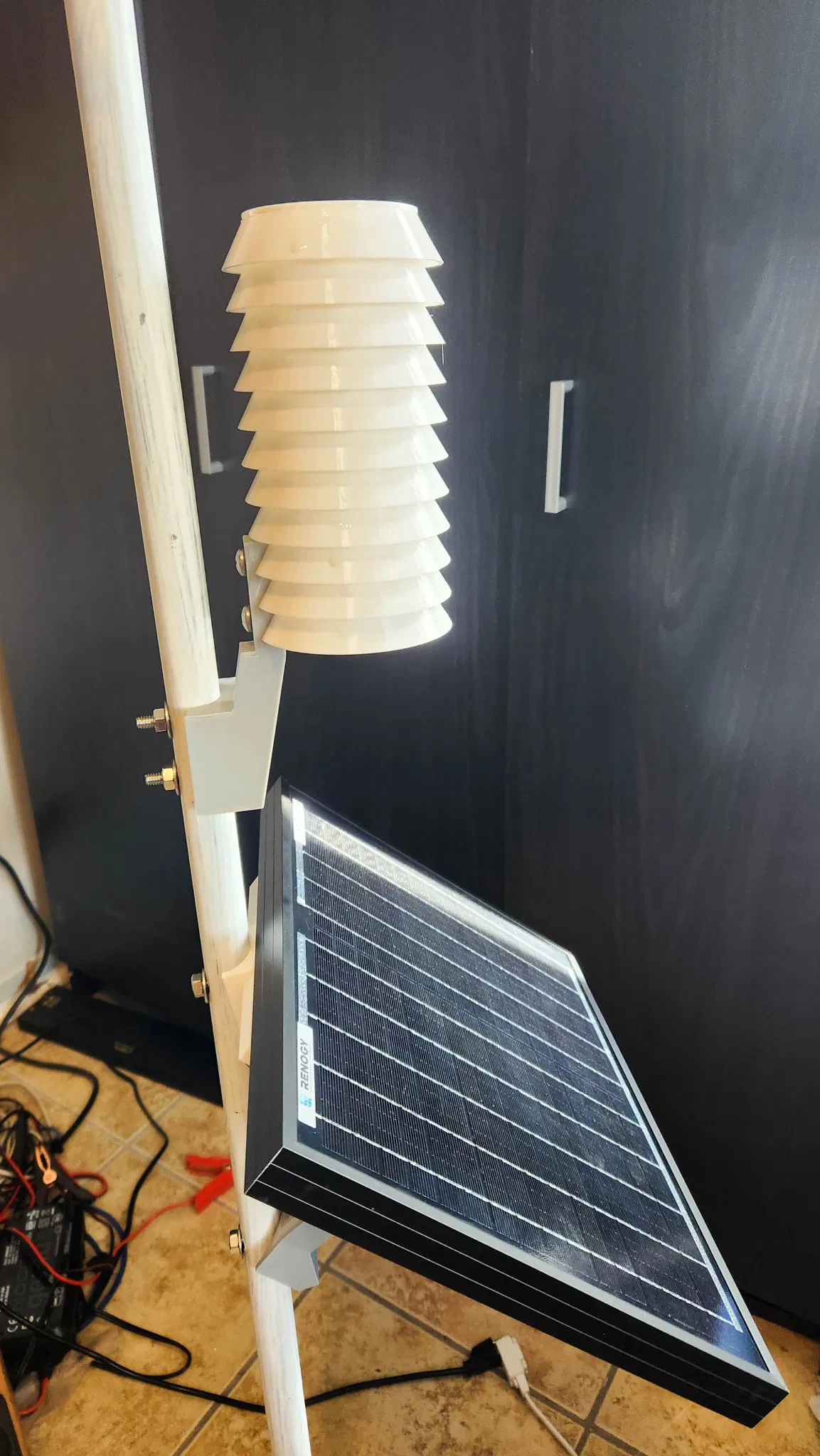

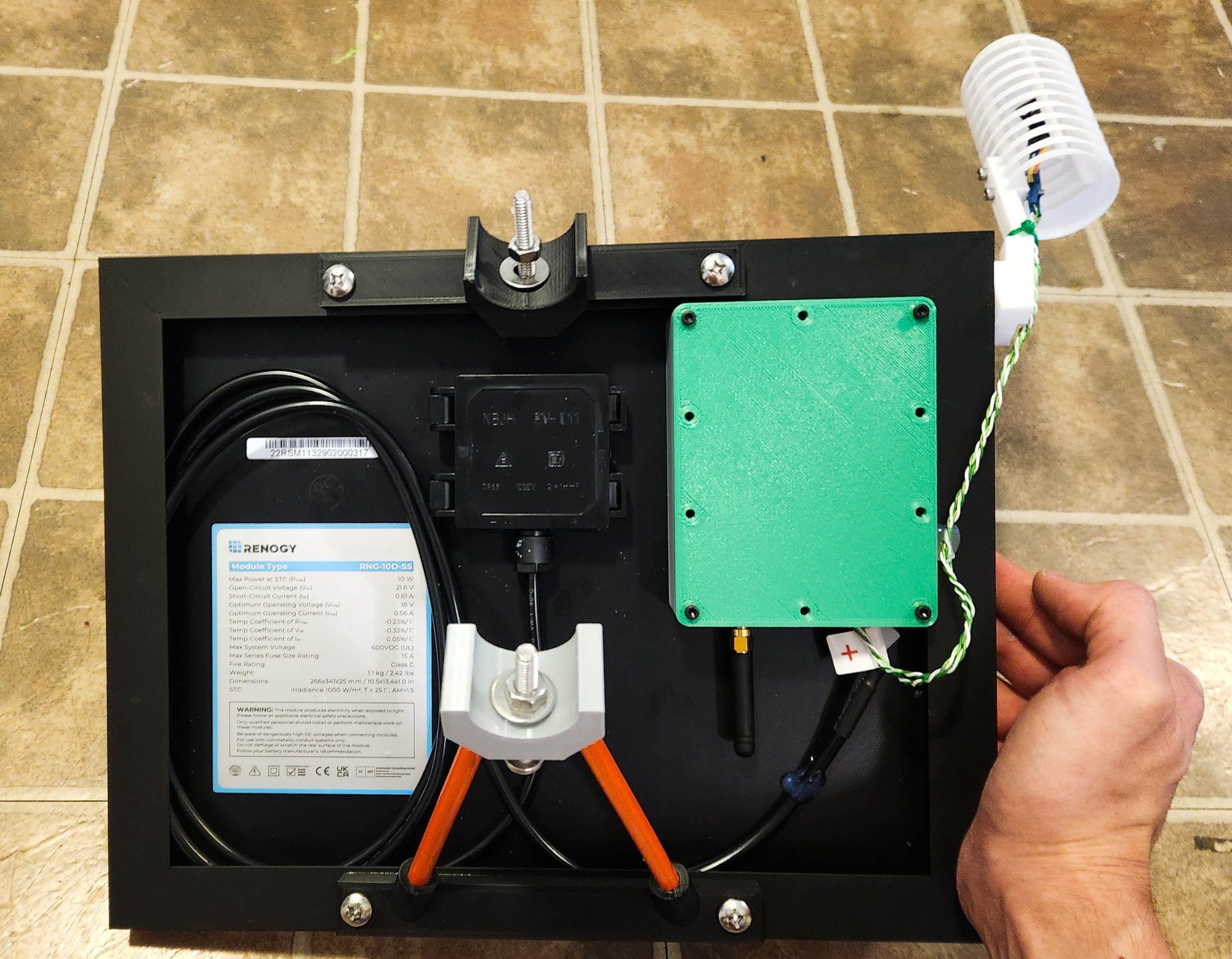

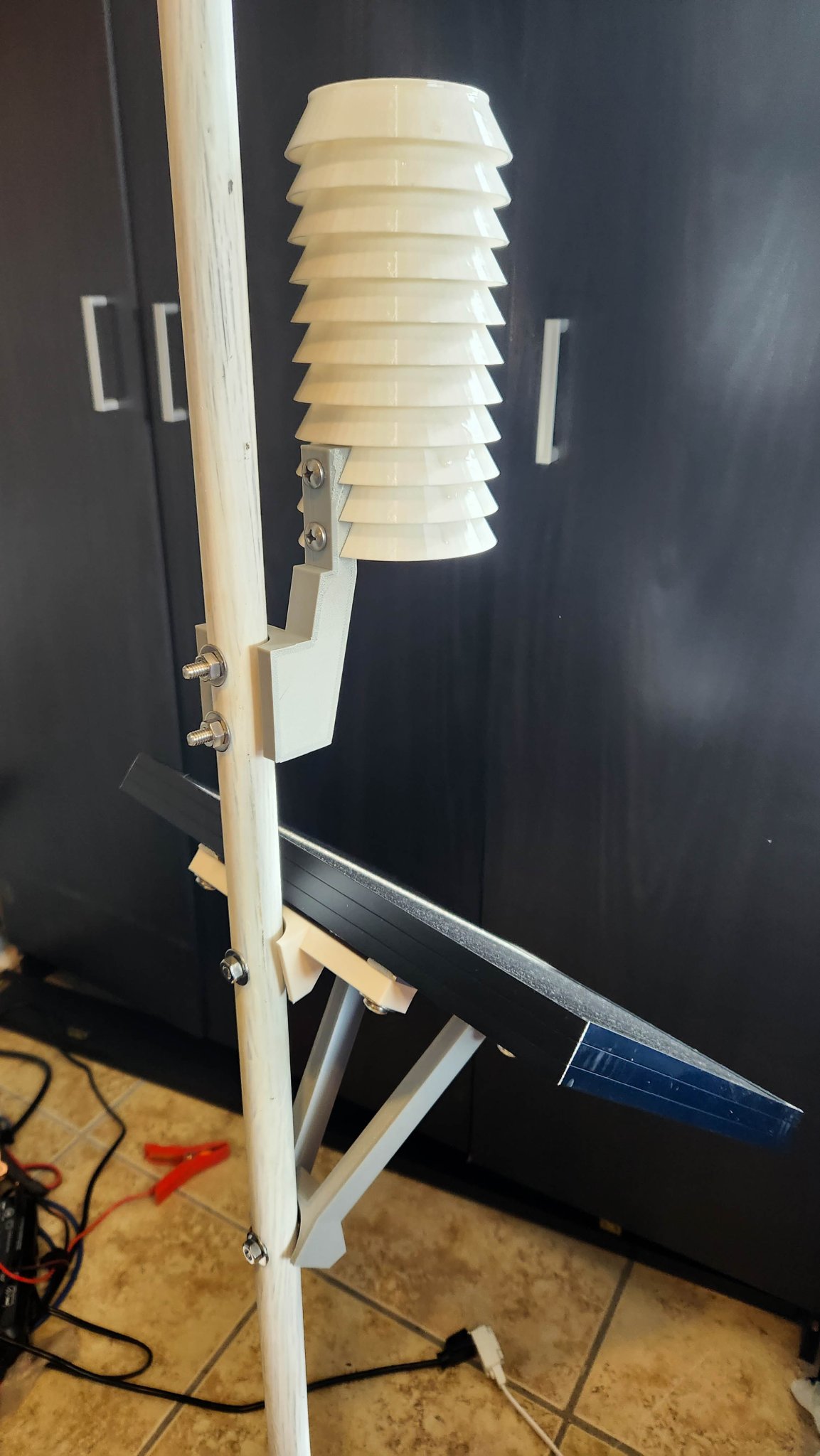

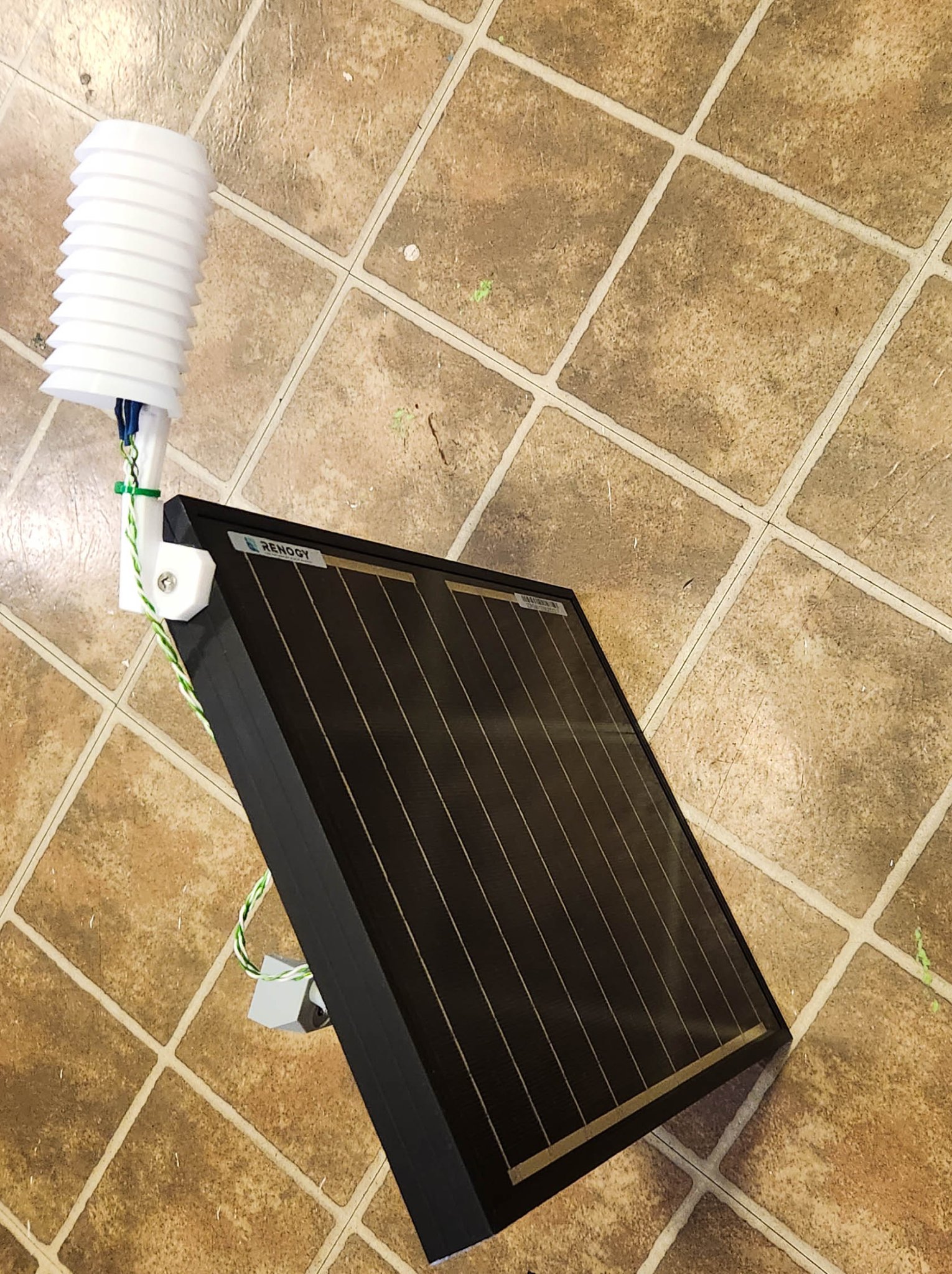

10W 12V solar panel holder + Stevenson Screen MESHTASTIC repeater
DIY 45DEGREES ~ Chủ sở hữu cho màn hình năng lượng mặt trời 10W 12V + Stevenson. Được làm cho cực 1 inch.
1.9K
Lượt Xem
41
Lượt Thích
75
Lượt Tải
Cập Nhật Dec 18, 2025
Mô tả

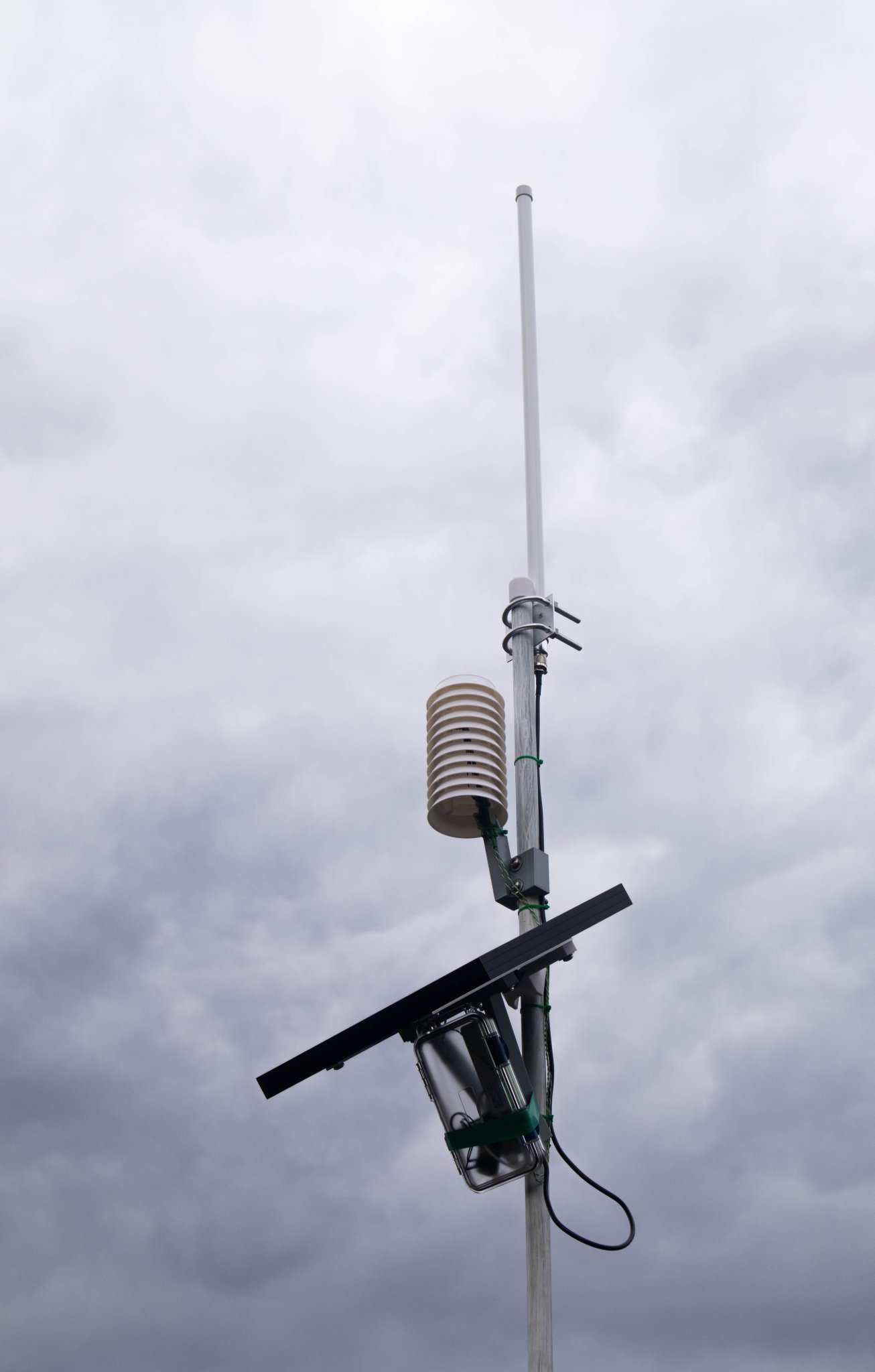

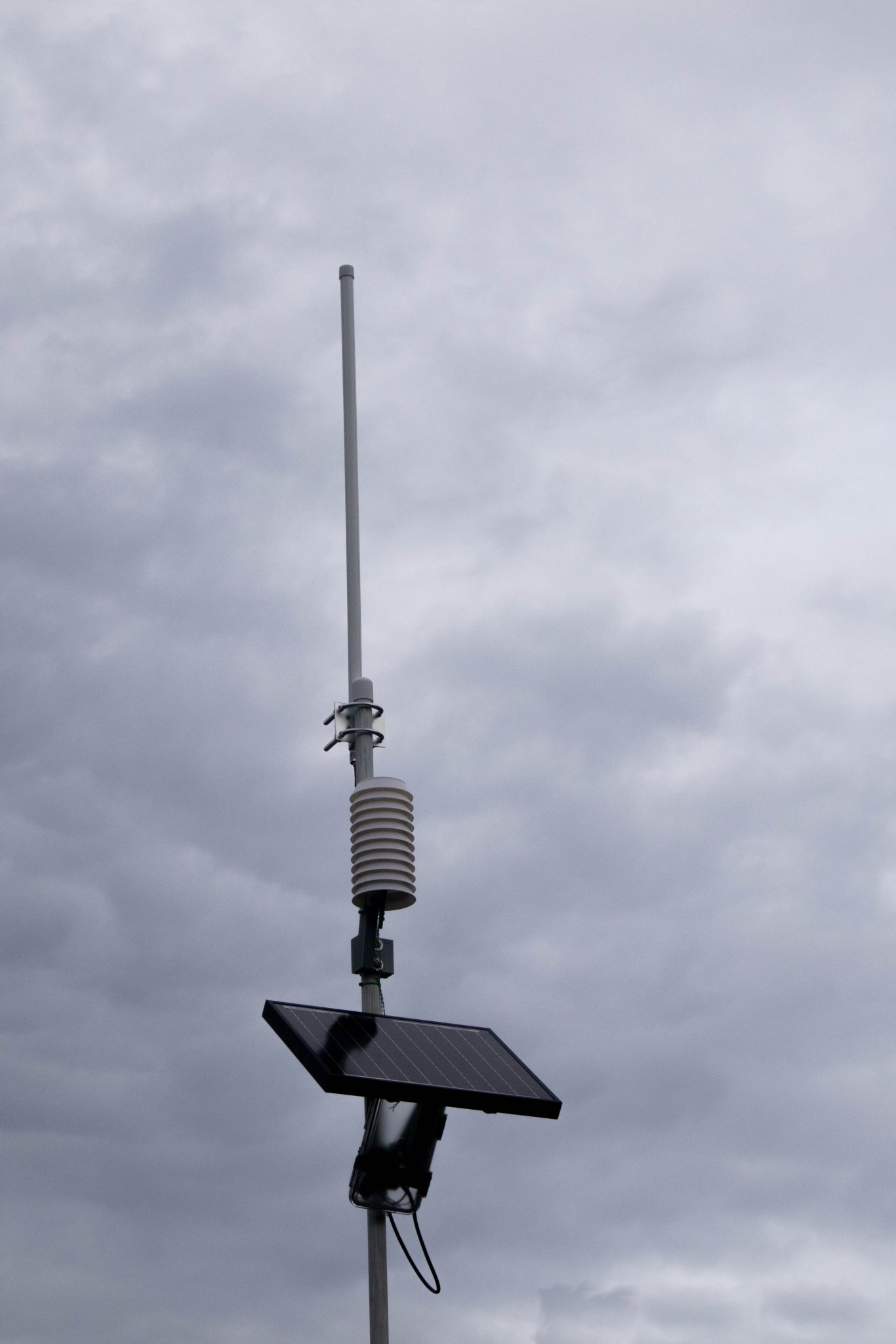

Solar Panel Holder + Stevenson Screen from those things i build myself a… ### Solar Powered, Weather Station! #### featuring LoRa technology this is a standalone weather station i build. the main point i wanted to achieve is to broadcast the data from a long range, be completely independent from mains power, and have accurate data. very useful to install in any location as it is standalone and broadcast the information over tens of kilometres. WX information: Temperature, Humidity and Barometric pressure. to build the weather station you will need: ##### item list - LoRa module

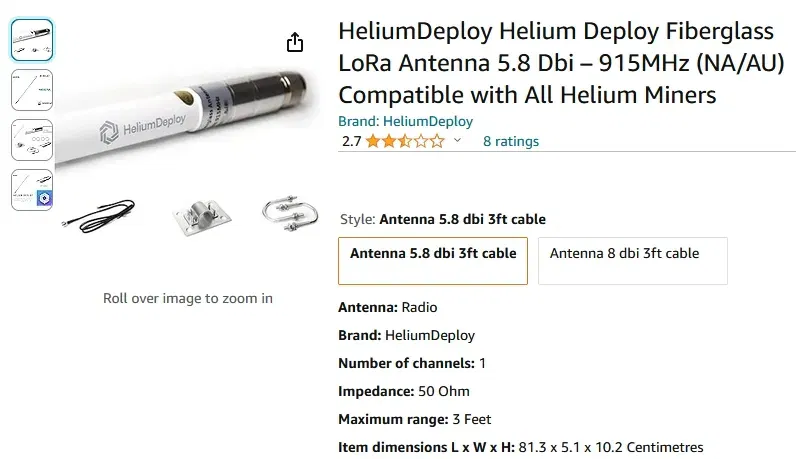

- 915mhz outdoor antenna and bracket

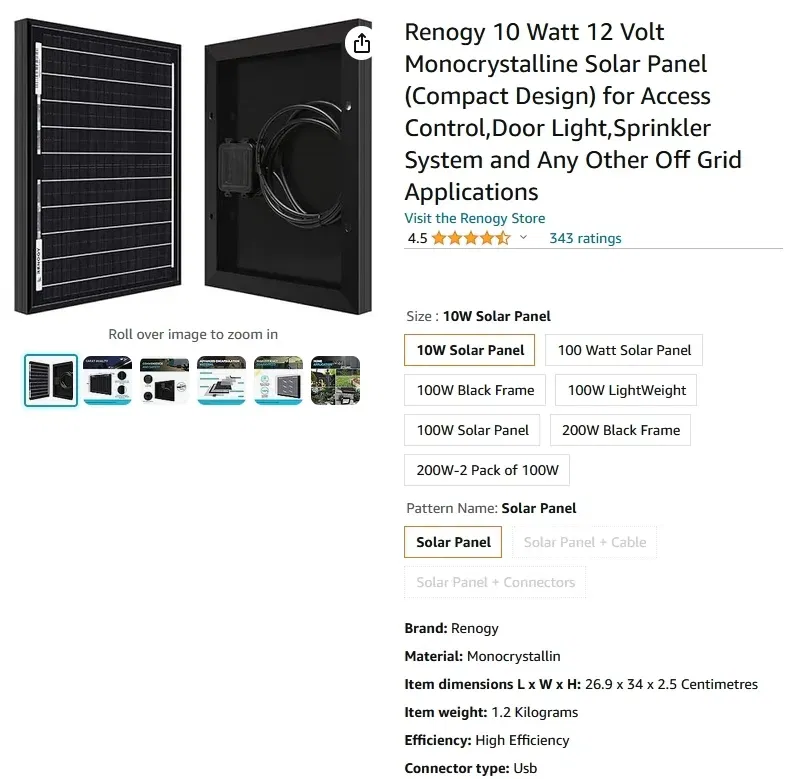

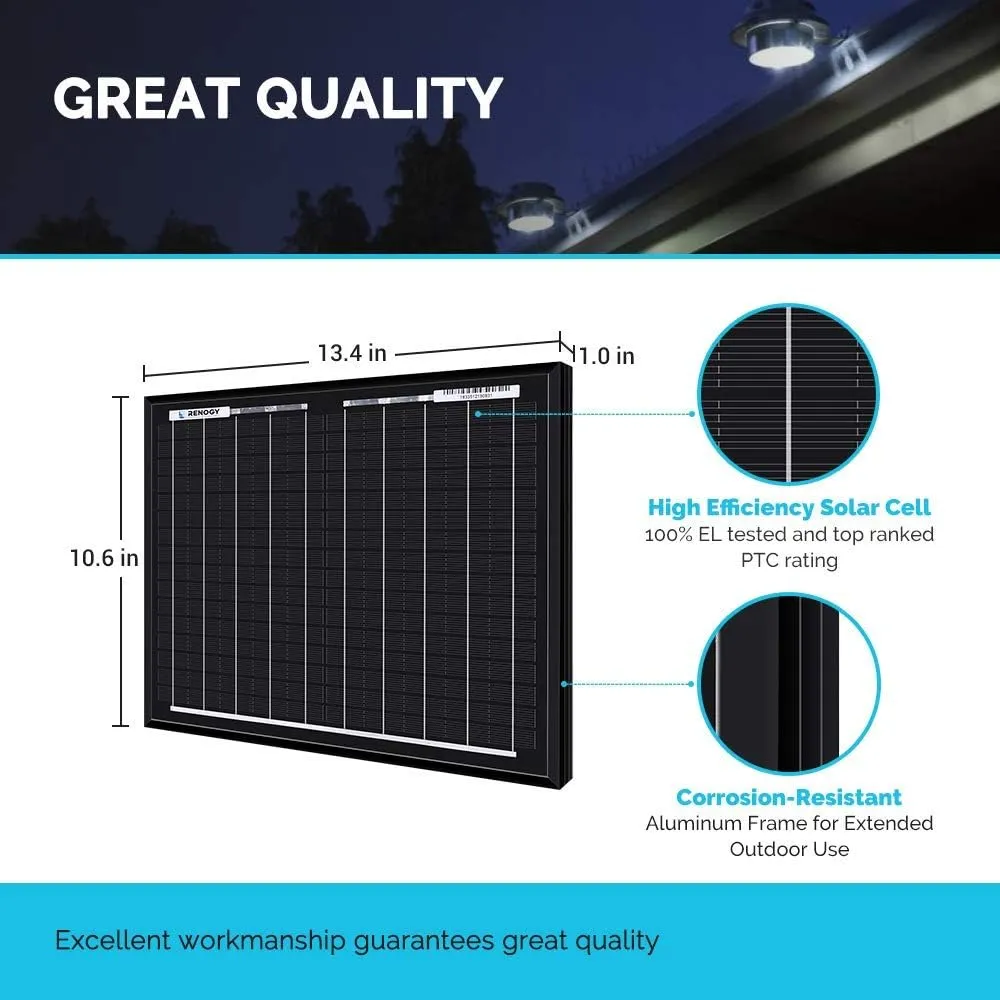

- 10W 12V solar panel
- BME280 module
- 12v solar charge controller (1S Li-Ion)
- 18650 holder
- 1inch pole (from car shelter)
- a waterproof enclosure for the electronics
- 8mm fiberglass rod (for bottom holder V2)
- screws, bolts and nuts. some picture feature the ingenious project box by @VoltaicEnclosures https://www.printables.com/model/406311
