Tiêu đề Hevo BMG và gắn kết V6 Tóm tắt Giá đỡ BMG dọc với

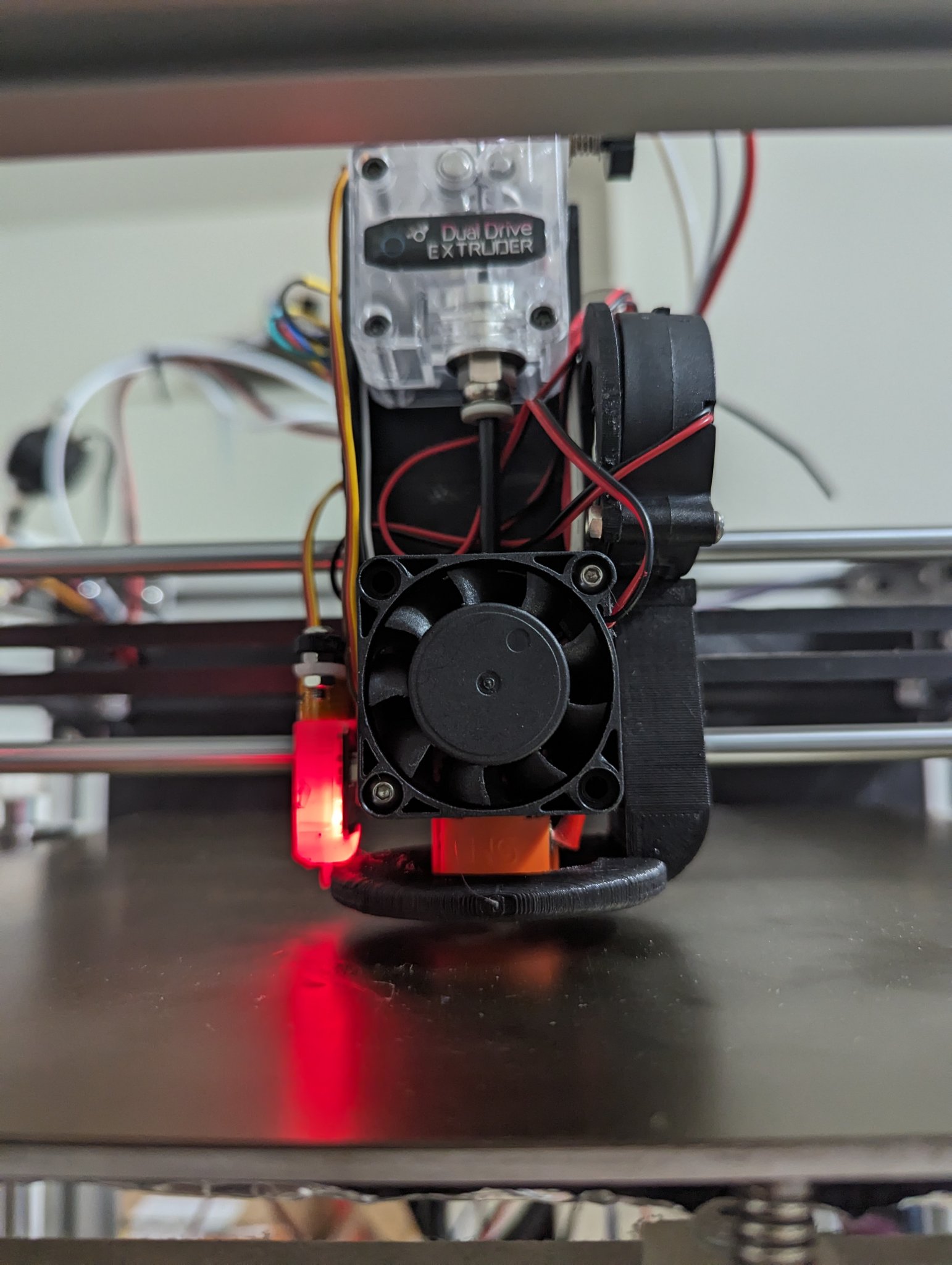

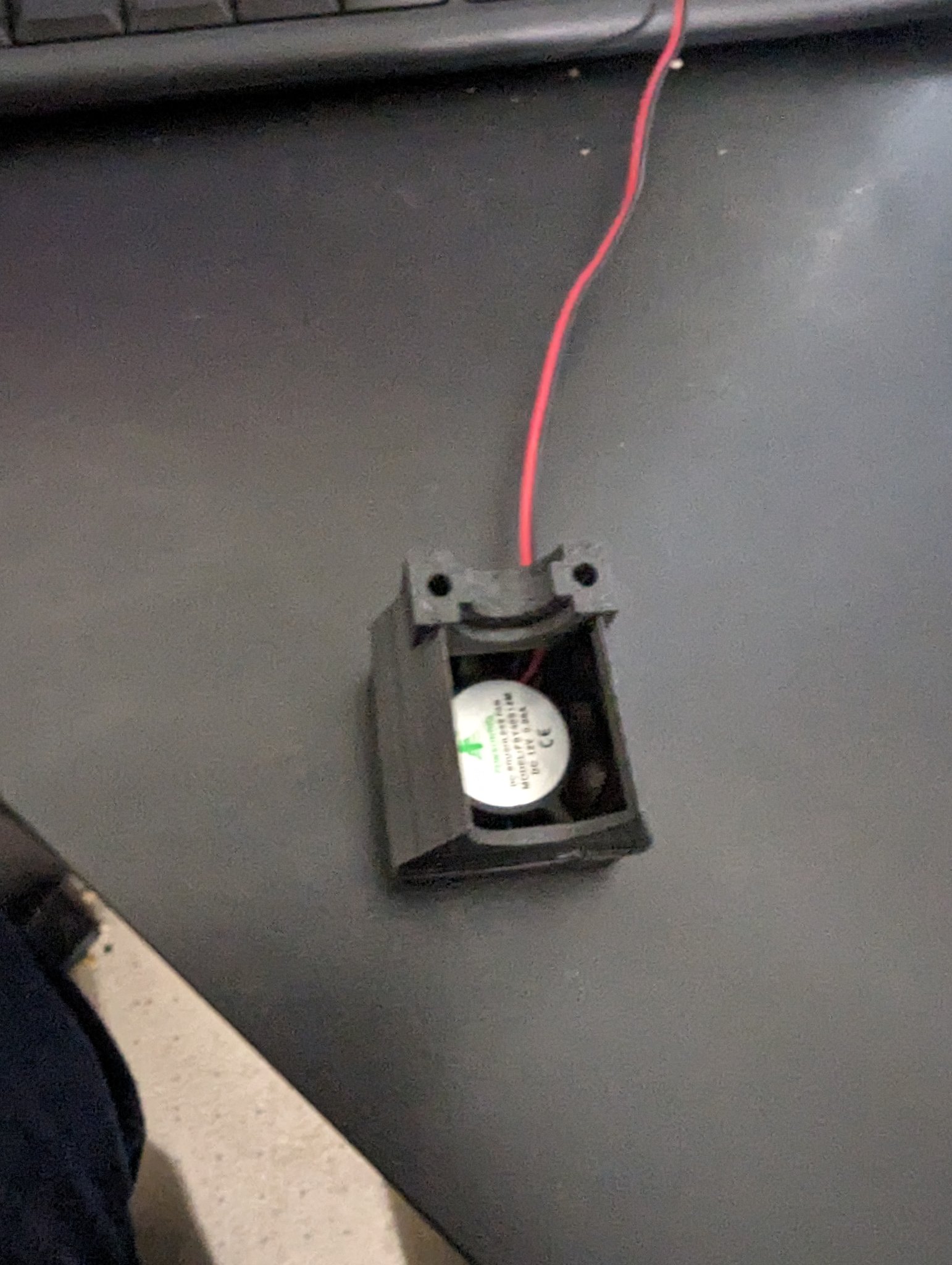

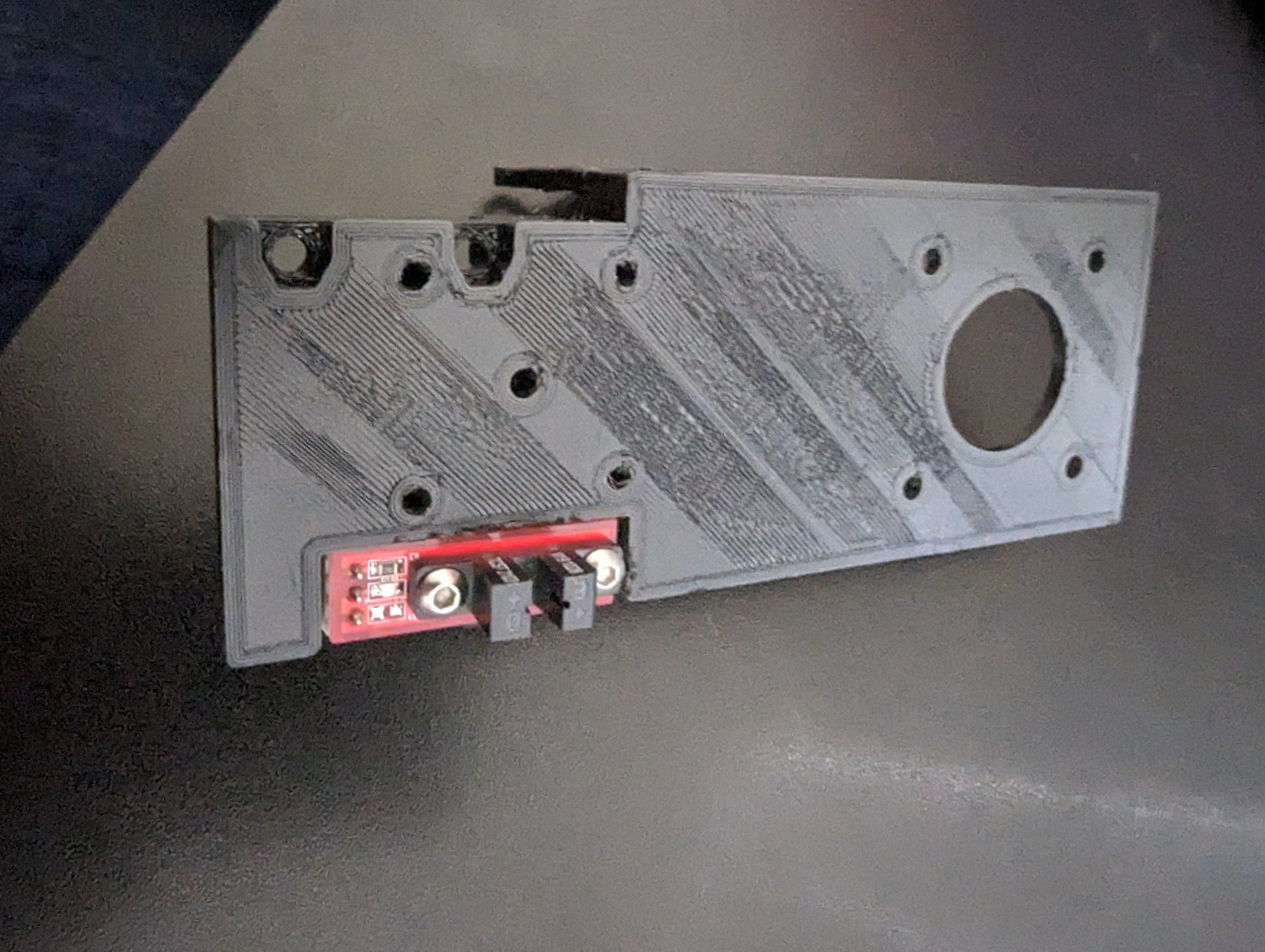

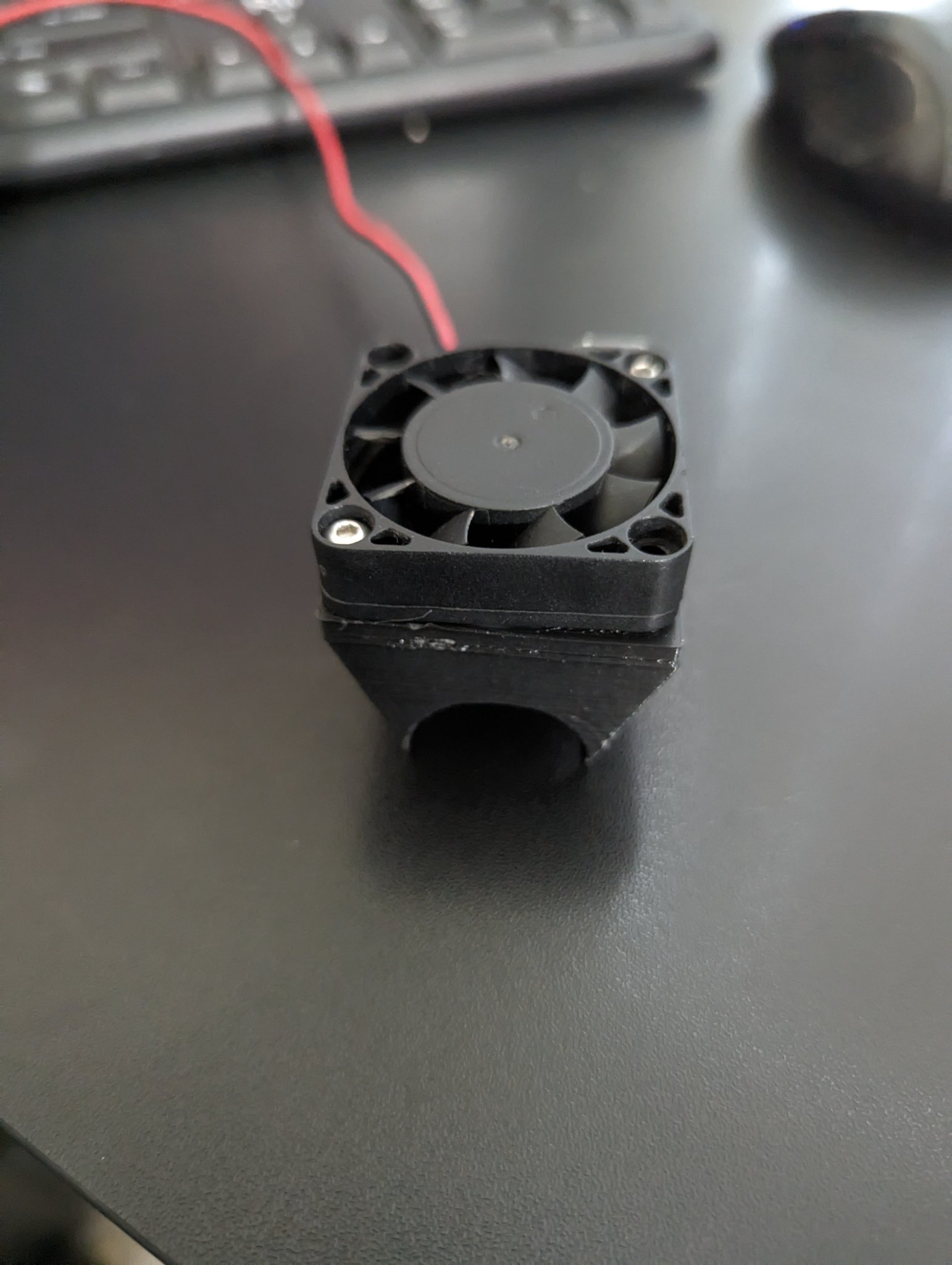

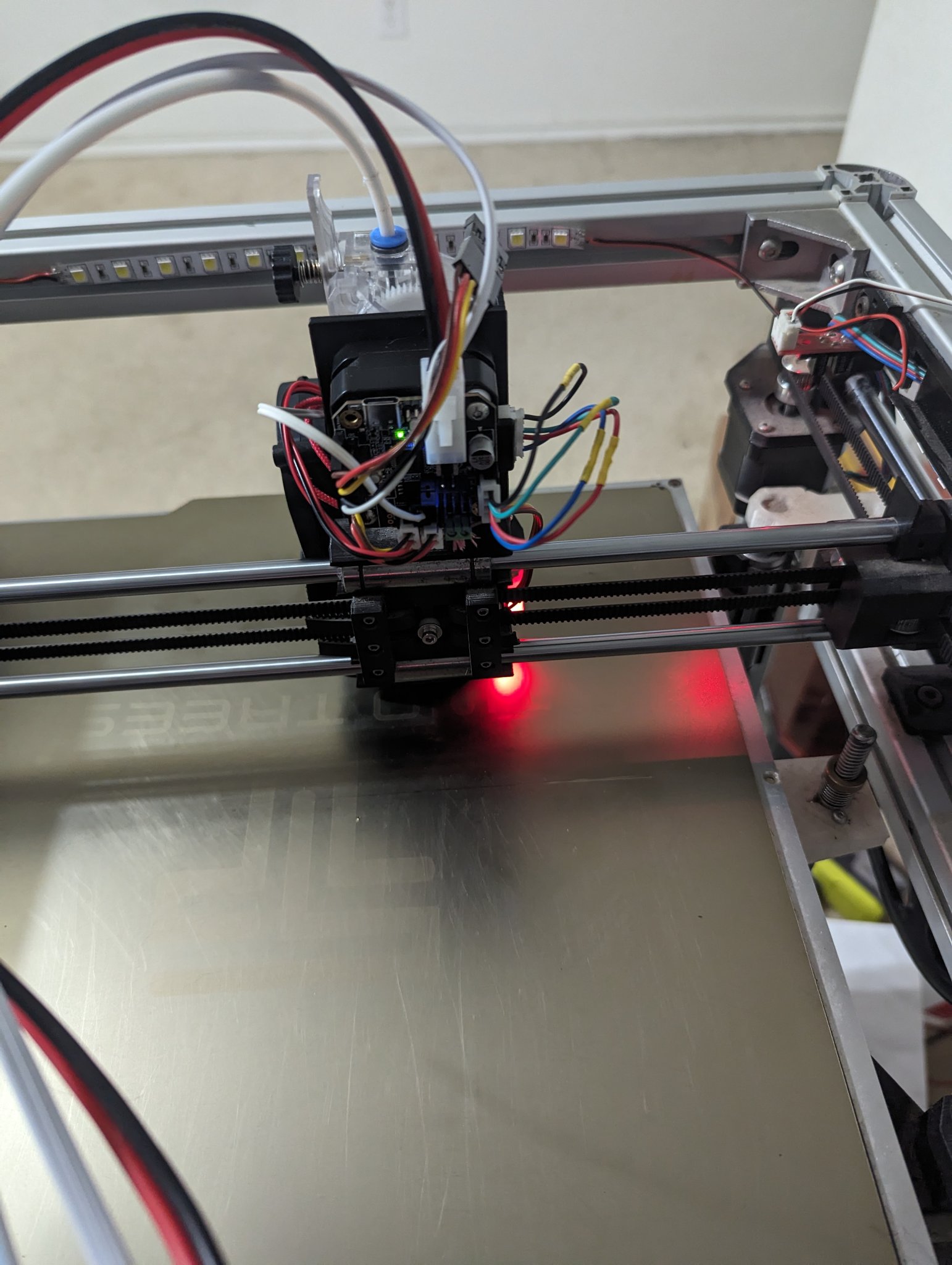

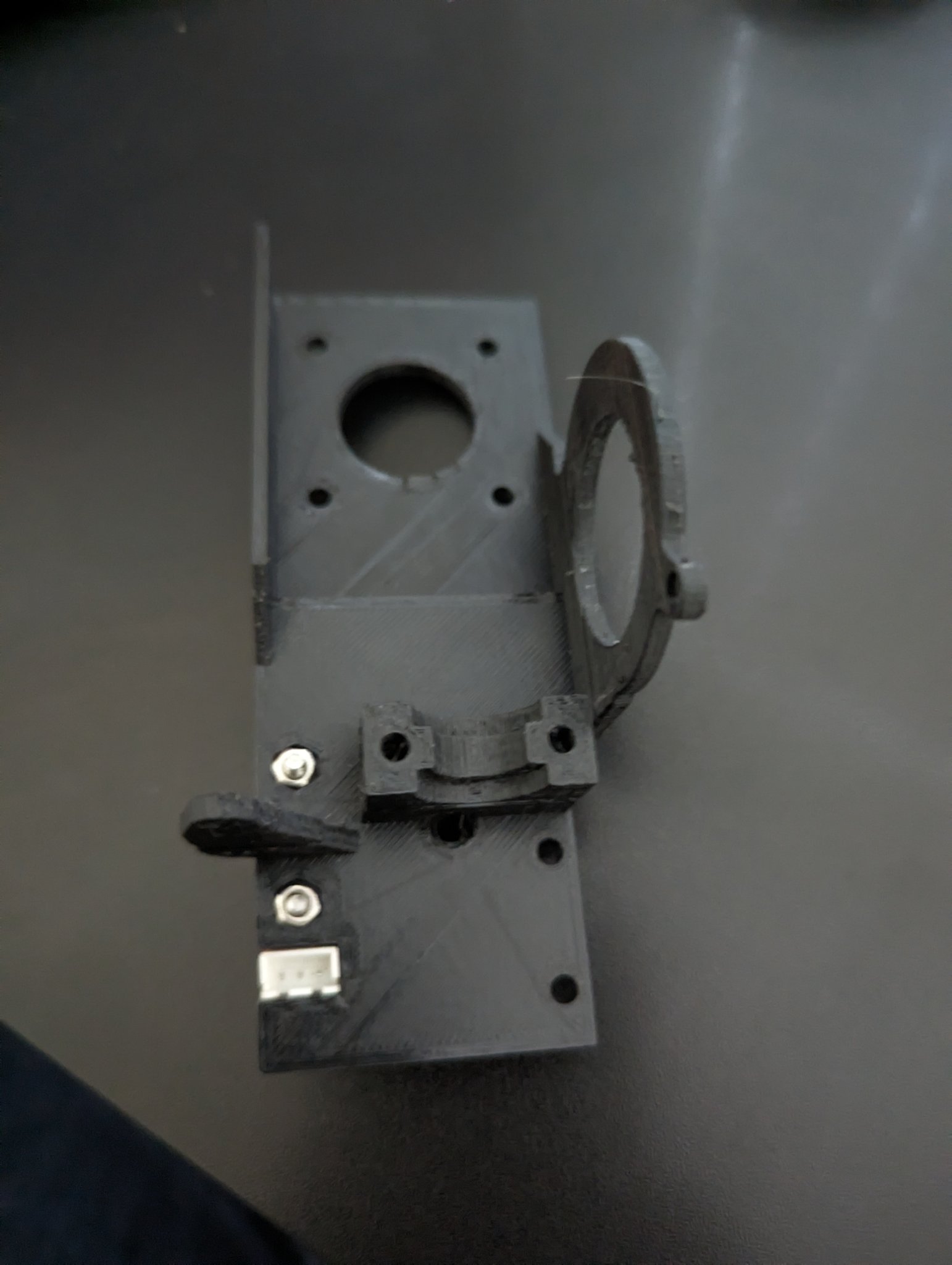

i wanted my BMG to be direct drive instead of bowden since i discovered Klipper and Canbus, most files i found either didn't fit my x-carriage and/or were to big and severely limited my uasable bed area. i built this with tinkercad to the best of my ability. everything should be M3 capture nut idea except the hotend fan which is direct thread. holes at the bottom front of the mount are just extra mount points, i was thinking future neopixel mount myself. as of 11/26/23 this is going from design to functional so im sure theres going to be issues. once its done, assembled,z offset is -32. THIS IS A WORK IN PROGRESS lol. files are stl print with supports touching bed except duct, custom supports for that.

11/27/23

Update mount to v1.1 so bltouch is 3mm lower, lowered extruder assembly down, and new larger diameter duct with notch for bltouch
