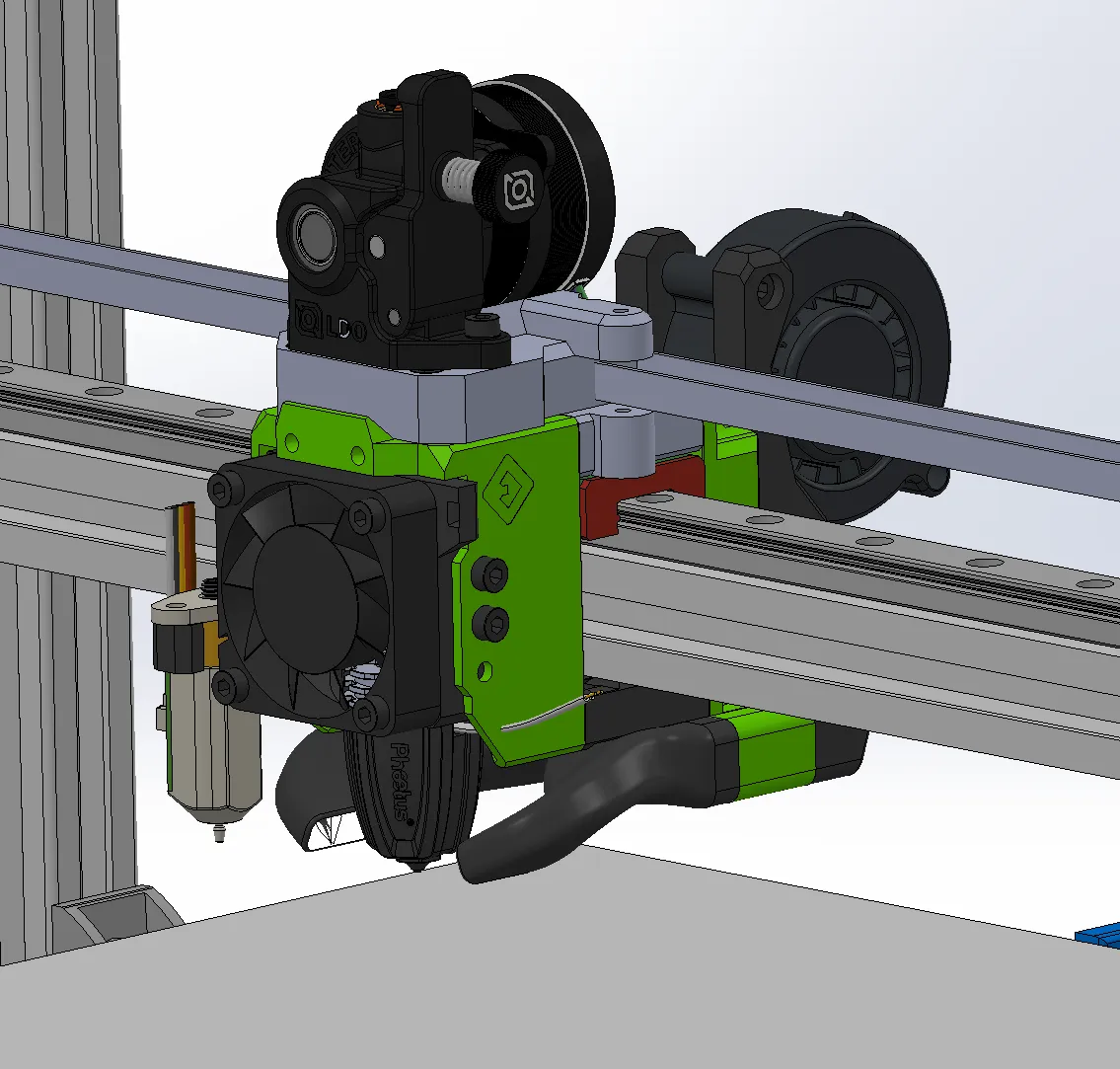

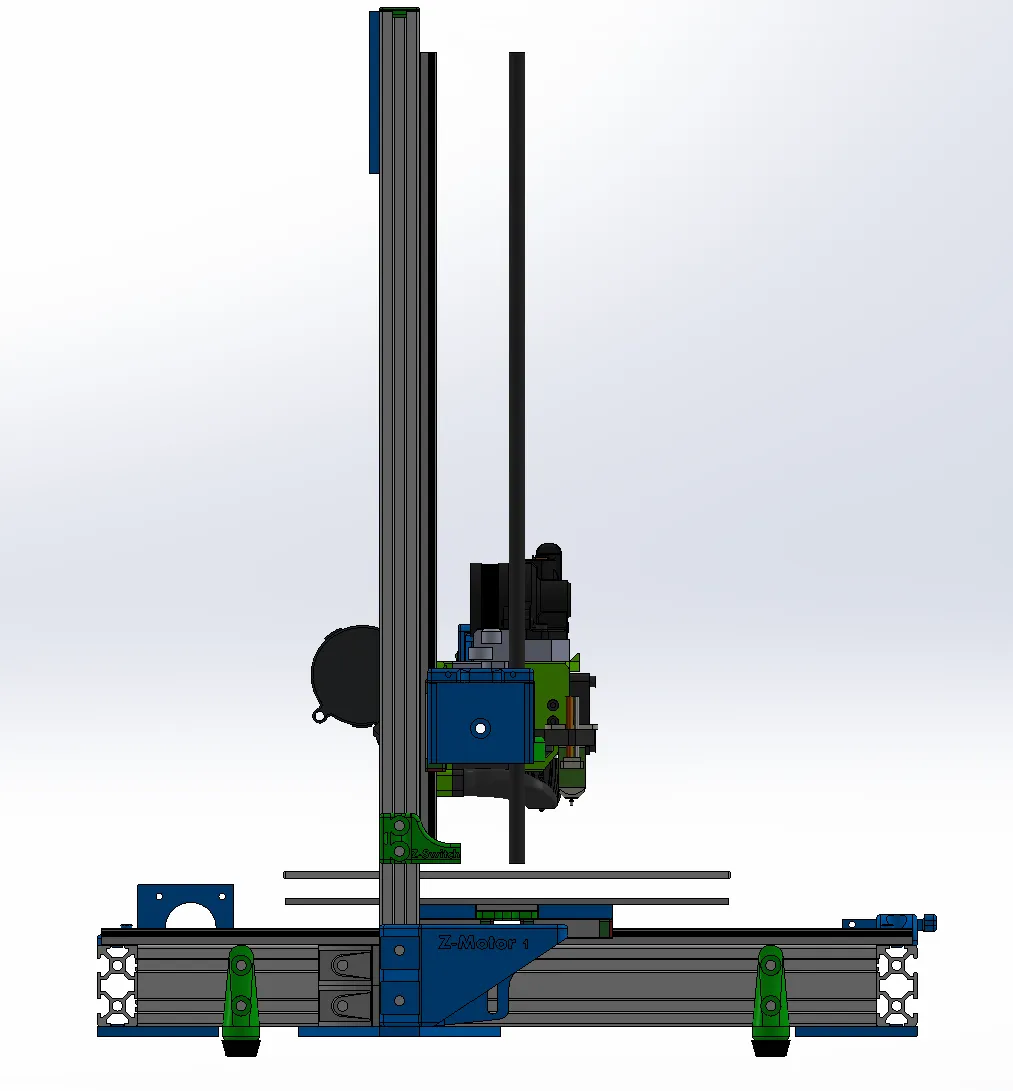

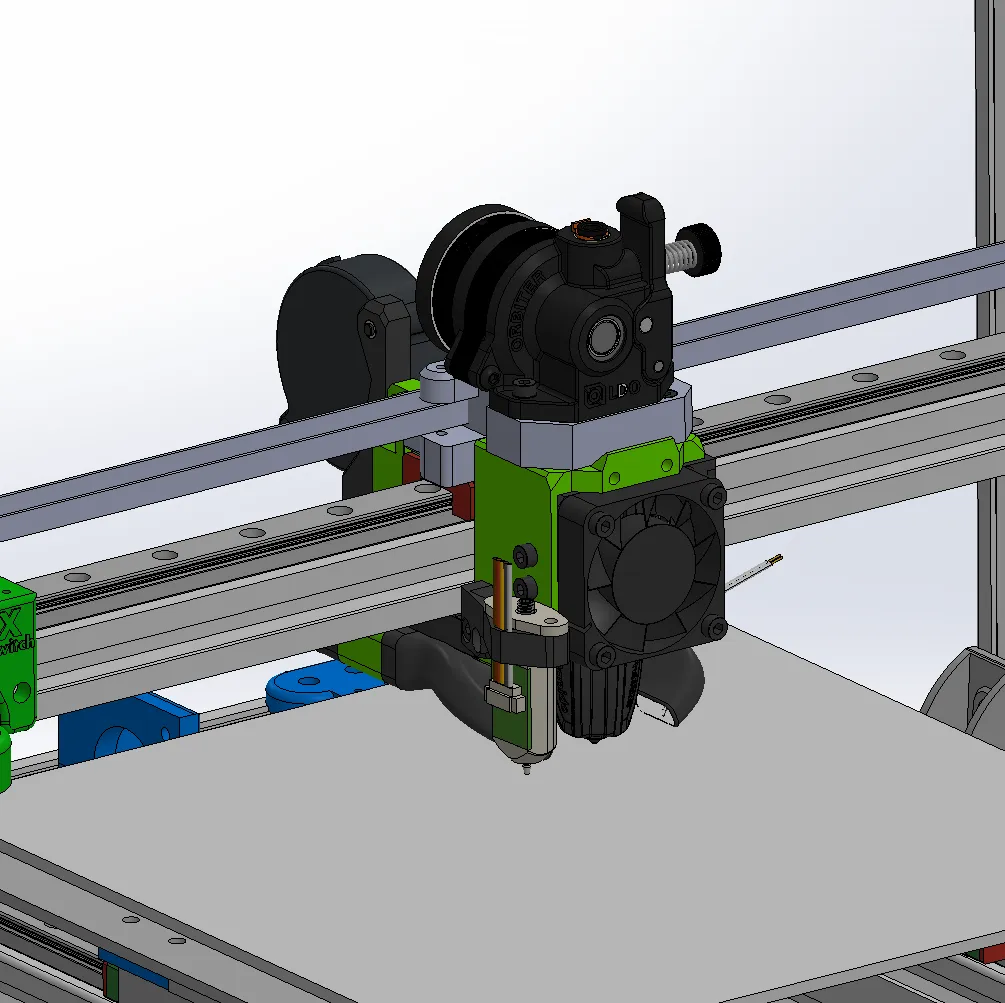

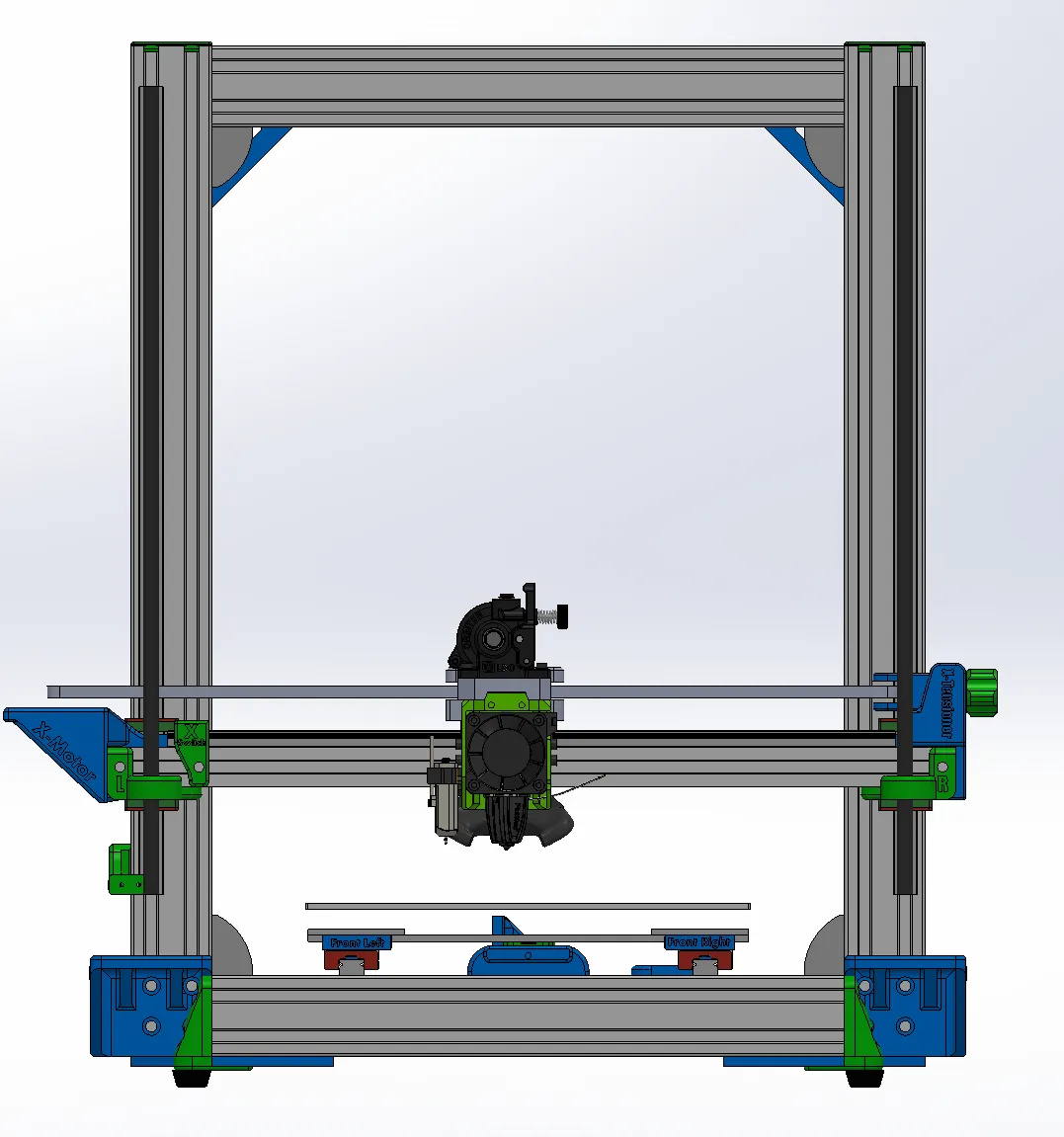

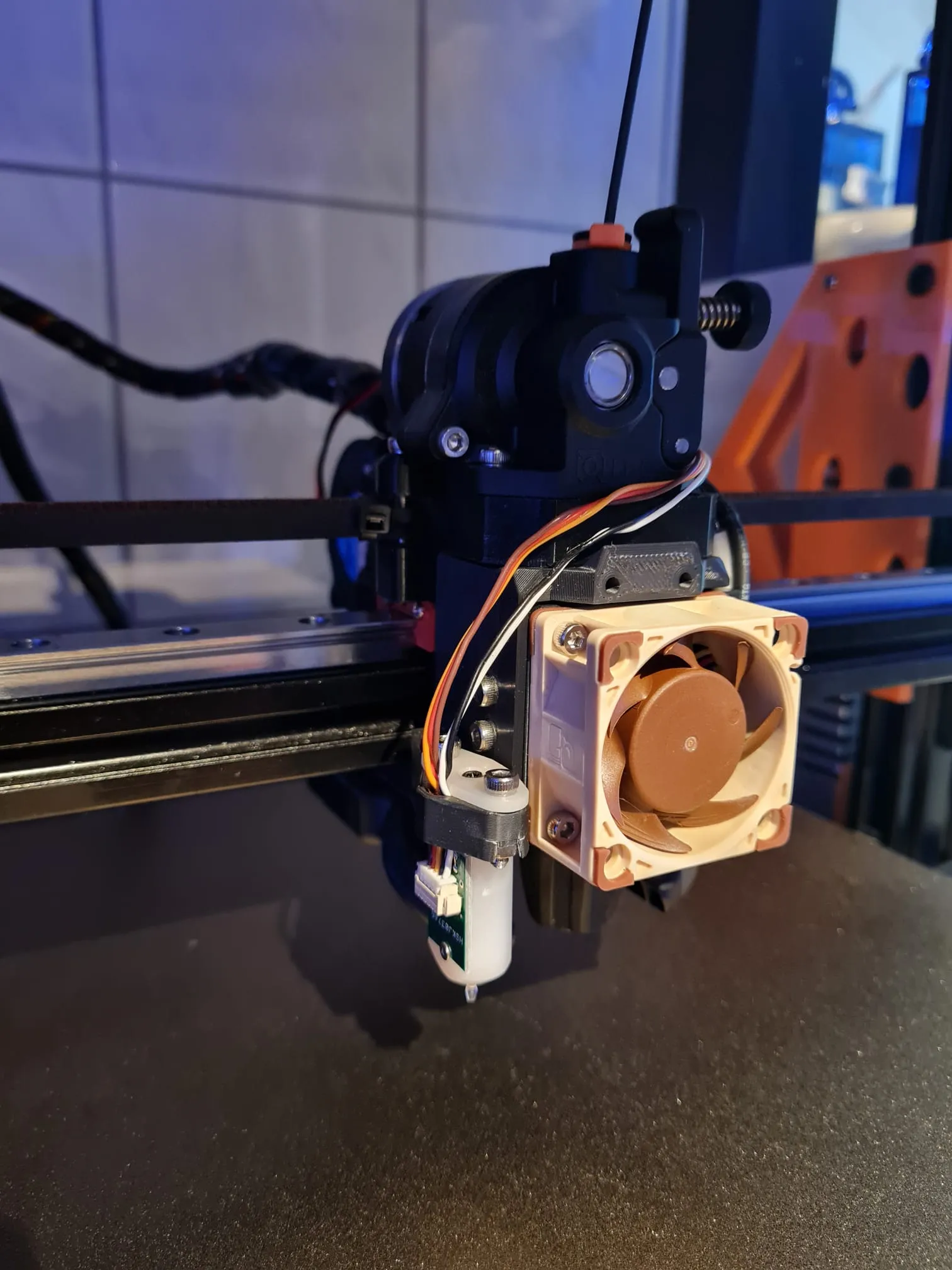

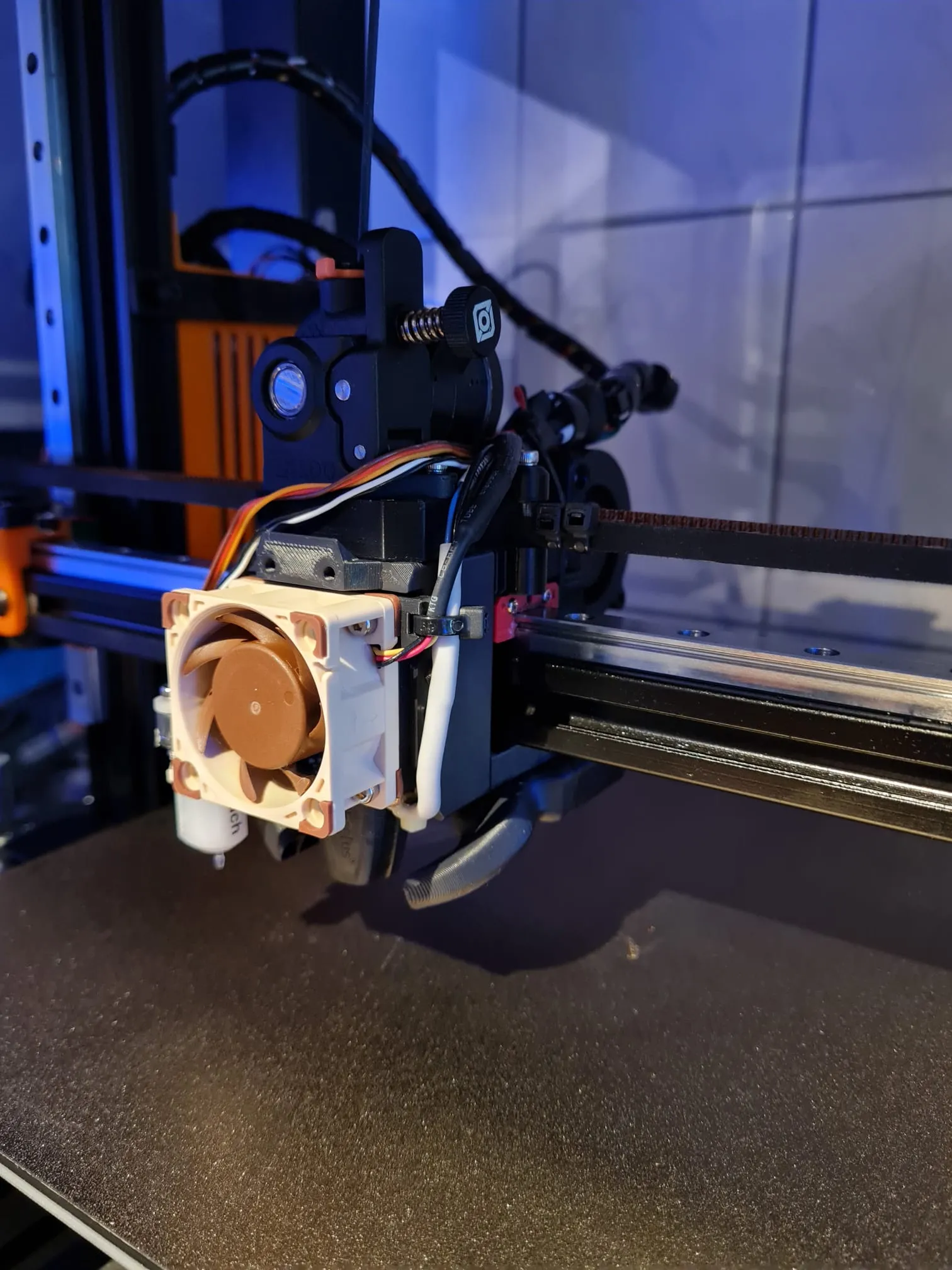

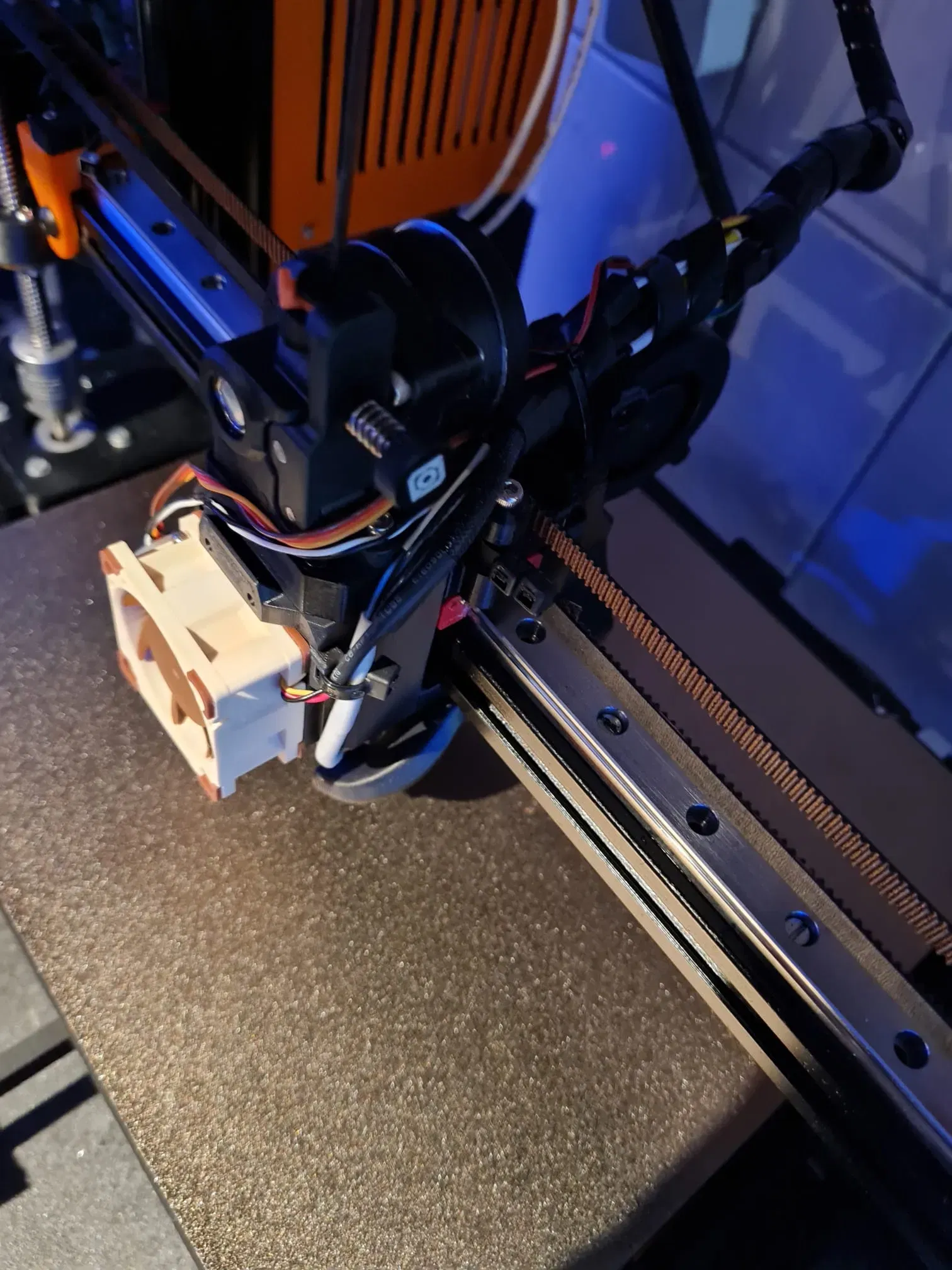

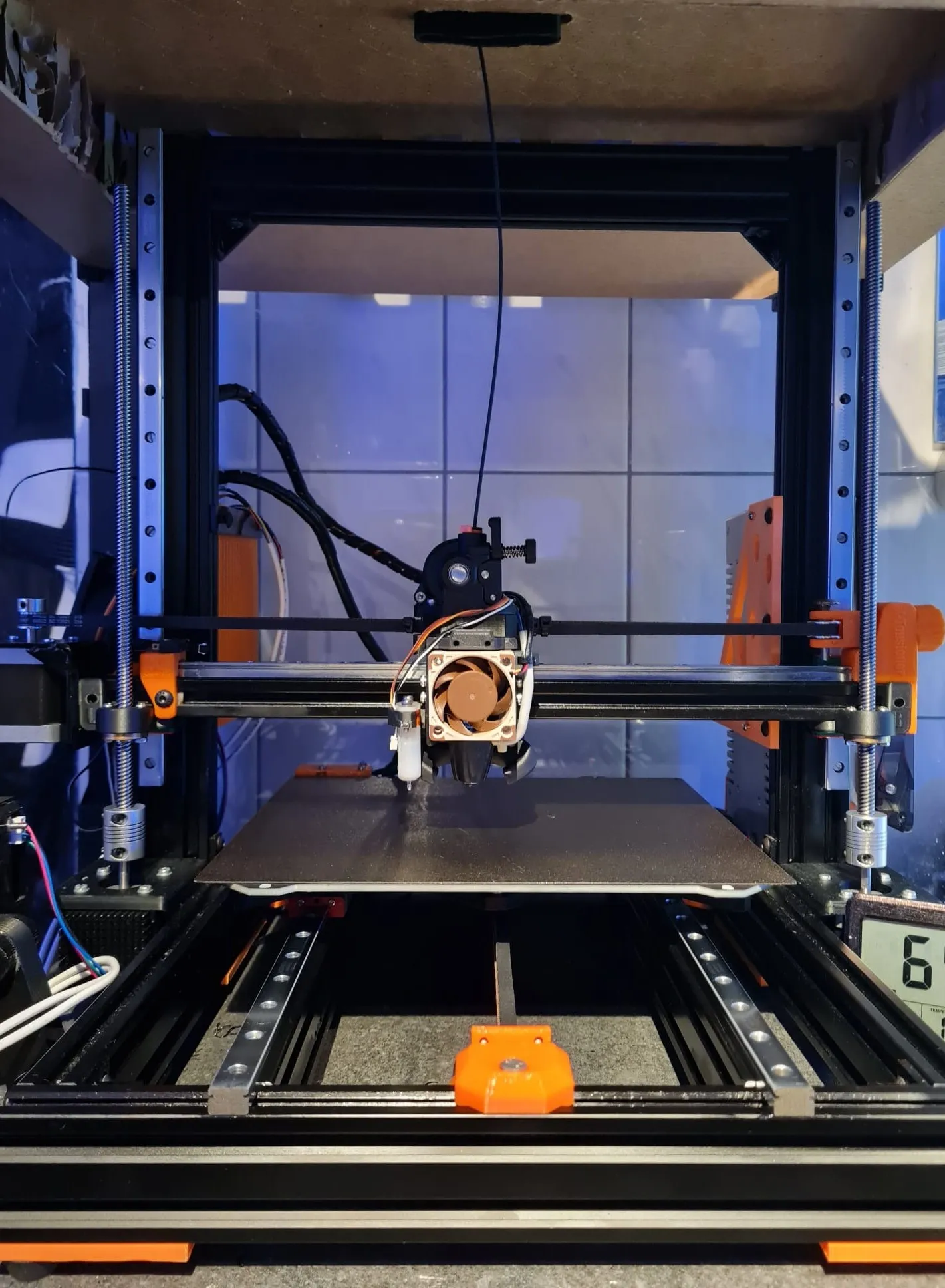

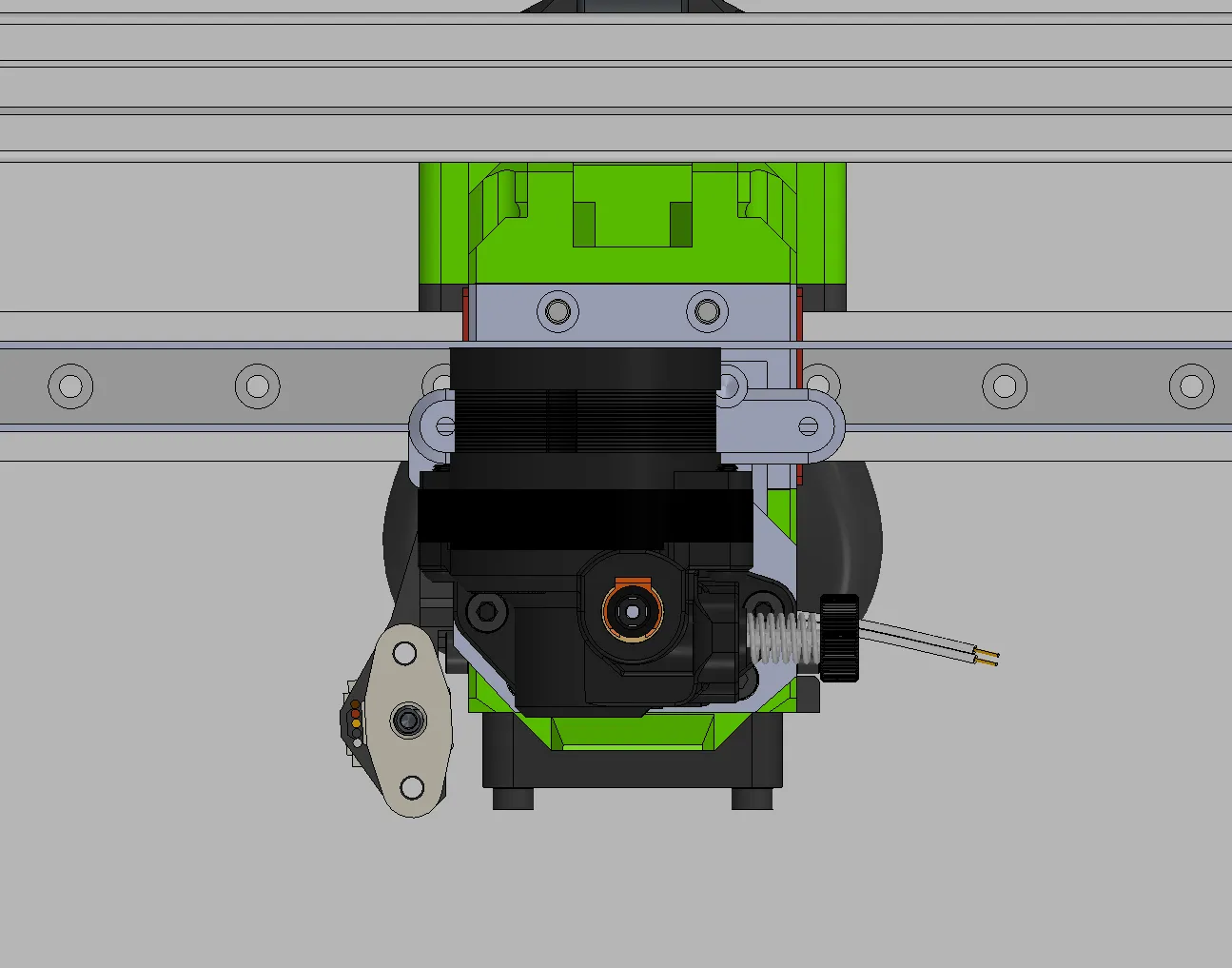

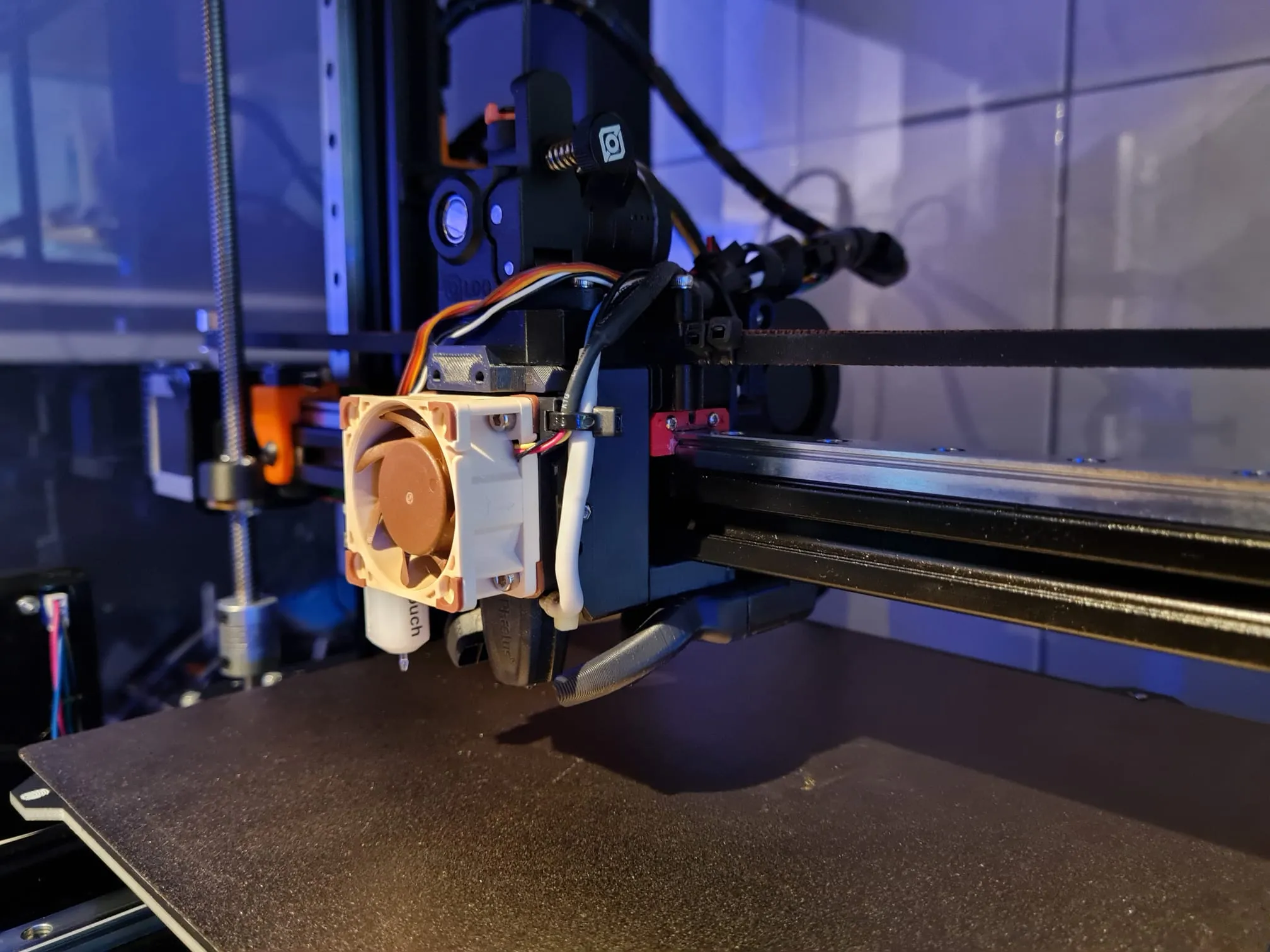

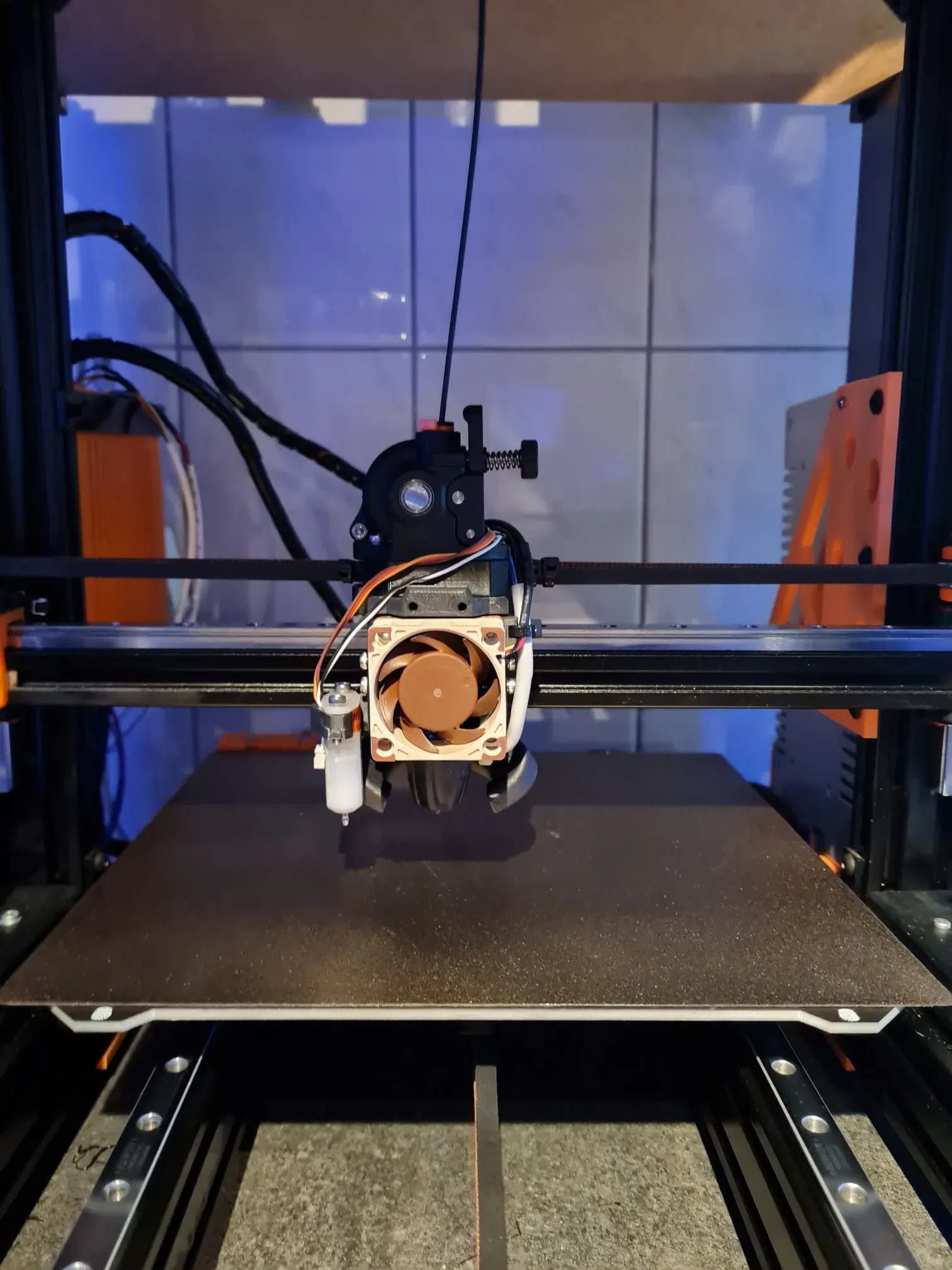

AM8 BLV with EVA 3.0 printhead (Orbiter 2.0 & Rapido HF)

I really liked the design of the EVA 3.0 printhead and I have modified it a little to make it work on the AM8 BLV. The parts are I have changed are the parts for the Orbiter 2.0 extruder and Pheatus Rapido HF hotend.

Website of the AM8 BLV website:

https://www.blvprojects.com/blv-mgn12-mod-3d-printer

Website of the EVA 3.0 printhead

https://main.eva-3d.page/heat_insert/core/cartesian/

To get the printhead working you will need to print 8 files.

4 parts that I have changed to work with the AM8 BLV:

• BLV - BLV - front_universal
• BLV - back_cartesian
• BLV - drive_orbiter_2.0
• BLV - top_endstop_MGN12H

The other 4 files are the original EVA parts that you can download from here, or from the original EVA website:

• bl_touch mount
• 5015_inlet_fi
• hotend_rapido_fi
• bottom_horns_fi

As far as I know it is also possible to change the hotend model or fan mount/duct by downloading another model from the EVA website. When using another extruder, you will probably need to change some parts to make it work with the belts.
