Wardrobe Light Ikea (universal)

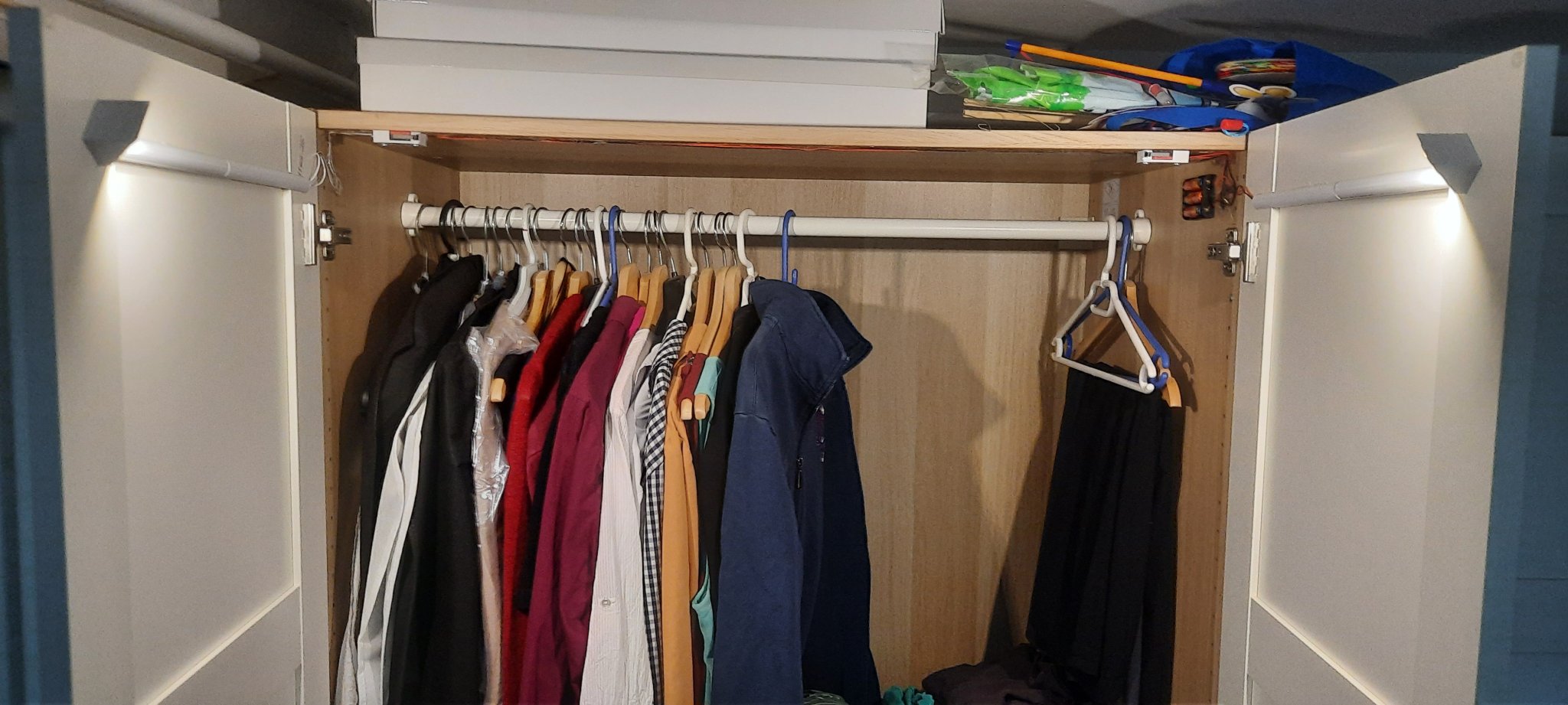

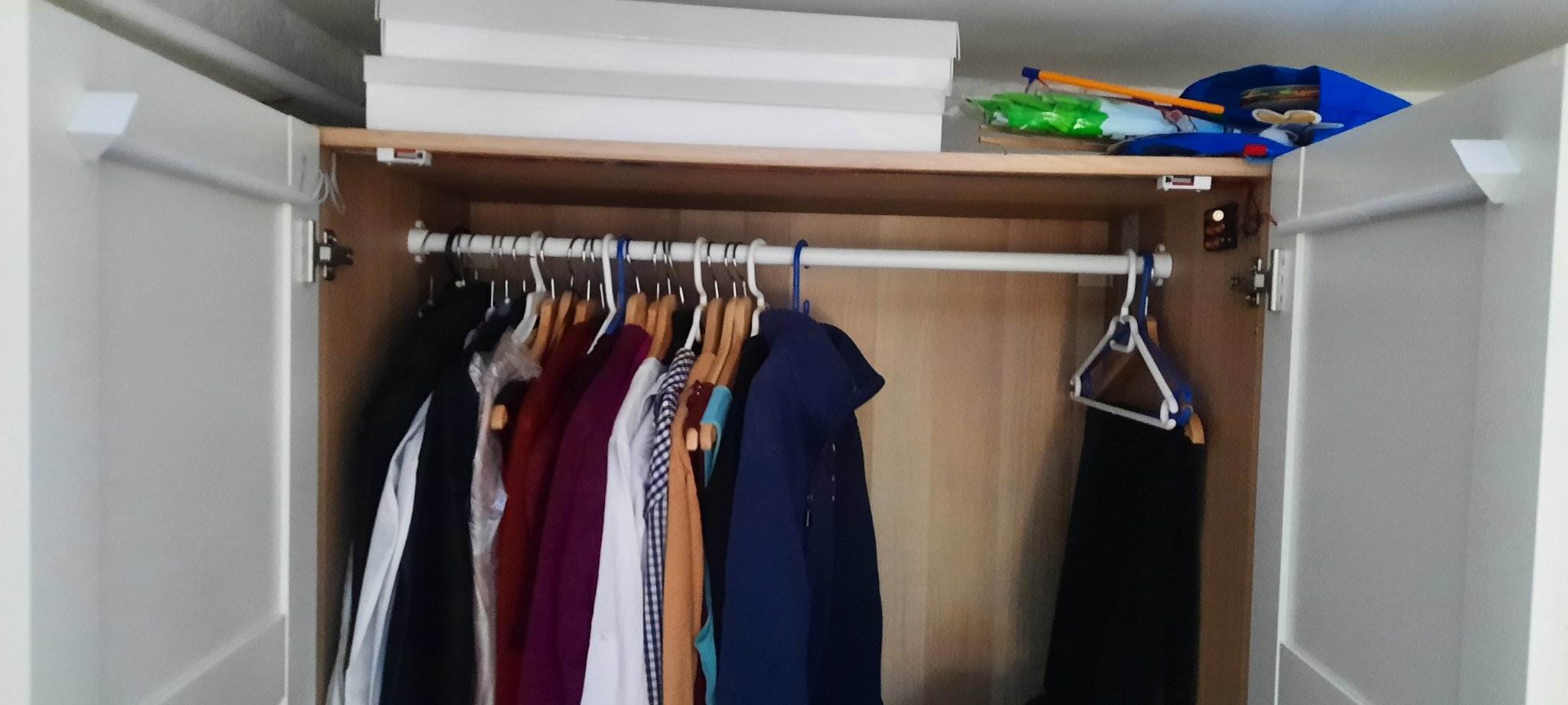

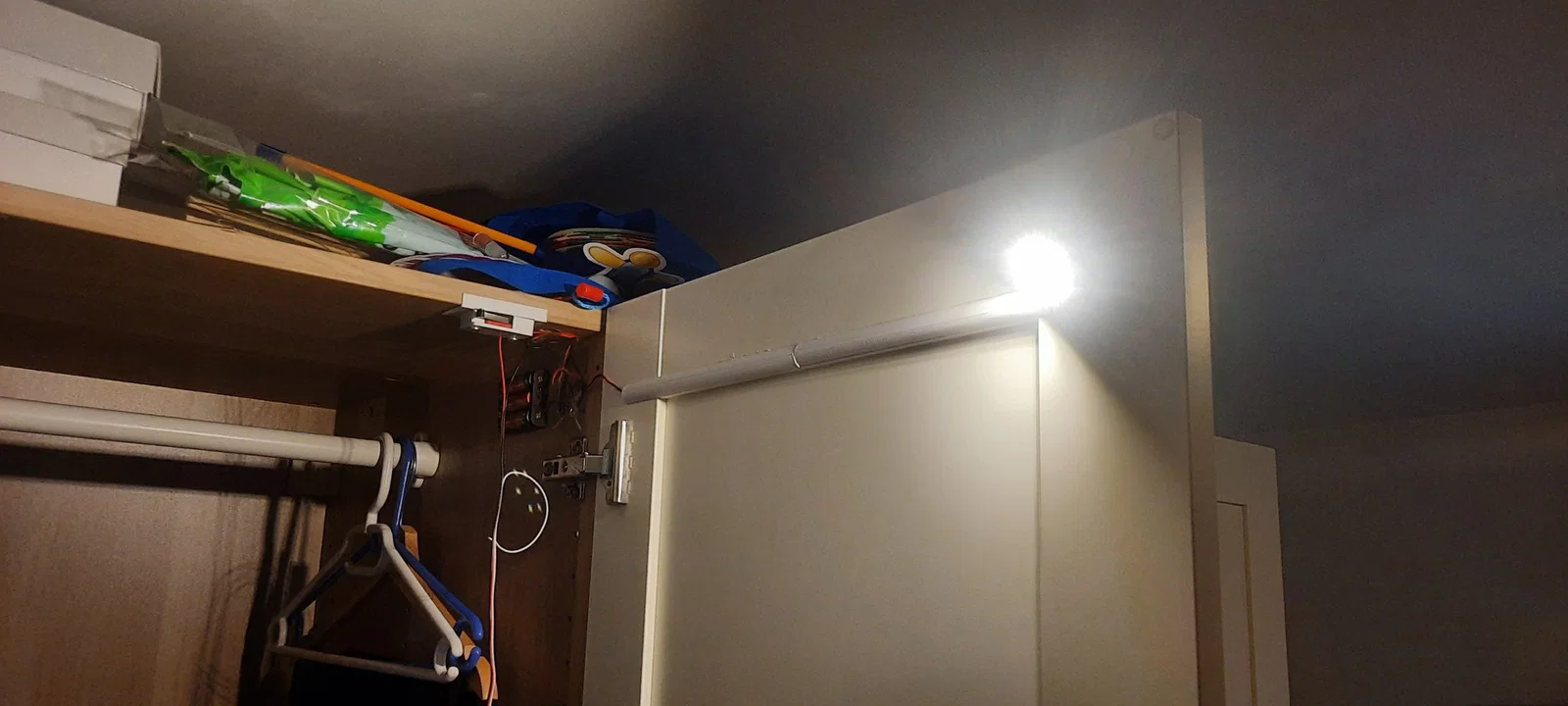

I made a light to light up in the dark, because the room light is not bright there.

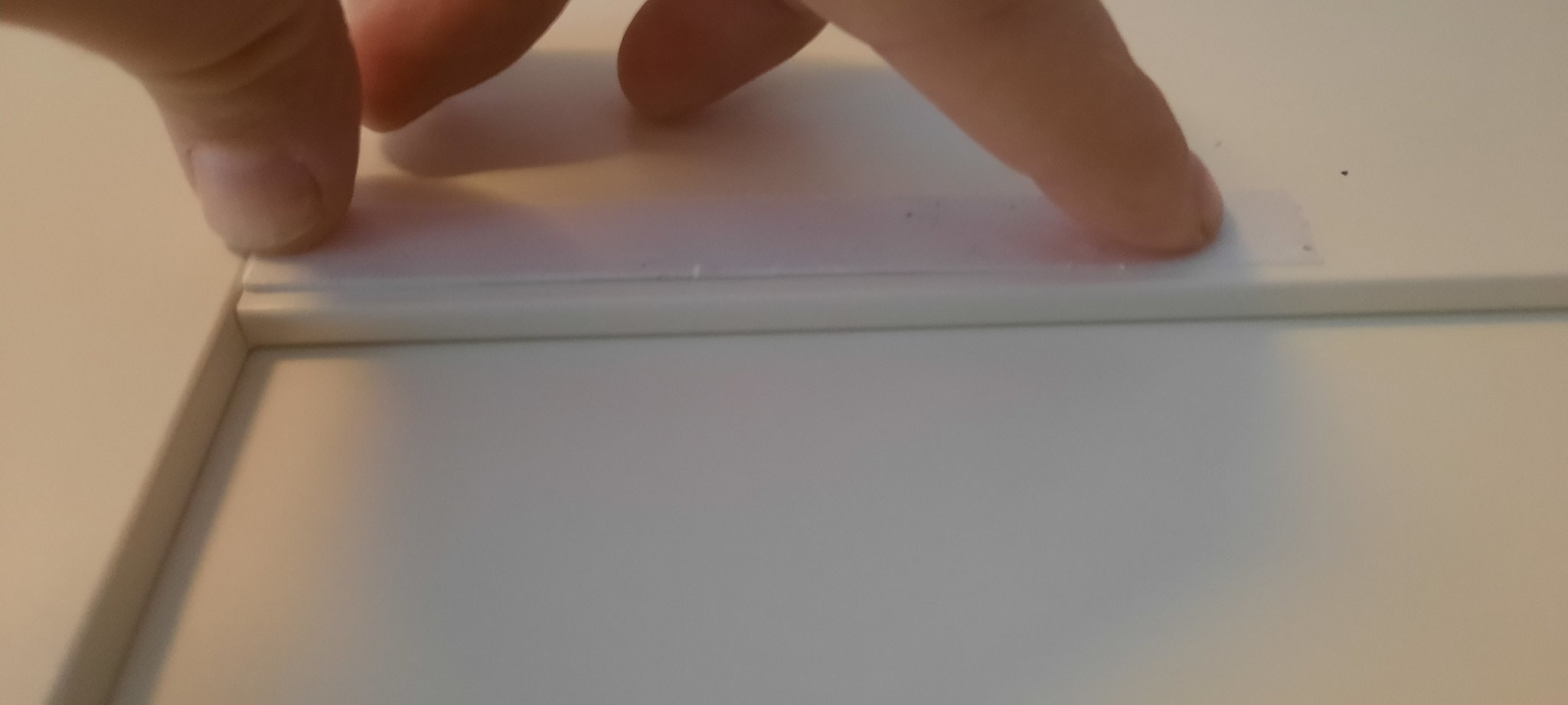

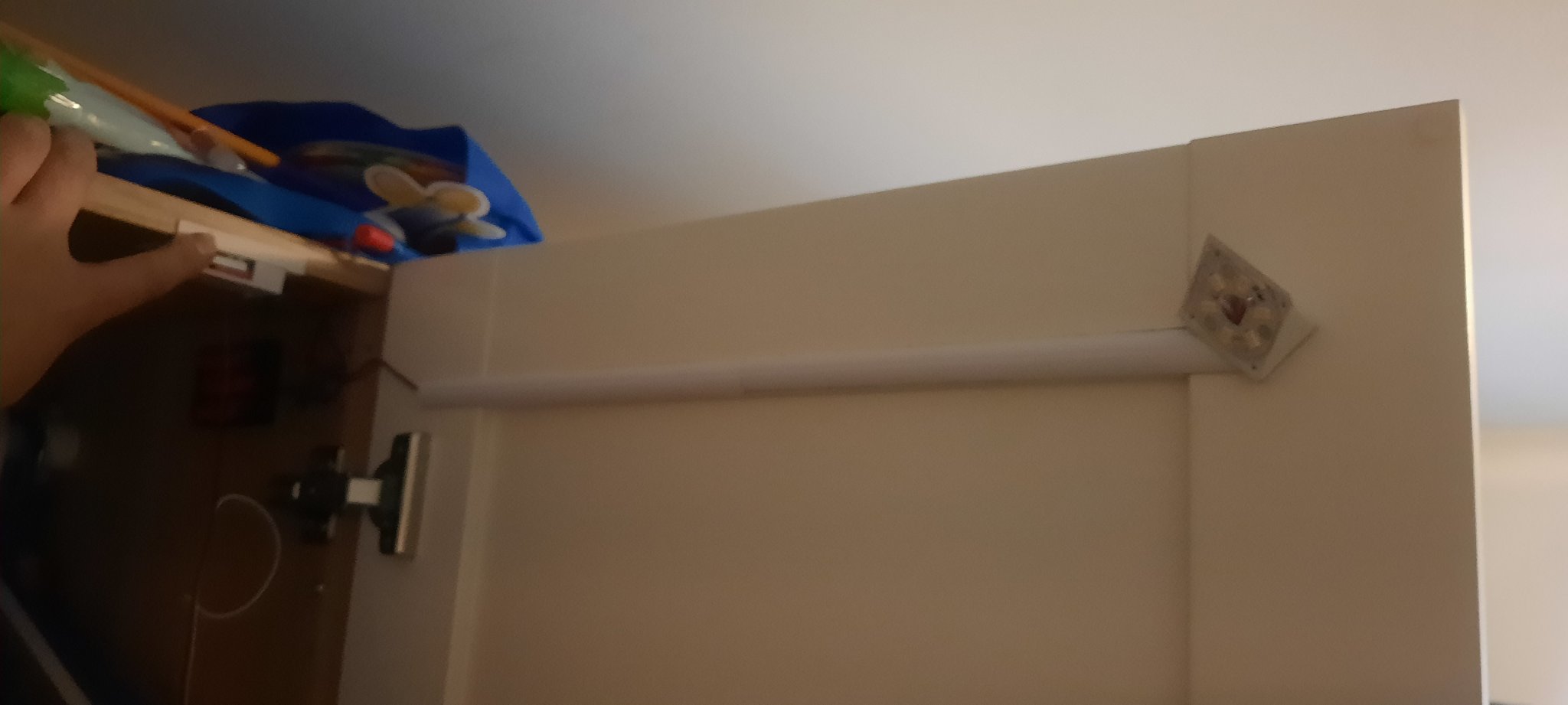

It is for the Ikea Wardrobe system and need just 2 sizes of Bolts for wood up to 4mm with straight head. the Cable chanels were fixed with double sided Tape.

The Light is able to adapt in angels free on will but there need to be a gap in the wardrobe to fit the light.

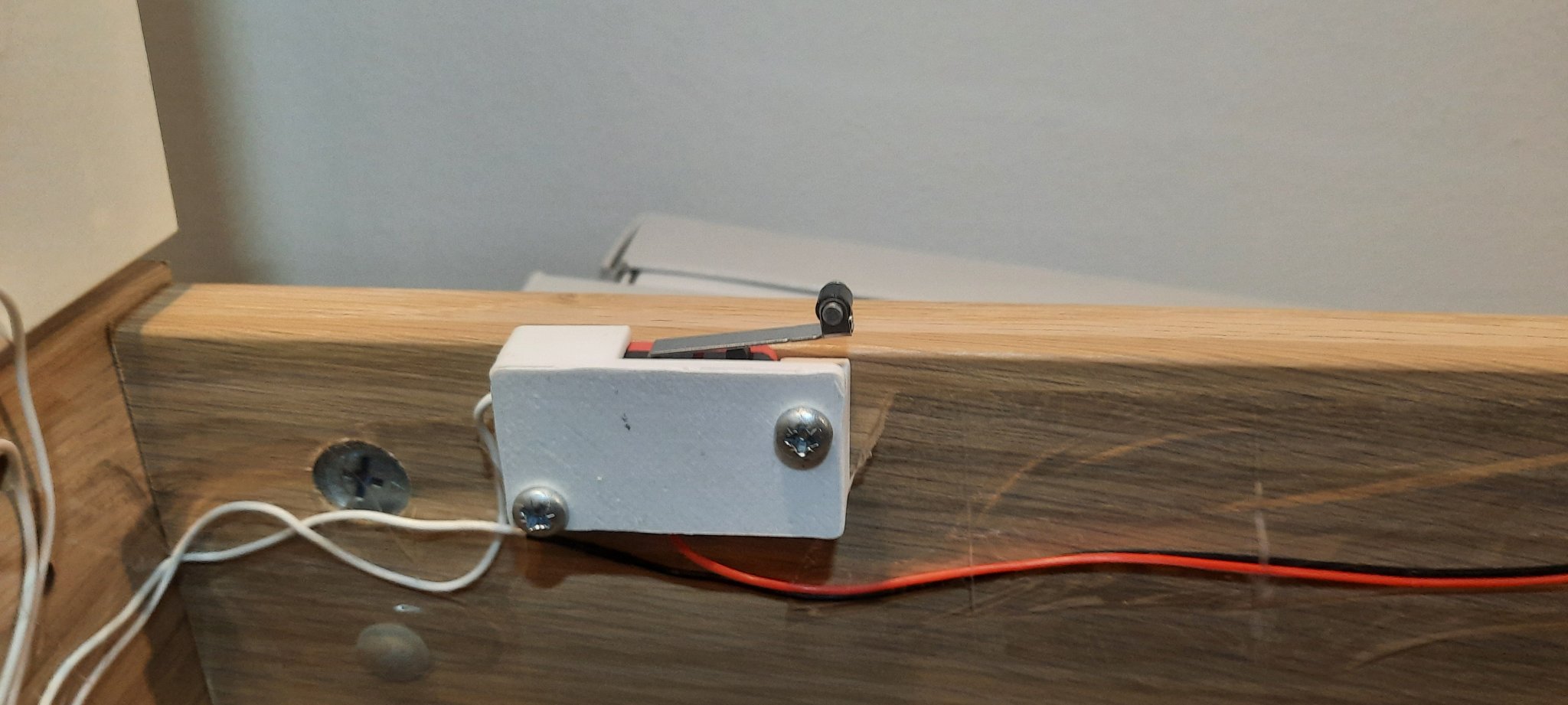

there is one Microswich used per light it can be swiched one by one or when both doors were open or when just master door is opened. newertheless it needs a door to fix ;-)

The Swich Housing and lights and cable Guides can be inverted to be symetrical ;)

“Keil” is to fill the gap, when the door is not plain to fill the gap and increase the sticks surface. only Requiem, when door is not plain and can be adapter in height.

Feel free to adapt and modify

Things used:

https://a.aliexpress.com/\_EHONbnJ

https://a.aliexpress.com/\_ExKwIM9

Cable

Battery tray can be 3xAA or AAA=4,5V or 4x rechargeable AA(A) battery's =4,8V Alternatively usb powerbank/-supply 5V also wörk
