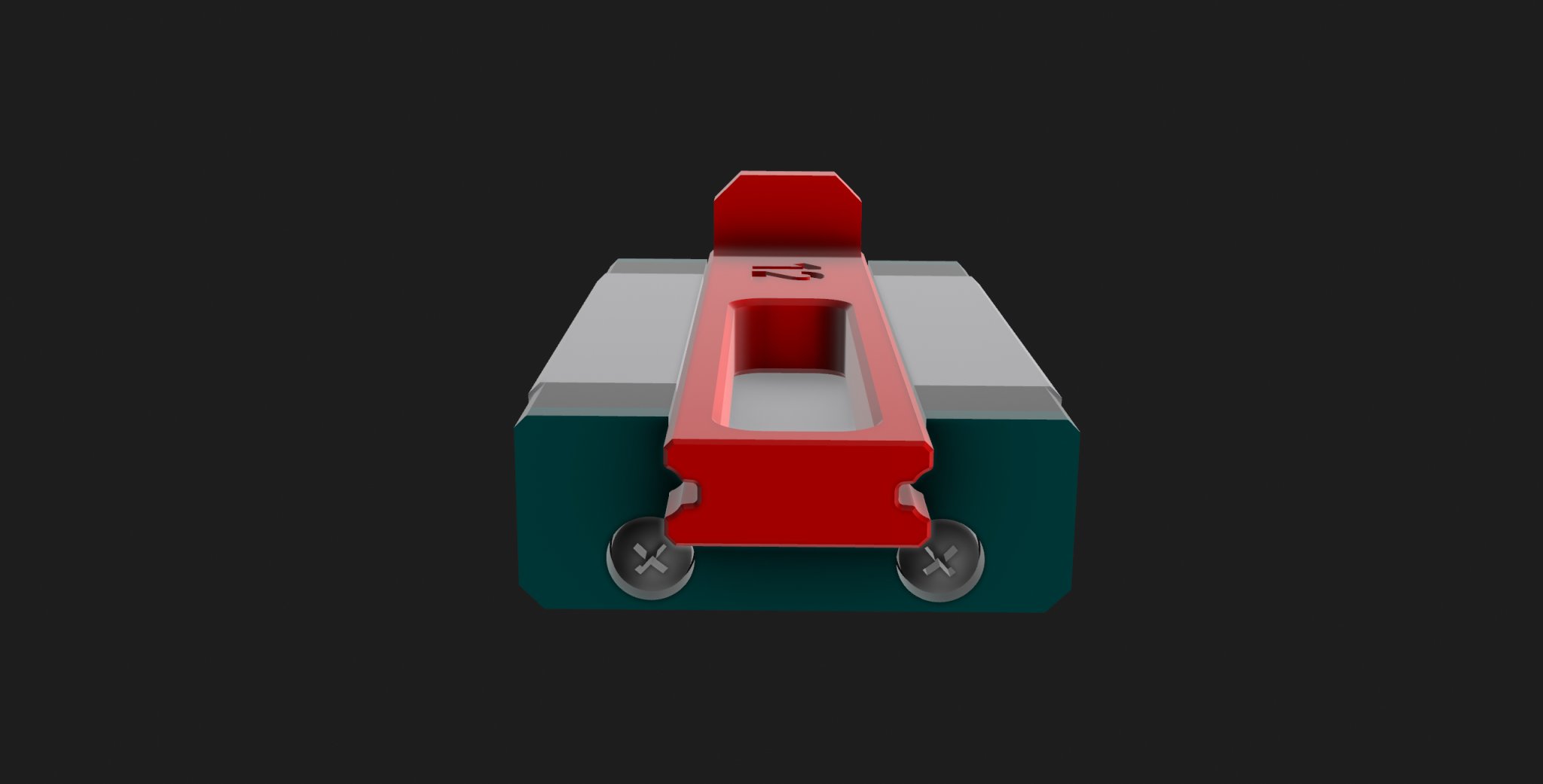

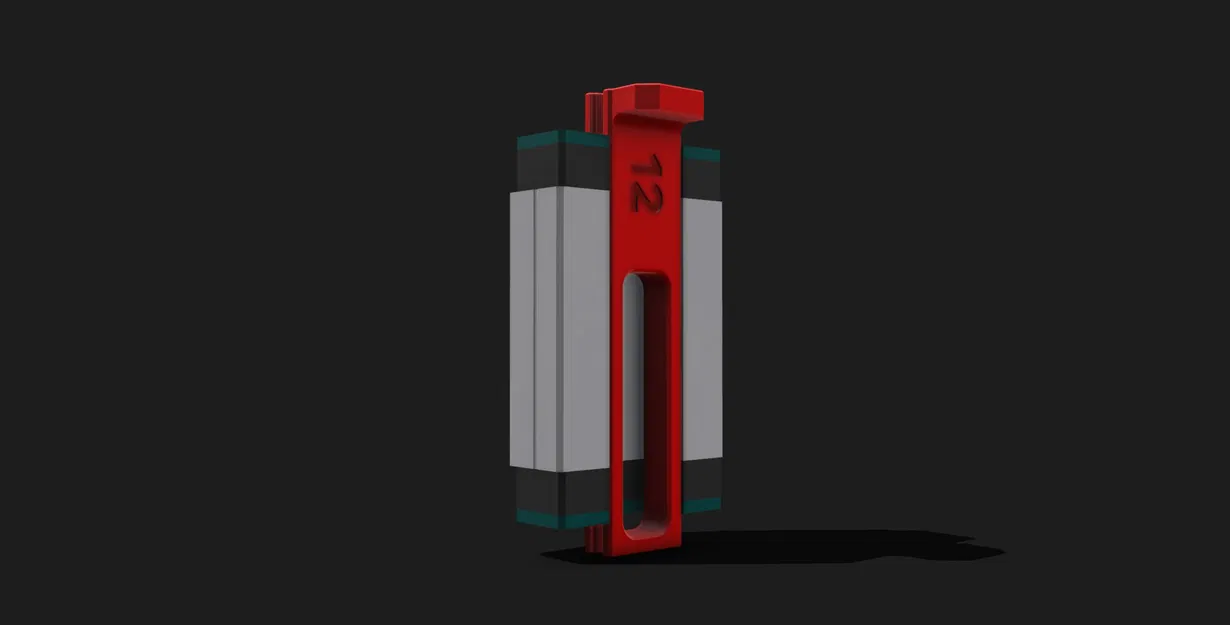

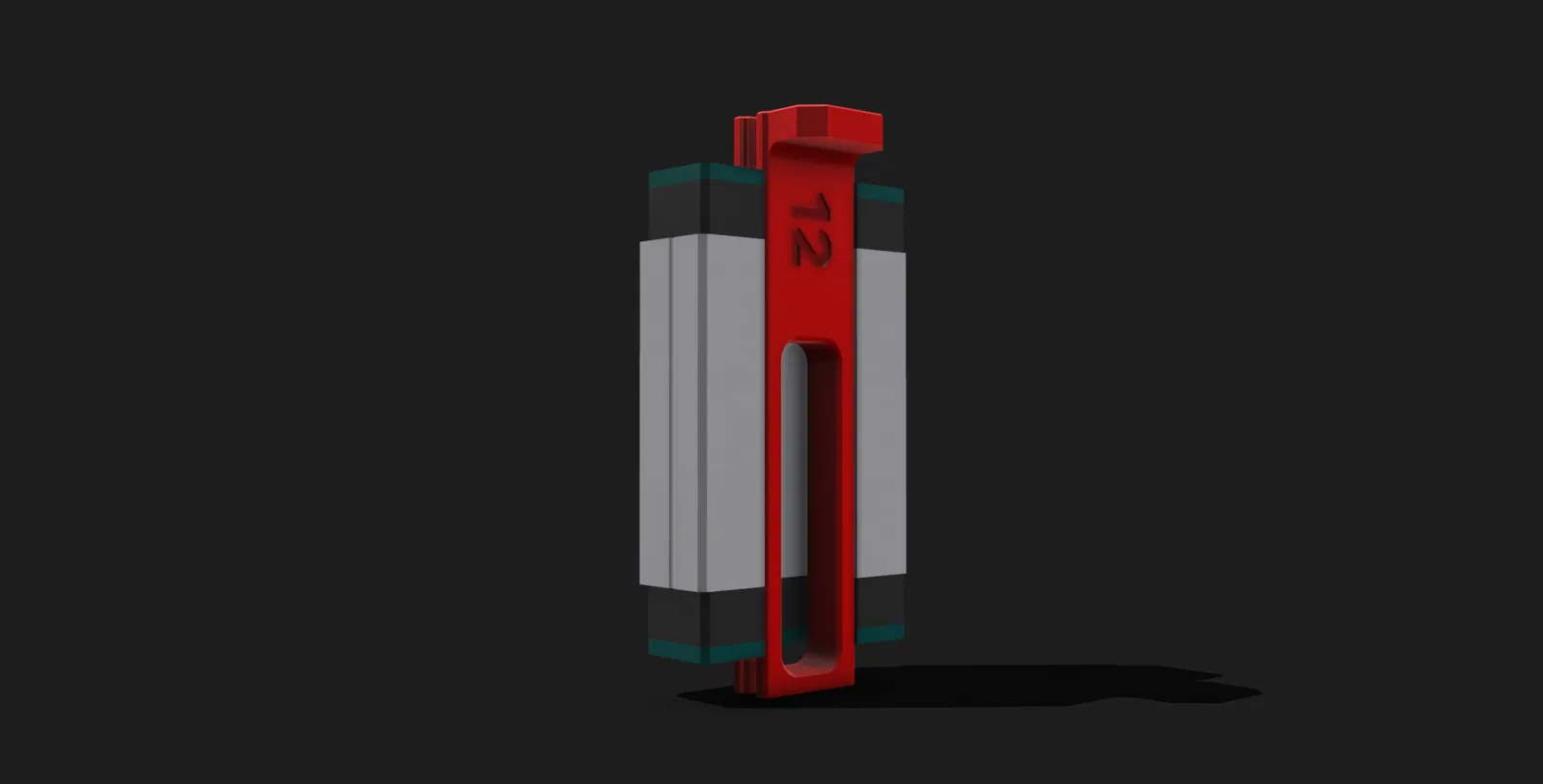

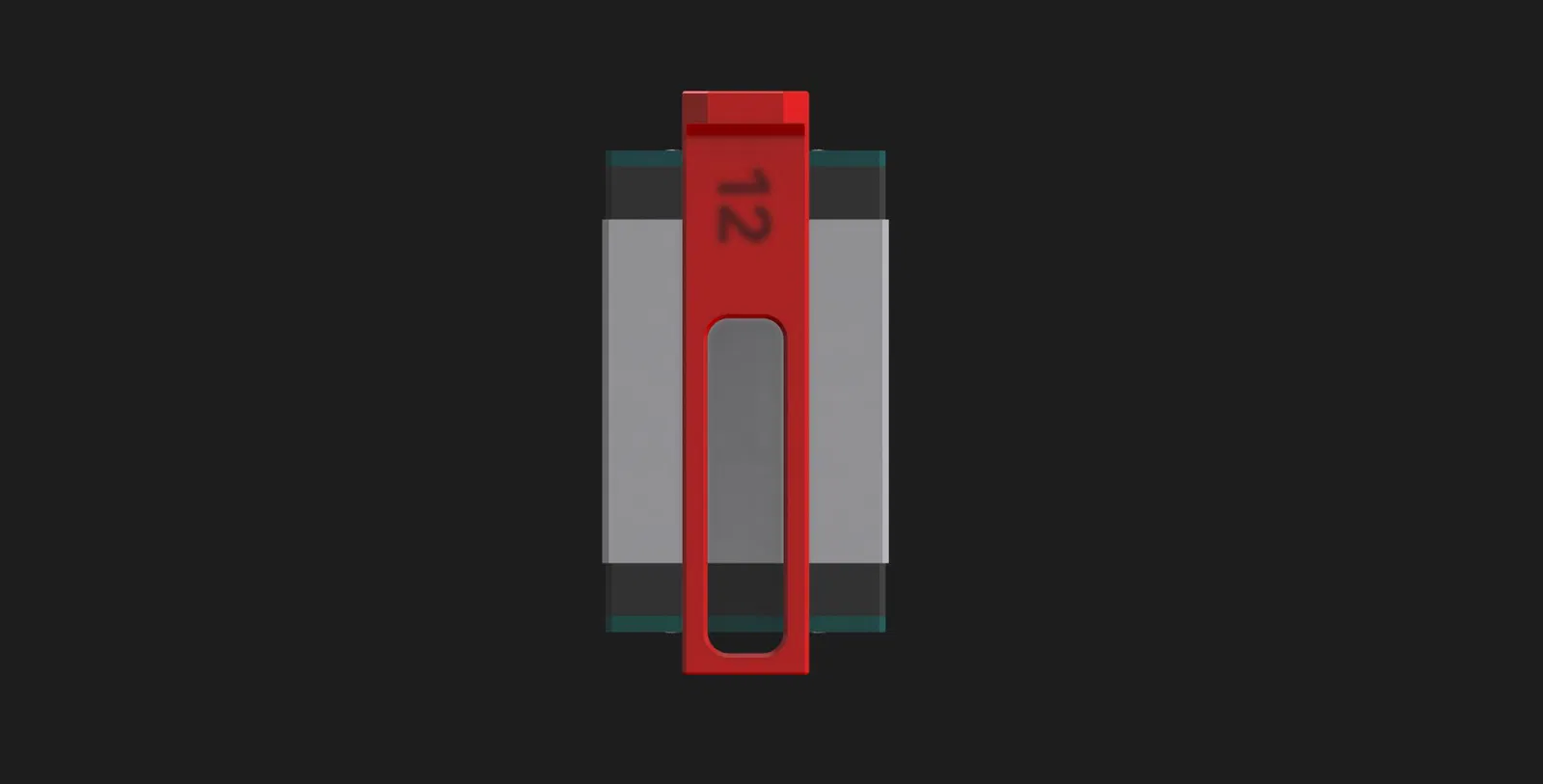

MGN12 rail block assembly tool

ABOUT MGN12 RAIL BLOCK ASSEMBLY TOOL

Precise, printed rail block assembly/servicing tool for MGN12 linear rail carriages.

In short - this will allow not to drop your balls :)

| #### SUPPORTED RAIL BLOCK CARRIAGES |
|---|

MGN12H; MGN12C

| ##### Printed Parts |
|---|
| Printed parts | 1 |

| #### PRINT GUIDELINES |
|---|

Here are print guidelines for you to follow in order to have decent success with printing parts:

| 3D PRINTING PROCESS | Fused Deposition Modeling (FDM) |
|---|---|
| INFILL TYPE | Grid, Gyroid, Honeycomb, Triangle or Cubic |
| MATERIAL | ASA, ASA-CF, ABS, ABS+, ABS-CF, PLA, PETG |
| INFILL PERCENTAGE | > = 40% |
| LAYER HEIGHT | Recommended: 0.2mm |
| WALL COUNT | Recommended: 4 |
| SOLID TOP/BOTTOM LAYERS | Recommended: 5 |
| EXTRUSION WIDTH | Forced 0.4mm |

| ### CHANGELOG |
|---|

| Date | Change |
|---|---|
| 26.11.2023 | Initial version (Rev1) |
