Tiêu đề Creality Sprite Pro BLTouch Raiser Tóm tắt Model này tăng BL

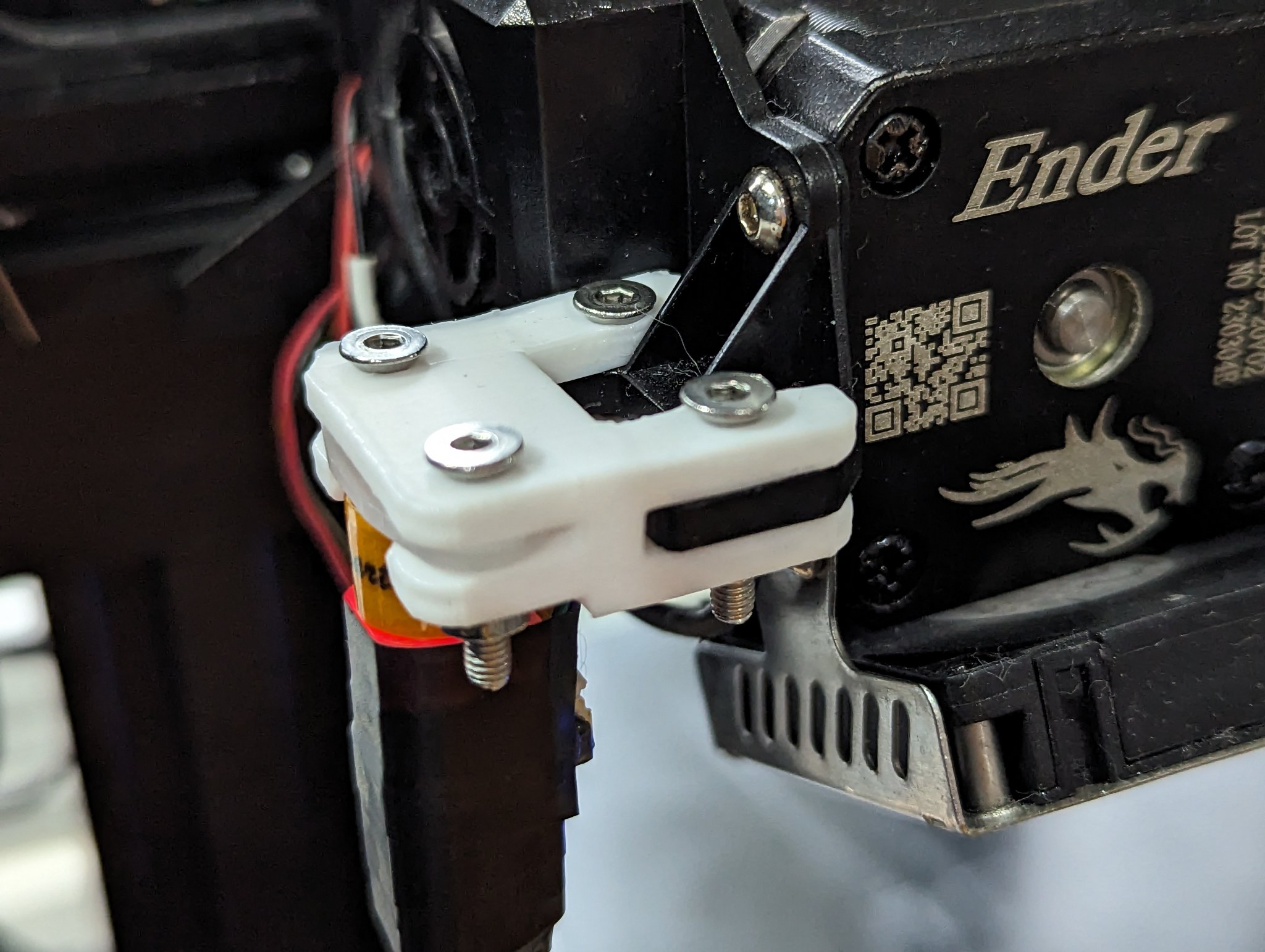

The BLTouch I use was too low, it kept bumping into prints and especially the bed clips, so I made a model to raise it by 3.5 millimeters.

You should print this on it's side with supports!

This will offset the Z axis by 3.6 millimeters, X axis by 13.5 millimeters and Y axis by 0 millimeters. Be sure to do new Z probing afterwards still!

You can adjust this model in openSCAD!

To adjust the extra height, modify the extra_height variable. To adjust the thickness of the BLTouch mount, adjust bltouch_mount_thickness.
