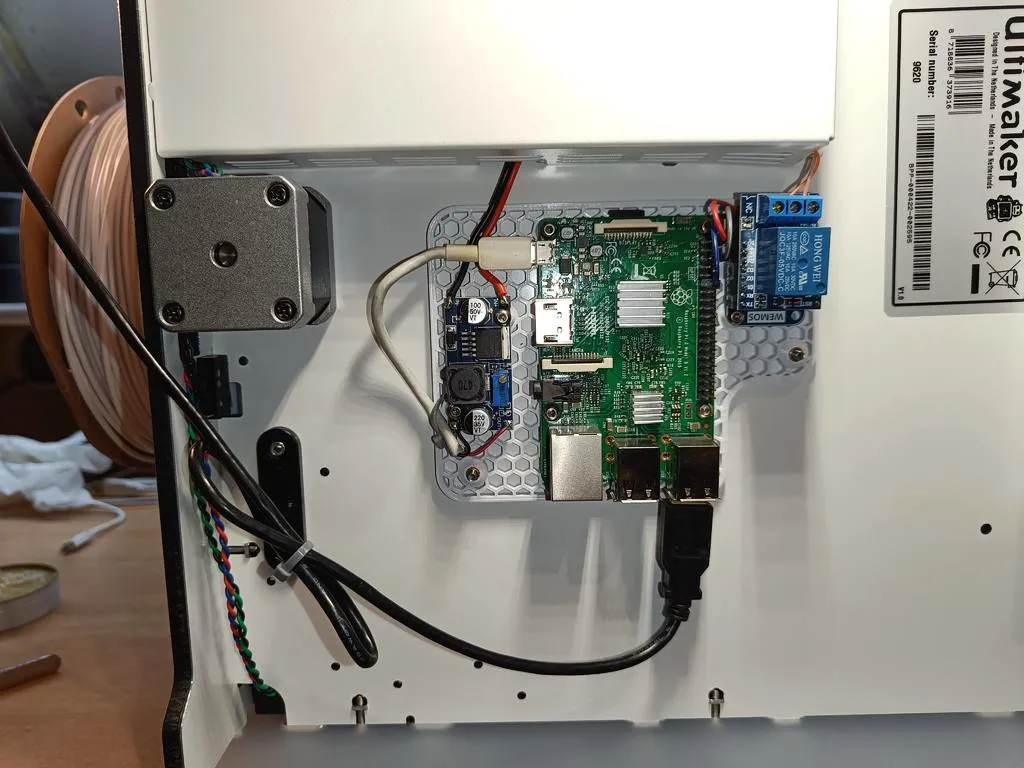

Ultimaker 2+ mount with thread inserts for Rpi with voltage divider and relay

Modification of this thing.

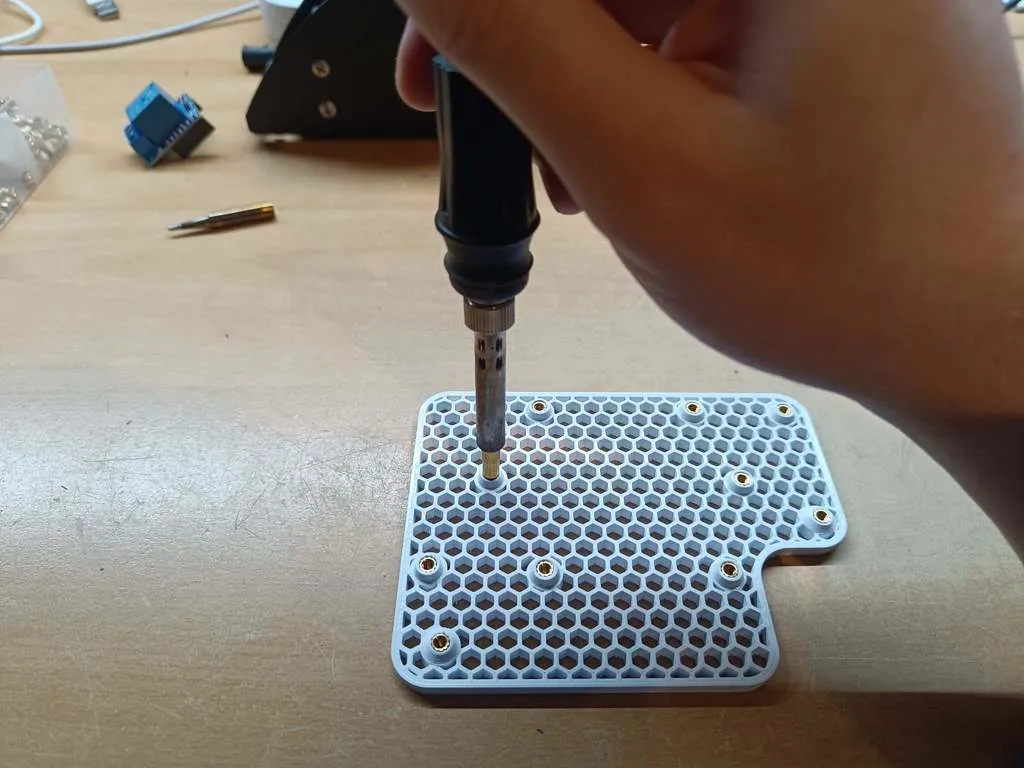

It is designed to be used with M3 thread inserts.

The holes of the Rpi were slightly to small for an M3 screw, so I had to drill it out to 3.2mm. I've set the drill to reverse to avoid tearing out the orners of the Rpi, it worked out great!

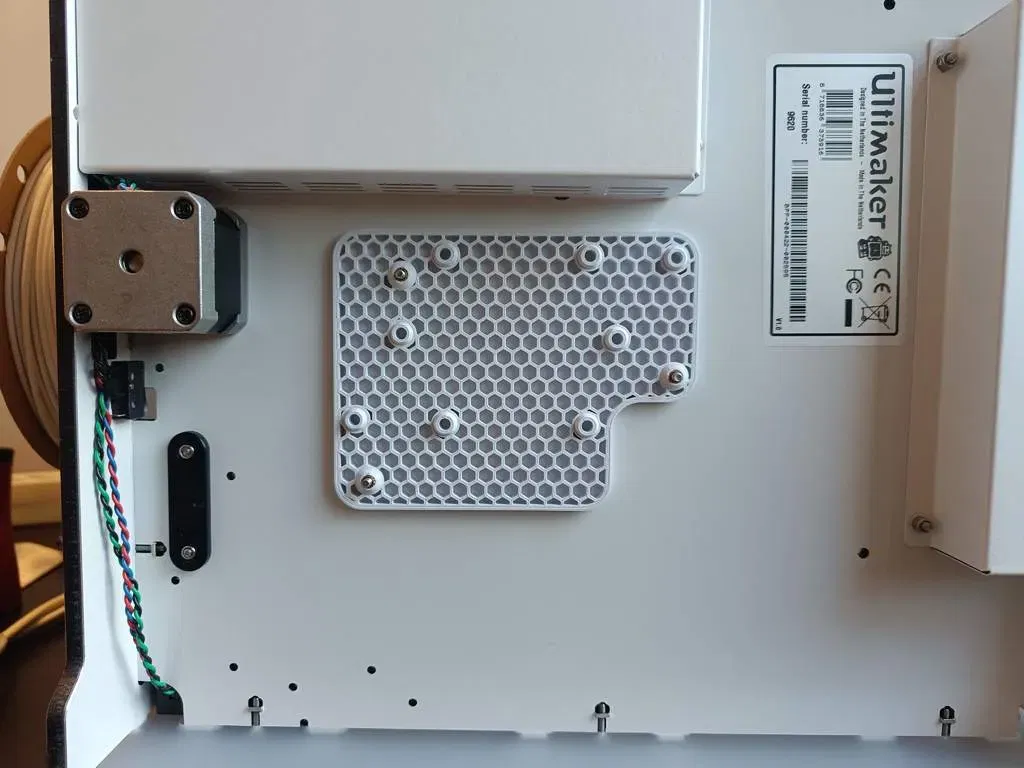

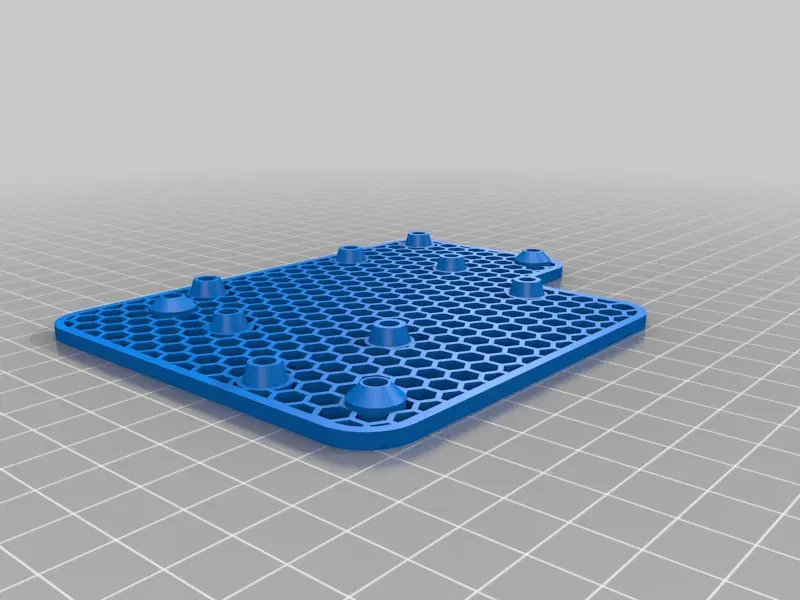

Instead of cutting out the large holes I used a honeycomb pattern just to try it out. I really like how it came out.

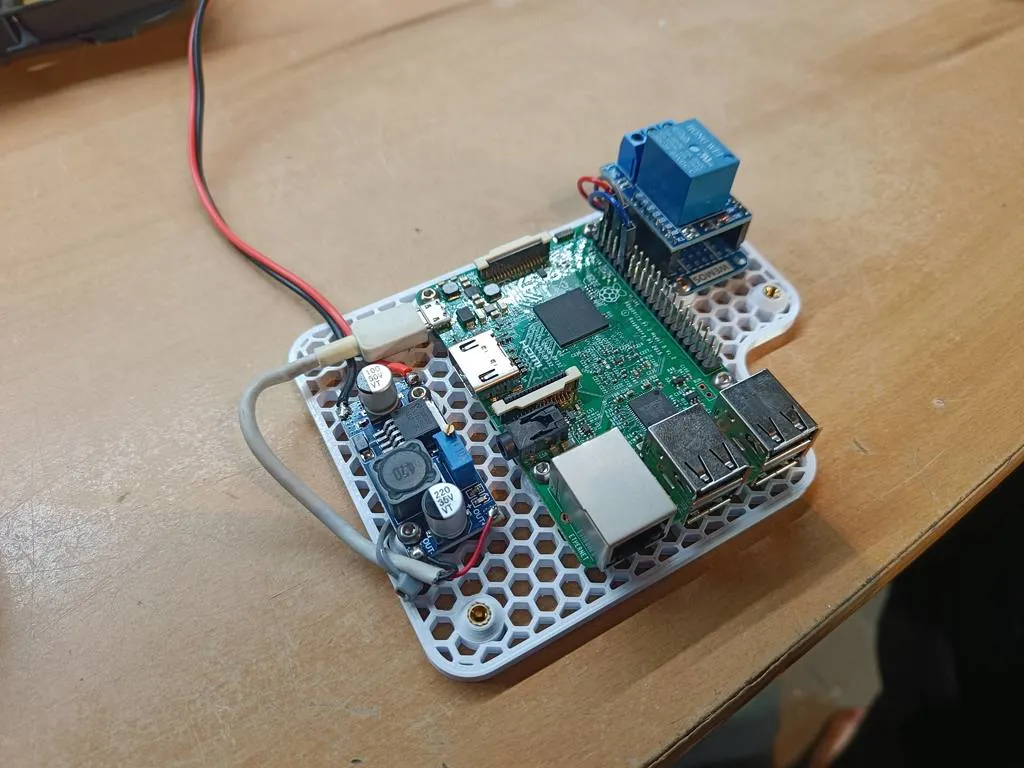

Parts used:

• Powersupply: LM2596 Step-Down Buck converter

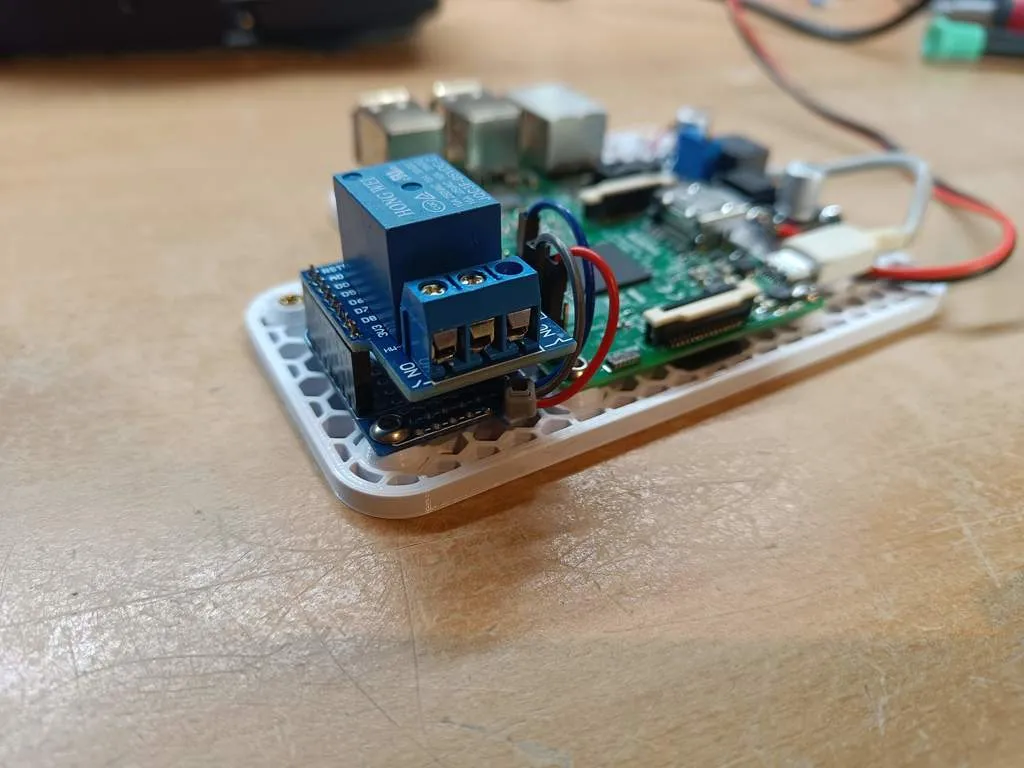

• Relay: Wemos relay on a Wemos Dual base cut in half (to have the screw holes)
• Raspberry Pi 3 Model B v1.2
