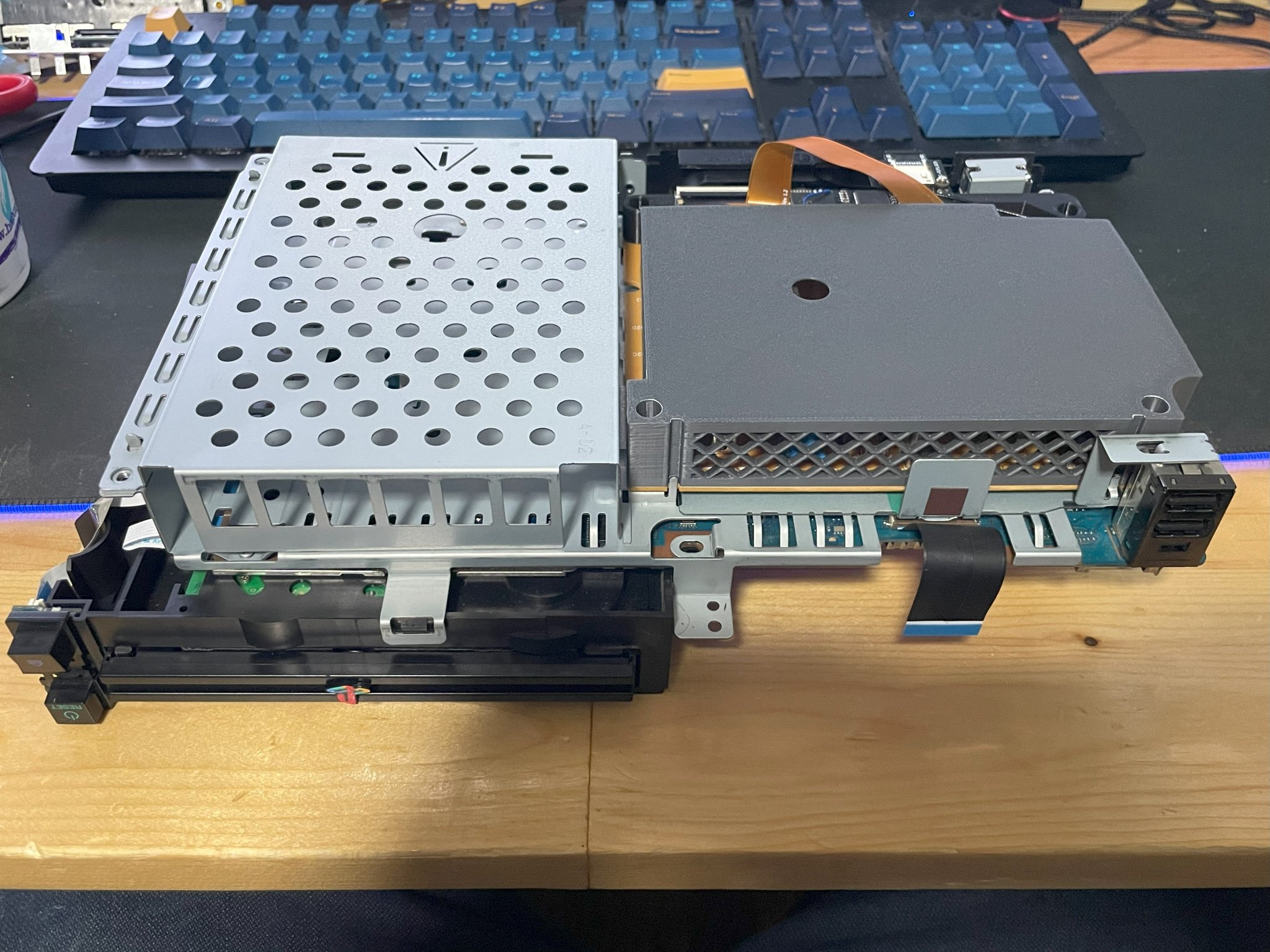

A simple shield to prevent the Retro GEM and accompanying ribbon cable/WiFi antenna + cable from coming on contact with live AC power should the antenna or Retro GEM come loose. Probably an overcautious precaution, but I feel better with it nonetheless. Tested with my SCPH-50001 PS2 with the stock power supply and it fits well, though the shield may not fit other PSU revisions.

Antenna can be mounted at the side of the shield to avoid running the antenna cable over the shield (in the suggested mounting spot from the install guide, the cable routing would prevent the case from closing properly with shield installed, see image for example). All other sides have a vent ‘mesh’ to assist with airflow/breathability of the PSU.

NOTE: The tolerances are very tight inside the PS2 shell. By default there is a just under 1mm gap between the top of the PSU heatsinks, and the PS2 shell. The top of this model is 0.8mm, and in my case, everything fits snugly, however, a previous print that experienced some minor warping caused some issues with bottom shell fitting.

Printed w/ABS.
