Tiêu đề Ống dẫn 100mm có vòng đệm và bộ chuyển đổi sang Qu

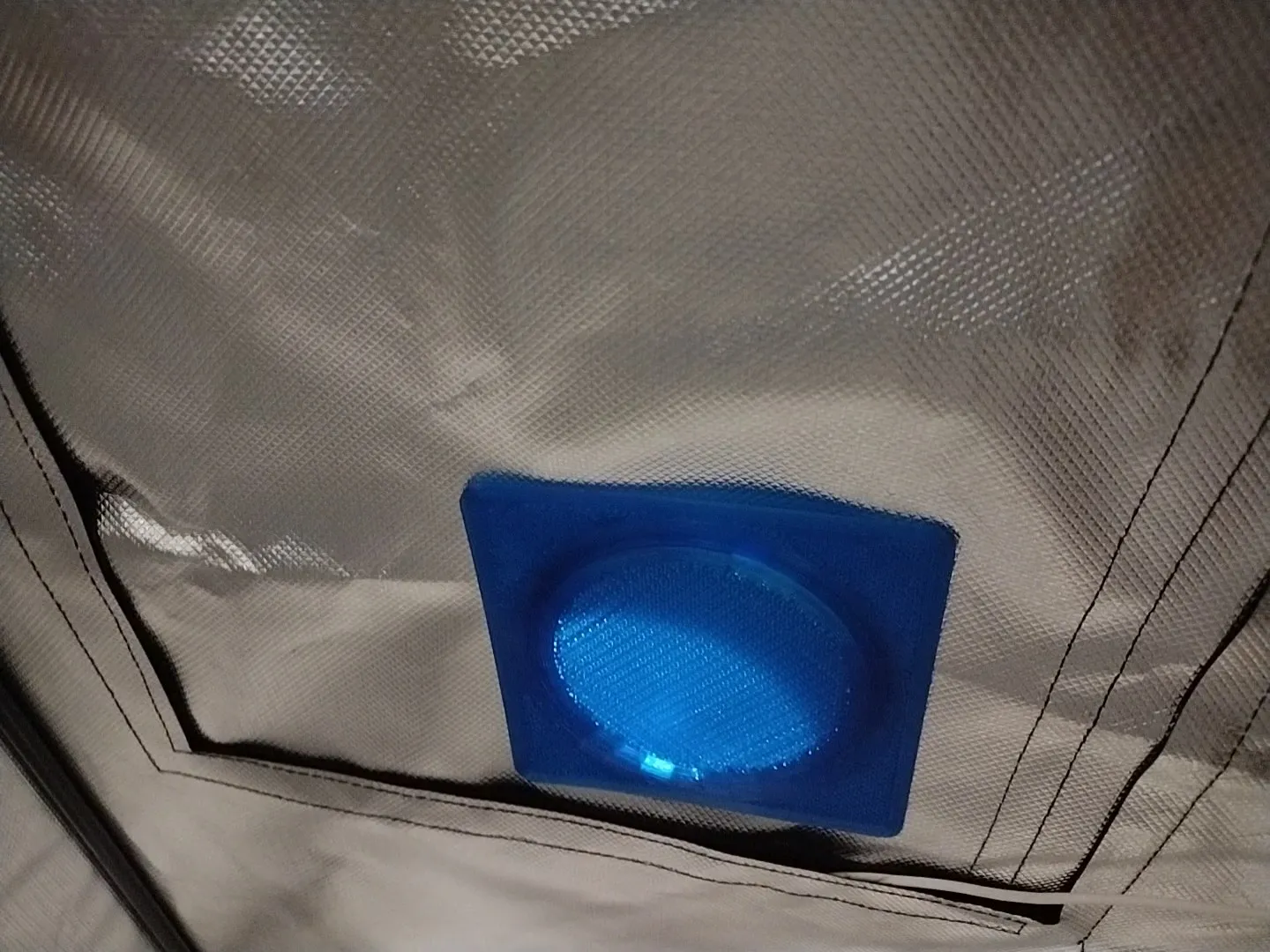

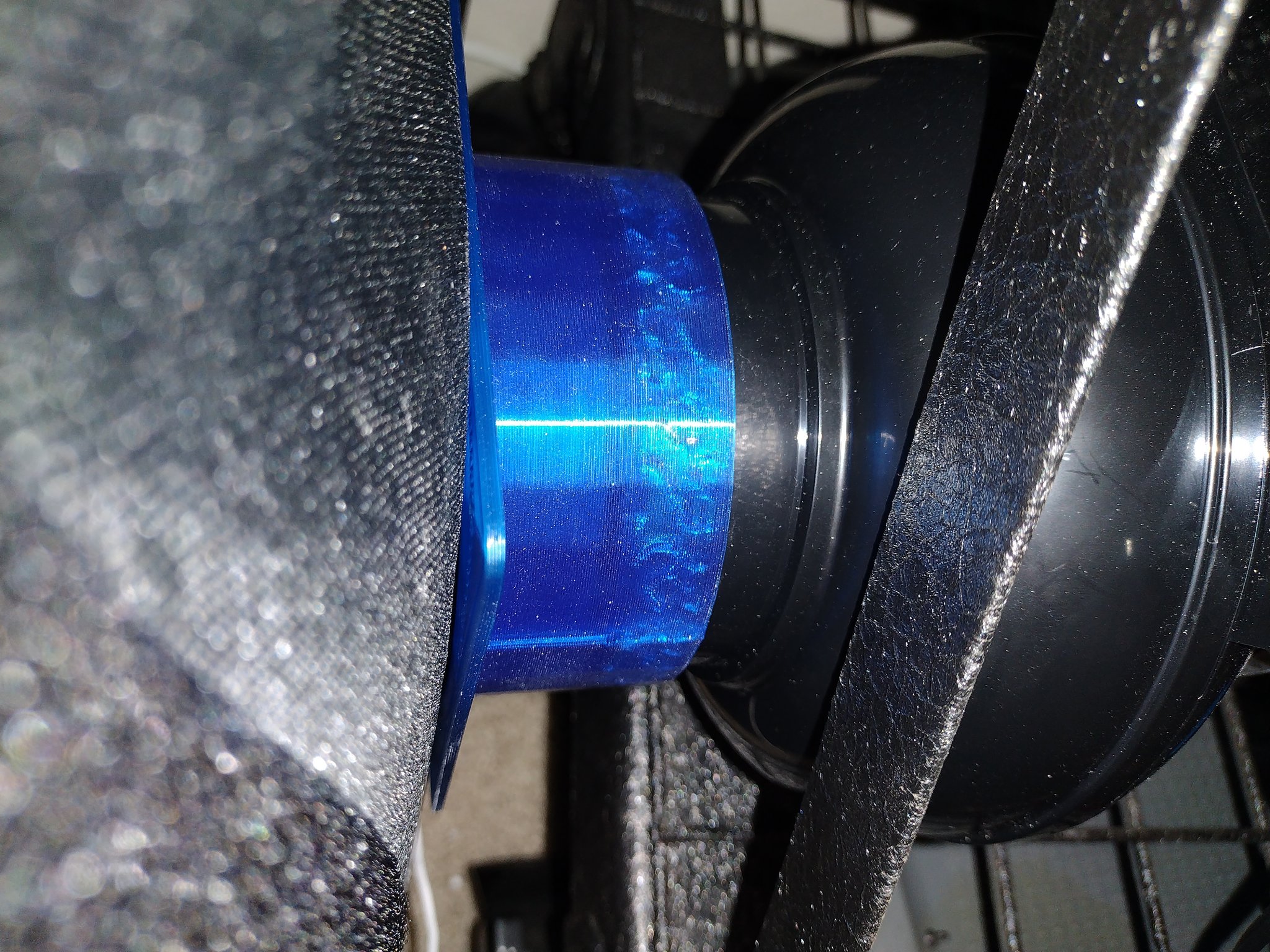

Một ống dẫn với vỉ nướng/máy giặt tích hợp và bộ điều hợp với quạt 4 inch cũng giữ nó gắn liền với vỏ bọc linh hoạt
Mô tả

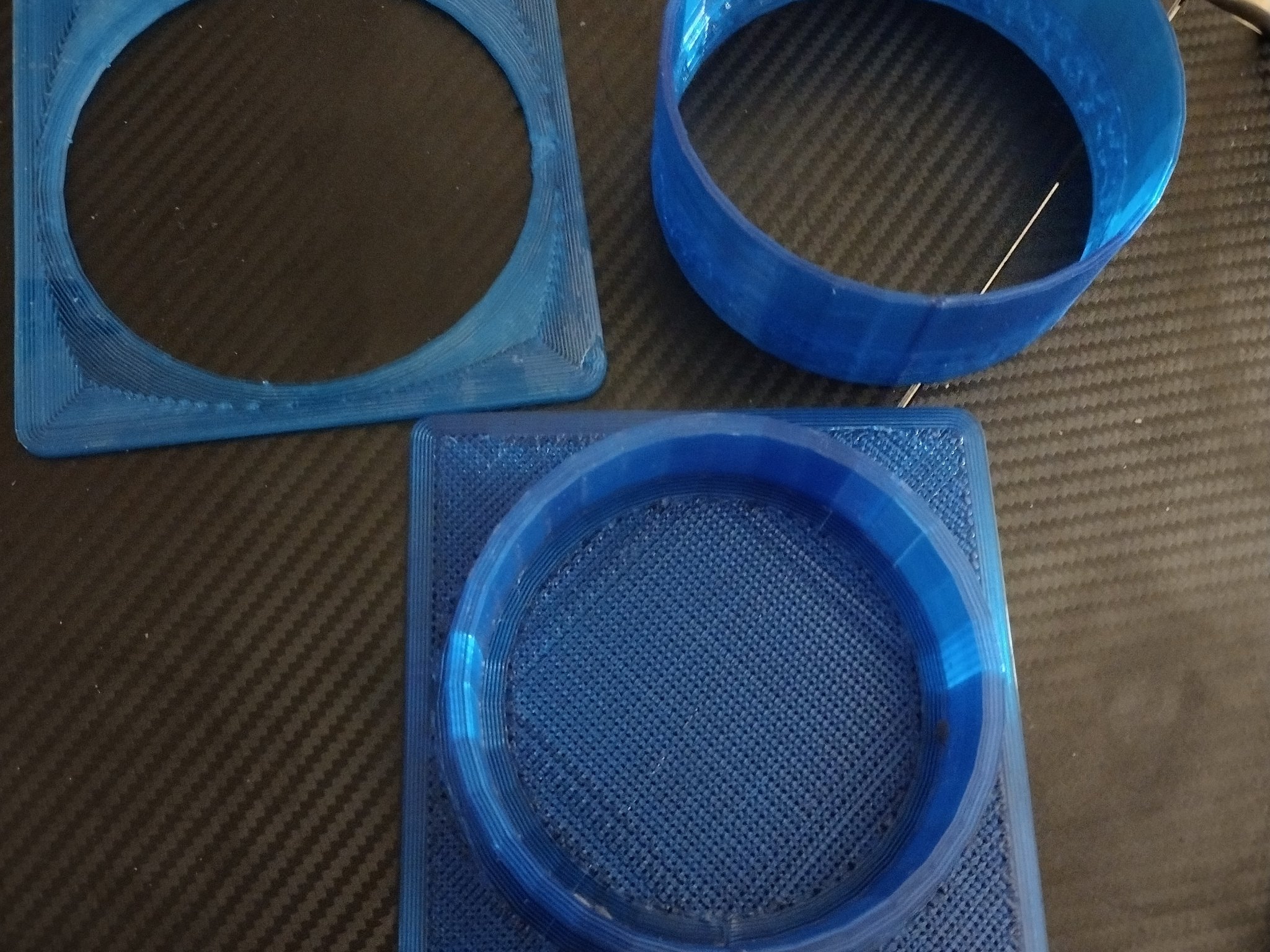

Print Duct and adapter in TPU, the washer in PETG
The duct is 2 models that you print together. Import both the EnclosureFanDuct_w-Mesh_BASE.stl and EnclosureFanDuct_w-Mesh_DUCT.stl and center the duct ontop of the base.
.8mm nozzle
.4mm layers height
.8mm layer thickness
99% grid infill
6 wall lines
0 top/bottom layers
The Adapter:
.8mm nozzle
.4mm layers height
.8mm layer thickness
20% gyroid
2 wall lines
3 top/bottom layers
conecntric on both
If printed as one part it will print the duct on top of mesh, making a part that rips easily, where as this starts the duct layers at the base, and at 6 lines connects with th elines from the base exterior making a better part.
The washer I printed in PETG:
.8mm nozzle
.4mm layers height
.8mm layer thickness
6 wall lines
3top/bottom layers
concentric on both top/bottom
