Simple and robust ice scraper

3 in 1 simple and robust ice scraper. Print in place.

• Ice removal from your car windscreen
• Frost buildup removal
• Cleaning windscreen wipers

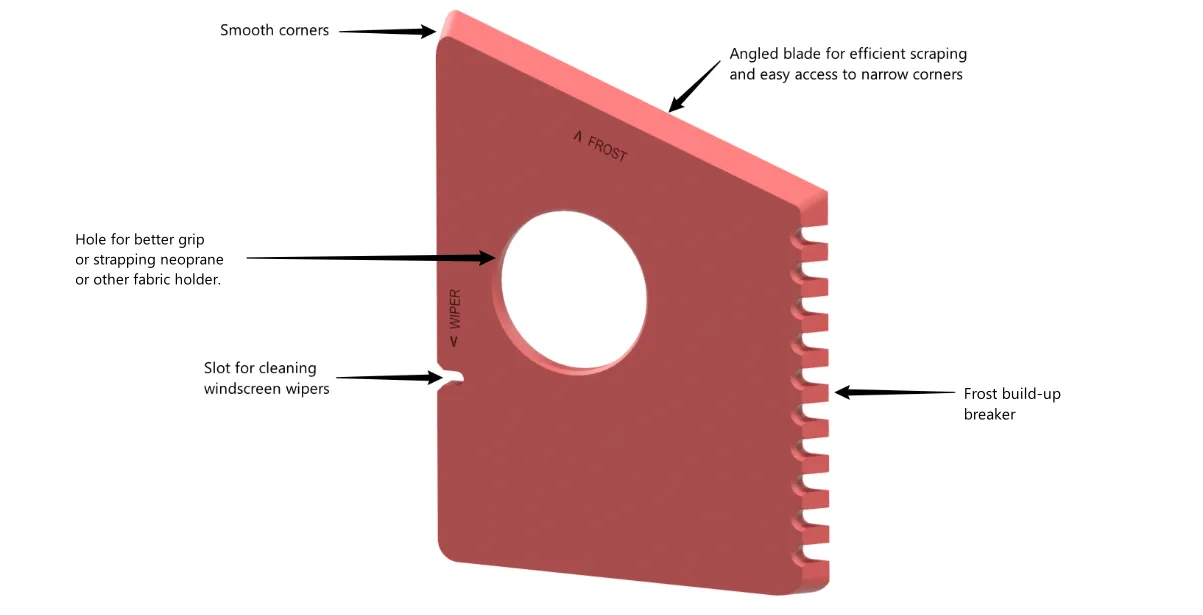

Smooth corners help protect the rubber window seals. The angled shape of the ice scraper contributes to efficient clearing of frost and ice, whilst allowing for easy access to narrow corners.

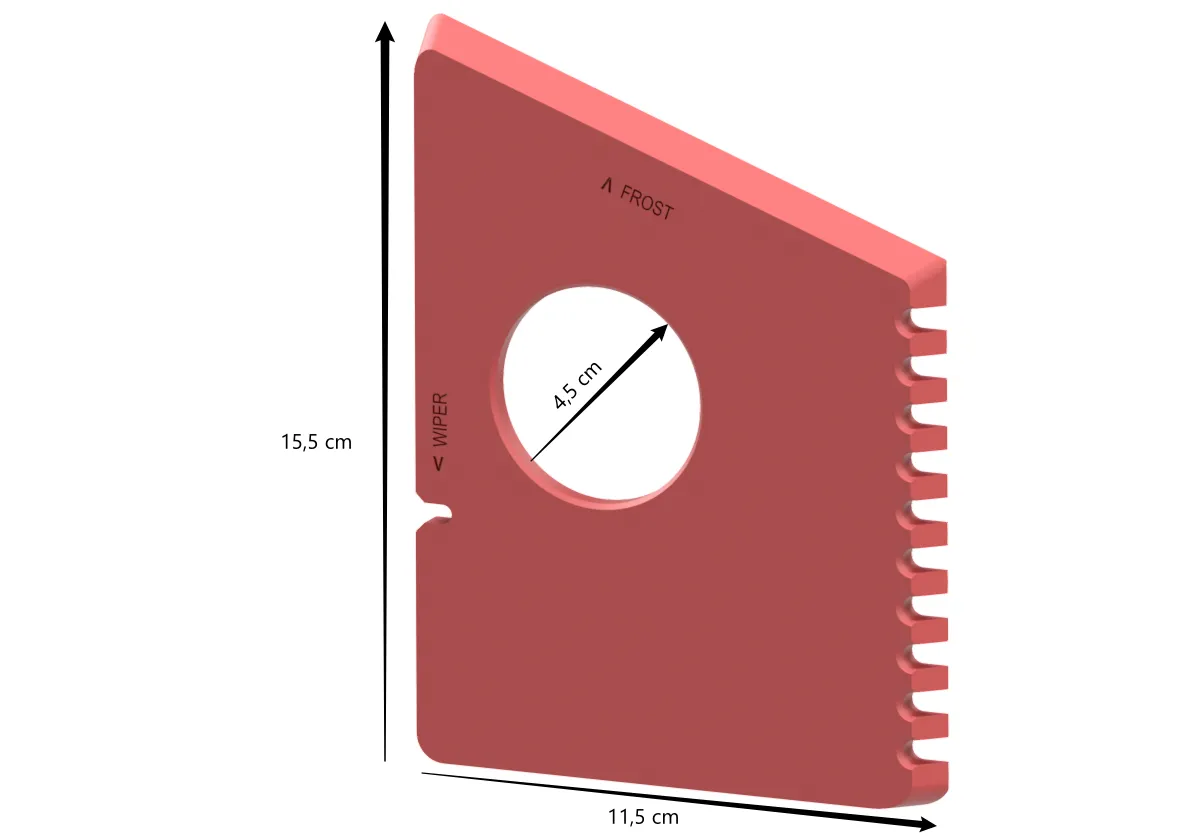

Dimensions: 15.5cm Longest Edge x 11.5cm Wide. Fully scalable.

The hole can be used for better grip and strapping fabric to protect your hands from cold, as shown in one of the screenshots.

I will upload native STEP file if there will be demand for it, so you can tweak it any way you want. DM me if you have any questions.

@Update 25/11/2023 Uploaded STEP file. This should resolve some problems.

Recommended print settings

• Nozzle: 0.4
• Layer height: 0.2

Material usage and printing time

15% infill will use approximately 12 meters of filament and will take around 50 minutes.

100% infill will use approximately 32 meters of filament and will take around 1,5 - 2 hours depending on your printer.

Inspired by https://www.swedishicescraper.se
