Tiêu đề Giá đỡ máy ảnh tăng Prusa MK4 Timelapse hoặc Chung Tó

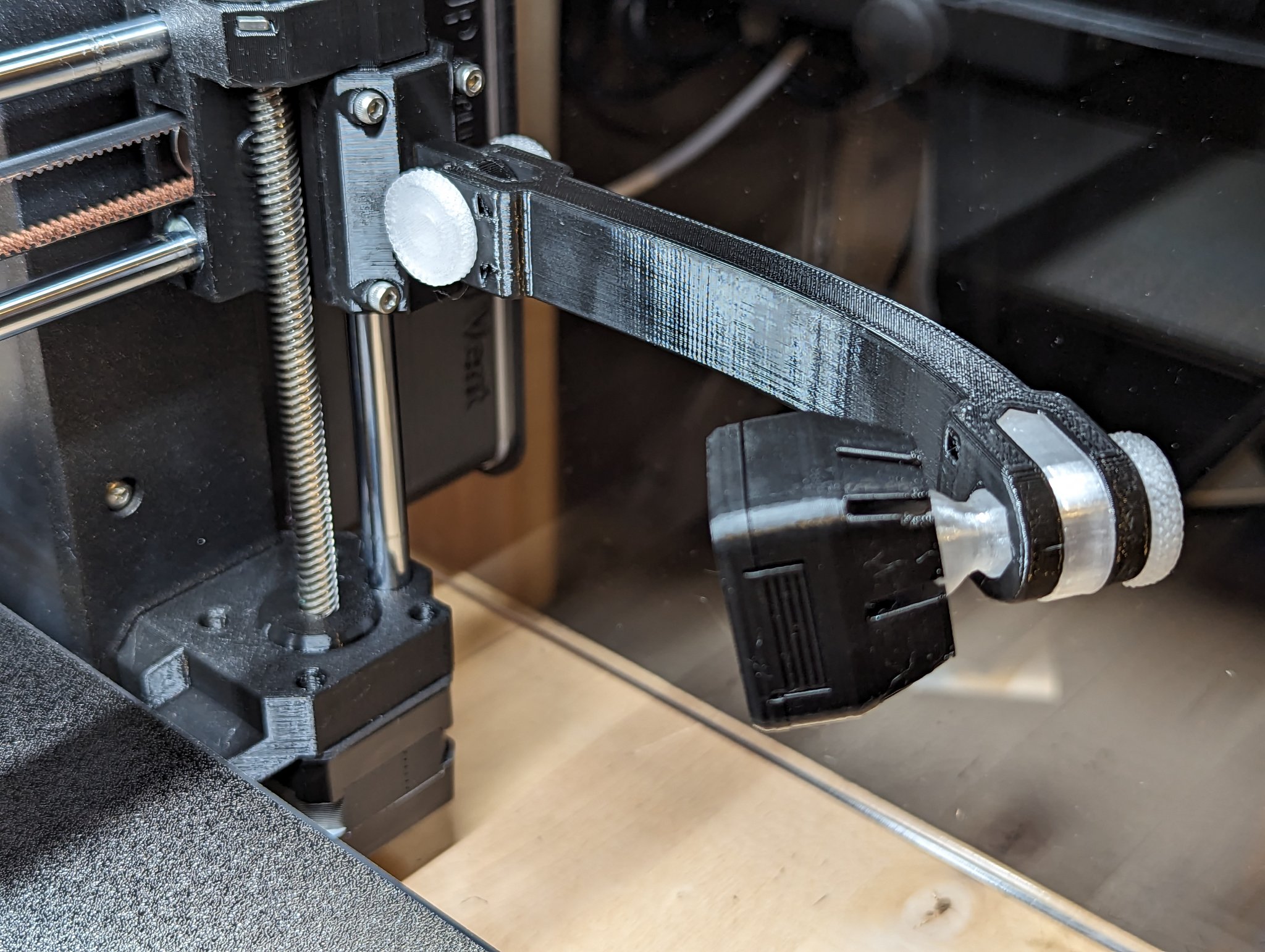

I designed a mount that attaches over the X-end clip on the Prusa MK4 X-carriage so I could mount a camera using Sneaks' articulating mount system:

https://www.printables.com/model/3407-articulating-raspberry-pi-camera-mount-for-prusa-m

The camera rises with the print… great for monitoring the top layer or creating cool timelapses!

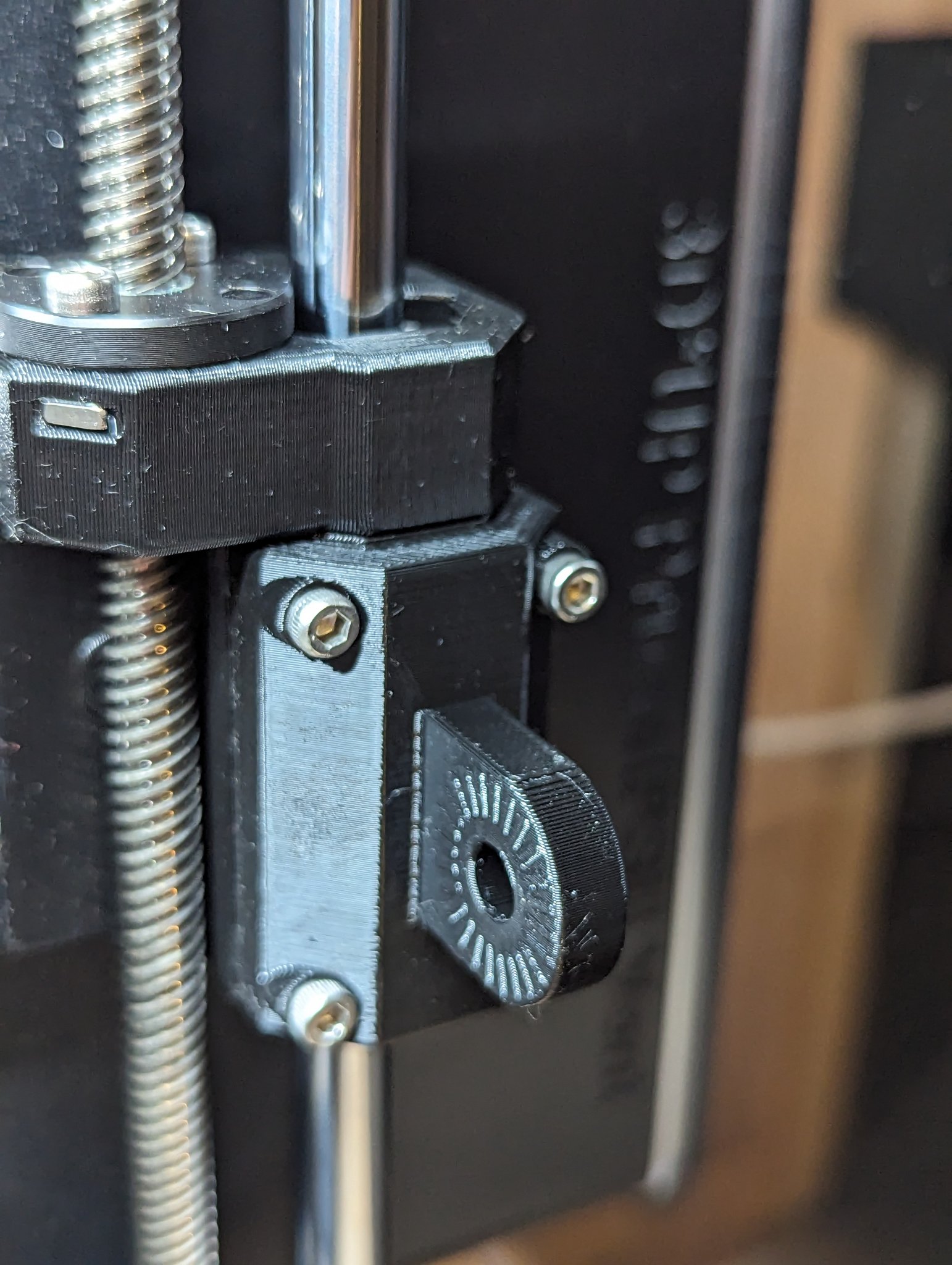

This part is designed so that you move the existing M3x30mm bolts on the left to the right side (after you have fitted the part). You will need new M3x40mm bolts for the left side. Please note the arrow embossed on the part… when pointed up you will have proper left and right orientation. This fits over the existing X-end clip; DO NOT REMOVE the existing part!

I printed on-end with tree supports. Recommend PETG with three perimeters and 25% gyroid infill.
