Tiêu đề Holder - Corsair Commander Pro LED node for Lian Li o11 Dynamic

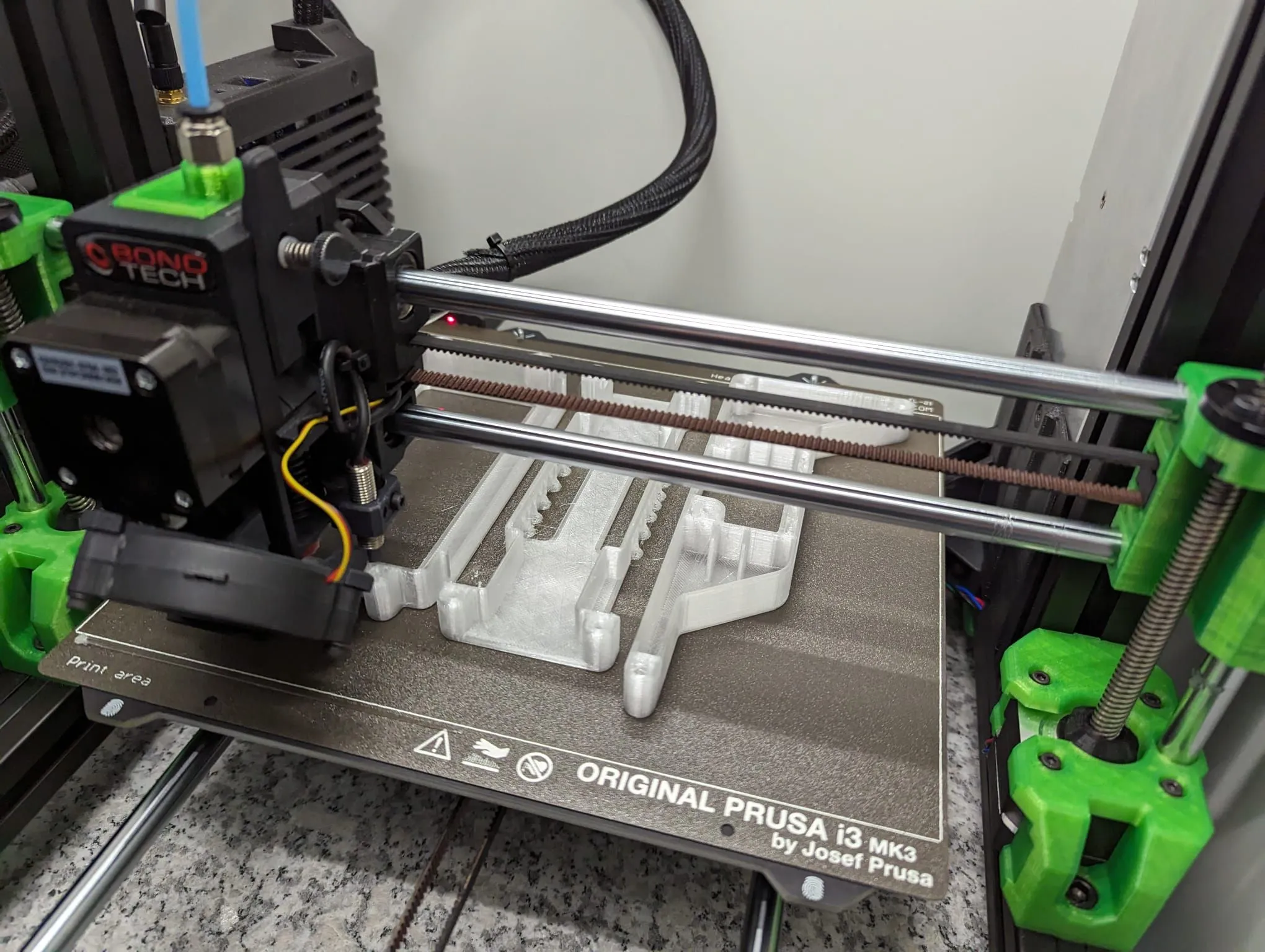

I printed the parts from PETG with the following settings: - Line width: 0.45mm - Number of outer perimeters: 4-5 - Number of bottom layers: 5 - Number of top layers: 5 - Infill: 15% - 20%

The assembly requires the following components: - 9x M3 melt-in threaded bushes (I used the threaded bushes from Ruthex) - M3 screws

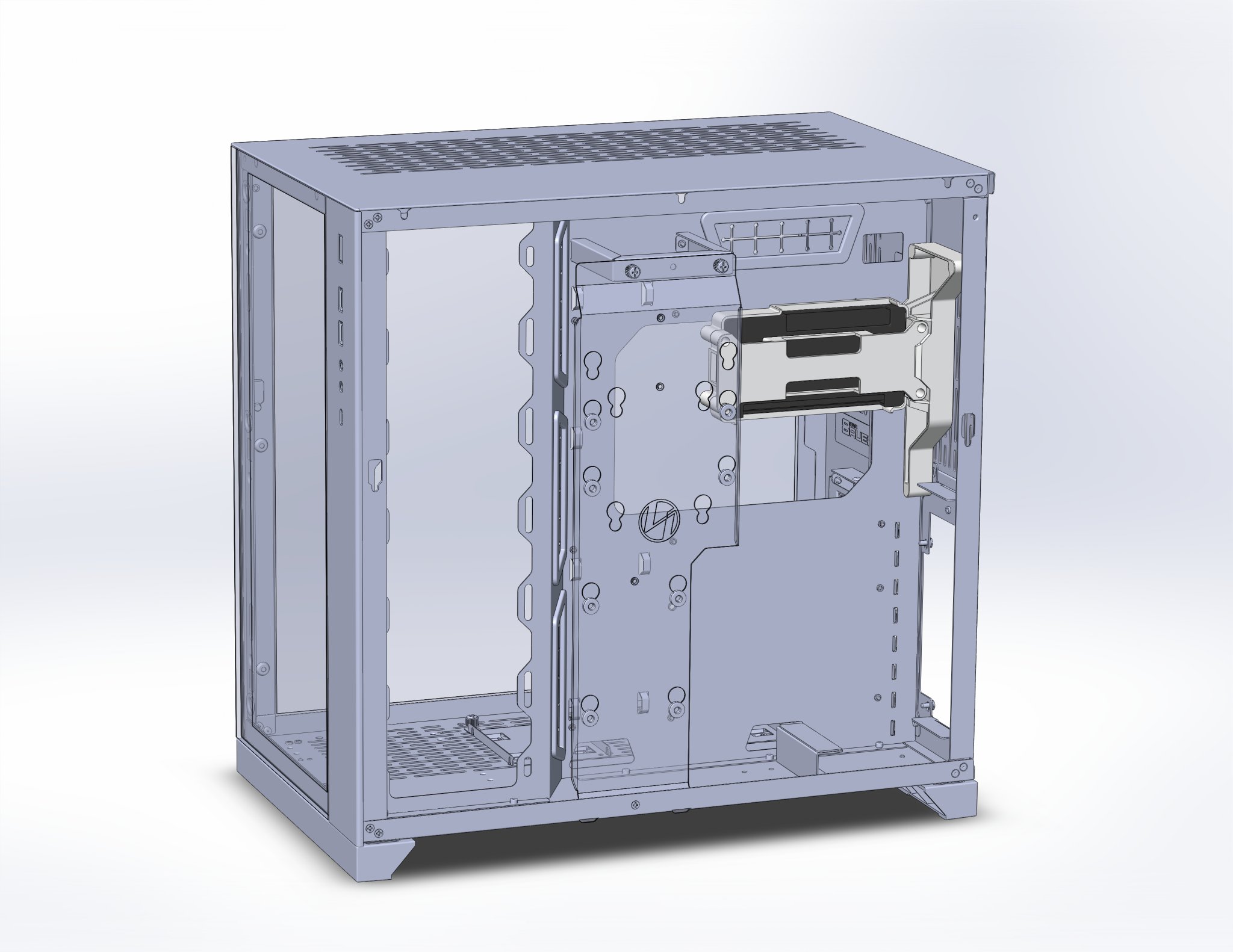

Assembly: - Melt in the threaded bushes - Insert the Commander Pro into the holder - Insert the LED node and screw it to the smaller holder - Screw the assembly to the housing holder - Insert the entire assembly into the PC case and screw it together

Have fun printing and installing.
