IEC320 C14 POWER SOCKET WITH FUSE HOLDER AND SWITCH

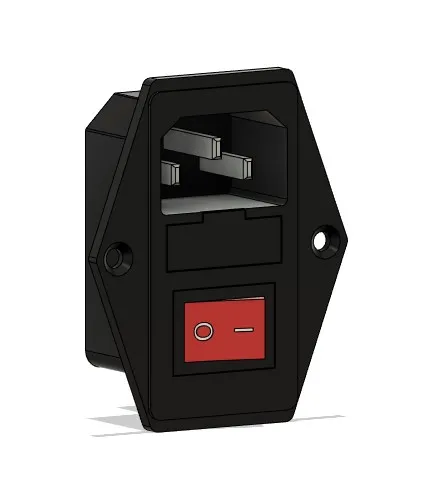

This is a 3D model of the IEC320 C14 Power Socket that comes with a Fuse Holder and a Switch for IEC C13 Power Cable connection.

It's designed in Fusion 360, .f3d files are included.

I tried to make the dimensions as close to real one as possible, you can use it in your designs.

For 3D Printing applications, leaving a small offset gap between the plug and the mounting area is highly advised for fitting.

This 3D Model may be different than the Power Socket you have, please check the dimensions again for correct measurements.

This is a 3D Model for designing purposes, not printing.

License is non-commercial because it's designed in Fusion 360.
