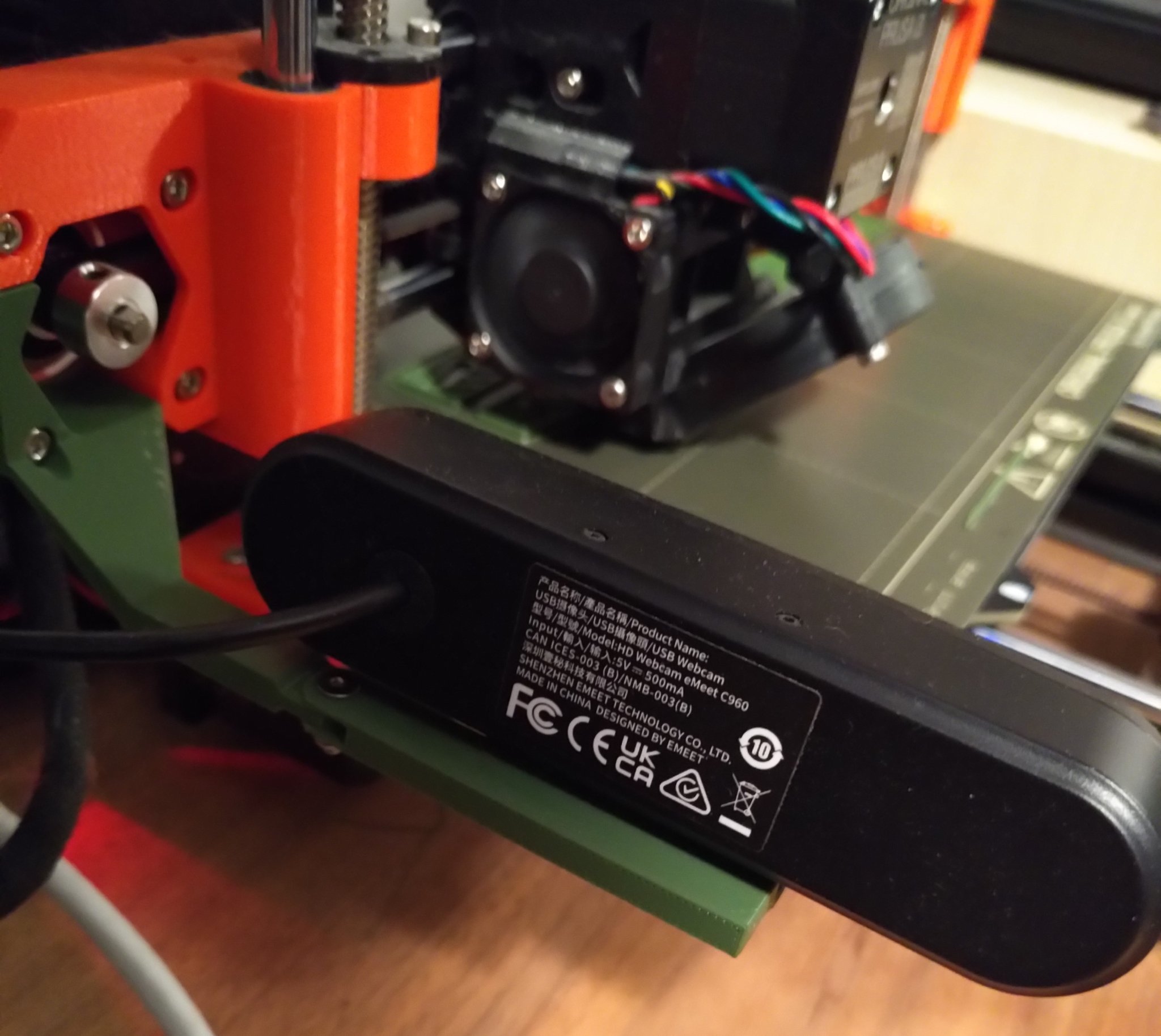

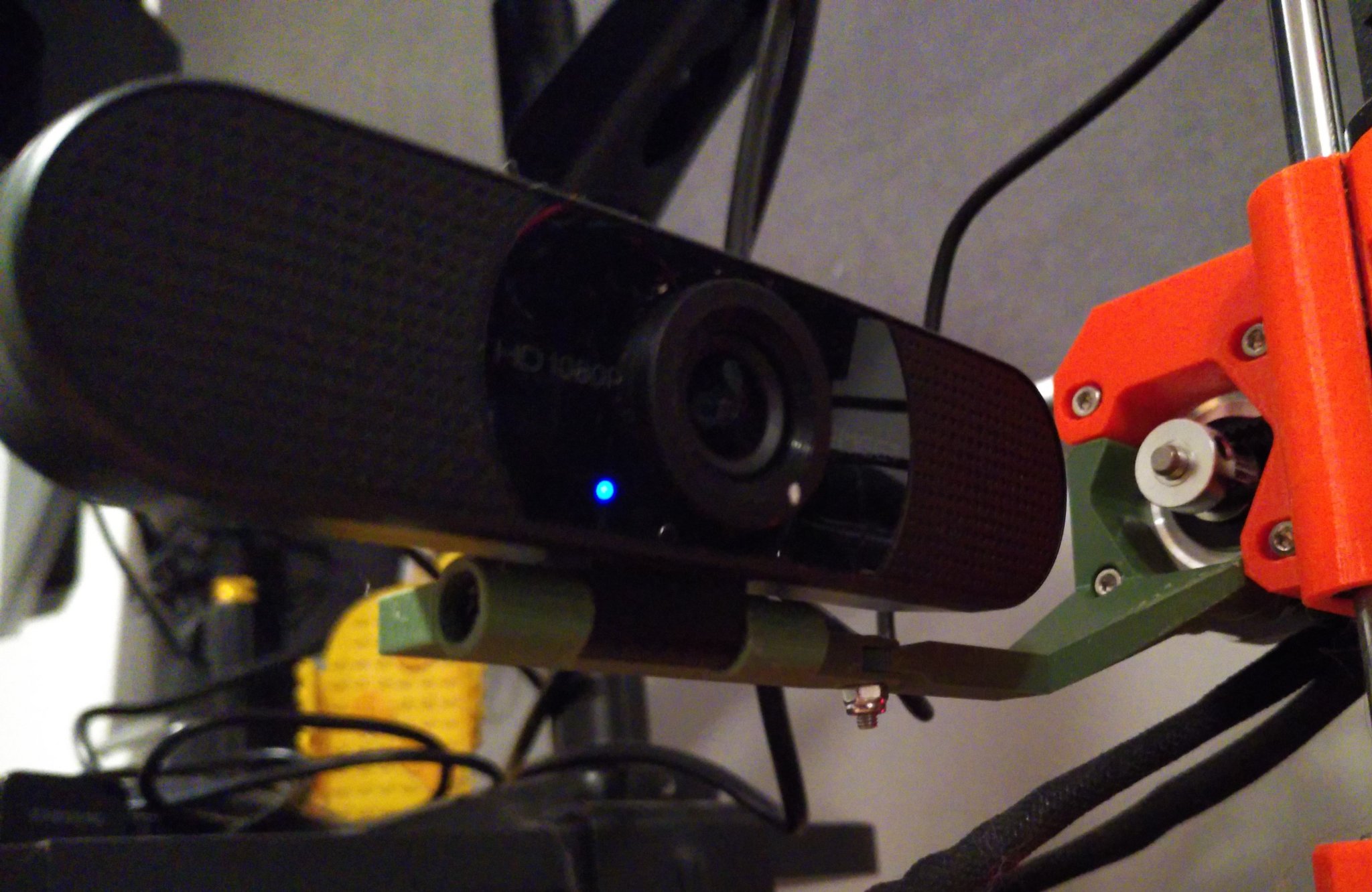

Prusa i3 MK3 mount for an Emeet C960 webcam. For monitoring prints and creating time-lapses (e.g with Octoprint)

based on original model https://www.printables.com/model/3991-logitech-c270-mount-prusa-i3-mk3

instructions are essentially the same for the most part

1. This will require the removal of the original webcam base, which can be achieved by removing the end caps, exposing a screw. Remove that screw and push out the pin.
2. Attach the base arm to the X-axis motor using an M3x18mm screw (can be found in the Prusa i3 MK3 spare parts bag if you purchased the kit)

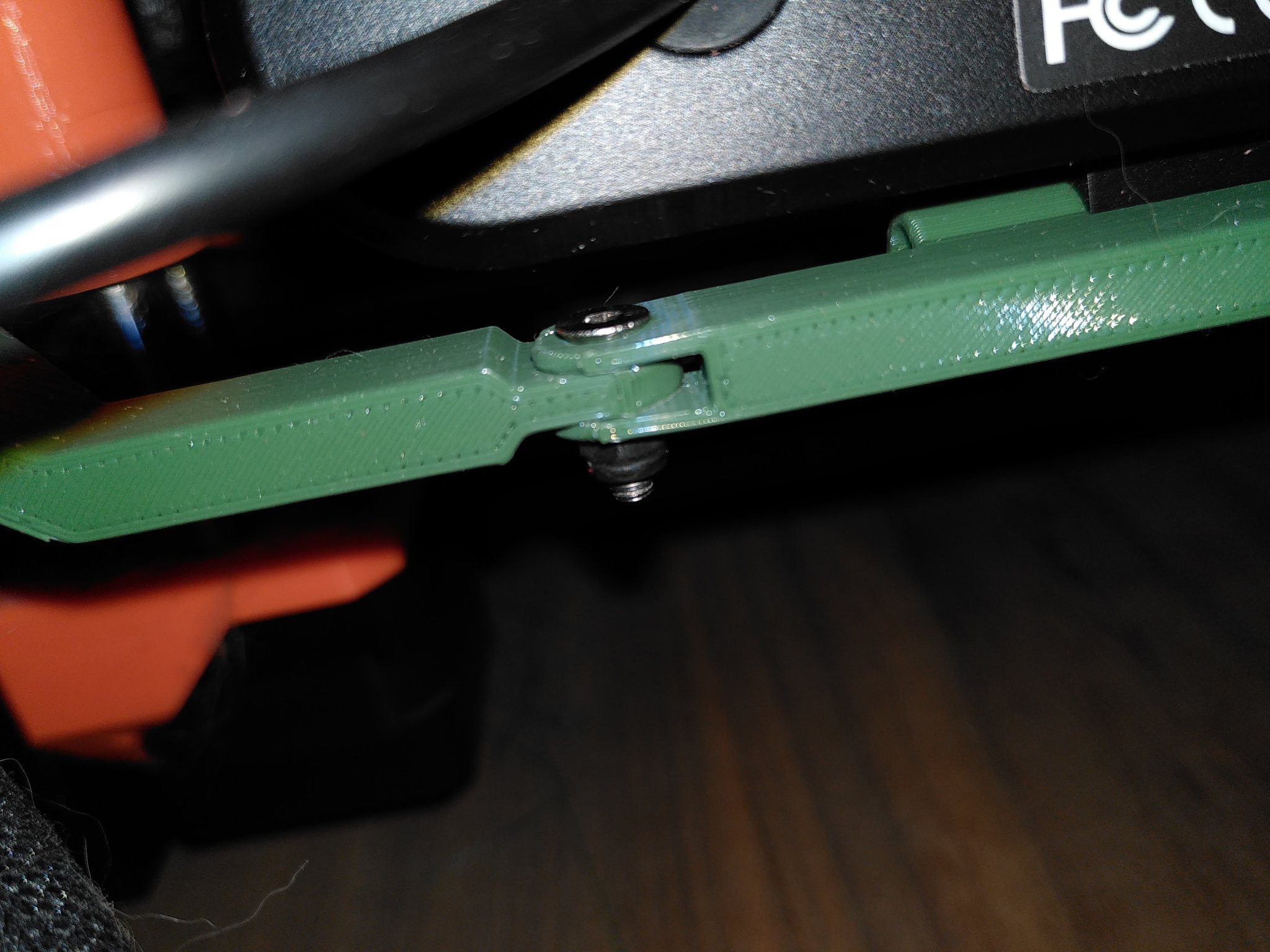

3. Connect the camera mounting arm to the base using a M3x10mm with countersink head (for better centering) and a nylon ock-nut - both can also be found in the Prusa i3 MK3 spare parts bag if applicable)
4. Attach the webcam to the mount using the screw & pin recovered at step 1

This mount DOES NOT includes a channel to run the webcam wire (as compared to the original model) because I didn't that feature and it was allowing to get rid of supports for printing

Room for improvement

with just a little less depth on the counterbore for the screw on the camera mounting, it would allow to tighten more and lock the camera tilt a little better, but it is not too bad as-is already

Print instructions

No need for support if printing with layer height of 0.2mm (print time ~1:30 in this case) but with 0.3mm some parts are having a little bit of overhang

I added the brim for better adhesion to bed, especially for the arm which the camera attachment (contact surface with the bed is limited)
