Universal Surge Protector/Power Strip Angled Mounting Bracket(s)

Một bộ dấu ngoặc đơn giản có thể được sử dụng với các ốc vít và đai ốc 3 mm để dễ dàng gắn một dải điện hoặc bộ bảo vệ đột biến.

👁️
678
Lượt Xem
❤️
11
Lượt Thích
📥
60
Lượt Tải
Cập Nhật Nov 22, 2025
Chi tiết
Tải xuống
Remixes

Mô tả

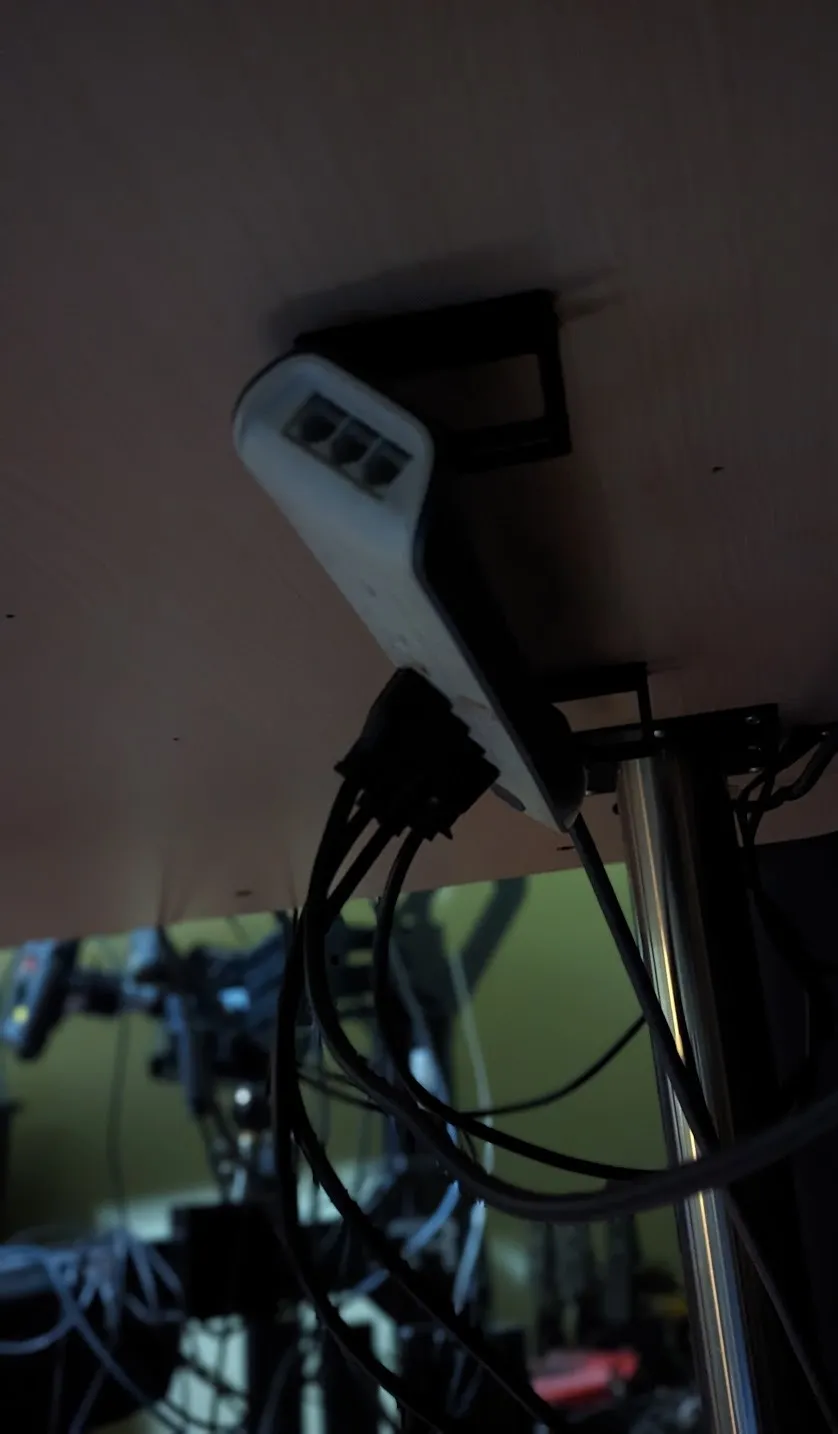

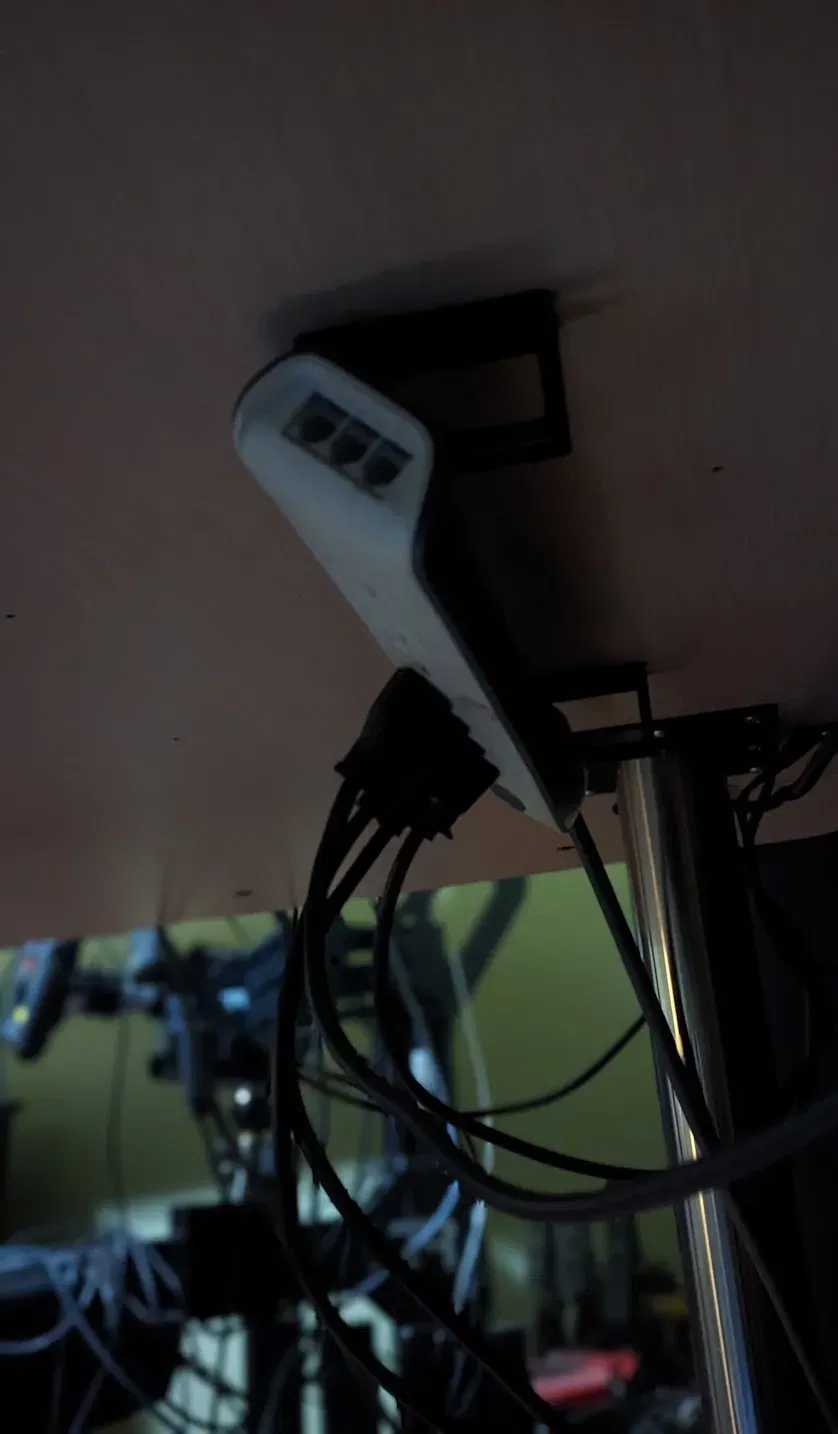

I've been looking for a good universal bracket to mount surge protectors on the underside of my desk so I can more easily manage cables later. All I could find were mounts that were designed for a specific surge protector, and would clamp around the body of the surge protector.

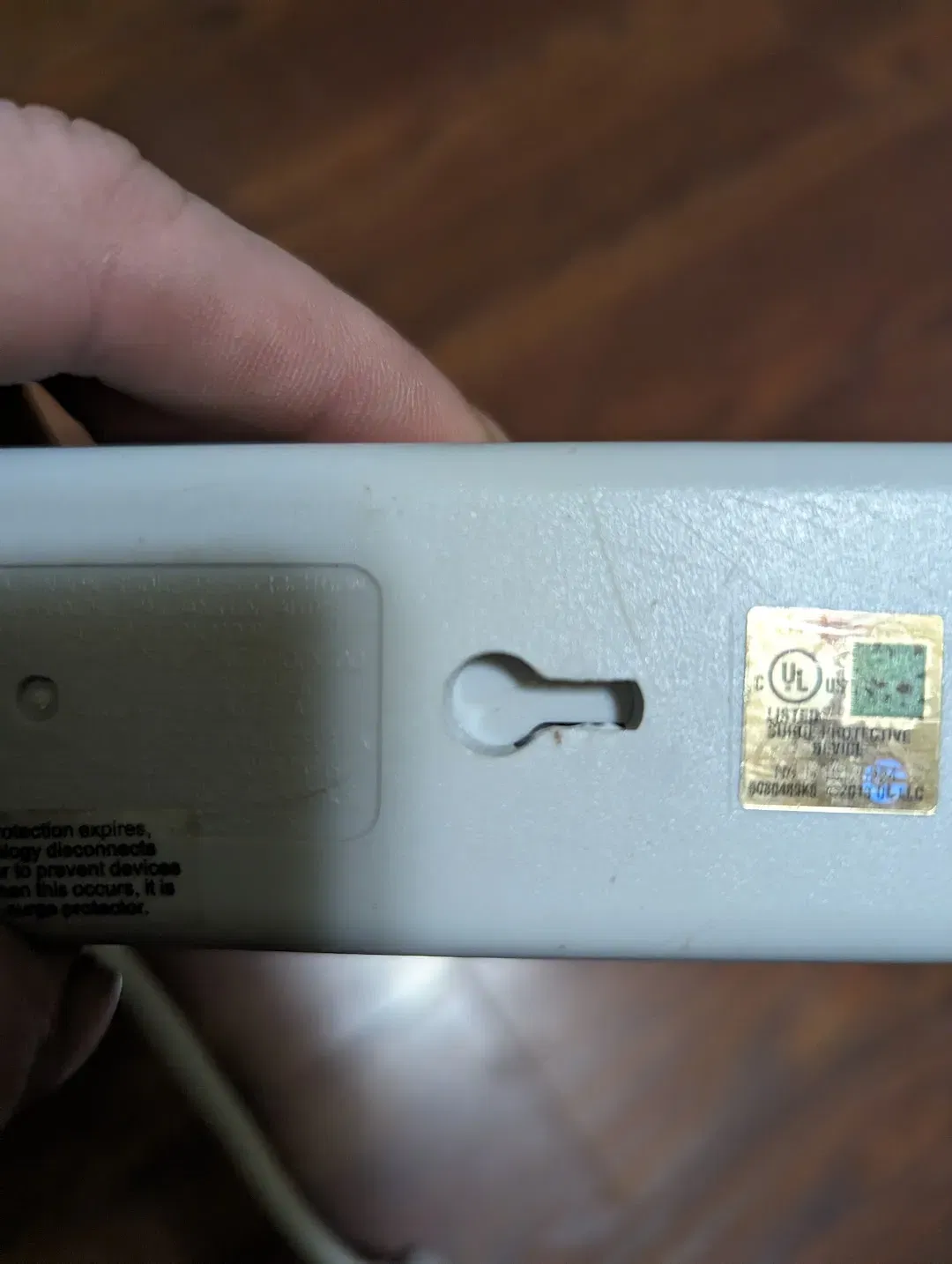

However, most surge protectors have slotted holes on the bottom side of them so that you can mount them to surfaces; Or at least all of mine do any ways. Without a template, getting the holes for the mounting points correct can be a hassle, and typically results in poor mounting.

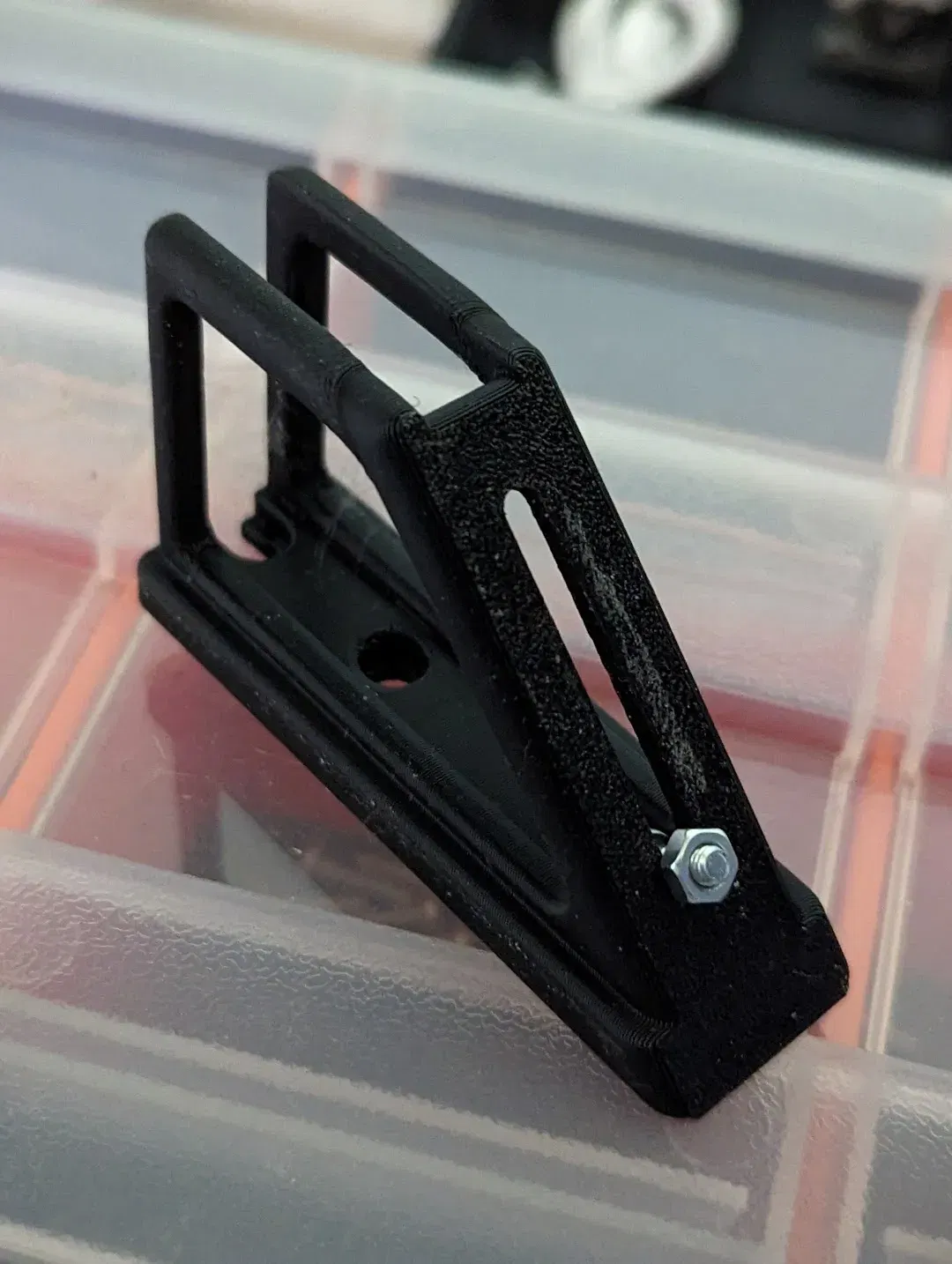

With these mounts you can easily secure them to the back of a surge protector in the slotted holes using a 3mm screw/bolt. A 3mm nut is threaded on to the screw, on the same side as the surge protector and slotted in to the holes. small washers can be used if the depth of the slotted holes is too small.

Please let me know if you have any questions, or would like to suggest changes.
