Moza R5 Fan Housing

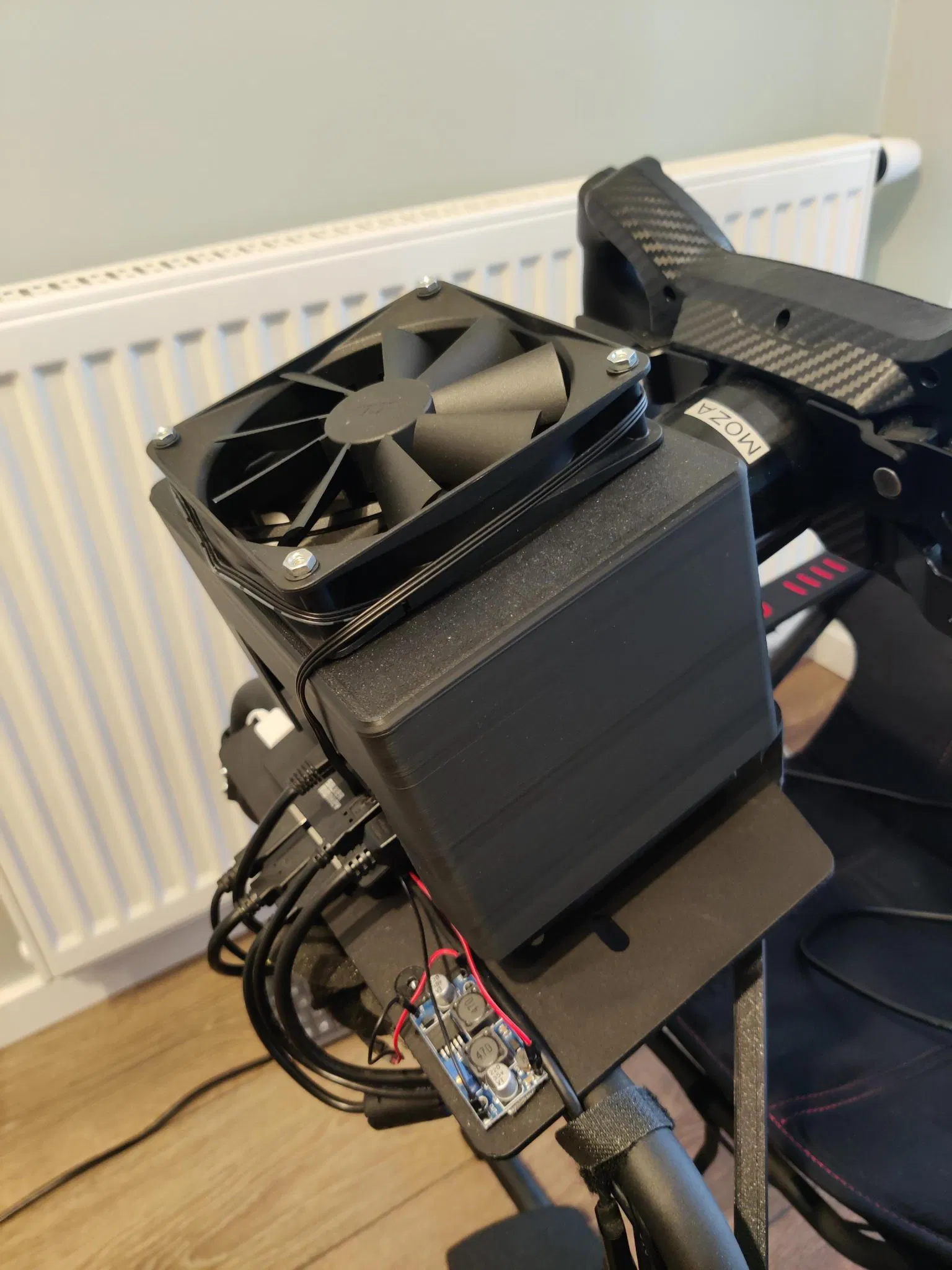

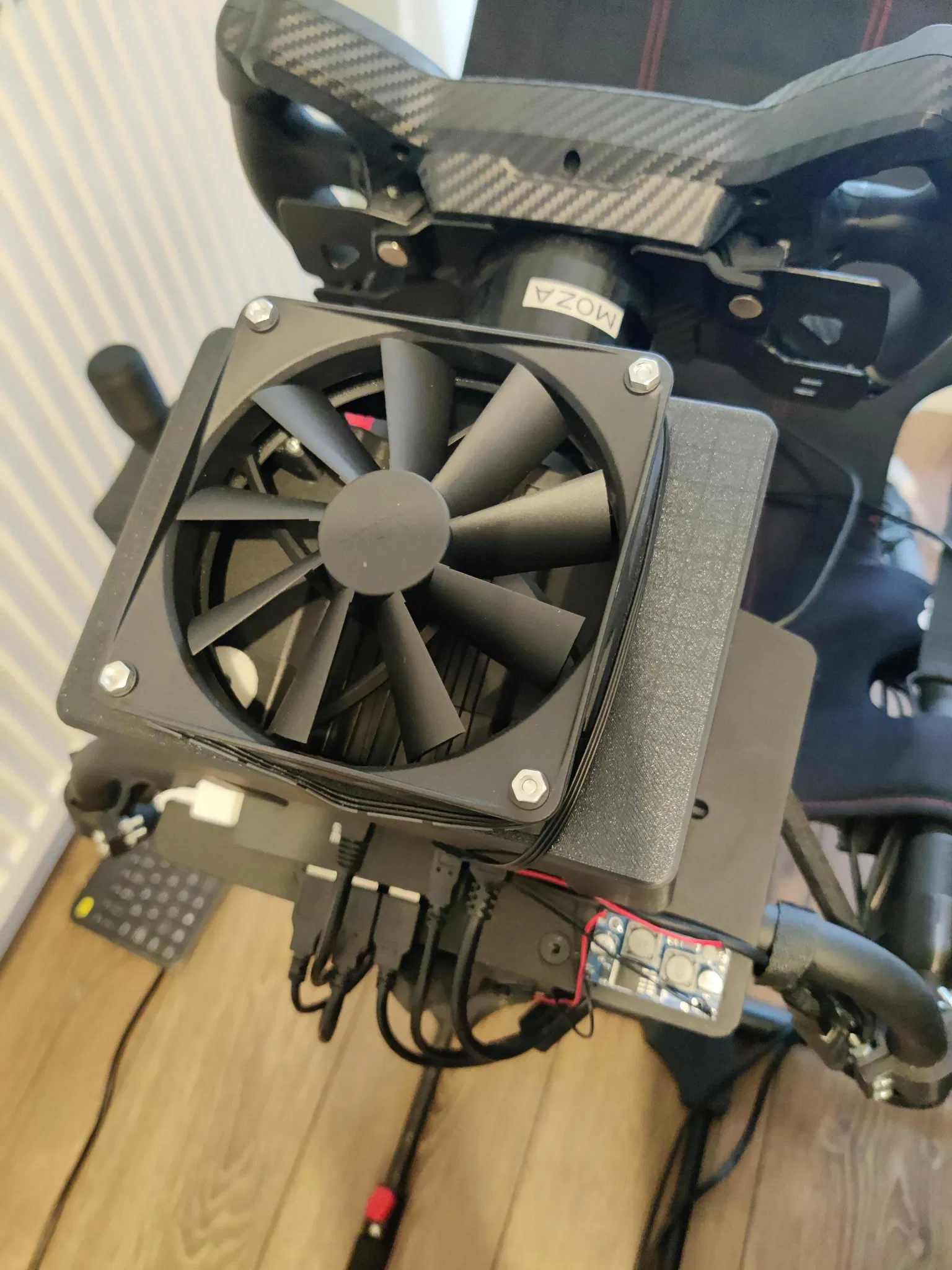

Housing for Moza R5 base with fan attachment to keep it a little cooler.

Full enclosure keeps airflow closer to side walls of the base where it heats the most. It uses dashboard mounting points held by two M3x20mm screws.

I've printed mine using .2mm layer height and supports for mounting points.

To power the fan, I'm using USB port connected to DC-DC converter with fan attached to it. It allows to set desired RPM by changing the voltage.
