Tiêu đề Máy hủy tài liệu Fellowes - Vòng bi cuối DM12CT Tóm tắ

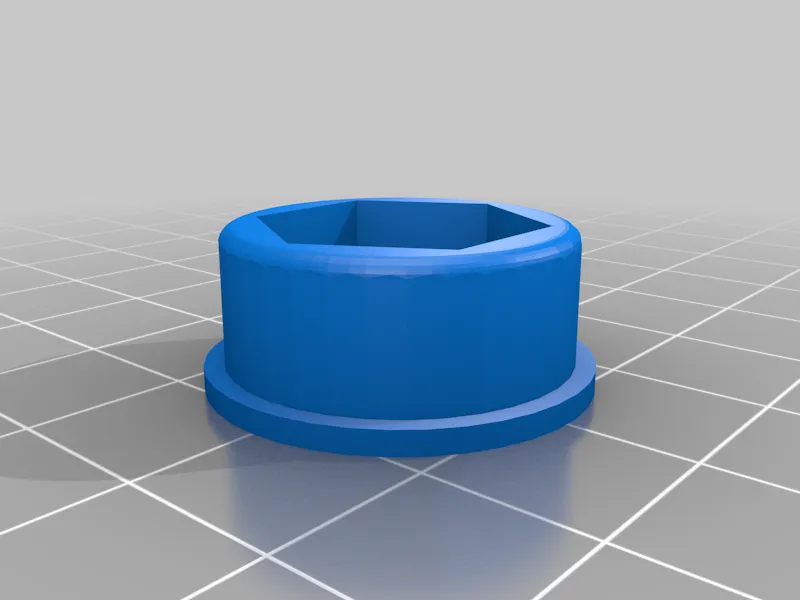

Discovered the HEX to Round bearings at the drive end had worn out which allowed the cutters to bang against each other. Made a couple of bearingV0.3.stl in 618 transition nylon to use in the non drive end. Swapped the bearings from the non-drive end to the gear end.

(the additional files V0.1 and V0.2 were zeroing in on the sizing - there are subtle differences between the hex hole and the outer diameter between the models - otherwise use horizontal offset to adjust. The nominal diameter is 22 mm and the hex radius is 9 mm.

Category: Replacement Parts
