Tiêu đề Turbiter có gắn bên EBB36SHT36 Tóm tắt Một bản sửa

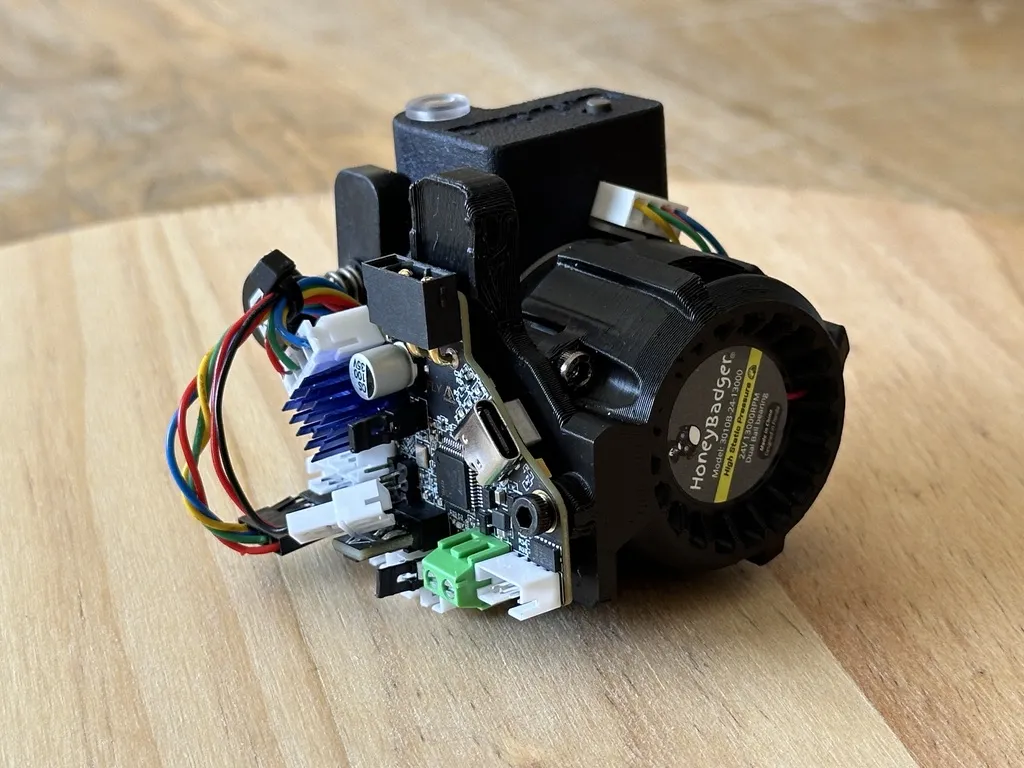

This modification allows for mounting of the CAN board on the side of the Turbiter. You will need 2 M3 heat set inserts to mount the board.

As a Voron 2.4 owner, I wanted to run the Turbiter mod for the Orbiter 2.0 so I could run the extruder at its recommended current: 0.85A. However, stacking an EBB36 behind an installed Turbiter interferes with an umbilical setup that terminates at the A (right) motor mount, like most setups do.

NOTE: This is my first ever 3D printer modification, and while it has worked decently for me so far, it could certainly use more polish! Also you'll obviously need to print supports for the strain relief nub that sticks out. I painted those in using eSlicer's relevant tools.

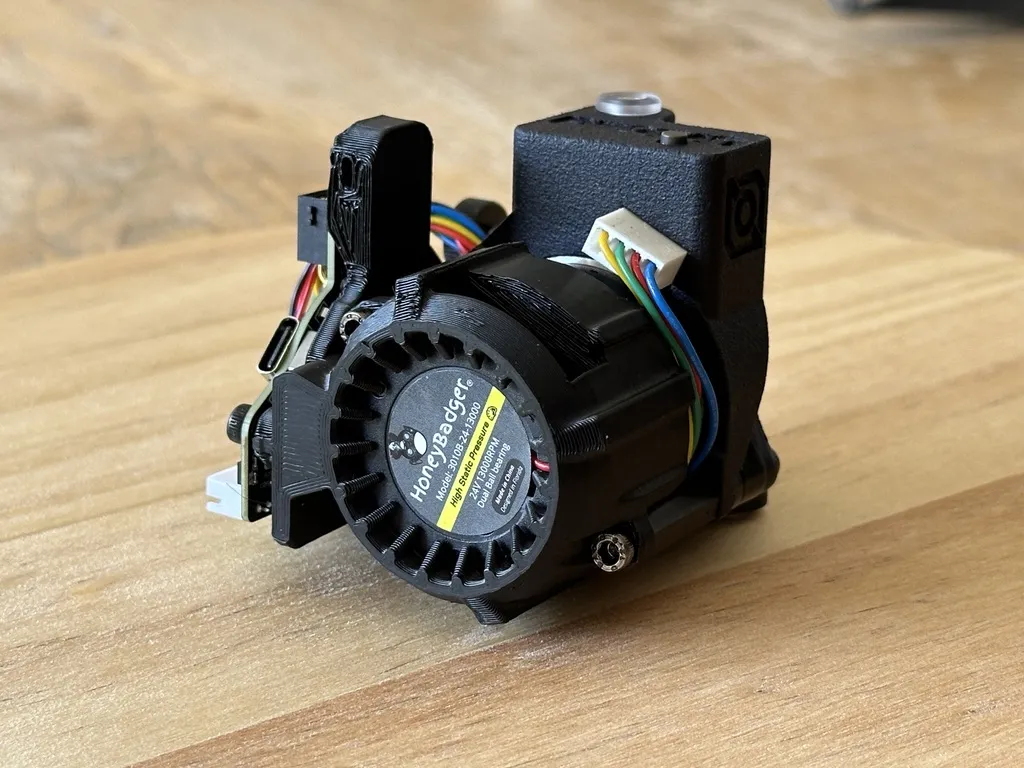

NOTE FOR ENCLOSURE OWNERS: The 3010 blower fans recommended by the Turbiter project (GDSTIME branded fans) will stop working in a properly heated chamber (~55ºC+). This setup is working for me using Fabreeko's HoneyBadger 3010.
