Mô tả

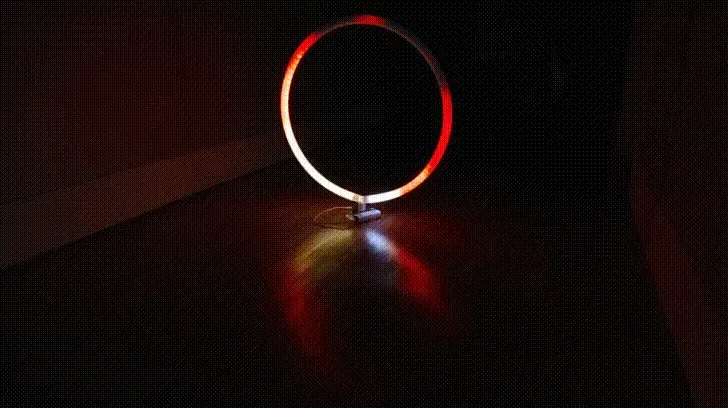

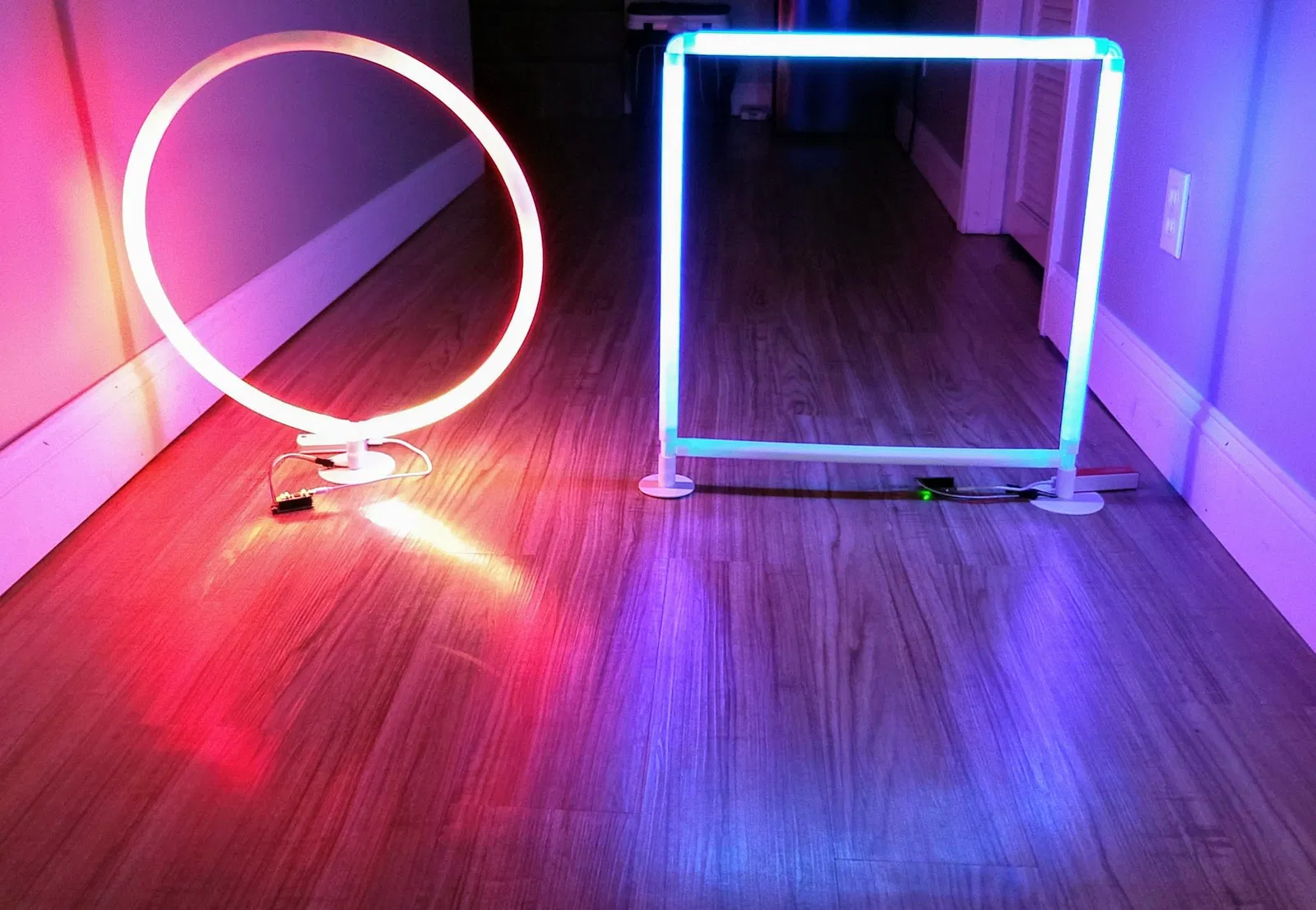

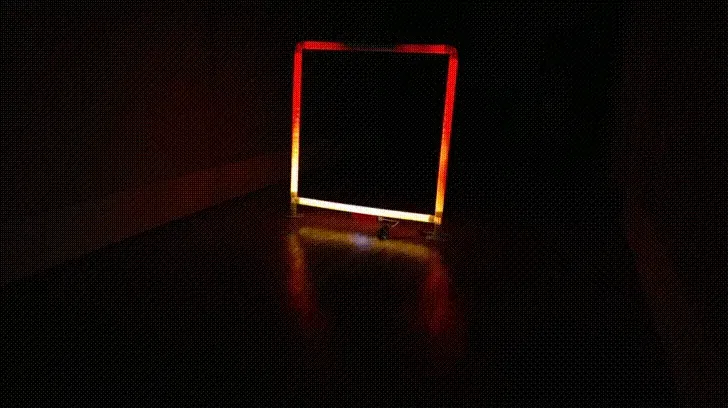

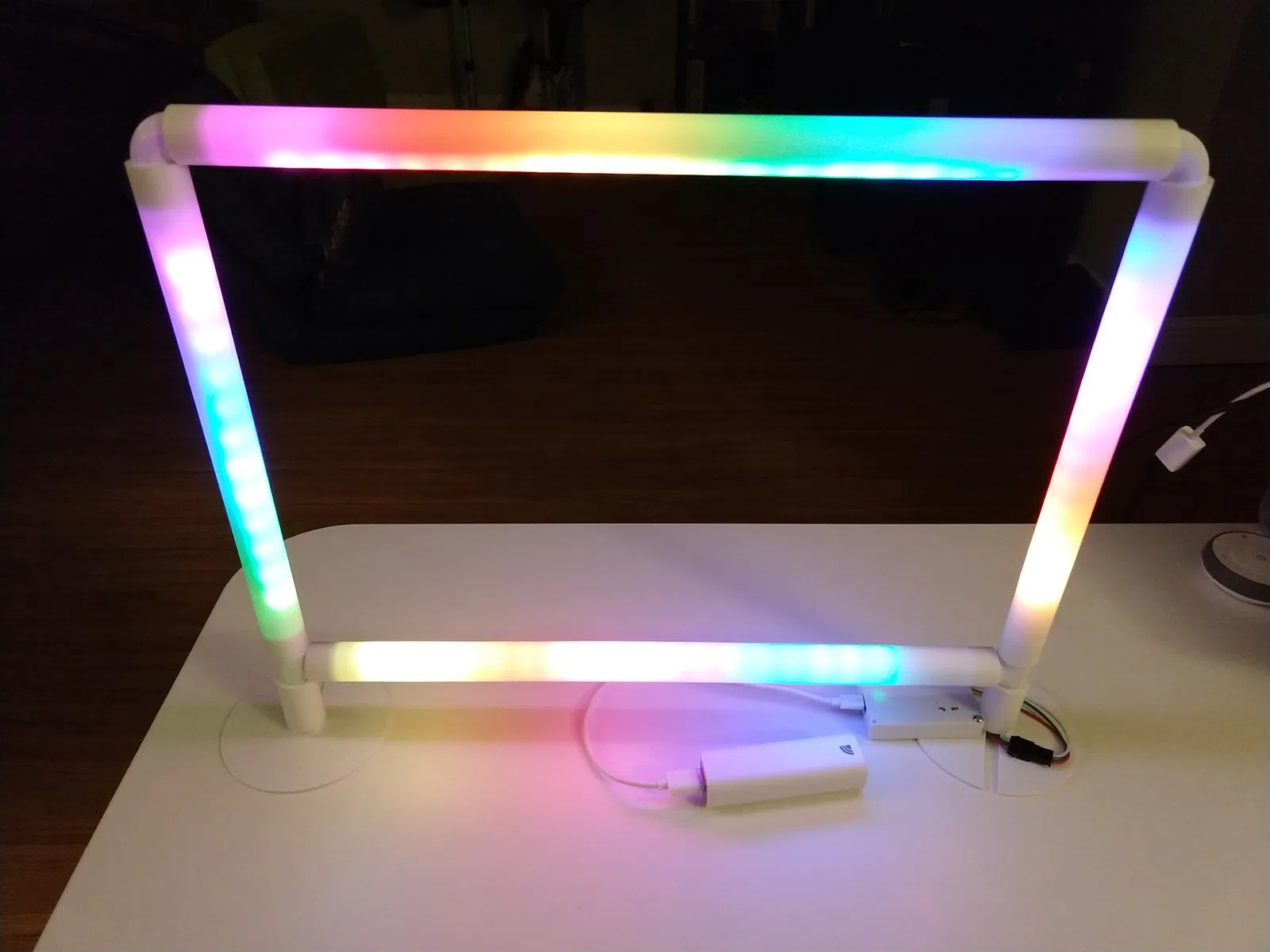

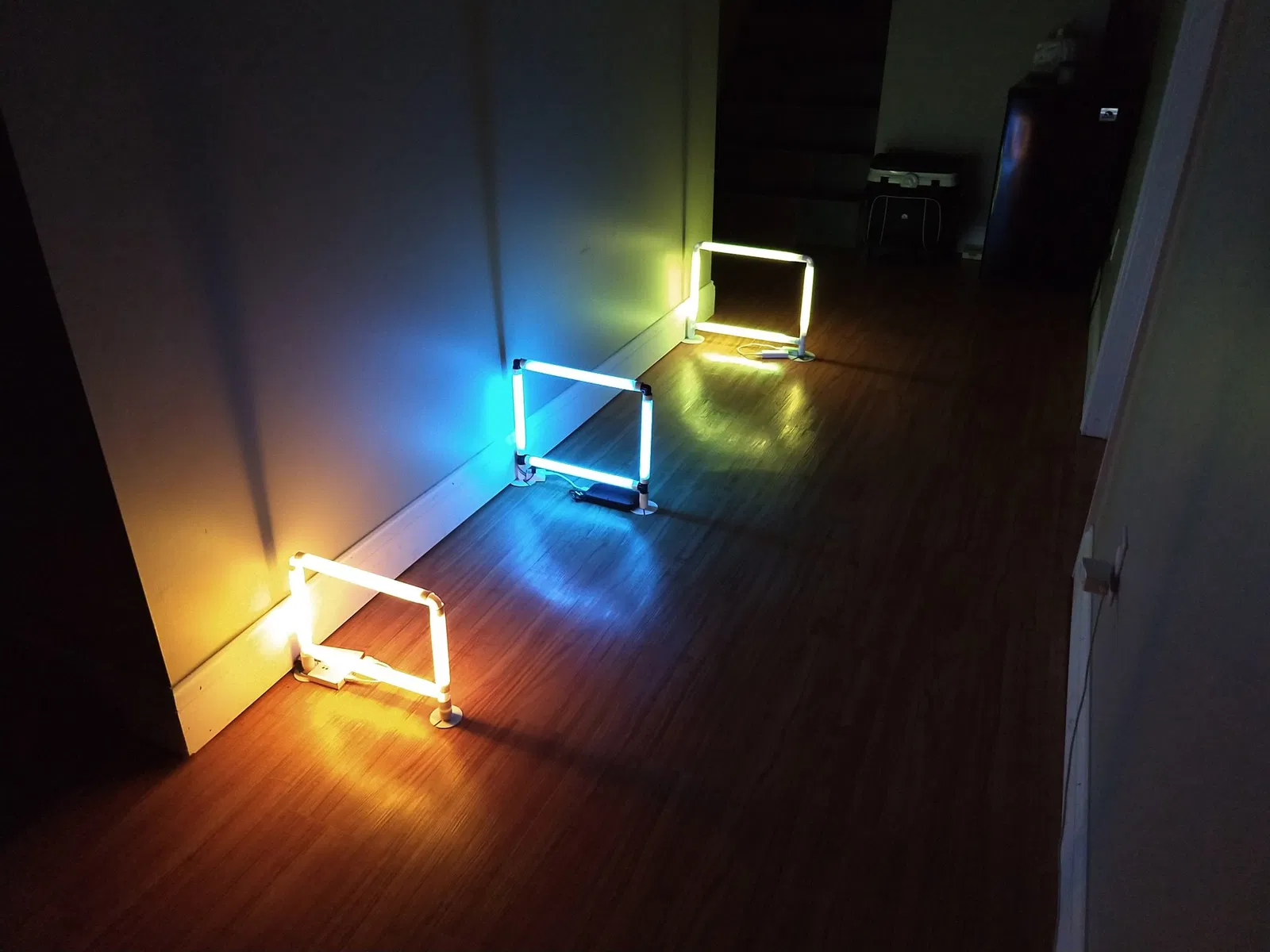

RGB LED race gate for indoor FPV micro quadrotors (tiny whoops).

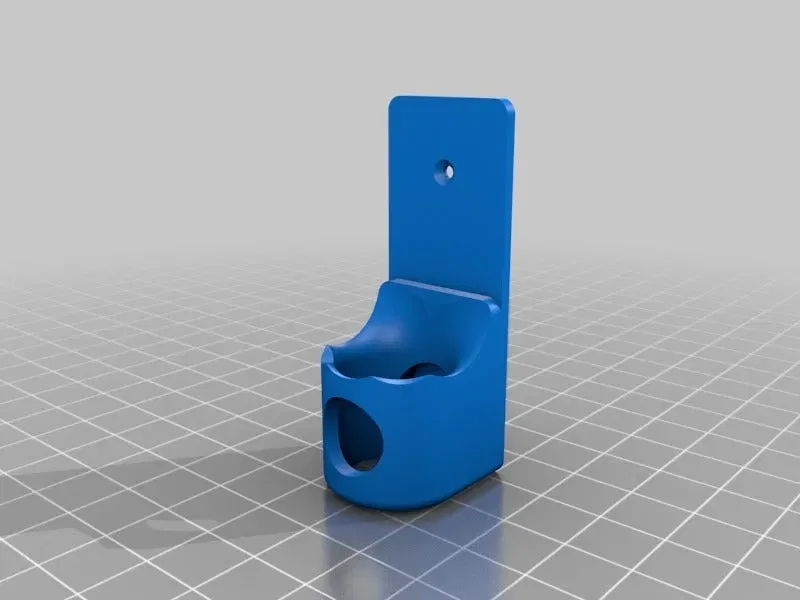

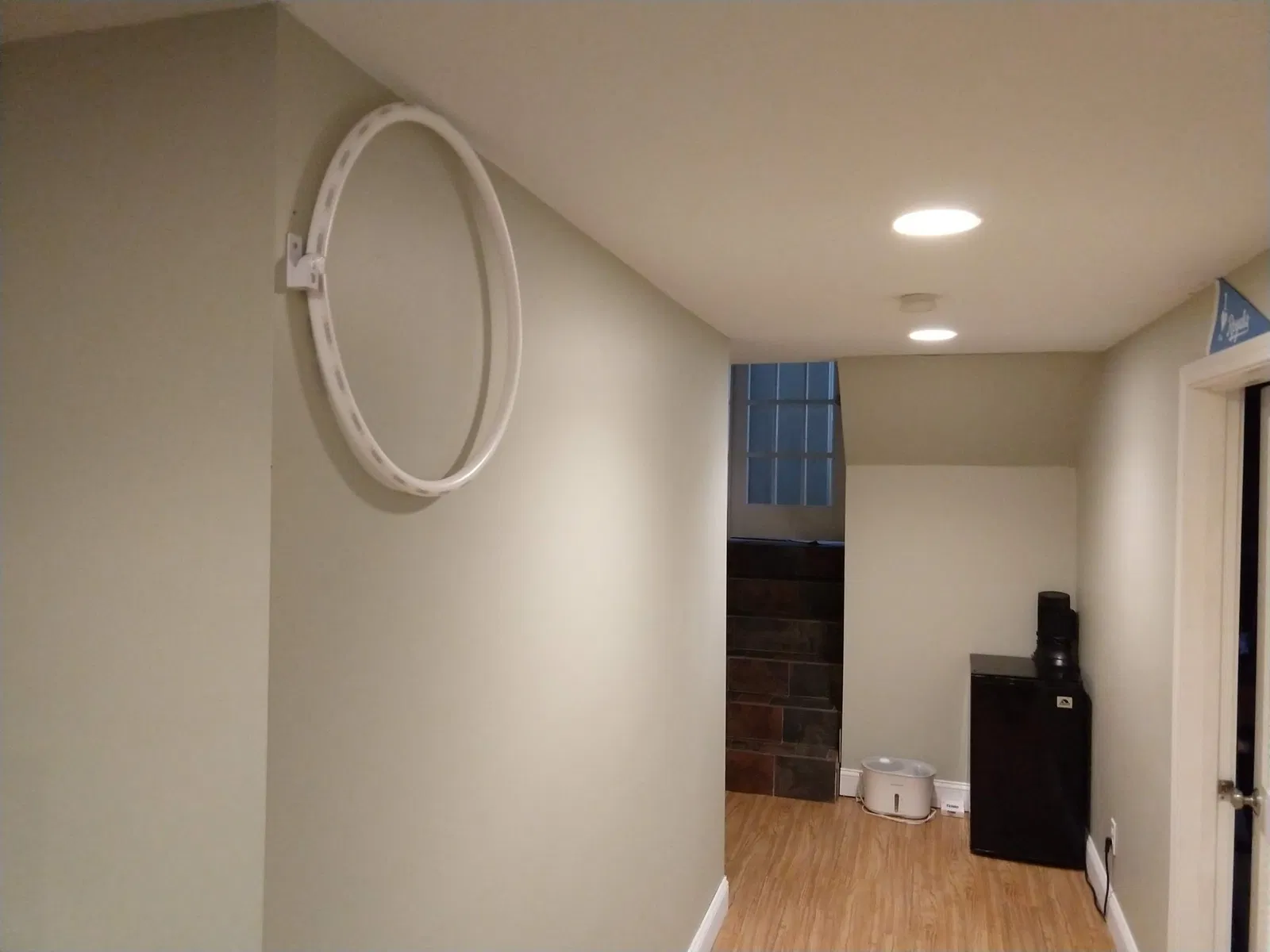

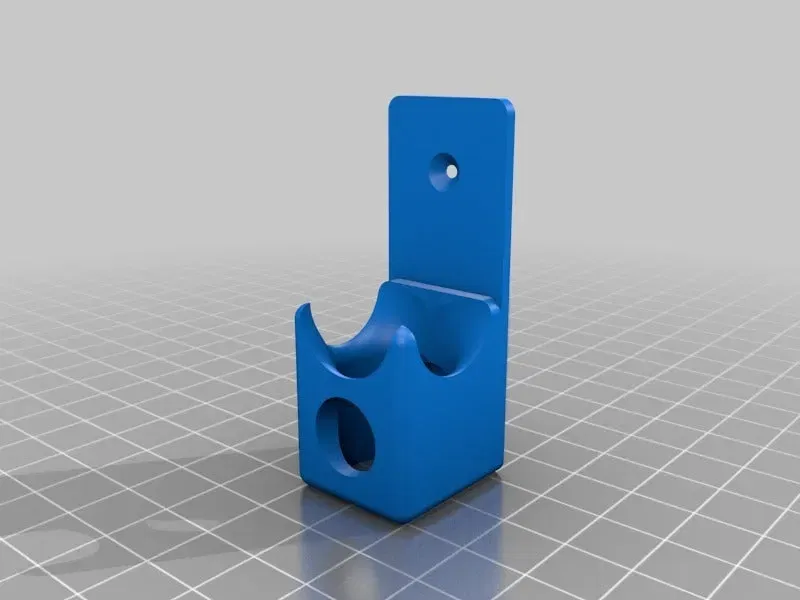

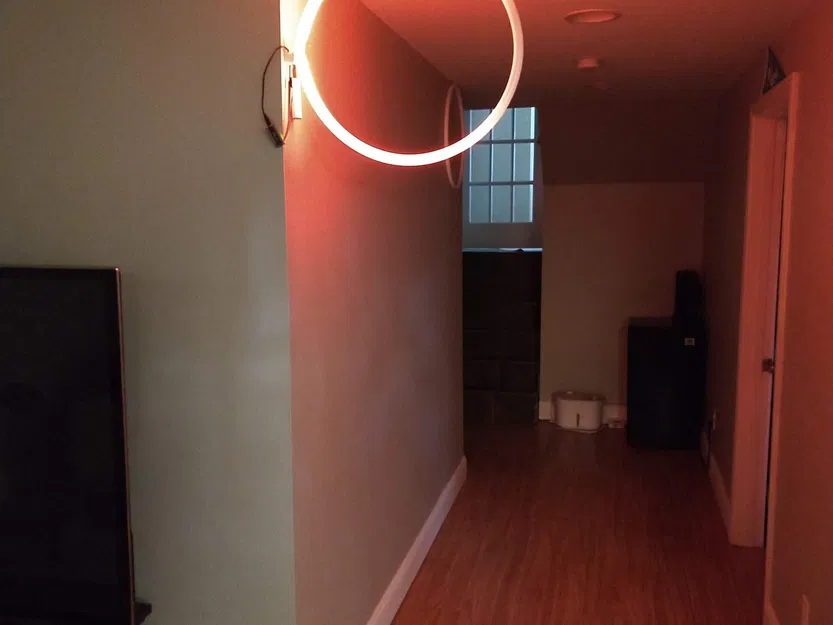

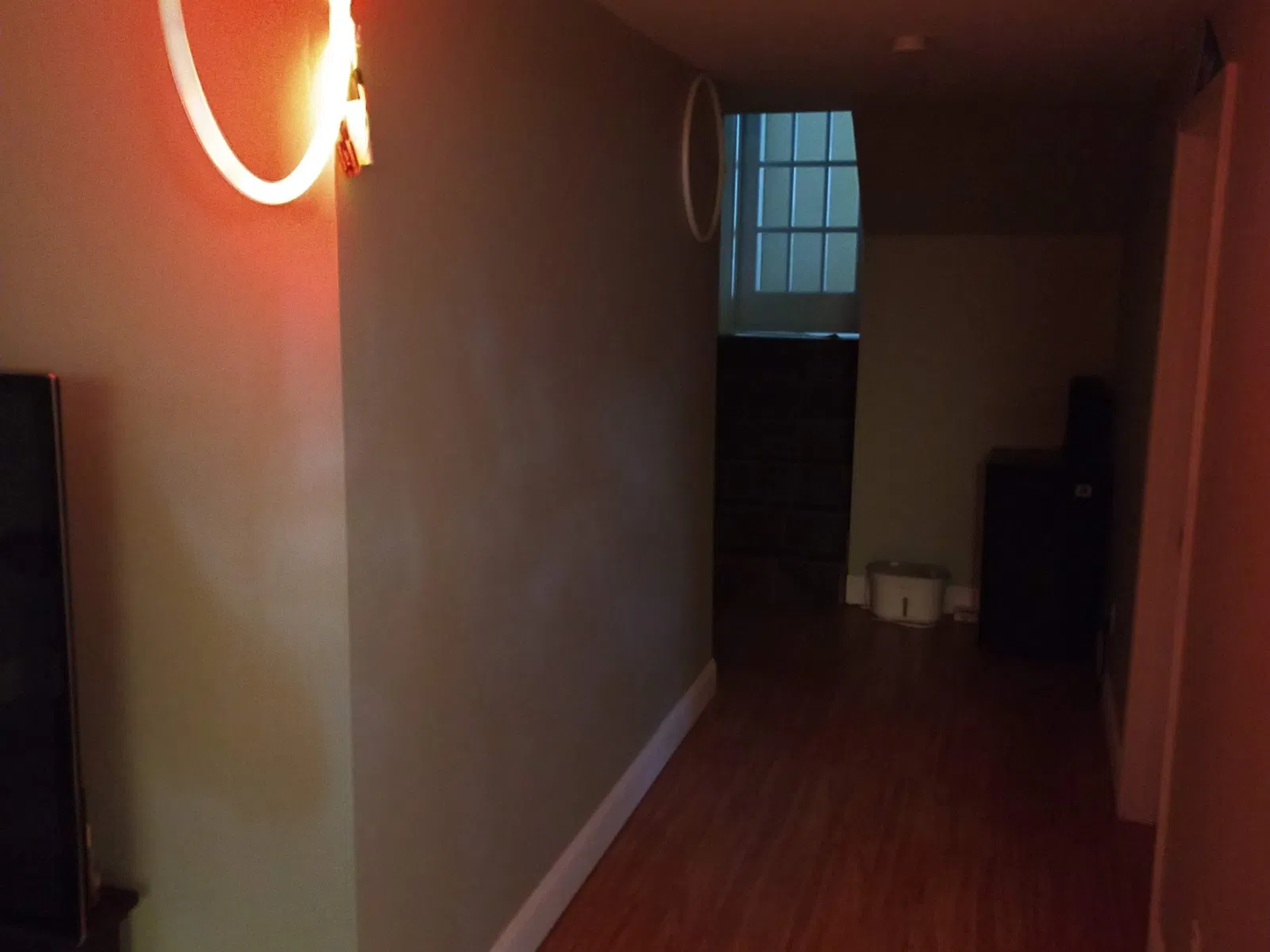

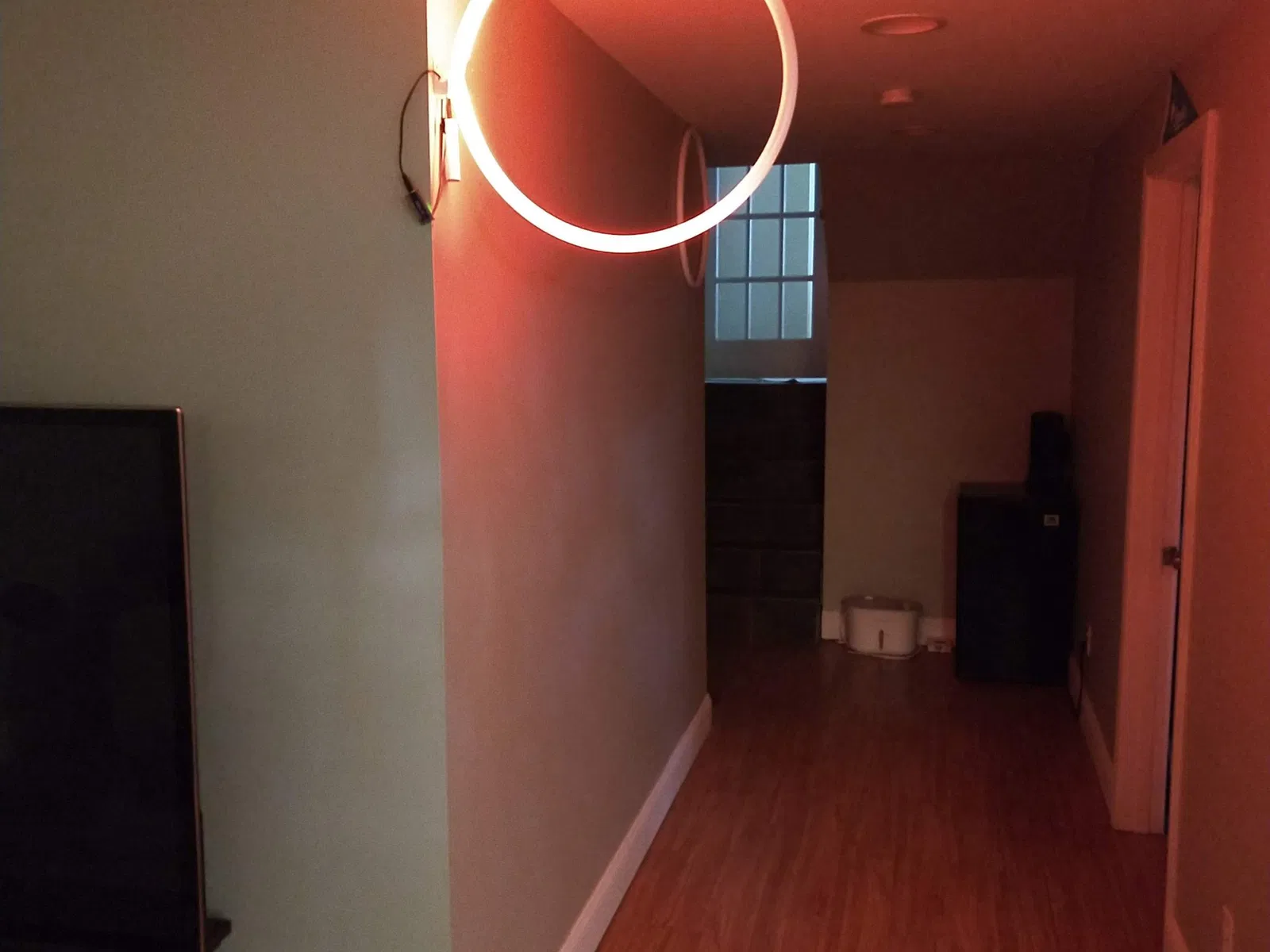

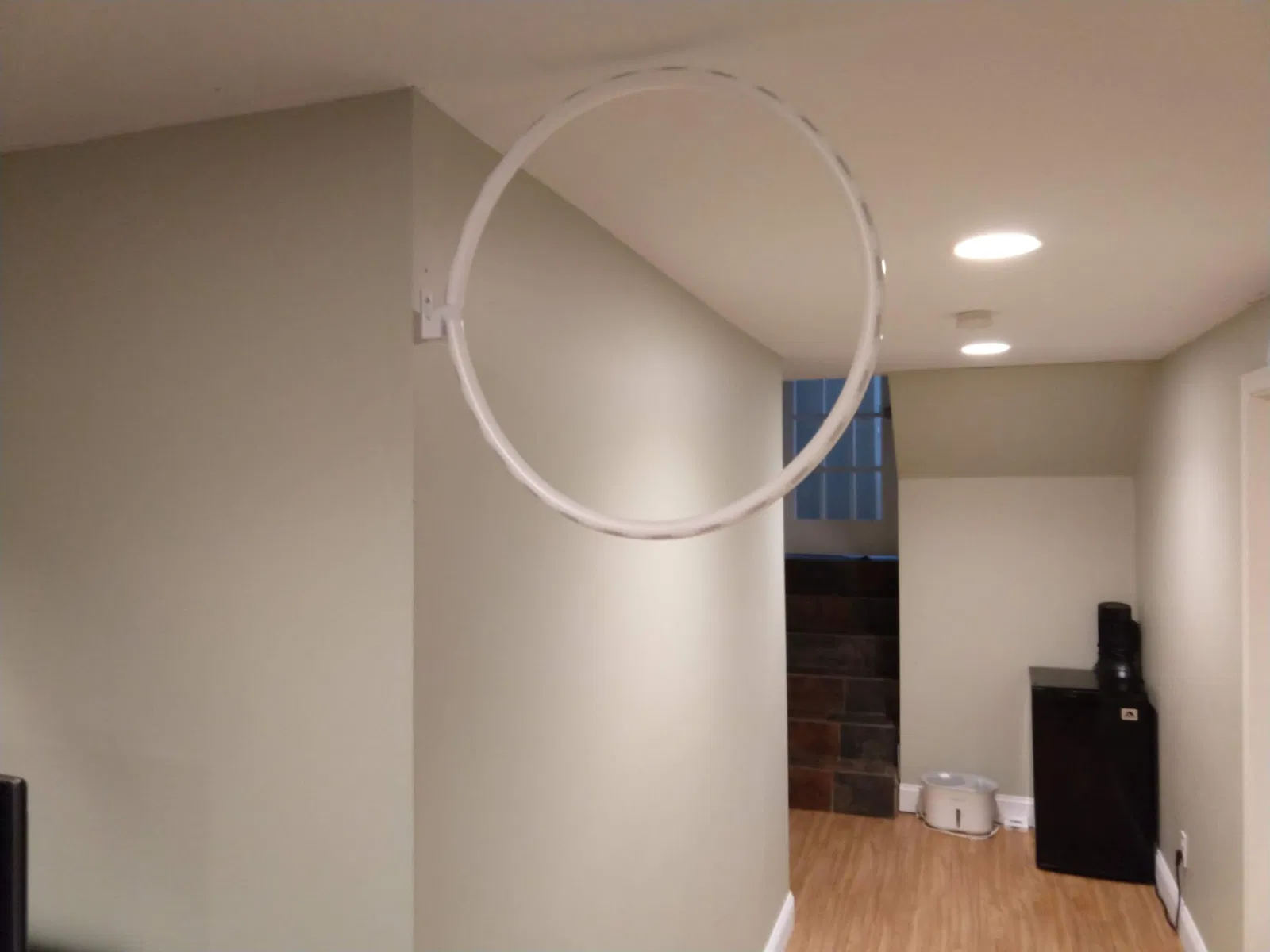

Update: I've added wall mount swivels, so you can mount your gates on the wall, and they rotate up against the wall out of the way when not being used.

Built with:

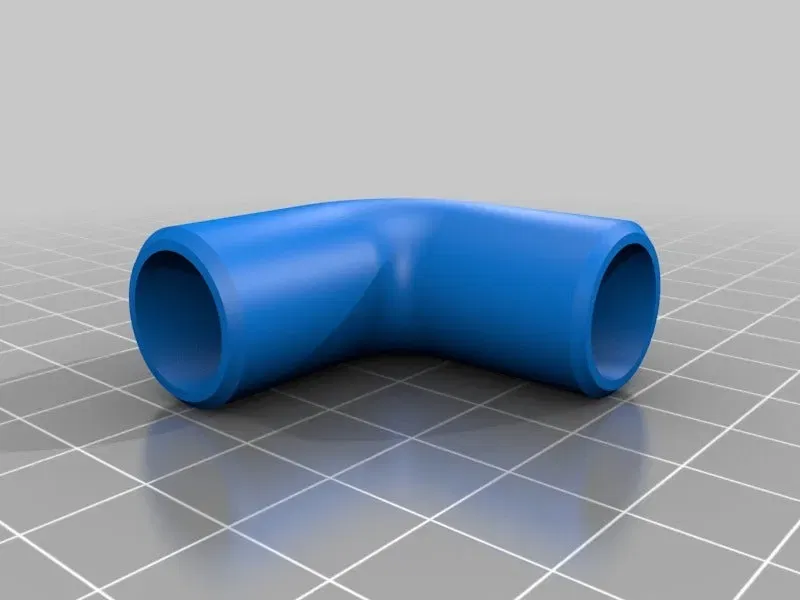

2 90-degree elbows

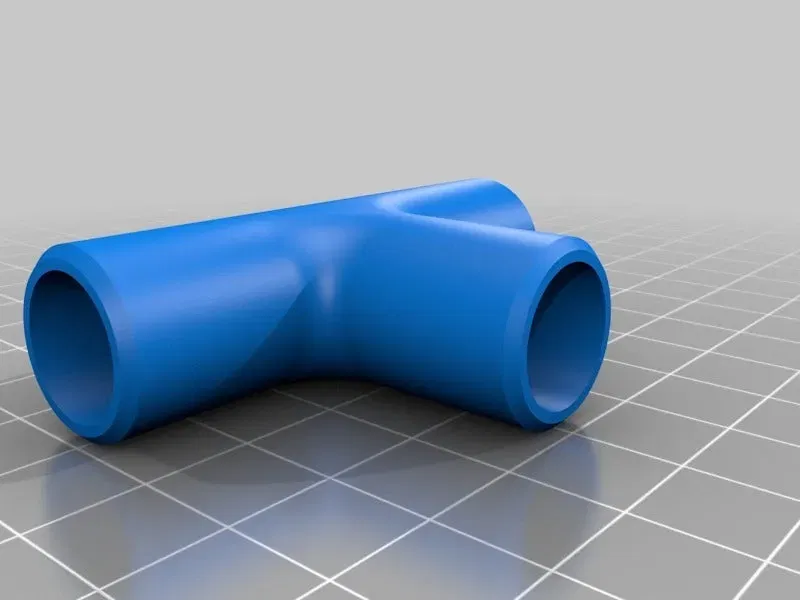

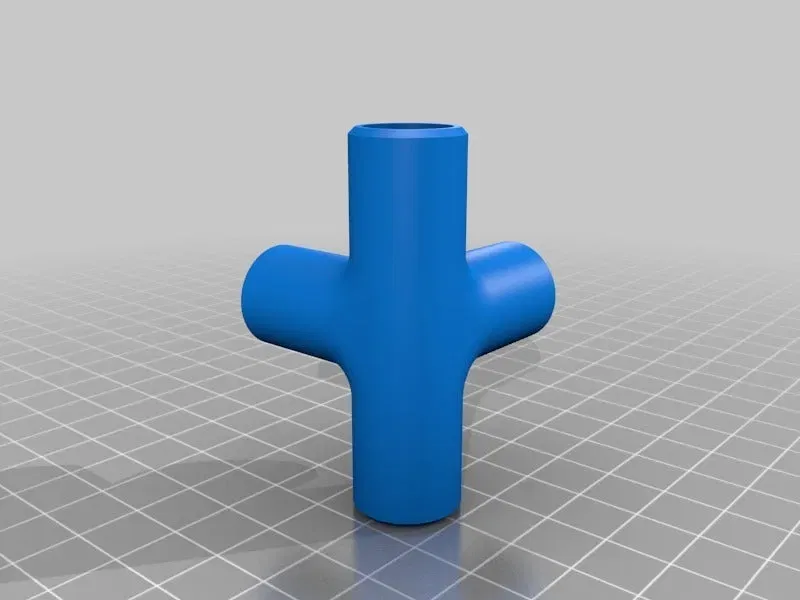

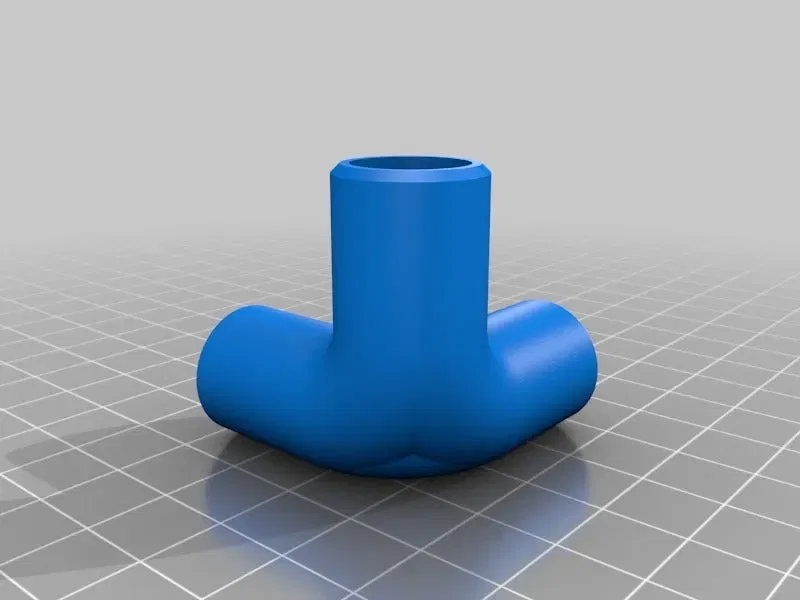

2 tees

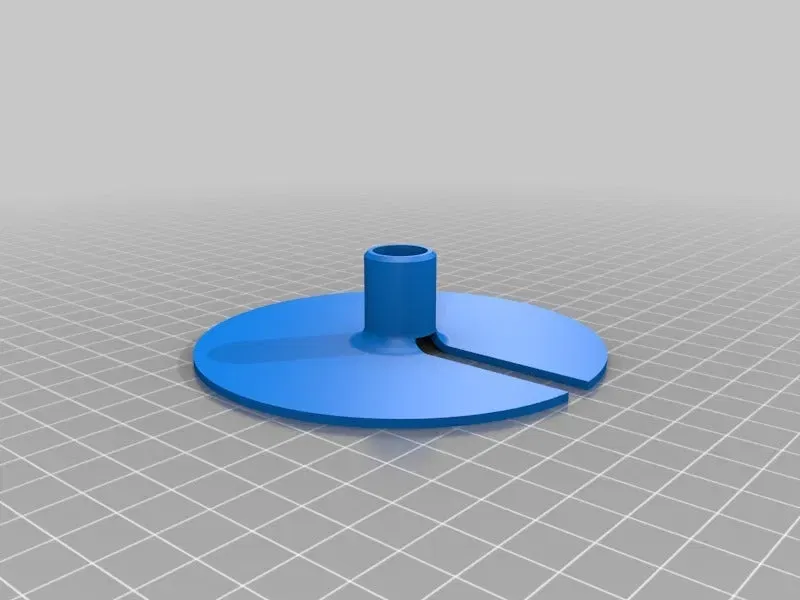

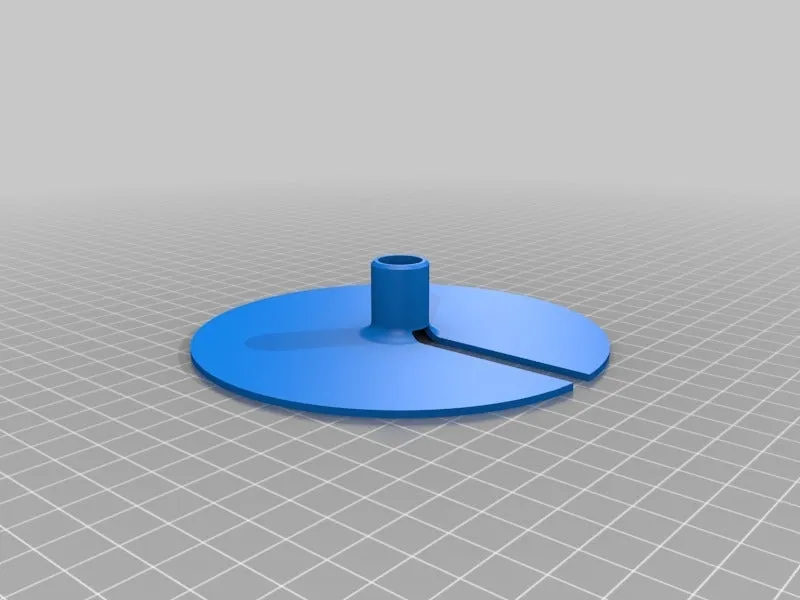

2 flanges

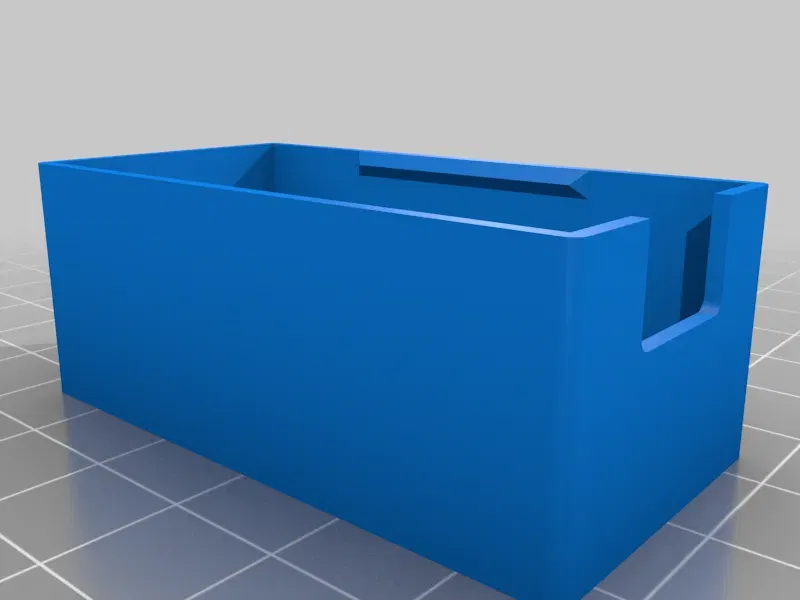

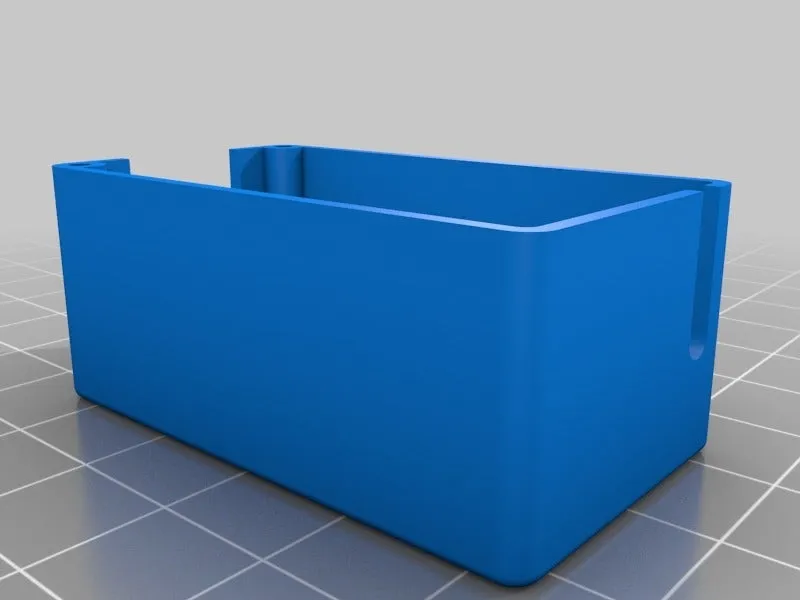

case

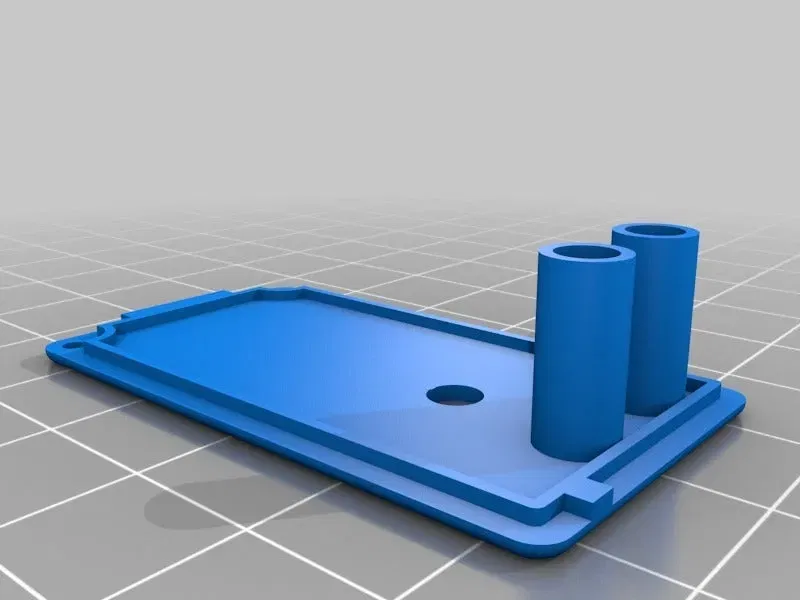

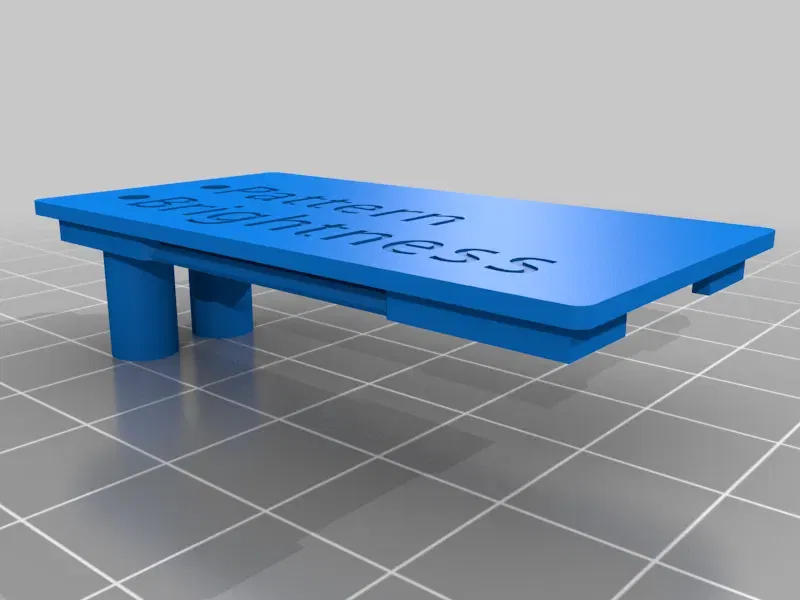

lid

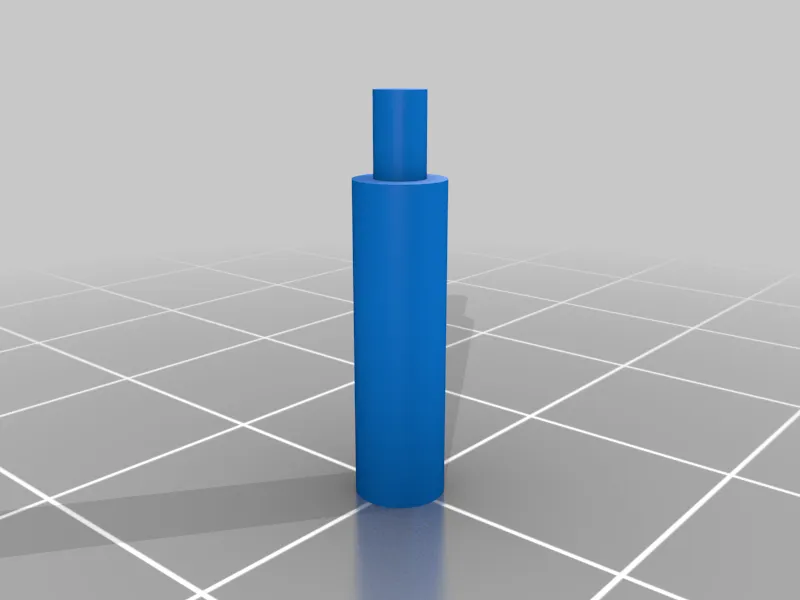

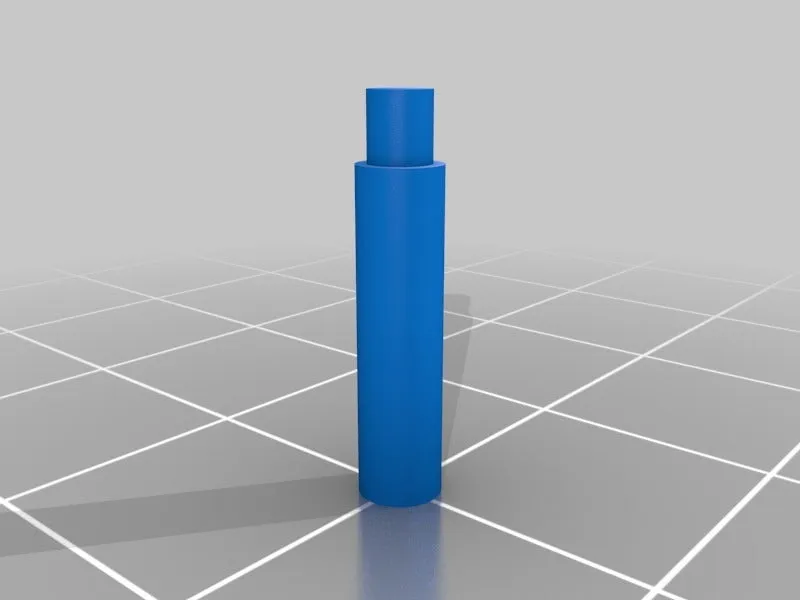

2 pins
Adafruit Pro Trinket - 5V 16MHz
Adafruit 60 NeoPixel RGB LED Strip
470 ohm resistors
Tactile Button switches (6mm)
Shield PCB
Cheap USB Power Bank
3/4 in. x 10 ft. White PEX Pipe Wire/Connectors
Pre-Wired JST SM Connectors OR
JST-SM connectors
SN-48B Crimping Tool
22 AWG Wire More info, source code, instructions: https://www.evilgeniuslabs.org/trinket-pro-rgb-led-micro-quadrotor-race-gate

Print instructions

Category: R/C Vehicles Print Settings

Printer Brand: Monoprice

Printer: Maker Ultimate

Rafts: Doesn't Matter

Supports: Doesn't Matter

Resolution: 0.2mm

Infill: 20%

Filament: Inland PLA White

Thẻ

thingiverse

Giấy phép

Tác phẩm này được cấp phép theo

Creative Commons — Attribution

CC-BY

Yêu cầu ghi công

Remix & phái sinh Được phép

Sử dụng thương mại Được phép

File mô hình

TẤT CẢ FILE MÔ HÌNH (22 Tập tin)

STL

3_4_inch_pex_tee_6_way.stl

2.16 MB

Apr 14, 2025

STL

3_4_inch_pex_swivel_mount_square_90.stl

802.43 KB

Apr 14, 2025

STL

3_4_inch_pex_tee.stl

2.3 MB

Apr 14, 2025

STL

3_4_inch_pex_flange_xl.stl

315.12 KB

Apr 14, 2025

STL

3_4_inch_pex_swivel_mount_round_90.stl

742.17 KB

Apr 14, 2025

STL

3_4_inch_pex_90.stl

2.11 MB

Apr 14, 2025

STL

nanov3shieldcase.stl

62.39 KB

Apr 14, 2025

STL

trinket_pro_led_shield_case_lid.stl

292.46 KB

Apr 14, 2025

STL

trinket_pro_led_shield_case.stl

365.12 KB

Apr 14, 2025

STL

nanov3shieldcasebutton.stl

93.54 KB

Apr 14, 2025

STL

3_4_inch_pex_corner.stl

1.6 MB

Apr 14, 2025

STL

gate_battery_controller_bracket.stl

247.54 KB

Apr 14, 2025

STL

3_4_inch_pex_hoop_swivel_fitting.stl

1.77 MB

Apr 14, 2025

STL

3_4_inch_pex_h.stl

1.87 MB

Apr 14, 2025

STL

3_4_inch_pex_tee_5_way.stl

1.92 MB

Apr 14, 2025

STL

3_4_inch_pex_swivel_mount_round_45.stl

698.62 KB

Apr 14, 2025

STL

trinket_pro_led_shield_case_pin.stl

94.13 KB

Apr 14, 2025

STL

3_4_inch_pex_flange_l.stl

392.46 KB

Apr 14, 2025

STL

3_4_inch_pex_tee_4_way.stl

1.56 MB

Apr 14, 2025

F3D

Pex Fittings.f3d

684.57 KB

Apr 14, 2025

STEP

Tee.step

24.51 KB

Apr 14, 2025

STEP

Elbow.step

14.83 KB

Apr 14, 2025
