Bluetooth or Wifi NFC pairing tag/tile/button for easy pairing and wifi connections, 25mm round NFC tag

Fits standard 25mm round NFC tag stickers.

The logo indent in the top, and the gap in the middle are both 0.2mm, so I would recommend that layer height for easy slicing.

A set for wifi, a set for bluetooth, and some blank ones:

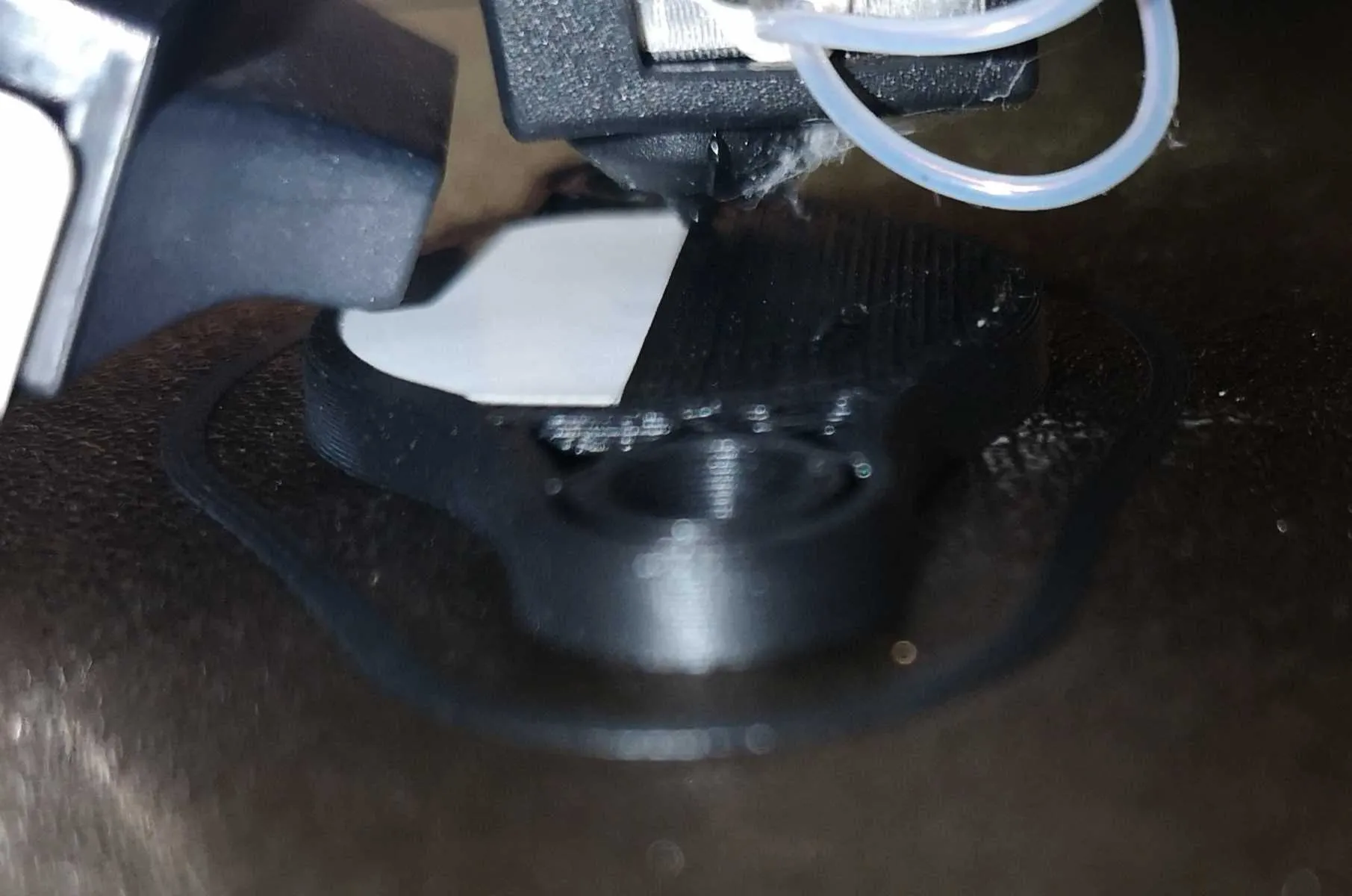

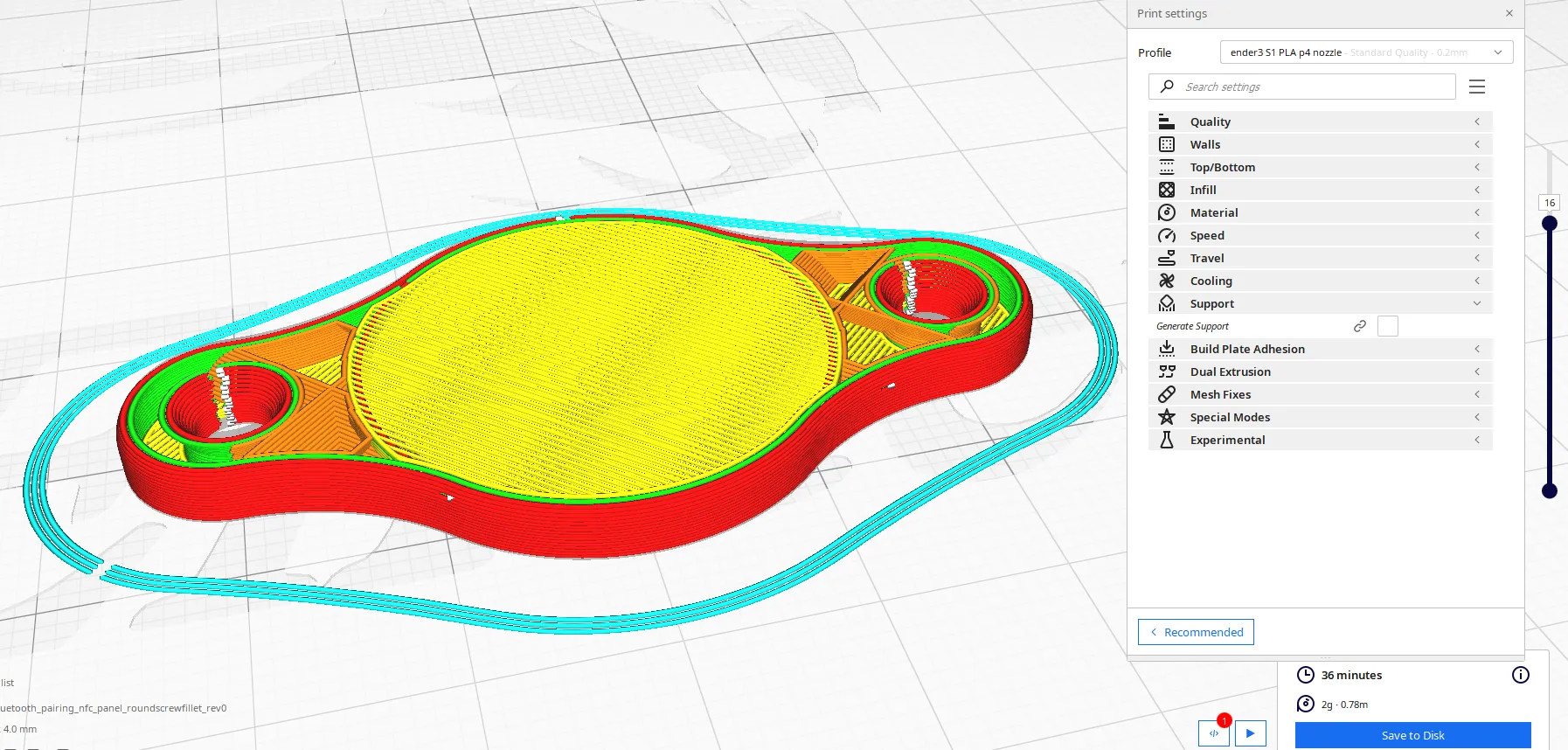

• Pause your print using a script (or manually) when the gap in the middle of the part is exposed (see slicer image).

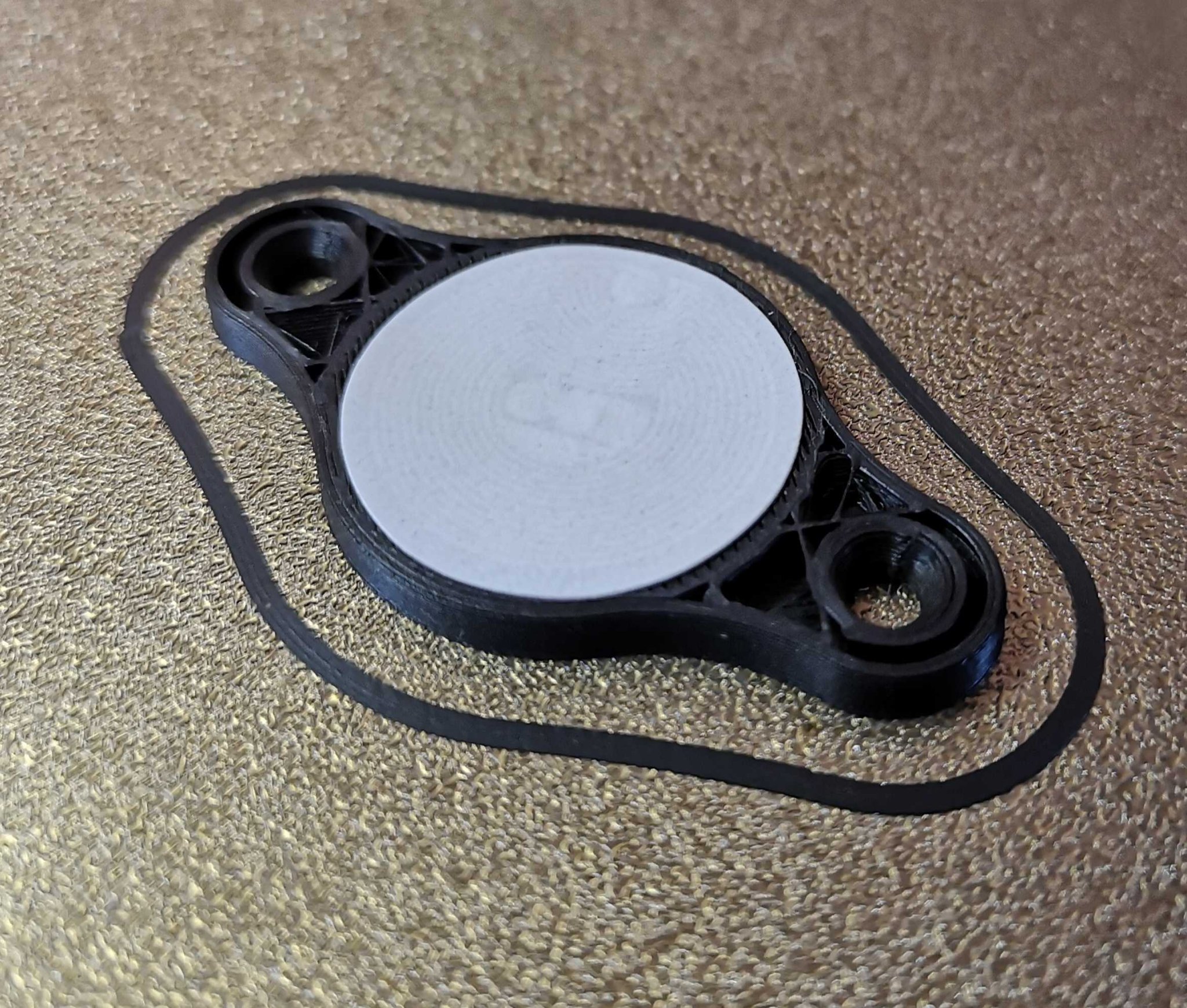

• Apply the sticker
• Resume the print → The NFC sticker will be permanently encased in the part
• Use ‘nfc tools’ on your phone to program the NFC tag for automatic bluetooth or wifi pairing

There are a variety of options with recessed screw holes to support ‘5x3/4’ flat socket head screws. Or, some small round options if you prefer glue/tape. There is also a blank option for each, in case you are doing some home-automation that doesn't relate to bluetooth or wifi.

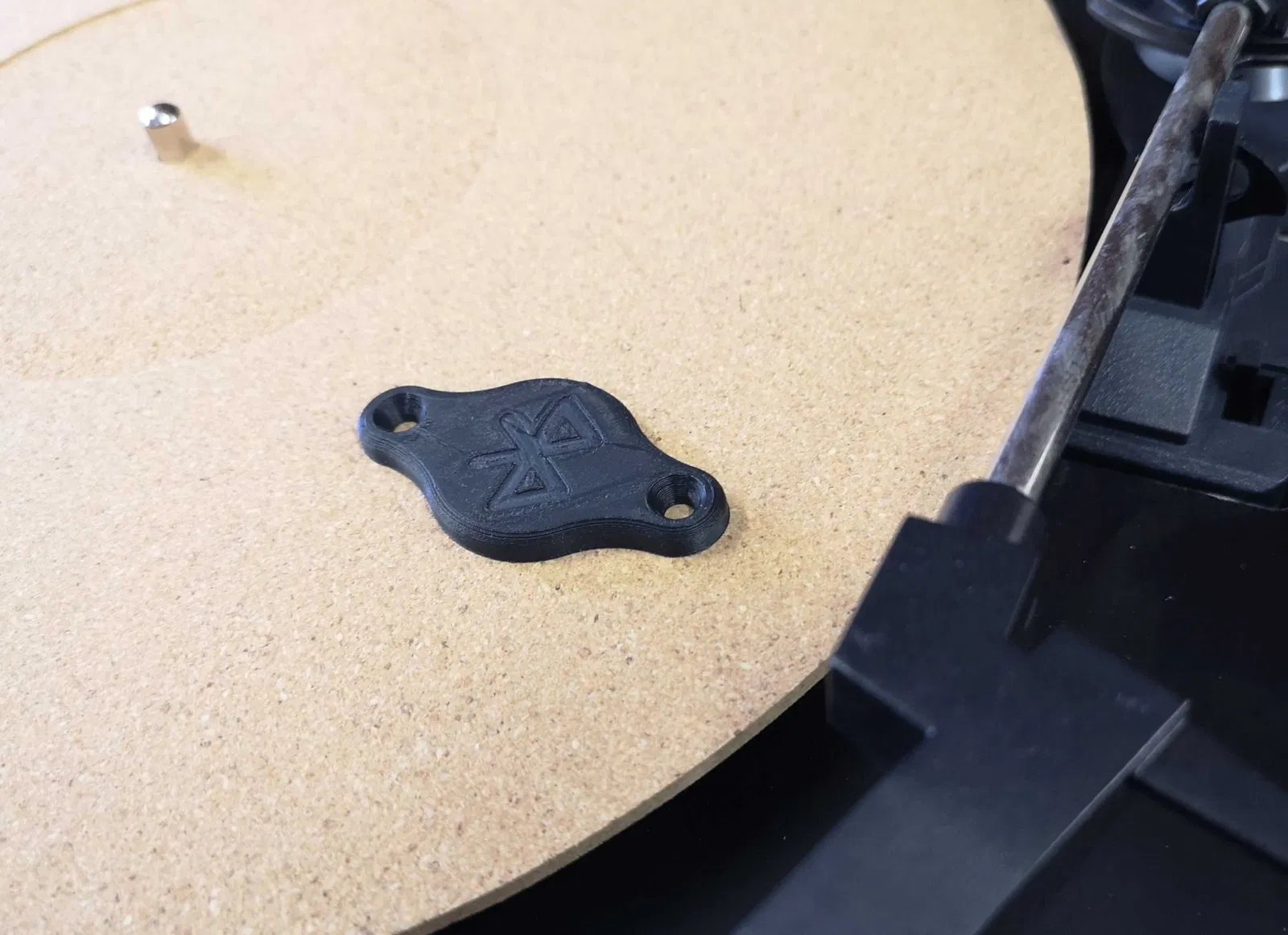

I'm using this on an old record player cabinet restore to allow guests to easily pair/connect to bluetooth!
