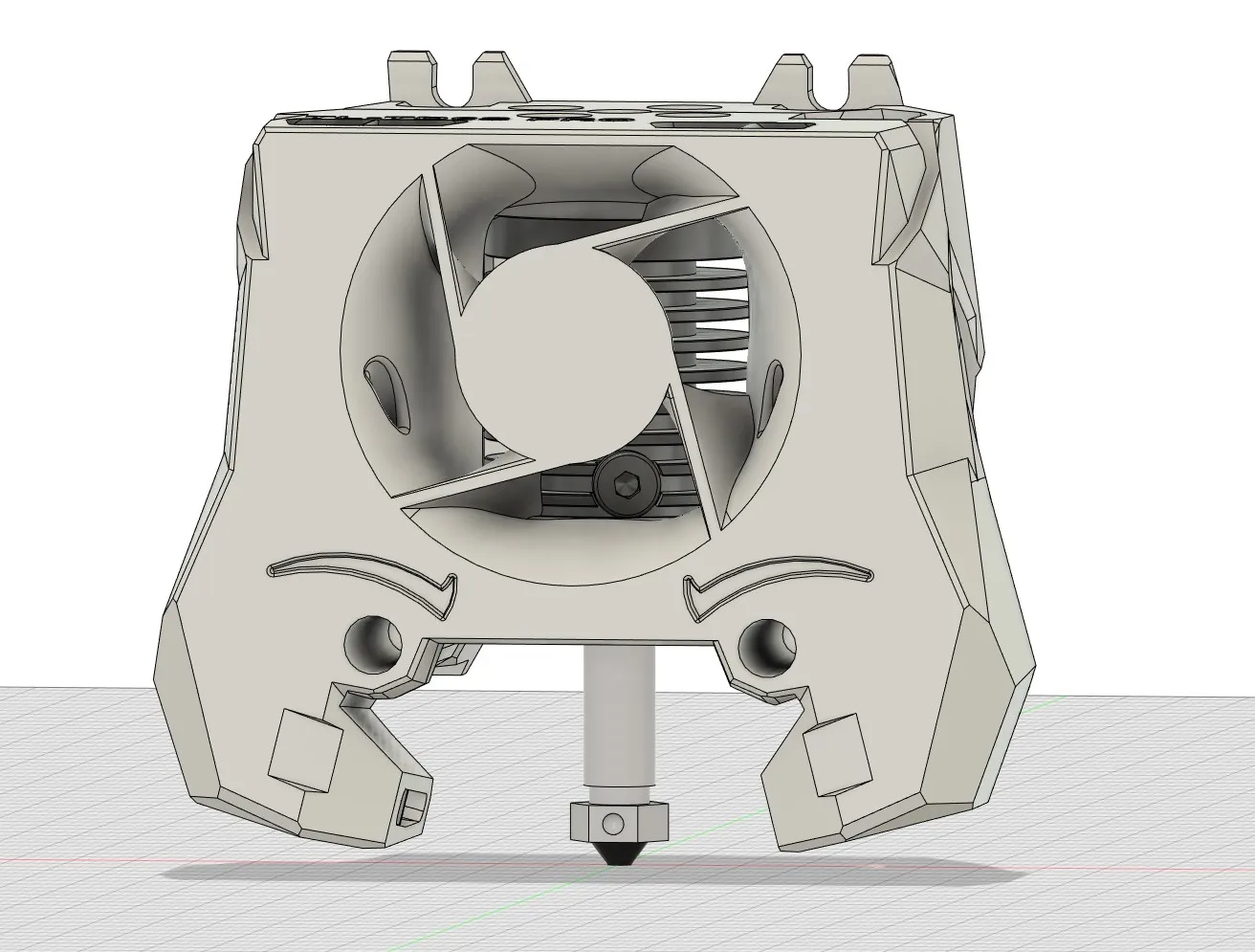

Stealthburner TD6S+TUN Pro Nozzle mount

Tác giả UNIT_normal_528315

Lượt tải
54
Lượt thích
8
Lượt coi
557
Bình luận
6

File 5 29 MB

  • TD6S_TUN_PRO_Stealthburner_1765793642.stepSTEP · 6,1 MB
  • SBTD6S_Pro_TH_Rear_CW2_1765793644.stlSTL · 1,1 MB
  • SBTD6S_Pro_TH_Front_1765793644.stlSTL · 10,4 MB
  • SBTD6S_Pro_TH_Rear_CW2_ZS_1765793646.stlSTL · 1,1 MB

Tạo biến thể bằng AI

Dựng một phiên bản khác của mẫu này.

Mở Studio

Thông tin

Mã mẫu
#69477
Danh mục
Máy In 3D
Ngày đăng

Mô tả

Modified based on Rapido HF mount.

TD6S with TUN Pro nozzle is 53.3mm long while Rapido HF is 54mm long.

Also Rapido heatsink is narrow at top so TD6S heatsink would not fit.

So I extended mounting surface to fill 0.7mm difference and expanded heatsink area.

(Edit : Modified set for ZS variants has been added.)

TUN Pro nozzle modeling from Valerio Valentini

https://grabcad.com/library/thch-td6-tun-nozzle-pro-trianglelab-hotend-1
