E-Lab Power supply mod (slotted vents, barrel plugs)

Biến thể nhỏ cho trường hợp tuyệt vời của @stanley_97458 để phù hợp với nhu cầu của tôi.

👁️
372
Lượt Xem
❤️
7
Lượt Thích
📥
48
Lượt Tải
Cập Nhật Nov 22, 2025
Chi tiết
Tải xuống
Remixes

Mô tả

Slight variation for the amazing case by @Stanley_97458 to fit my personal needs.

  • Removed XT60 ports
  • Added port for a barrel plug (input)

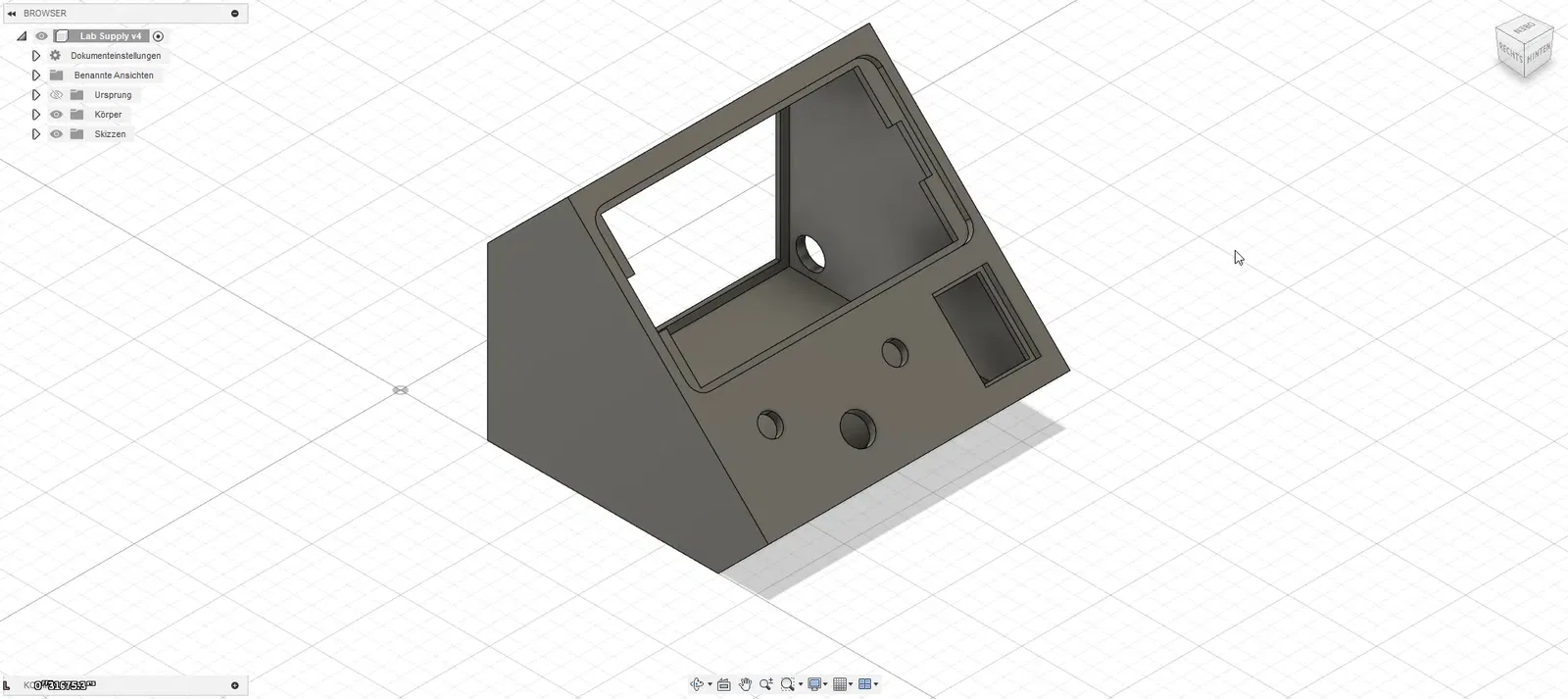

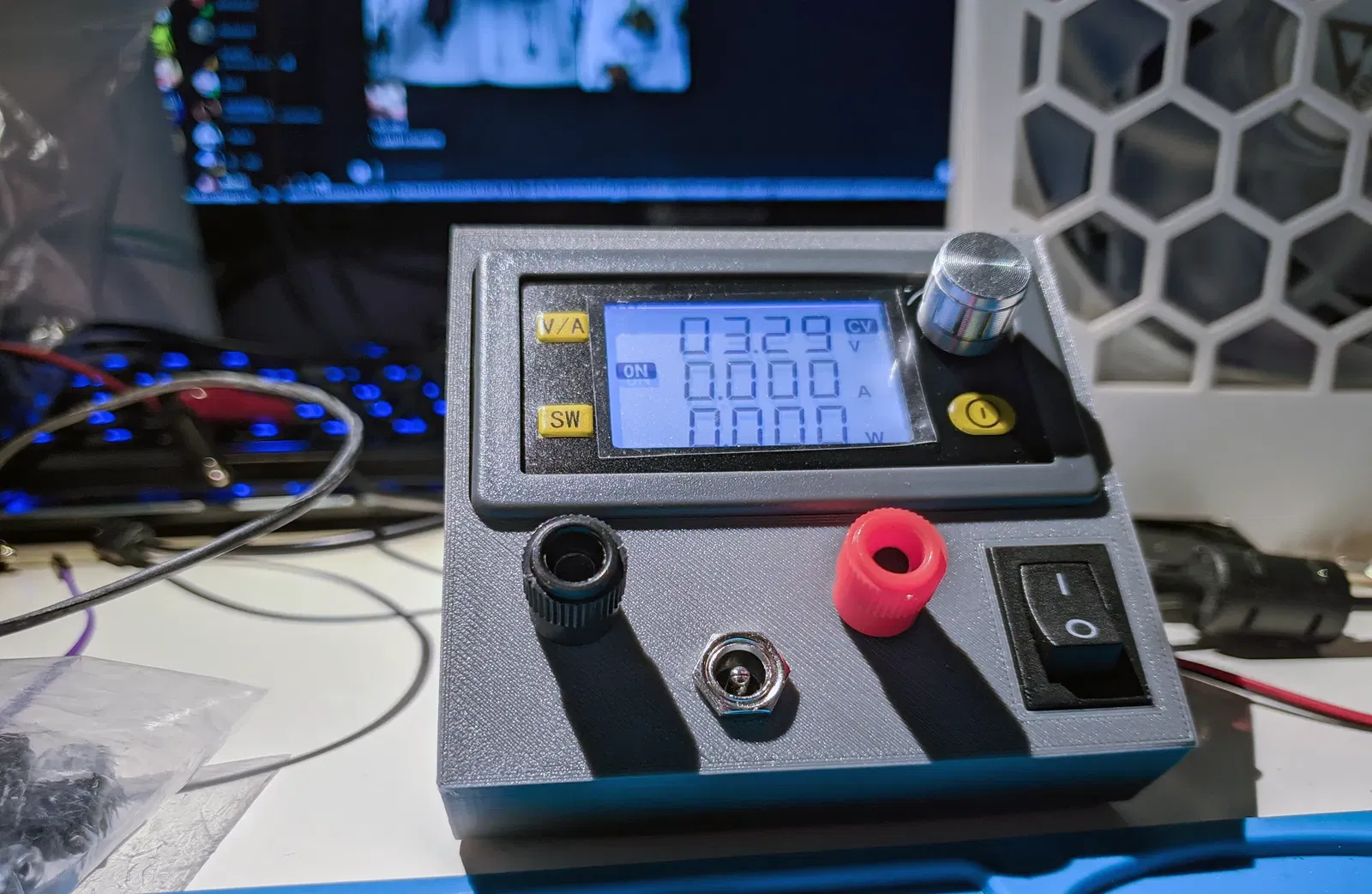

  • Replaced 2mm front terminal ports with a barrel plug

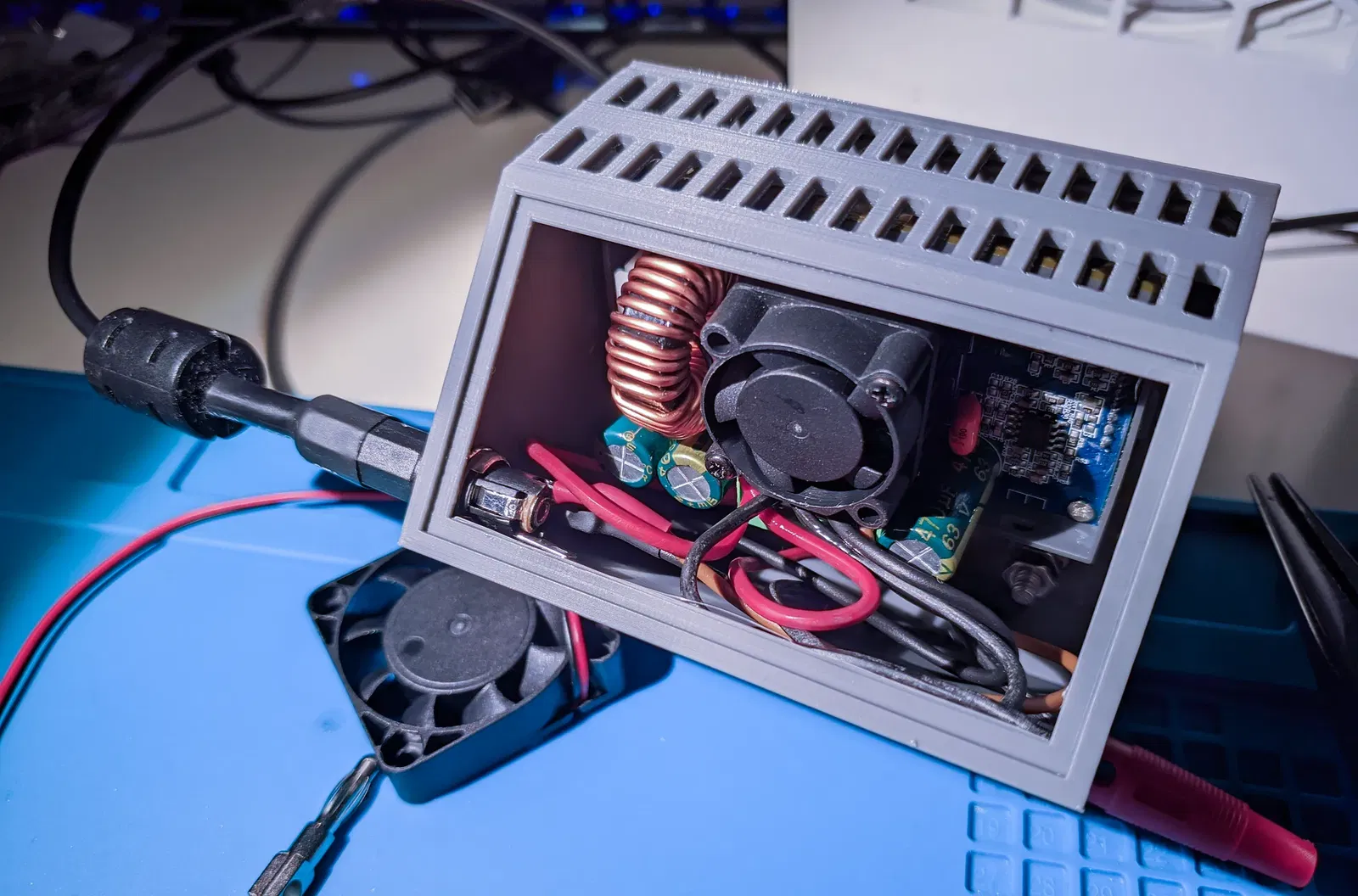

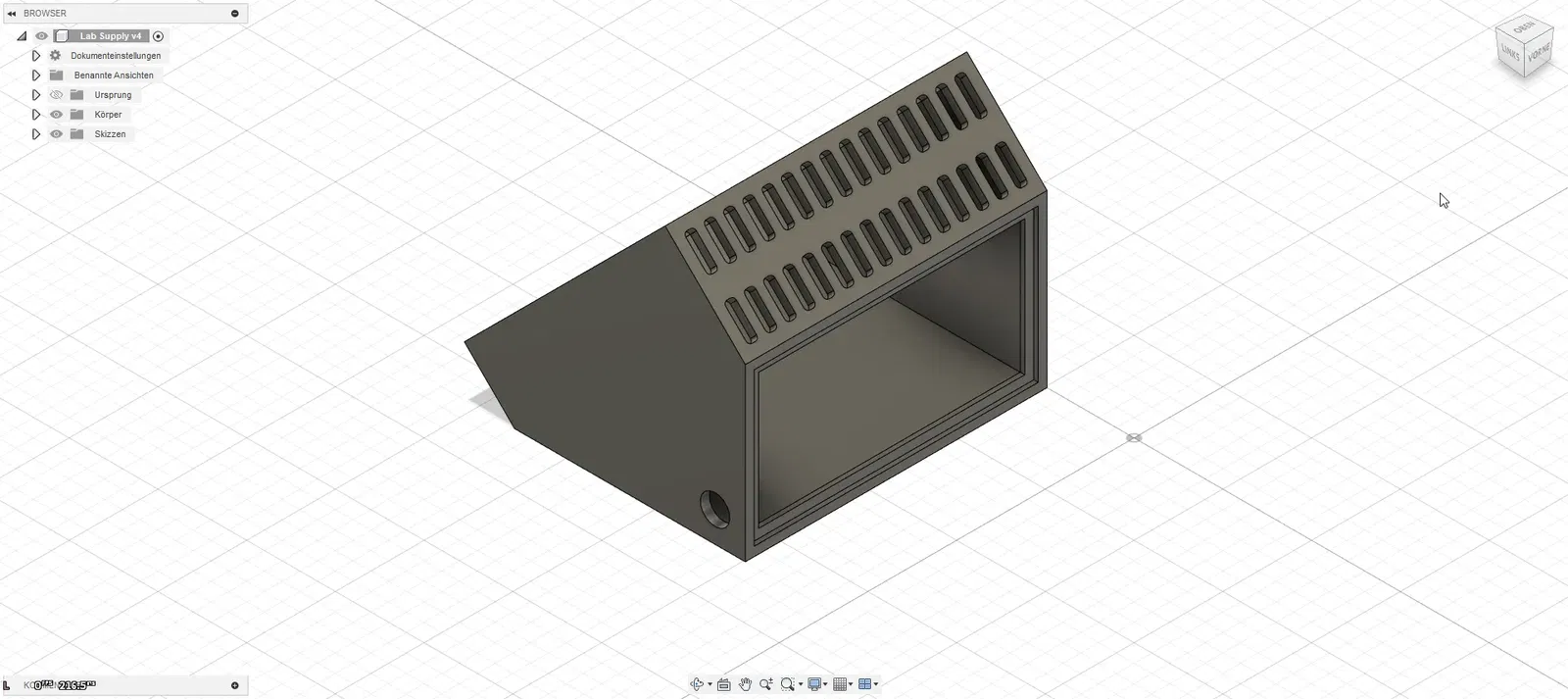

  • Added slotted ventilation holes
  • Added cutouts for 8mm self adhesive rubber feet

Step file included.

Use this back panel to close up the rear side:

(Cut off one of the clips in case it's colliding with your step down module)

Printed with 0.1mm layer height, no supports. Front panel is facing the build plate.
