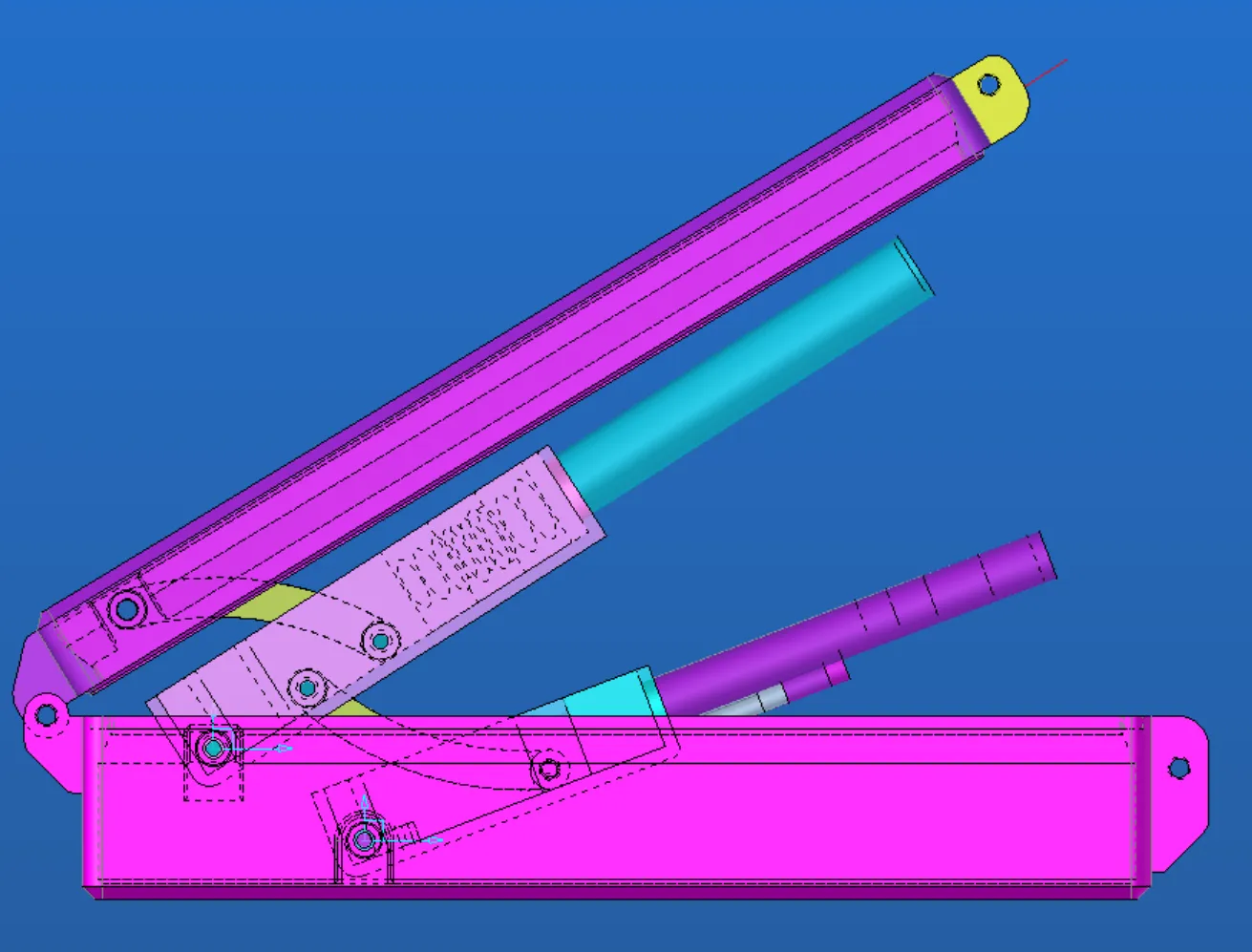

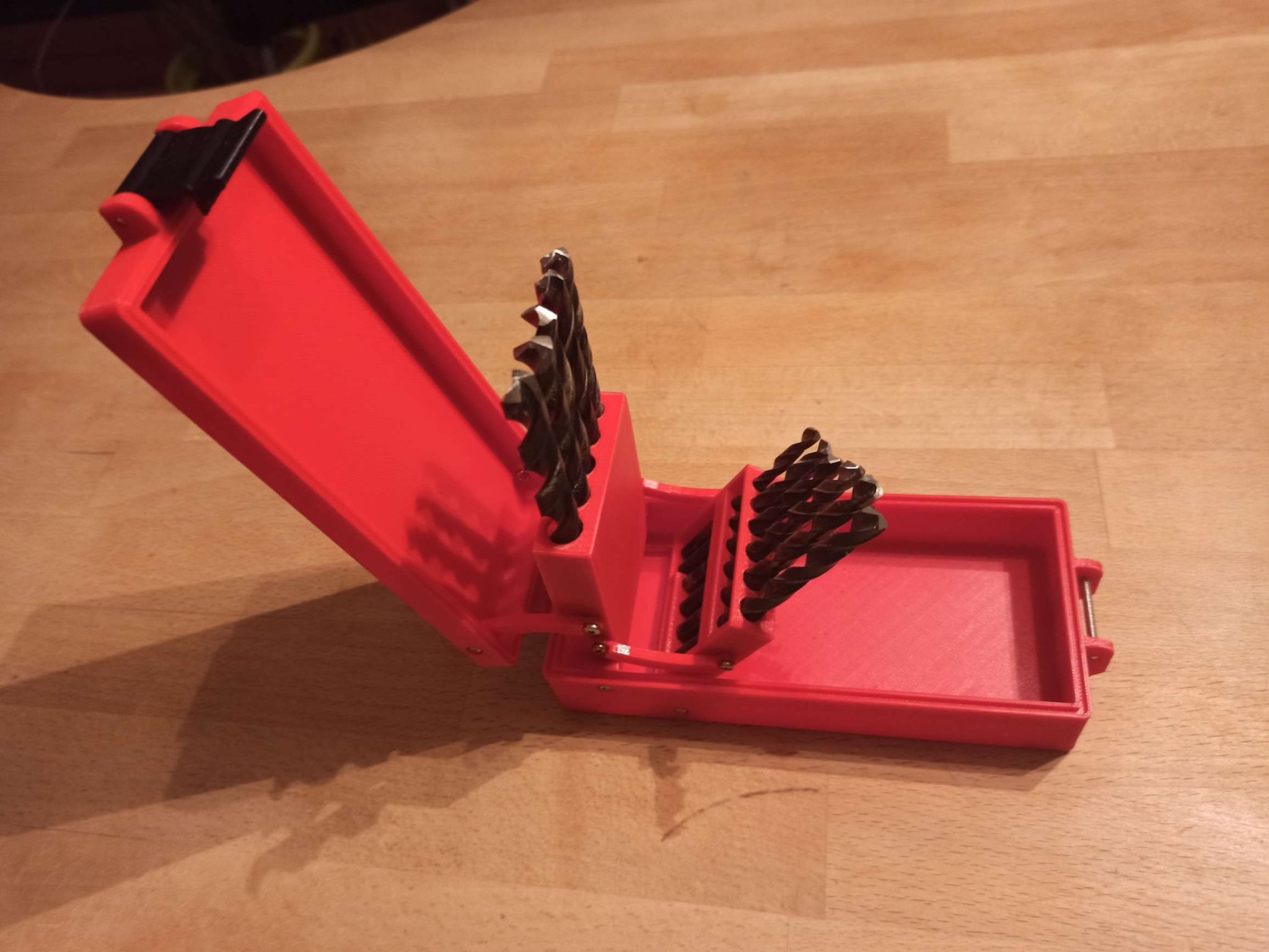

I needed a more compact box for my drill bits, so I designed this one, with latches based on Whity's Rugged Box, and I inverted the upper lip of the box to have a smooth outside.

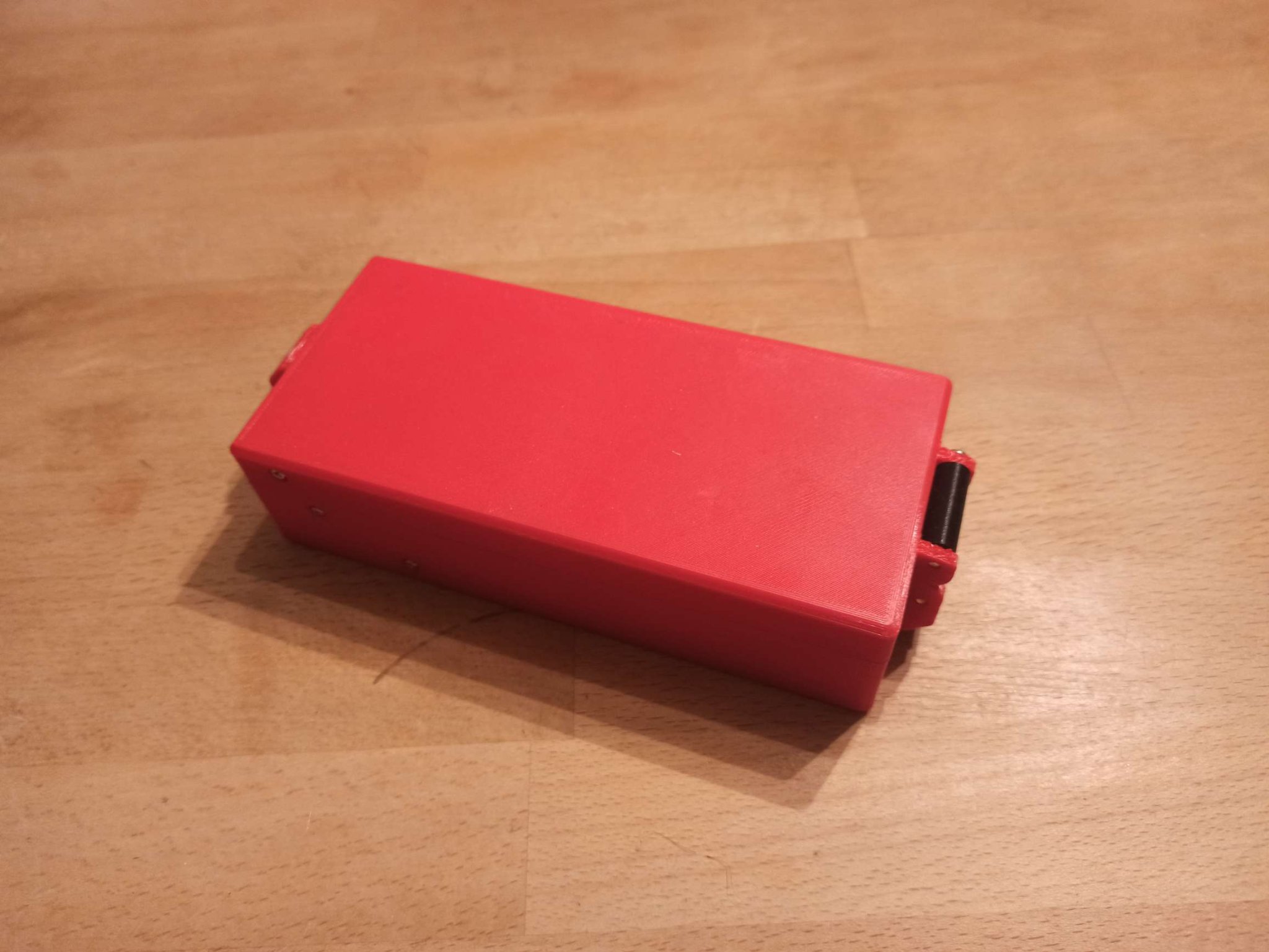

Overall dimensions : 180x75x41 mm

Everything is assembled with M2.5 screws cut to length, except for the latch and outer hinge (M3x30).

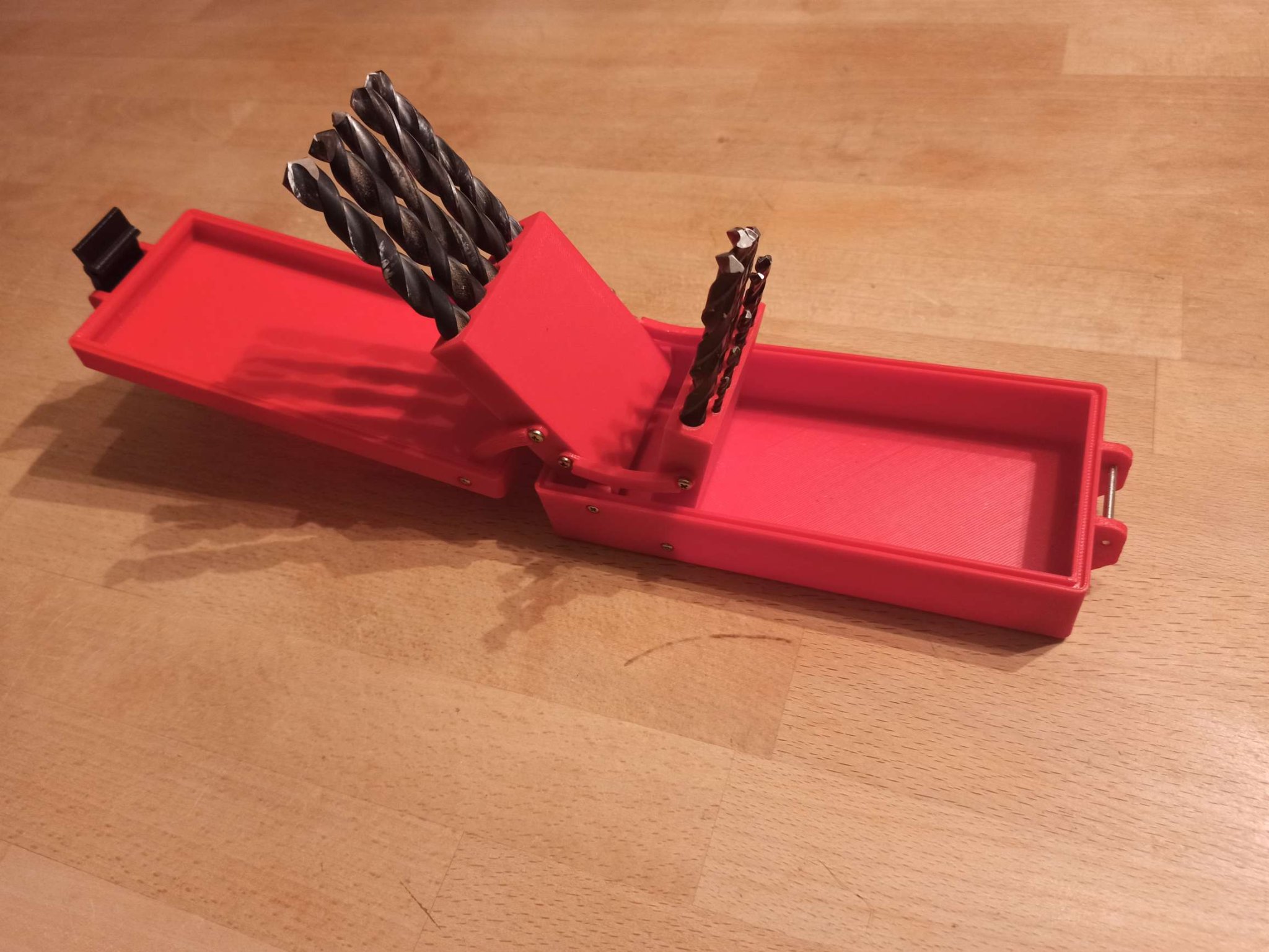

I used supports to print the trays, so I could have nice round holes, but i used support blockers to avoid printing support in the smaller holes.

Printed on CR10 - PLA - 0.2mm layer height.
