FT-6 Professional Use Upgrade

I made these models to allow me to use my FT-6 as part of my professional print farm. This upgrade represents the features, functionality and part selection that I find desirable for my use. I prioritized ease of serviceability in the head as this is critical for high uptime and reliability. I will not be supporting other extruders or hot-ends.

This document is intended for experienced printer builders or anyone with a little patience and the ability to use Google and Youtube. It will not include every step required.

Parts List Spreadsheet Here (BOM for mechanical and electrical parts)

The main features of this upgrade are:

• 500 mm/s moves
• 5000 mm/s2 acceleration
• 10mm belts for the long axis
• Twin independent stepper drivers on the long axis
• X and Y sensor-less homing
• EBB36 on the head minimizes wires running to the head
• Super Pinda 8mm Bed Probe
• Orbiter v2 extruder
• Bambu Labs hotend
• Only requires removing two M3 screws to service extruder and hotend
• Klipper firmware

Printed Parts:

Note: These should be printed from a high strength material. I used Tough PC, but there are a lot of good options. Any filament should be dried for 24-48hr at 70c before printing (even if the roll is new out of the vacuum bag). This will improve strength and print reliability. Structural parts should be printed with 5 perimeters with 40% infill and 0.200mm layer height. Parts that mate to a 2020 extrusion should be a firm fit that requires a little force to assemble (shouldn't be loose, shouldn't require a hammer). Most parts do not need supports.

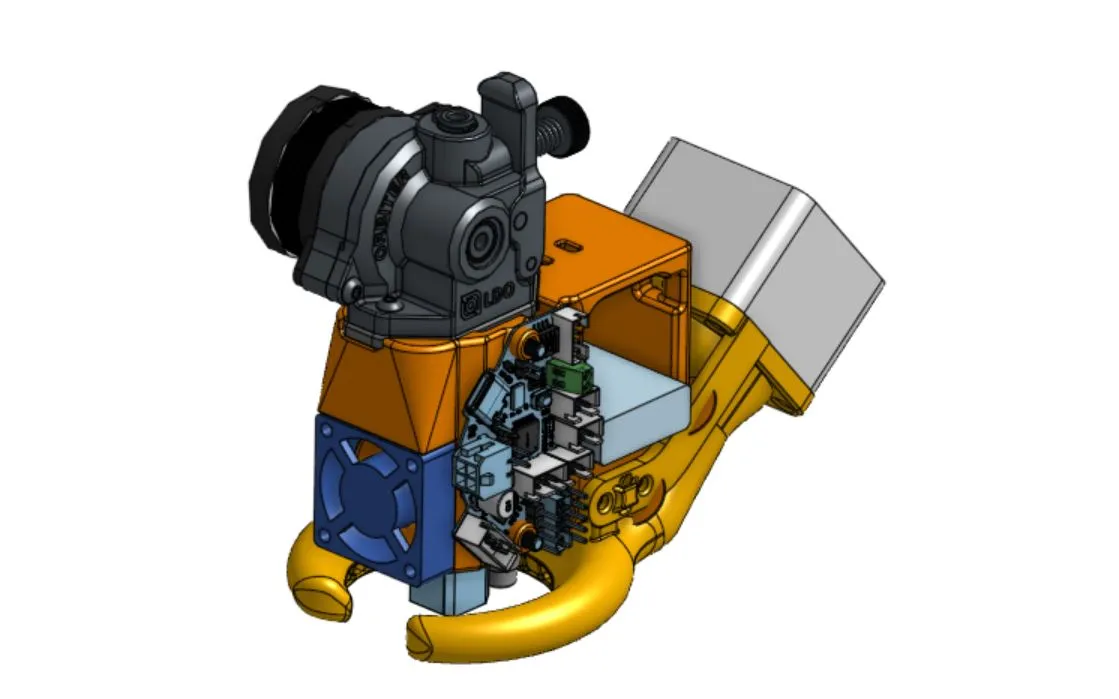

• FT-6 Pro - Head
  • Print with 45deg surface on build plate
  • Supports can be added to the horizontal bridges and two EBB mounting bosses
  • Install M3 heat inserts:
    • 2x for Extruder+Hotend
    • 4x for Fan mount points
• FT-6 Pro - Mount Hotend
  • Print with top large flat surface on build plate
  • No supports needed
• FT-6 Pro - Part Cooling Duct
  • Print with fan mounting surface against build plate
  • No supports needed
  • Install M3 heat inserts:
    • 4x in corners for fan mount
• FT-6 Pro - XY_Brace_L/R
  • Print on Angled surface
  • Install 4x M3 thread inserts for belt clamps
• … to be continued
