Baby Bird Bank

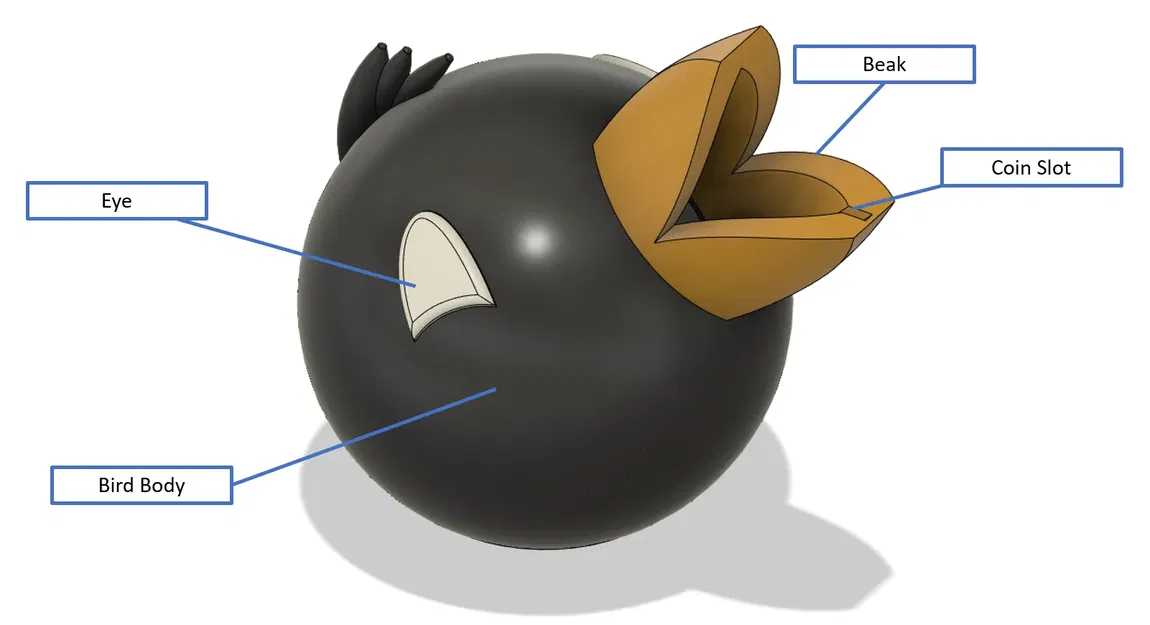

Description: This design contains 5 parts: Body, Beak, Left Eye, Right Eye, and a Screw-on Bottom.

The parts each have a clearance of 0.2 mm and can be tightly fit together. However, glue can be used on the eyes and beak if desired (Gluing of the eyes might be best, but the beak has stayed in place as long as I have had it).

Choose your colors for each part to make it your own. Follow my color scheme to make a penguin!

Printing Details:

• Infill: 10%
• Supports: Only necessary for the beak based on my own print tests
• The body can use supports too if necessary for the overhang on top, but make sure the supports don’t attach to the screw-on area on the bottom
• Also, I used tree supports on eSlicer
• Default Settings for everything else

Assembly:

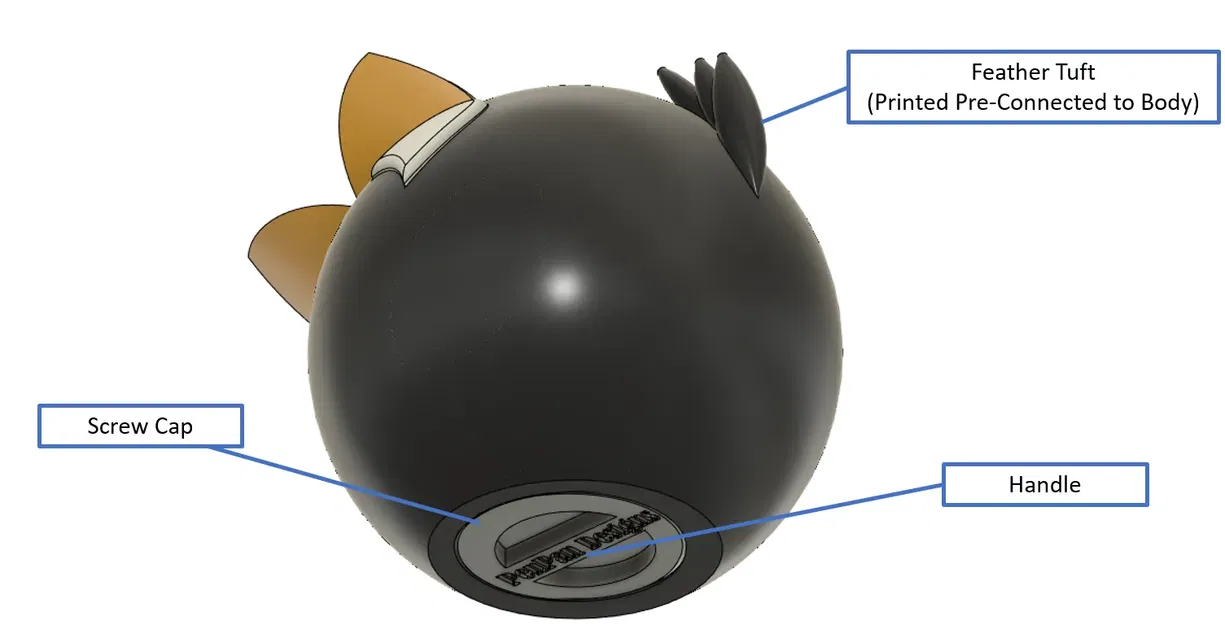

1. Screw on the screw-cap to the bottom of the bird's body
2. Push the beak in the slot (Make sure the little coin slot is on the bottom)
3. Push in the two eyes (Labeled L and R on the back)
4. If desired, use glue on the beak and the eyes to solidify their place
5. Start dropping your coins in!

Thank you again for visiting this page! Feel free to check out the rest of my profile if you’d like to see some other stuff I have worked on. If you have any questions/suggestions, leave them in the comments.
