Lee Bullet Feeder Tube Adapter

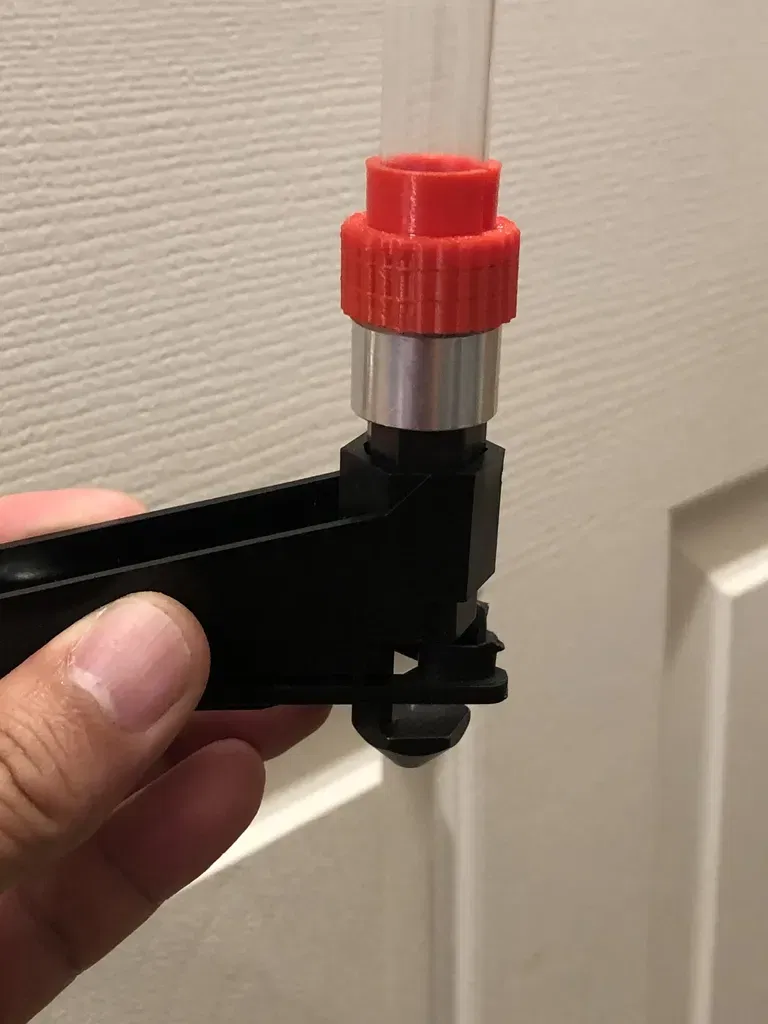

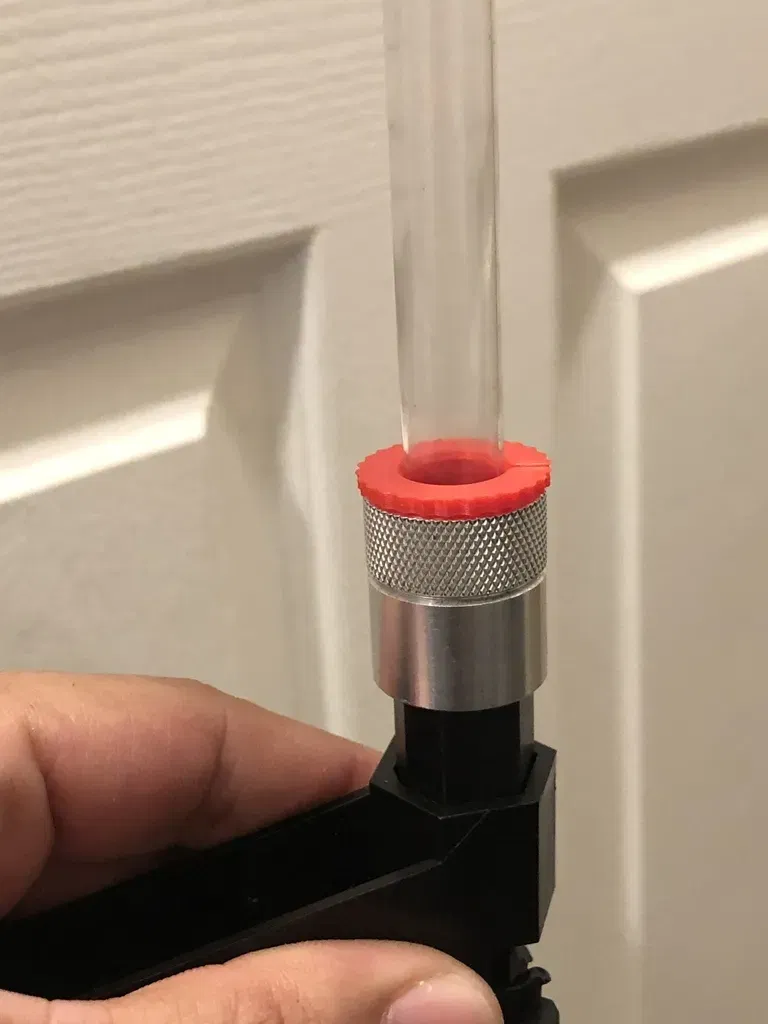

These are adapters that attached the bullet tubes for the Lee Bullet Feeder firmly to the aluminum cap at the top of the feeder mechanism. The Large Tube Adapter slides over the aluminum fitting and the large tube slides into the adapter. The tube is held firmly in place and there is no more wobble. The Medium Tube Adapter slides into the aluminum fitting and the medium tube slides into the adapter. The tube is also held firmly in place and the wobble is take out of the tube.

Print Settings

Set supports to on, resolution to 0.2, infill density to 20%, wall count to 4, and your top and bottom layer count to 6.

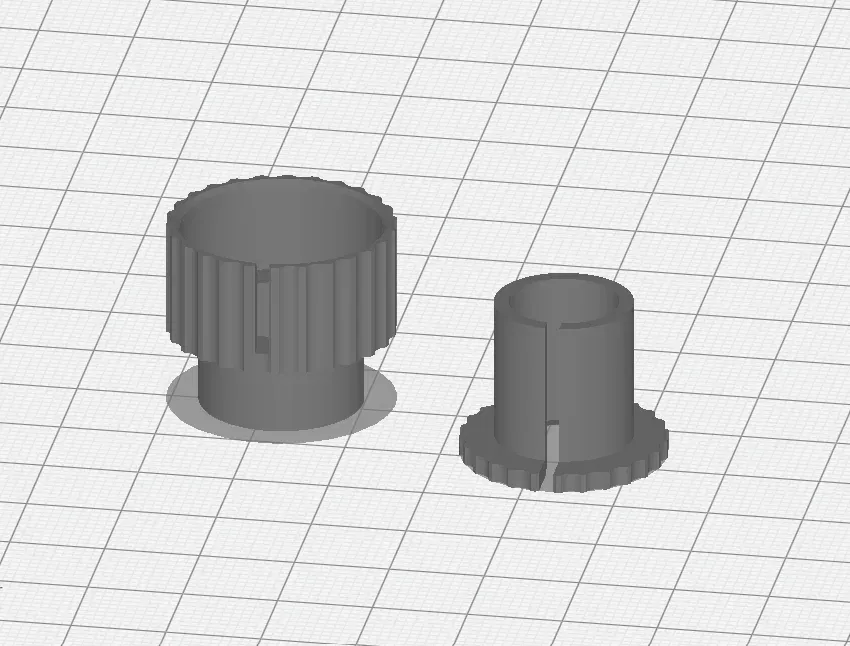

I strongly recommend printing in the orientation shown in the images where the objects are grey. This will provide the greatest strength and orientate for easiest printing. Set build plate adhesion type to skirt is adequate. Set the infill to Quarter Cubic, if using eSlicer.

Post-Printing

Remove the support. Depending on your retraction settings, you may have to clean up some stringing or blobs.
