Tiêu đề Đầu phun ngang và tròn AEGCứng 18v Tóm tắt Đây là m

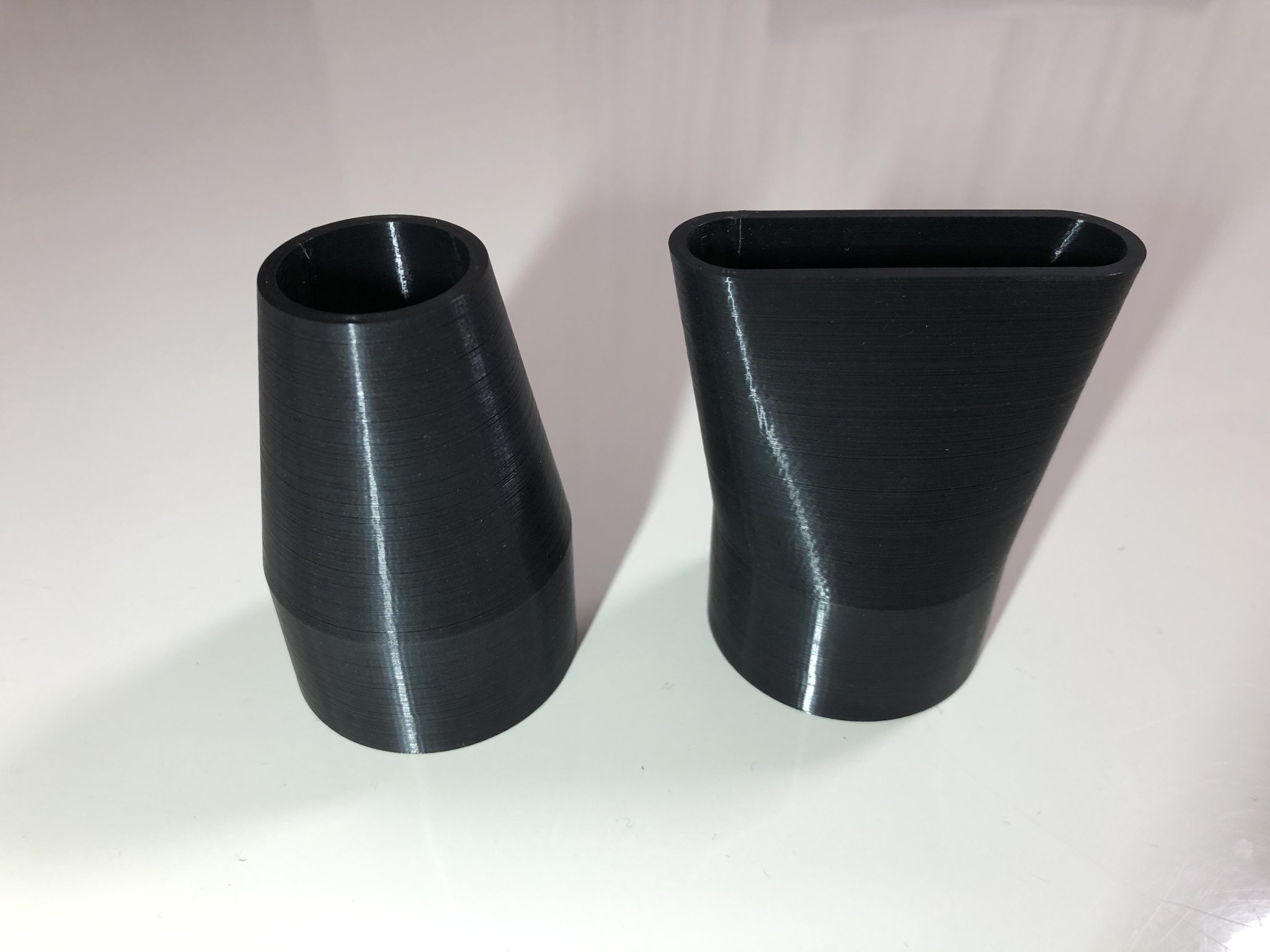

I designed both the AEG/Rigid 18v Blower Round and Horizontal Nozzles to fit my custom designed and printed blower attachment but they do fit the original extension pipe. They may be a little snug at first but place them on and off a couple of times and they are good to go. My original extension pipe broke the clips off so I designed and printed my own which can be downloaded from the link below.

Custom AEG/Rigid-18v-blower-extension-attachment - 150mm

Printing details

• Printed using 0.4mm nozzle
• 0.20mm layer height (15-20% infill)
• 4 wall loops(min 3)
• Supports needed: Yes ( only minimal supports needed for the inside connector lugs) (* Using eSlicerSlicer-I painted manual supports on bottom of each lug overhang and each of the overhangs where the clip is. I used Snug style support to minimise printing unnecessary waste material. See photos samples)
• Filaments: PLA+, PETG or TPU
• Print orientation: Standing upright

Printed using

• Elegoo Neptune 3 Pro & 0.4mm nozzle
• eSUN PLA+ Black
• eSlicerSlicer v1.8.0
