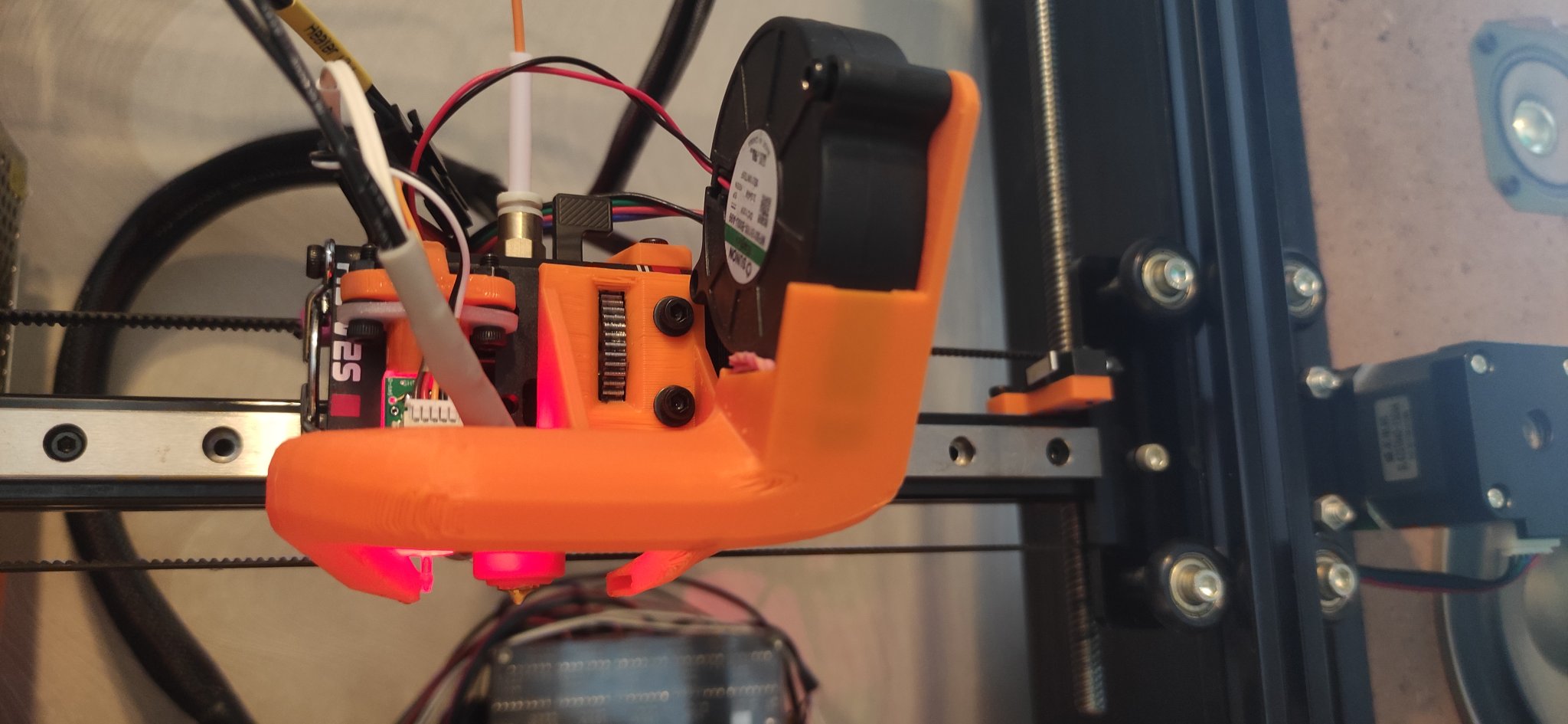

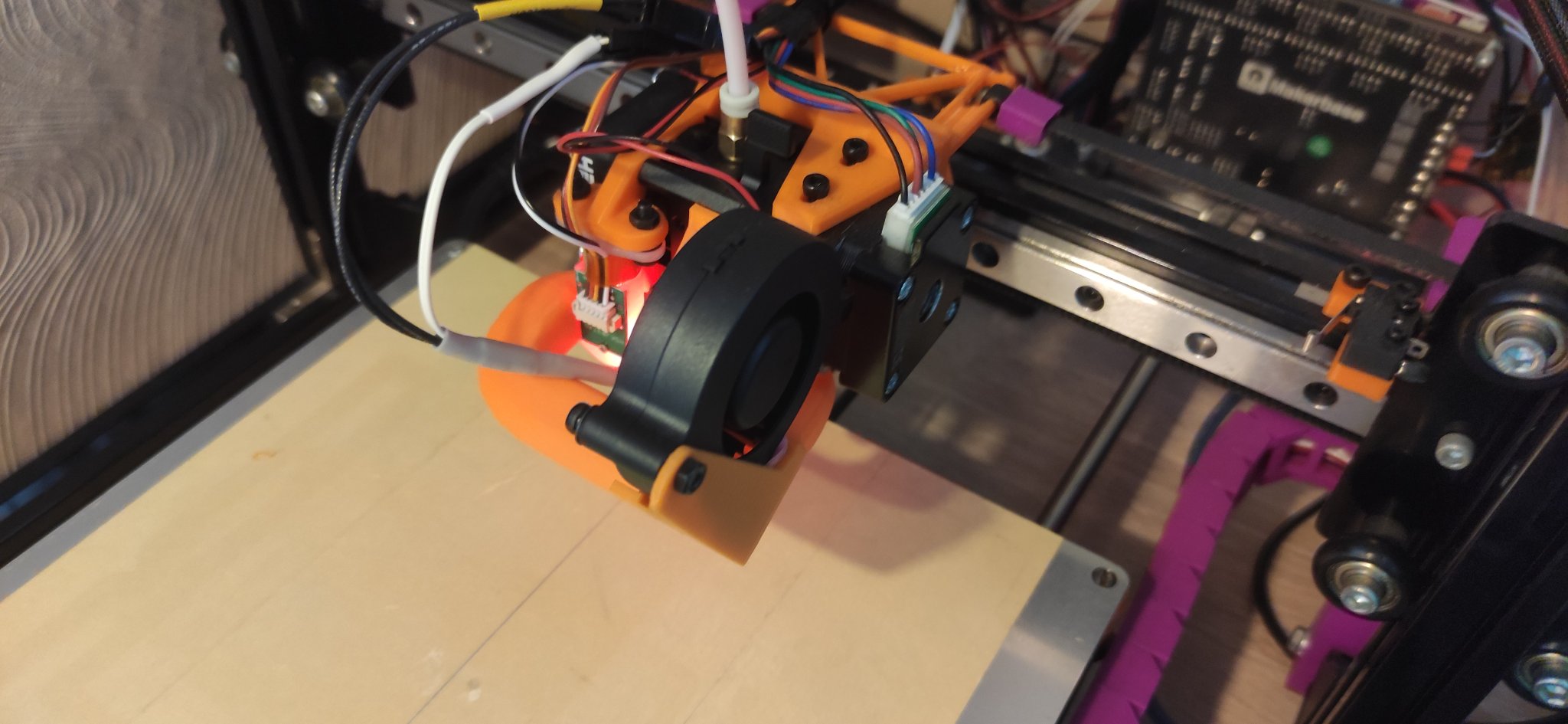

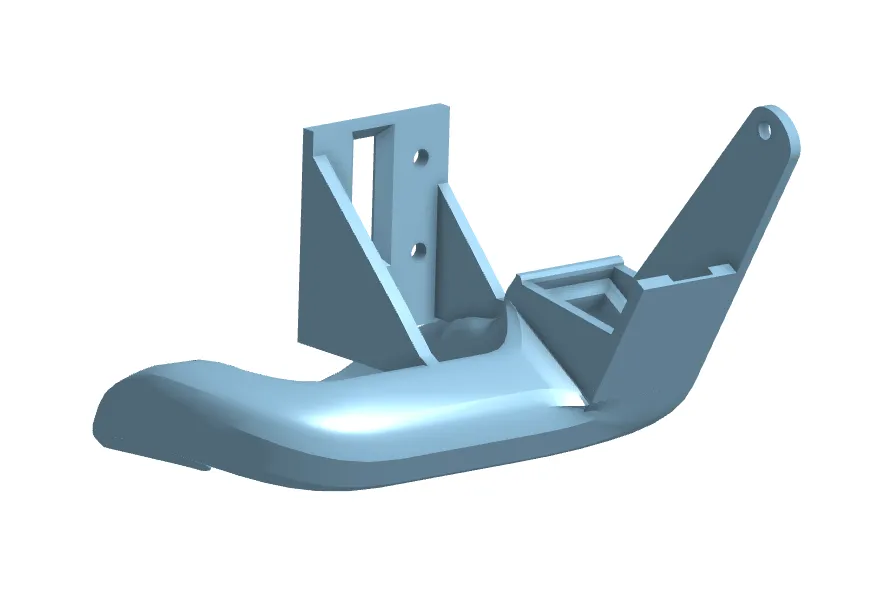

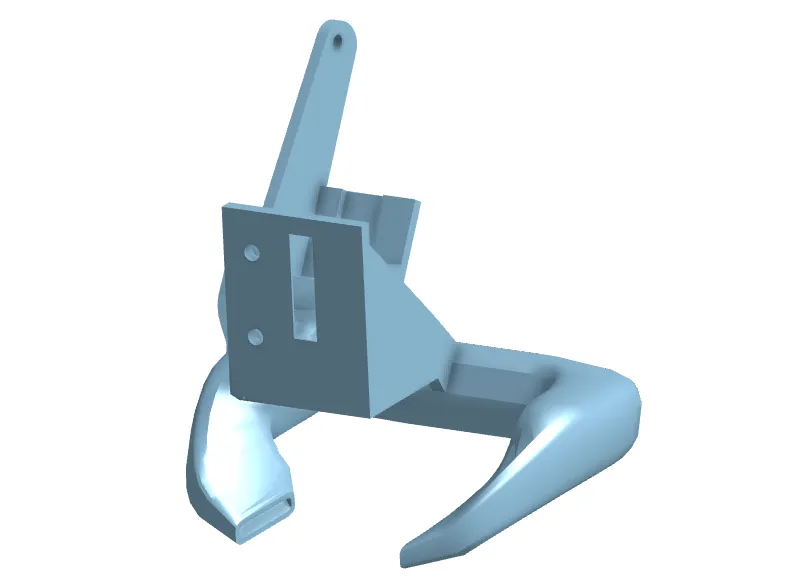

Part Cooling Duct for Biqu h2 v2s

Printed in PLA with 3 wall loops, 3 top and bottom layers, 15% infill

Youll need 1x M3x20 socket head screw and a fitting nut for the blower and 2x M3x8 socket head screw with 2x fitting washers, because 8mm screws are a bit too long. Or just use shorter screws.

I additionally created a seal between the duct inlet and the blower by wrapping a rubber band around the air outlet of the blower.
