LG OLED C1 65"/55" Riser Stand and Cable Organizer

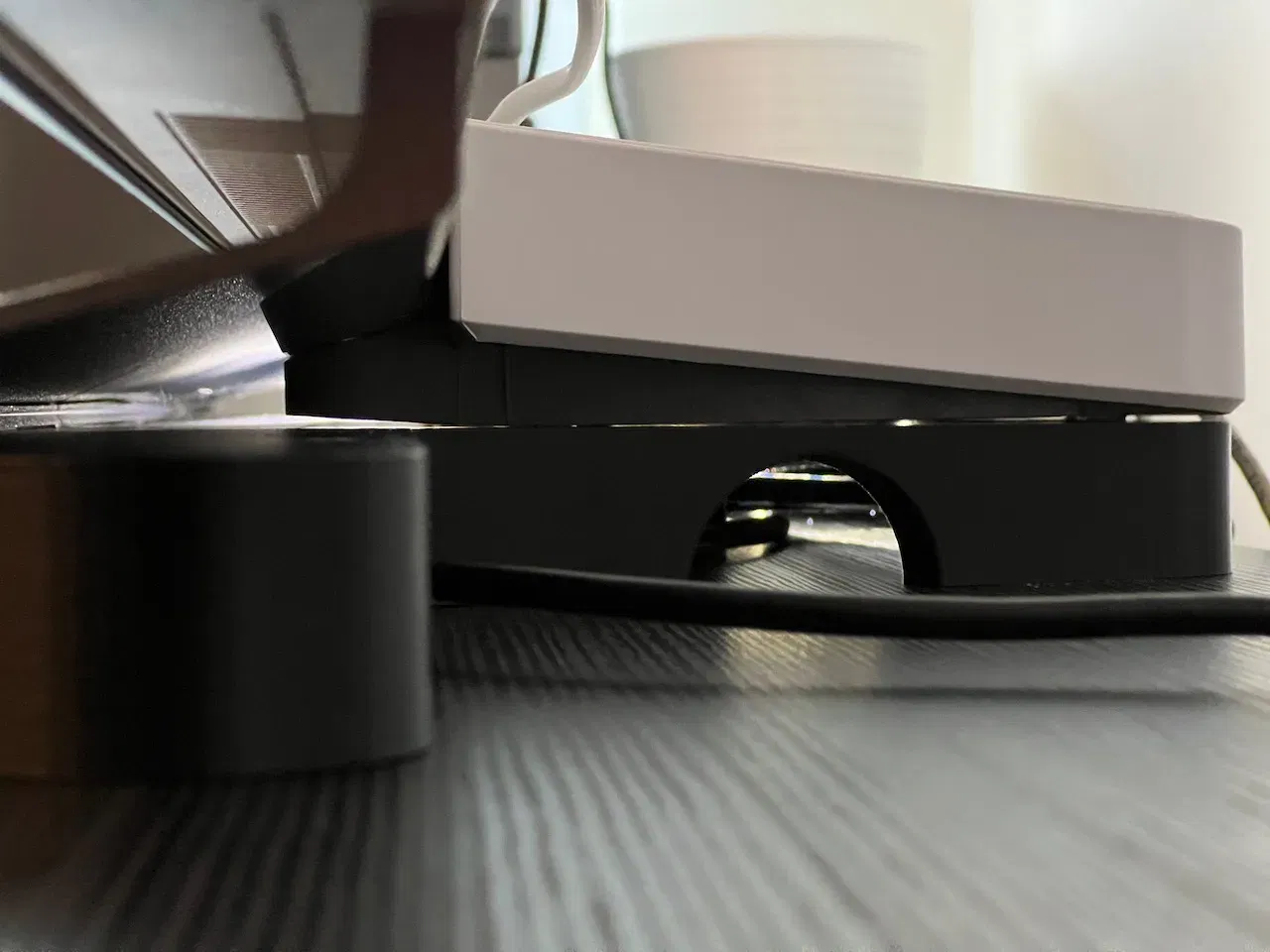

This is a riser stand and cable organizer for the LG OLED C1 65" (or 55") TV. It raises the TV 3 cm higher on the table.

Ideal for use with a Sound Bar that's doesn't fit under the TV. Adds more than enough clearance to the LG SP11RA Sound Bar.

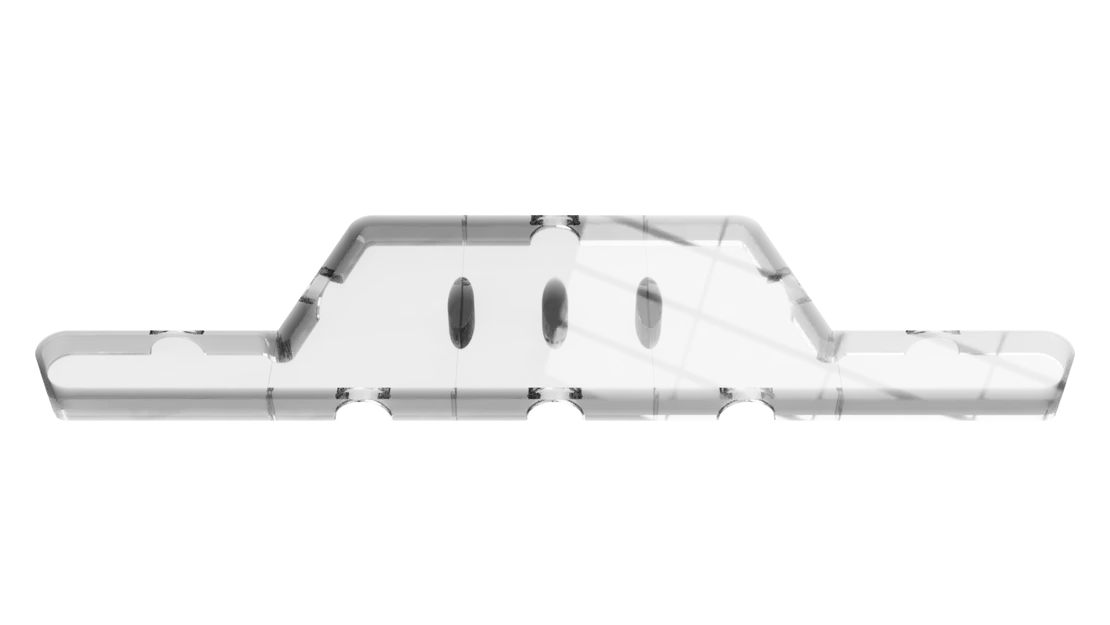

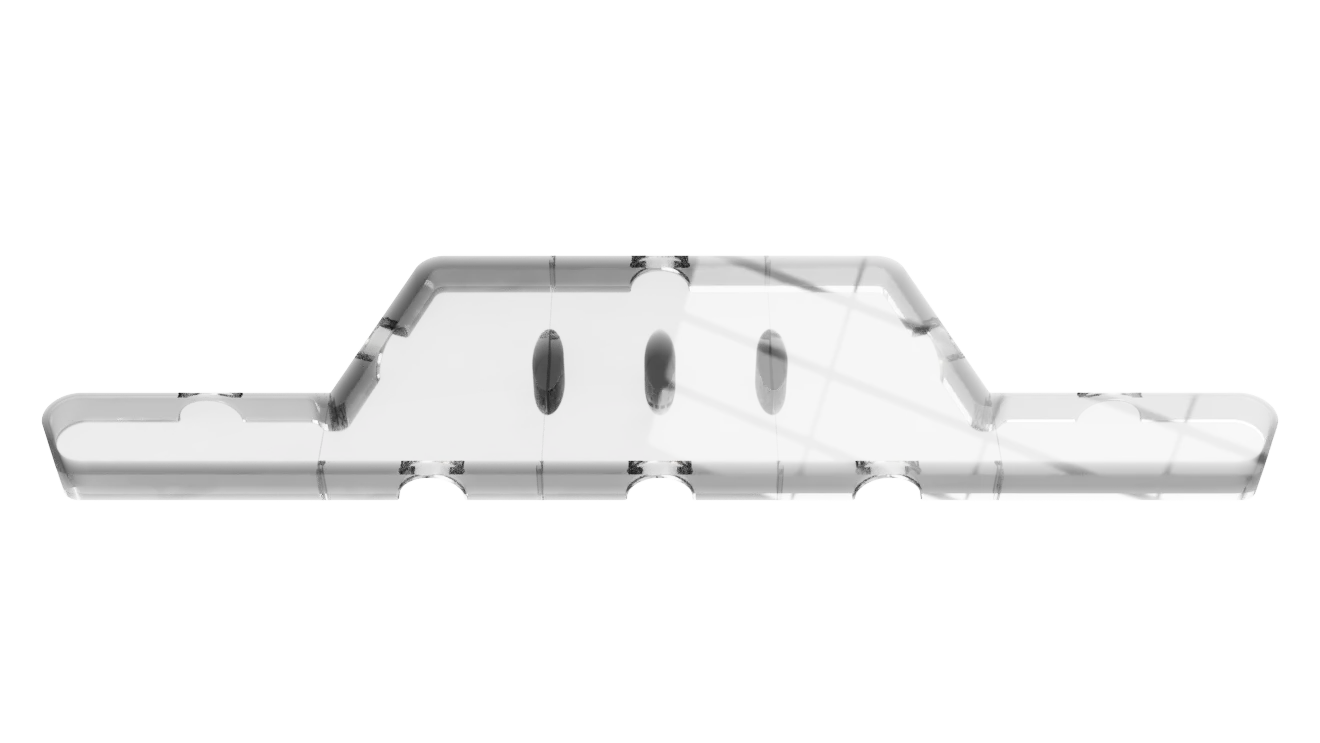

The print was designed with the MK3/S in mind and the build plate usage was maximized (25 cm) which ~matches the depth of the TV stand. This is why the stand is in 5 parts, and requires 4 separate prints.

I printed this in PETG at 0.30mm with 15% infill. For the Left, Center and Right pieces, make sure skirt loops are set to 0 to avoid printing outside the build plate.

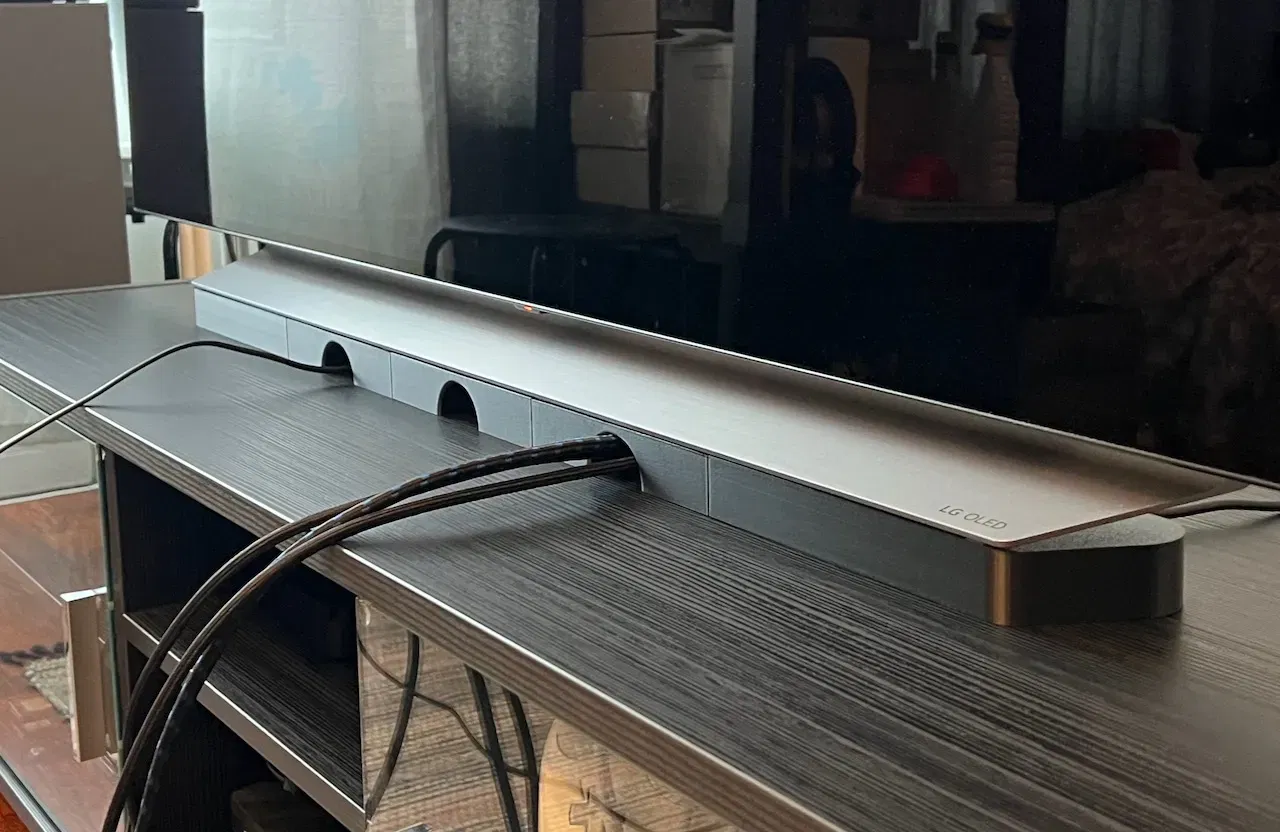

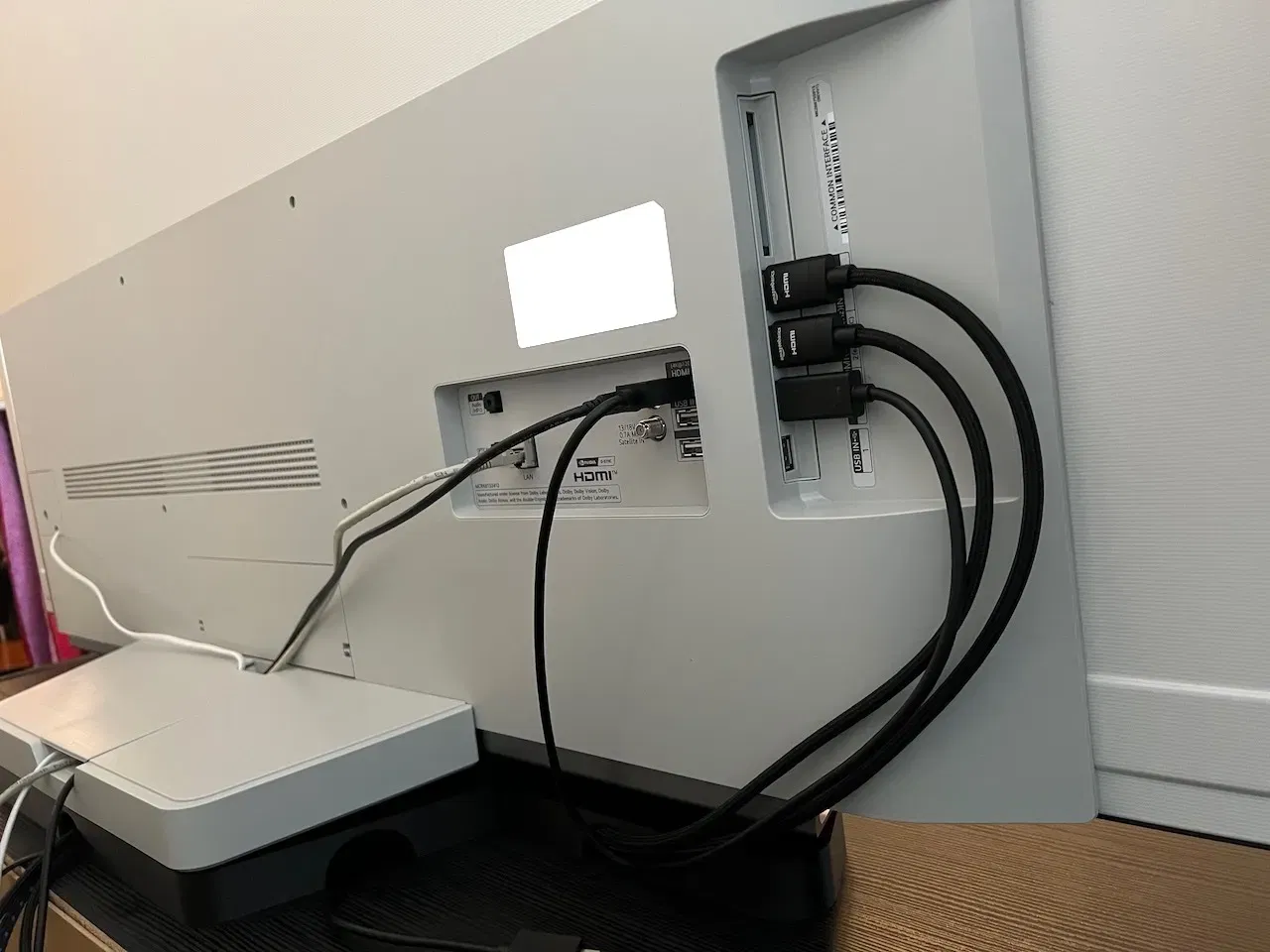

As a tip, it may be easier to organize cables before placing the TV on top. That said, I managed to route 6 HDMI cables and a power cable exactly the way I wanted with the TV on top thanks to all the cable holes. You could also use some kind of stiff metal wire to pull the cables the way you want.

PS. Before doing the whole print, you may want to verify that the dovetail connectors work with the accuracy of your printer, you can carve them out and print just the connectors to make sure they work.
