Tiêu đề Thiết bị truyền động nút nhấn 22mm - Thay thế Lovat

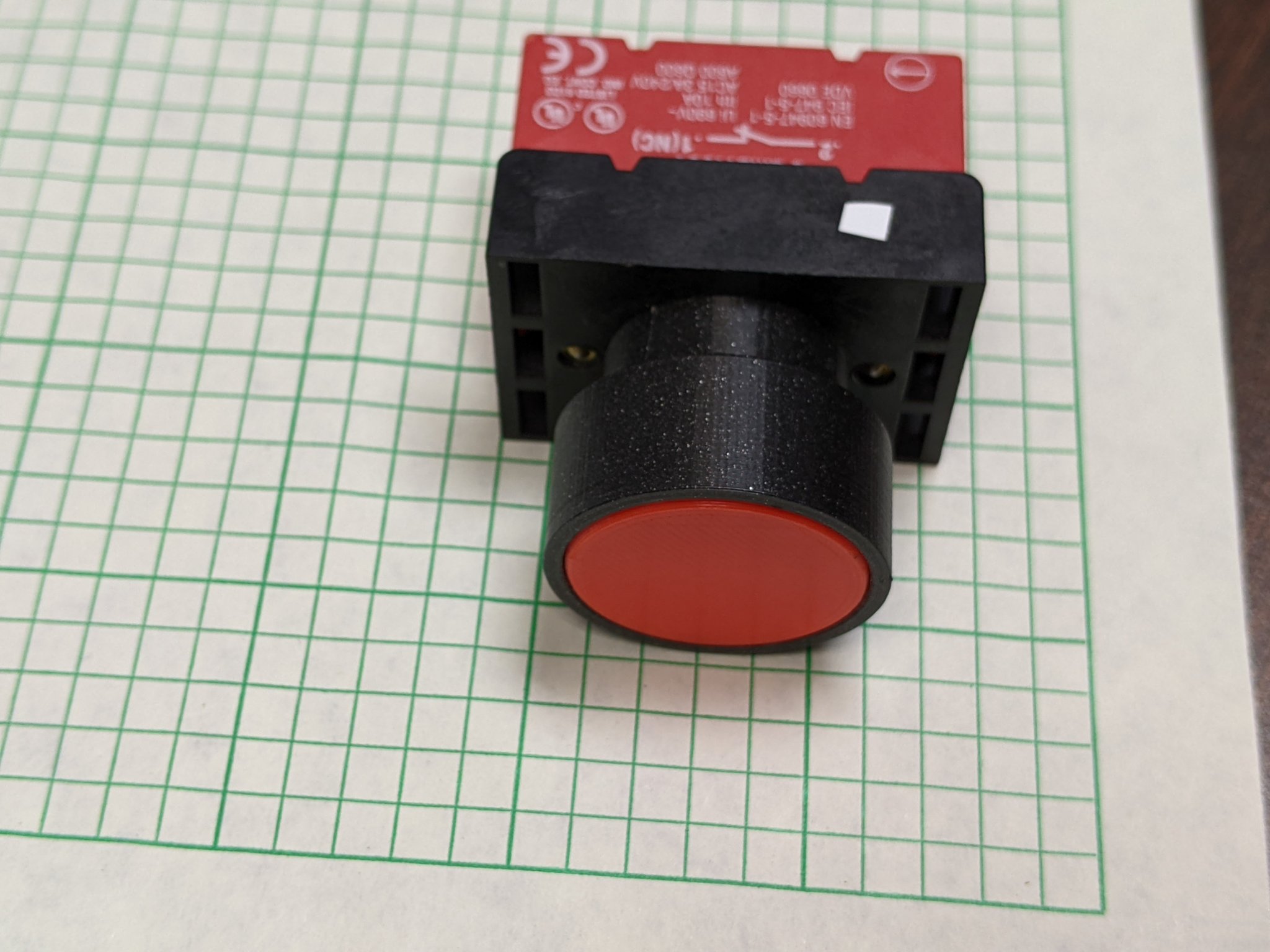

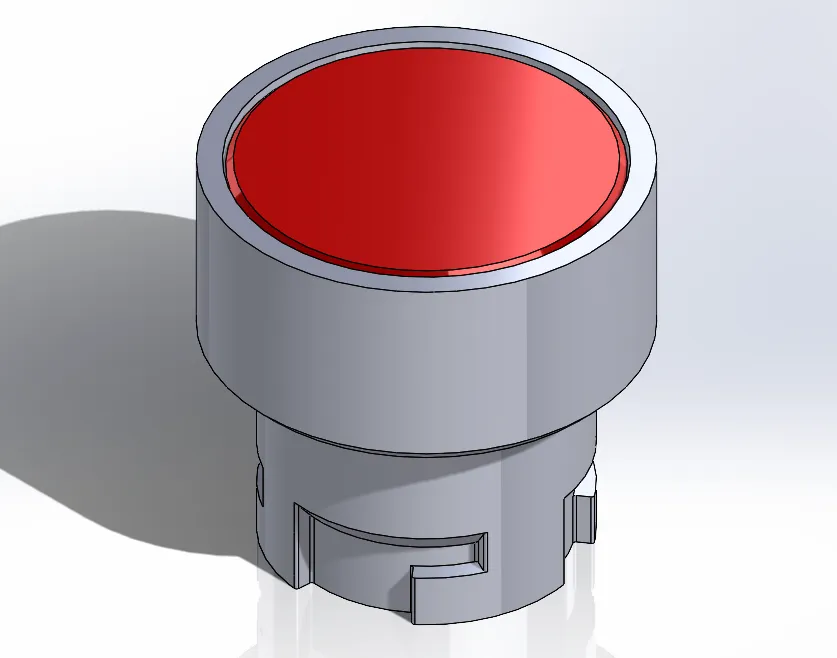

I found a Lovato series LM2T 22mm modular input frame and contact, but did not have a push button actuator. This series has been discontinued so purchase was not really an option. This model is a simple replacement for the pushbutton actuator (see 8LM2TB102). Spring return action is provided by the contact(s).

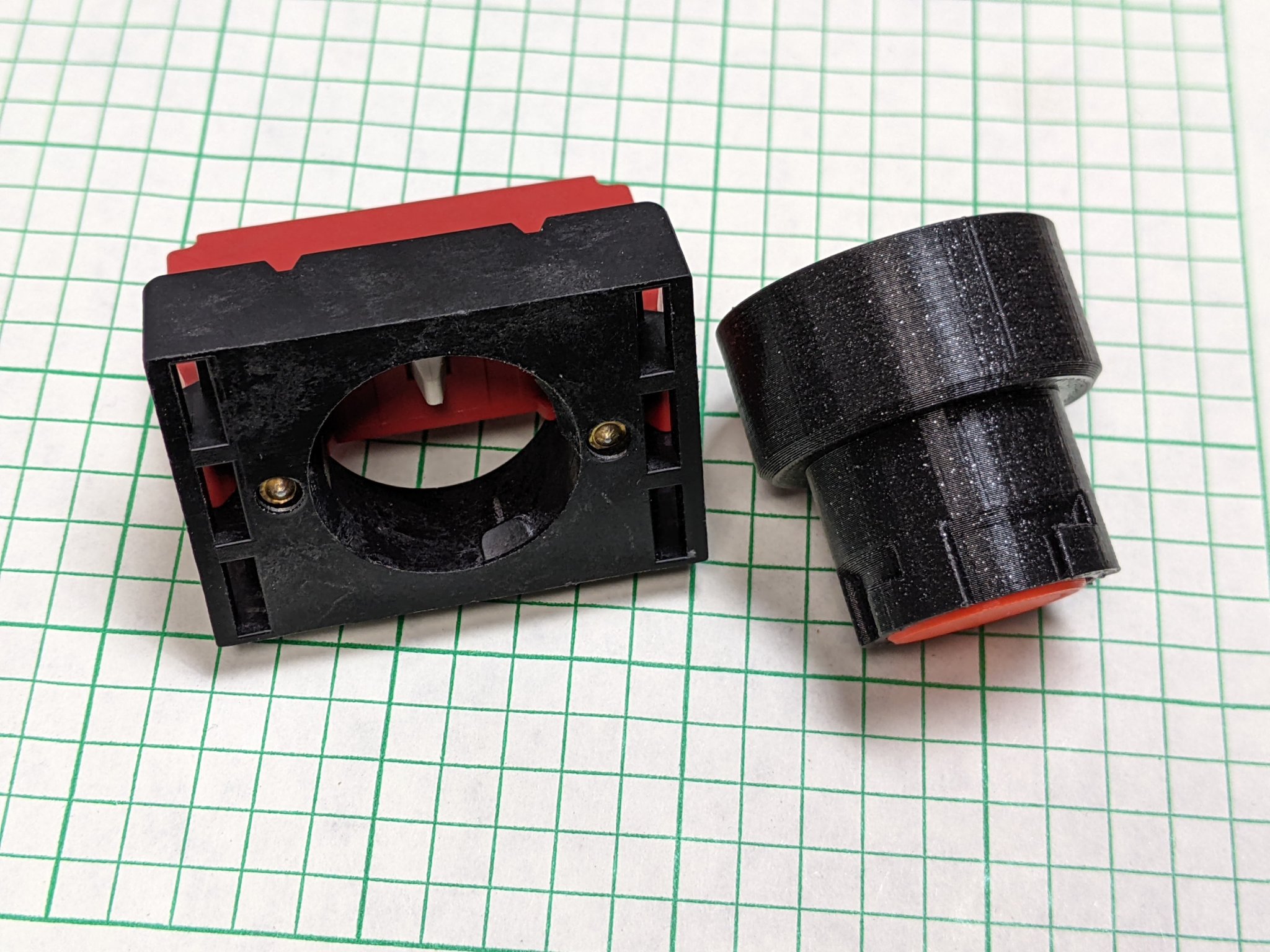

There are two parts:

• Base (ring housing that locks into the frame)
• Plunger (colored part of the pushbutton that activates the contacts)

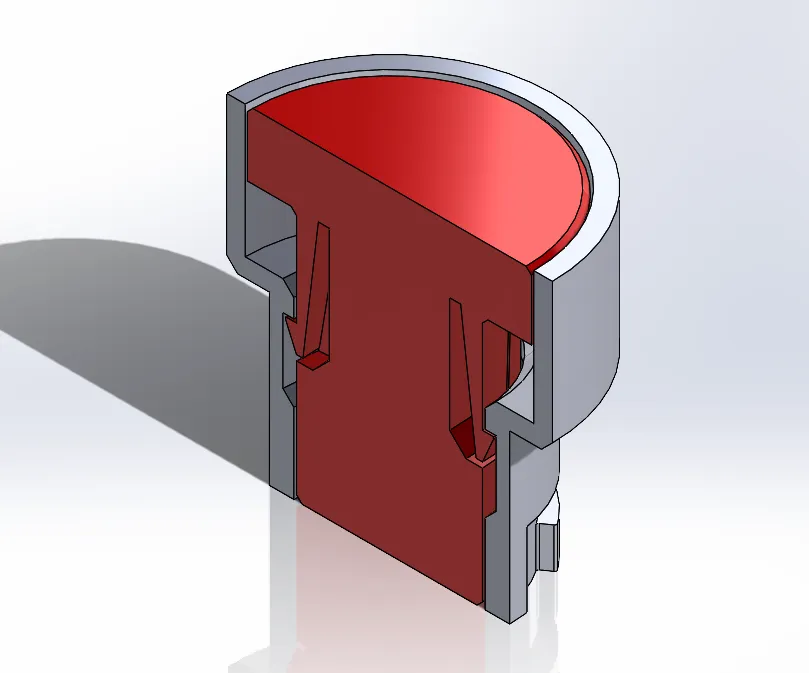

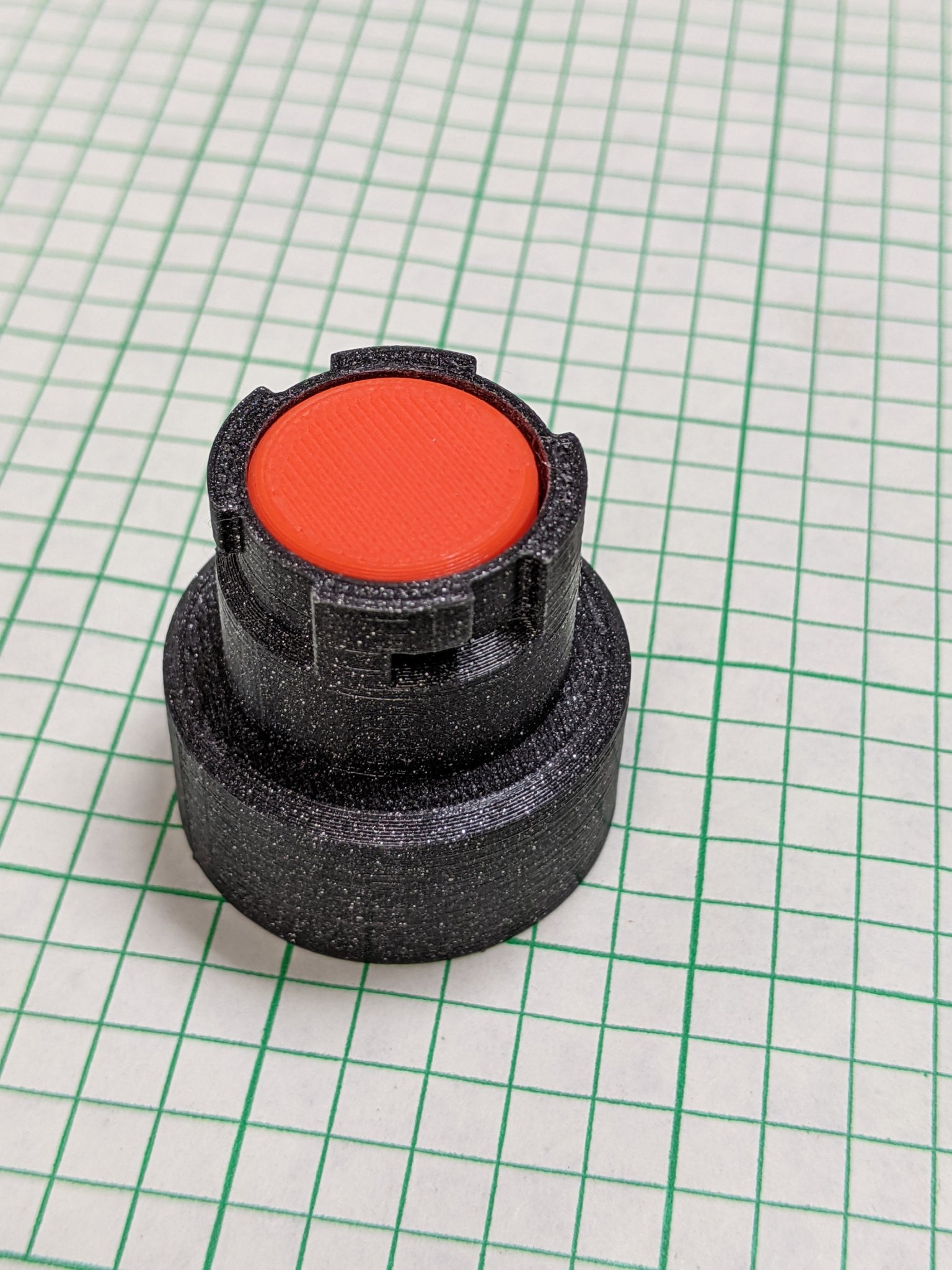

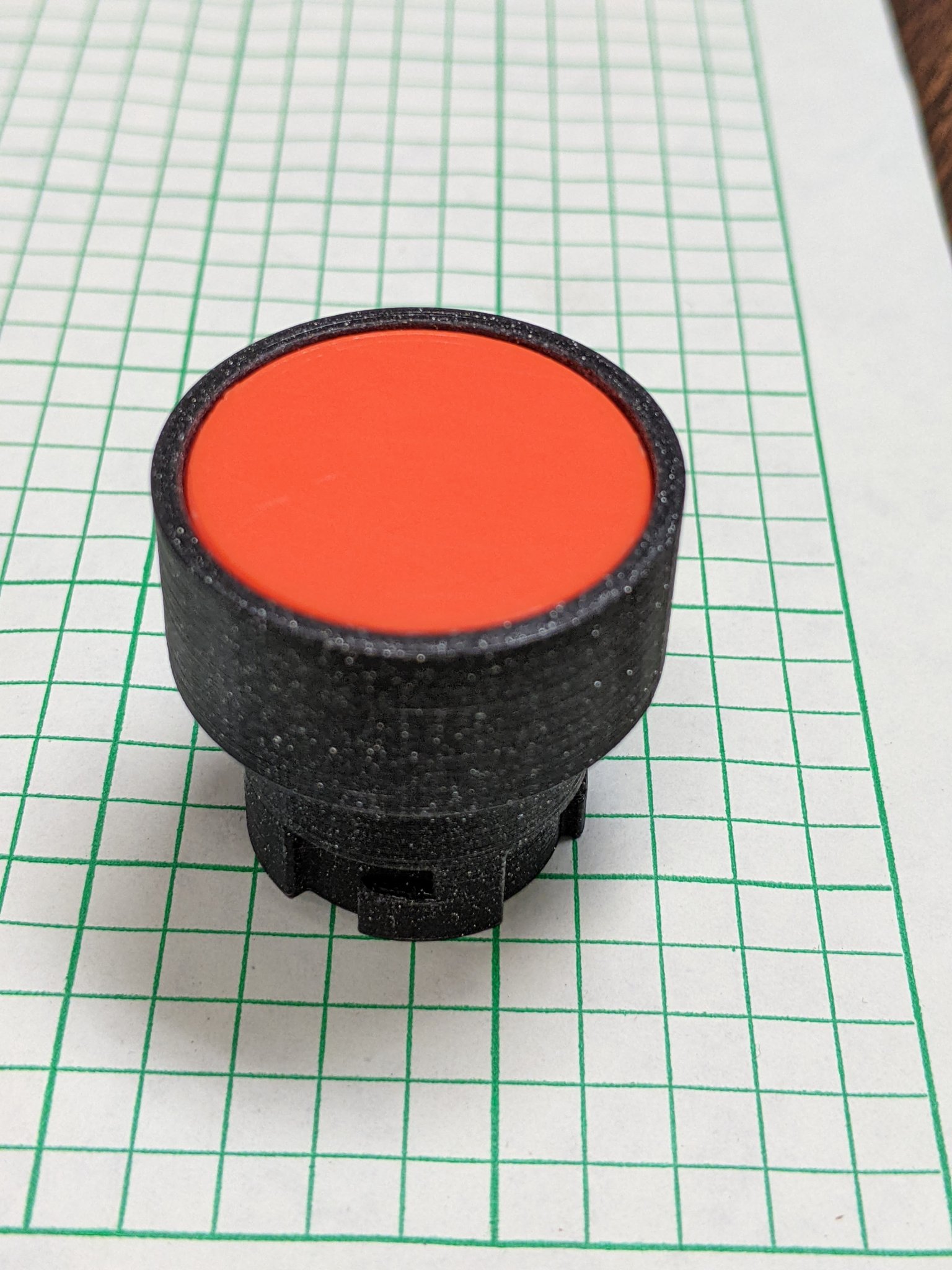

To assemble, press the plunger into the base. It is not designed to be taken apart once assembled.

I have also included step files to help anyone else that may have different needs.

NOTICE: The printed model does not carry electricity so this should be safe for use in a dry environment, however, if you decide to use this model you accept all liability.

Print Settings

Filament used:

• PLA Prusa Orange (plunger)
• PLA Galaxy Black (base)
