Tiêu đề Qua Bàn Poop Máng Tóm tắt Máng phân cho X1C dẫn dây tó
Poop Chute cho X1C hướng dây tóc vào một thùng chứa bên dưới bảng máy in.
Mô tả
I ran a four color print for the first time. It came out great, but I actually filled the poop chute ¾ of the way through the print! I decided to make the purged filament go to a bucket below the printer table.

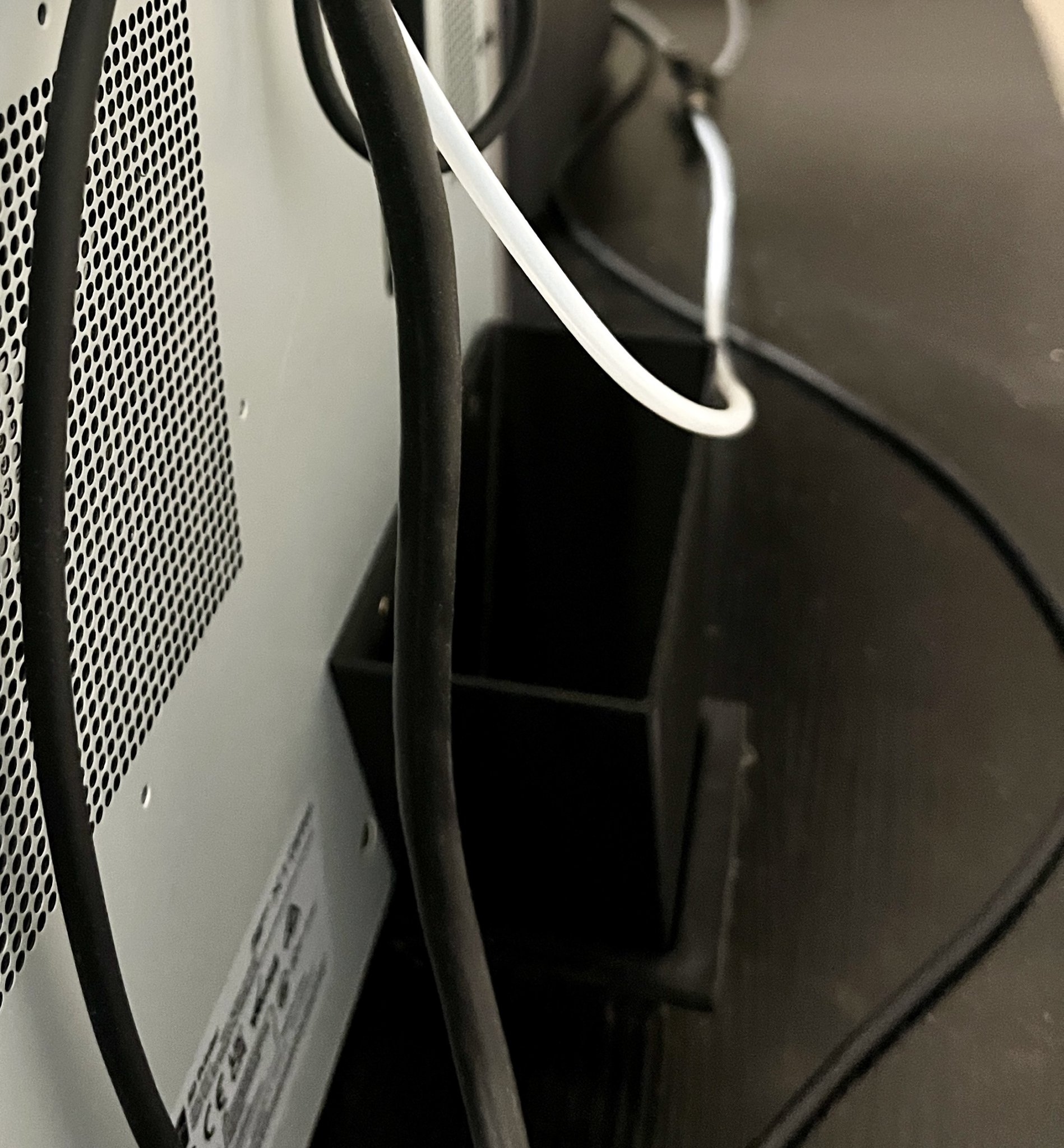

Since I already had a shelf below the printer, I put a container there to catch the waste.
This installation involves cutting a 3 ¼" by 2 13/16" hole in the tabletop, to align with the back of the printer. The table.stl allows for a rough cut. The flange hides a bit of roughness.
I masking taped the tabletop, drew out my hole, then drilled some point holes and jigsaw cut the hole. I then glued the Table.stl in the hole.

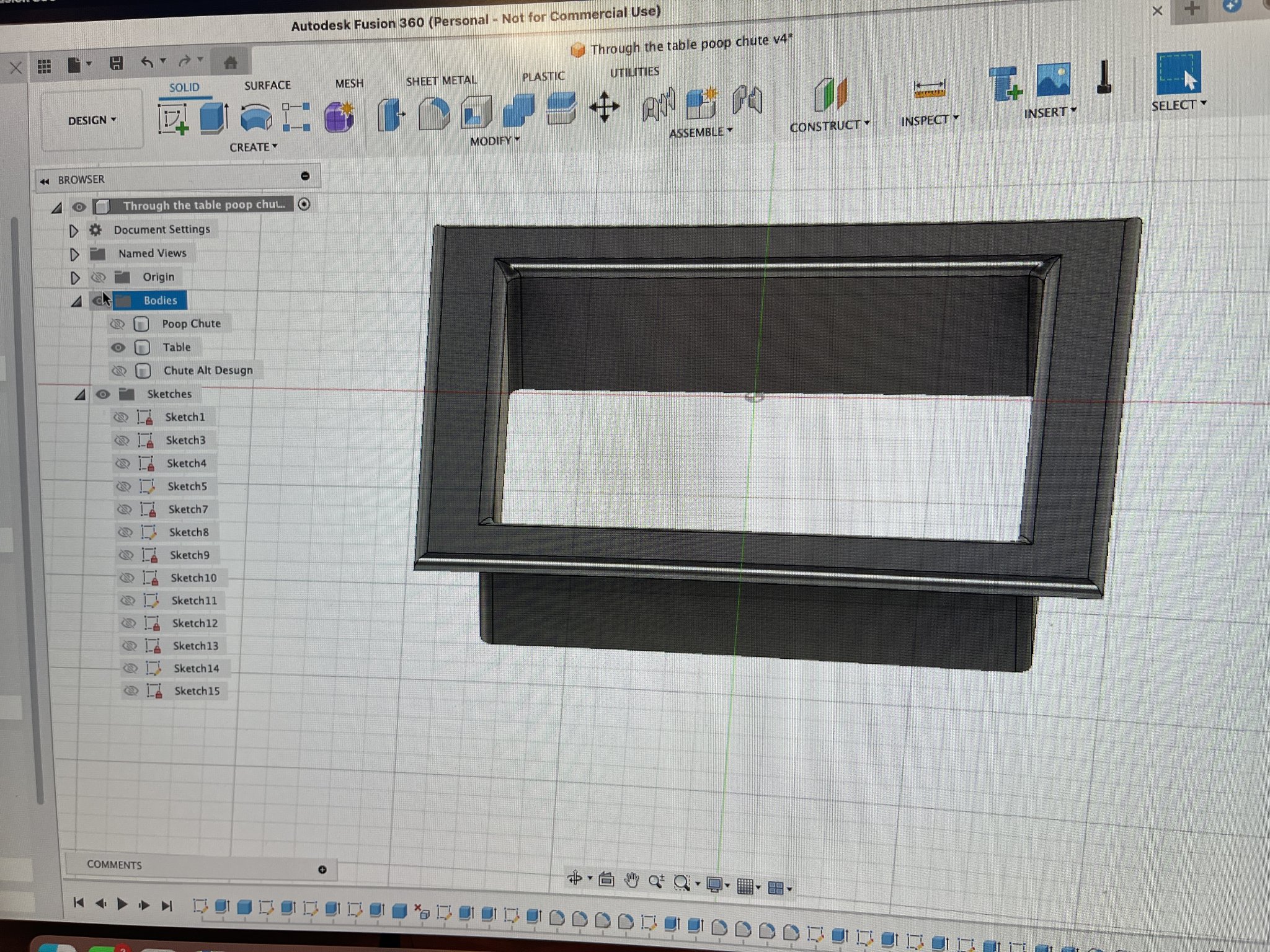

The main chute (through the table poop chute.stl) has four holes which accept 6mm x 3mm magnets with a pressure fit. Pliers work well, this sticks the chute to the back of the printer AFTER dropping it into the table.
REVISION: I needed to revise the Chute, as my original design turned out to be a Poop Shooter rather than a Poop Chute! I replaced the file!
Picture change two follow
