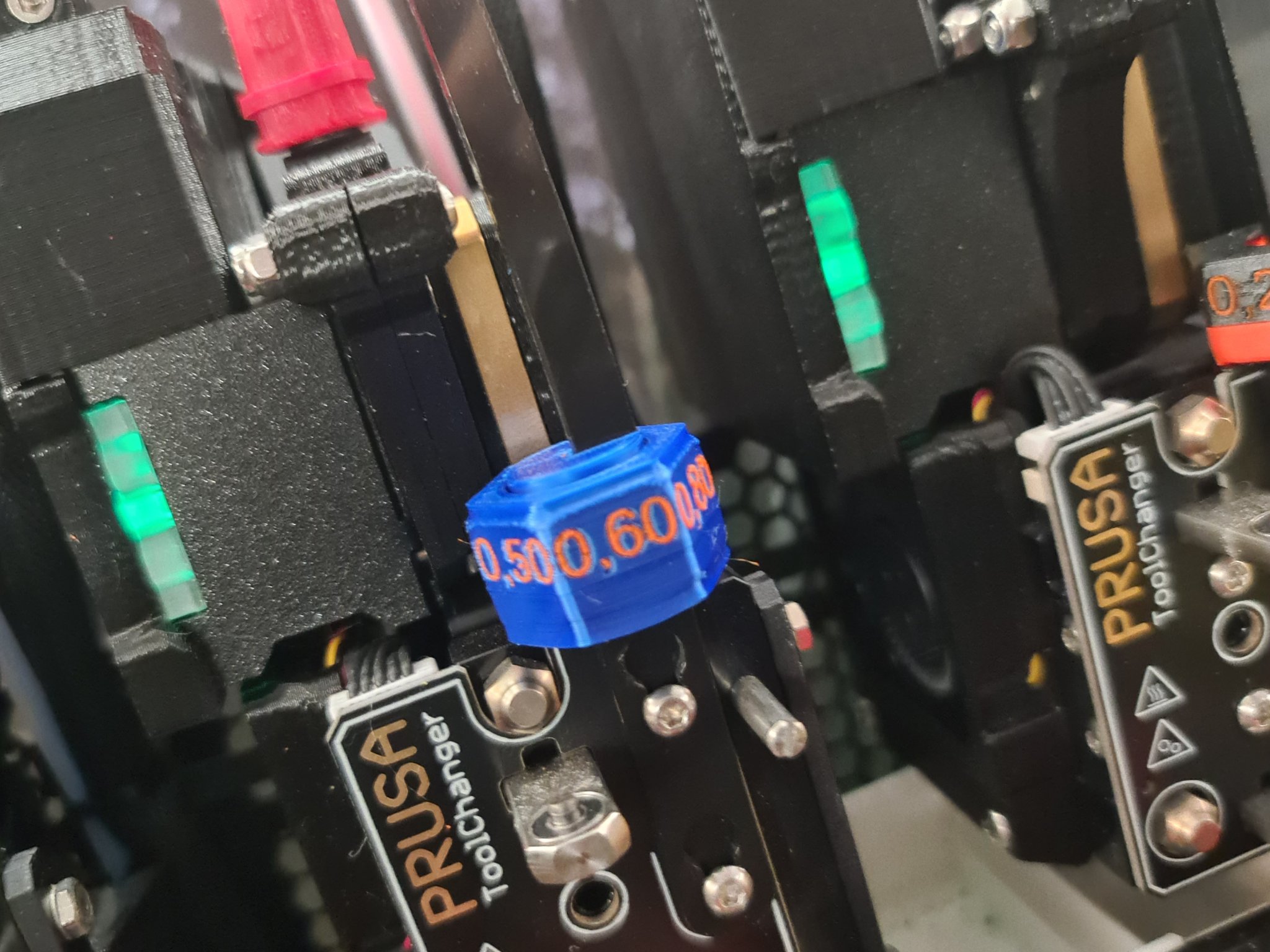

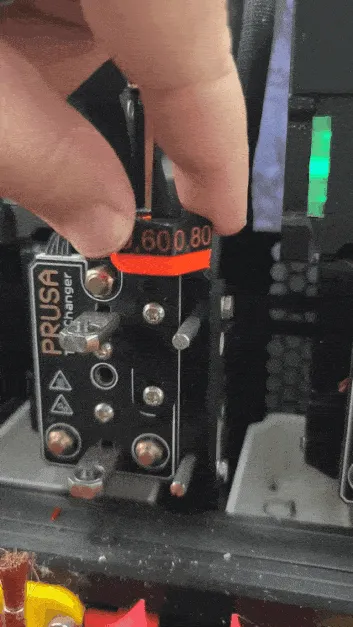

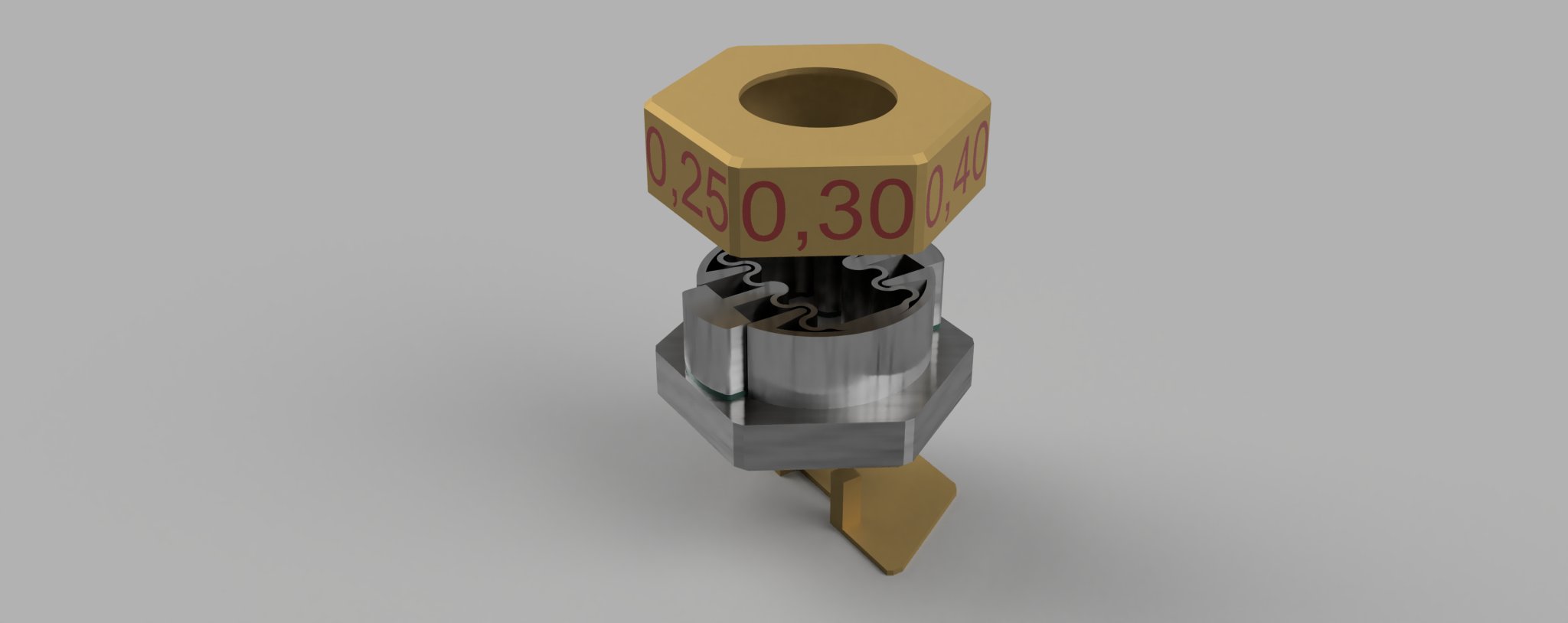

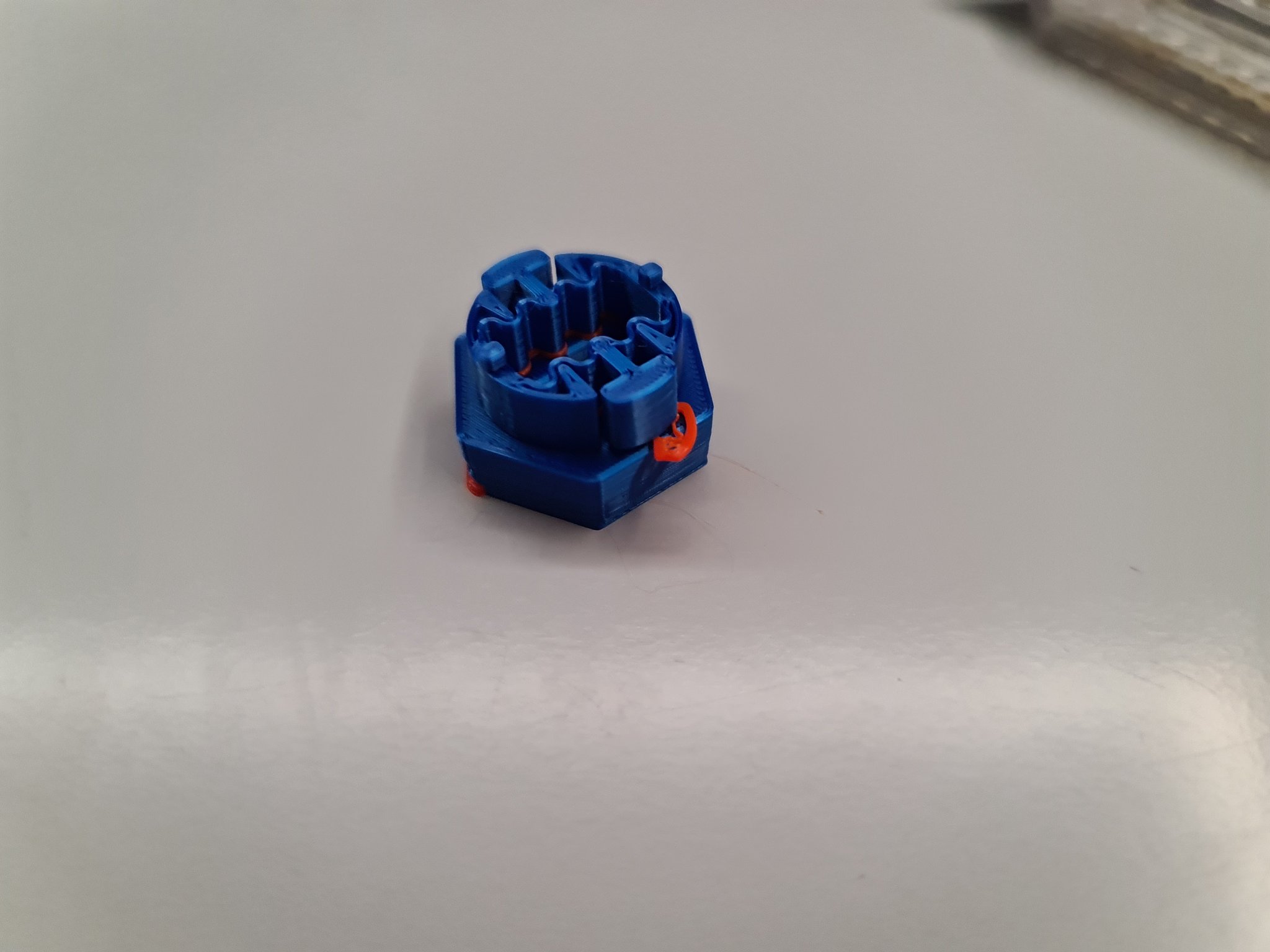

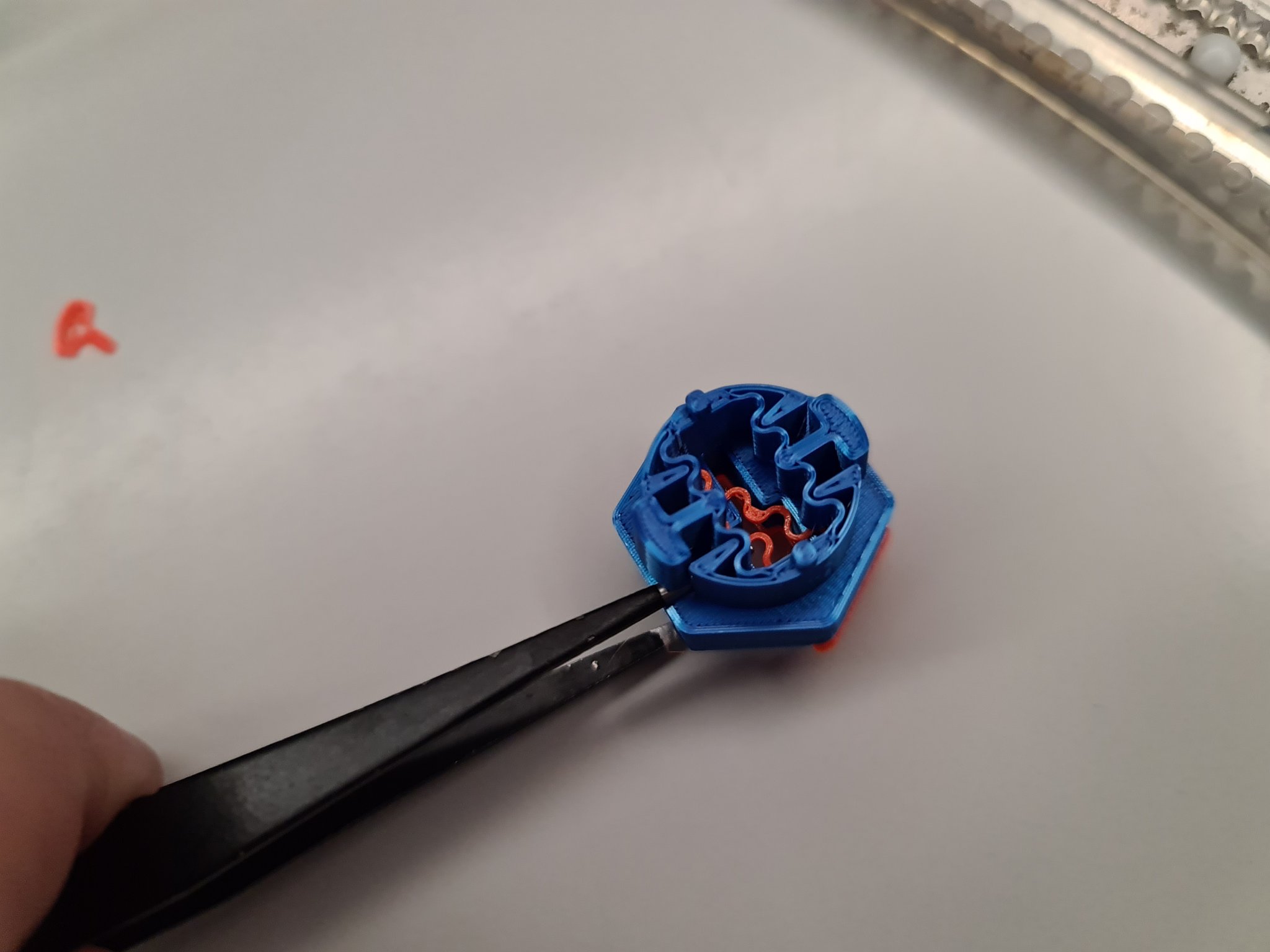

I saw the Nozzle Size clips from GuyH, but i didnt like the idea of having 20 Clips. So i made a turnable nozzle label. Works with the 6 available nozzles from Prusa, so i only made this version. This version features a snap in mechanism , so that tthe selected nozzle size dont get turned to a different number. Could have made this easier, but wanted to test out the spring mechanism i had in mind, since watching the smallest nerf gun video from mark rober about compliant mechanisms.

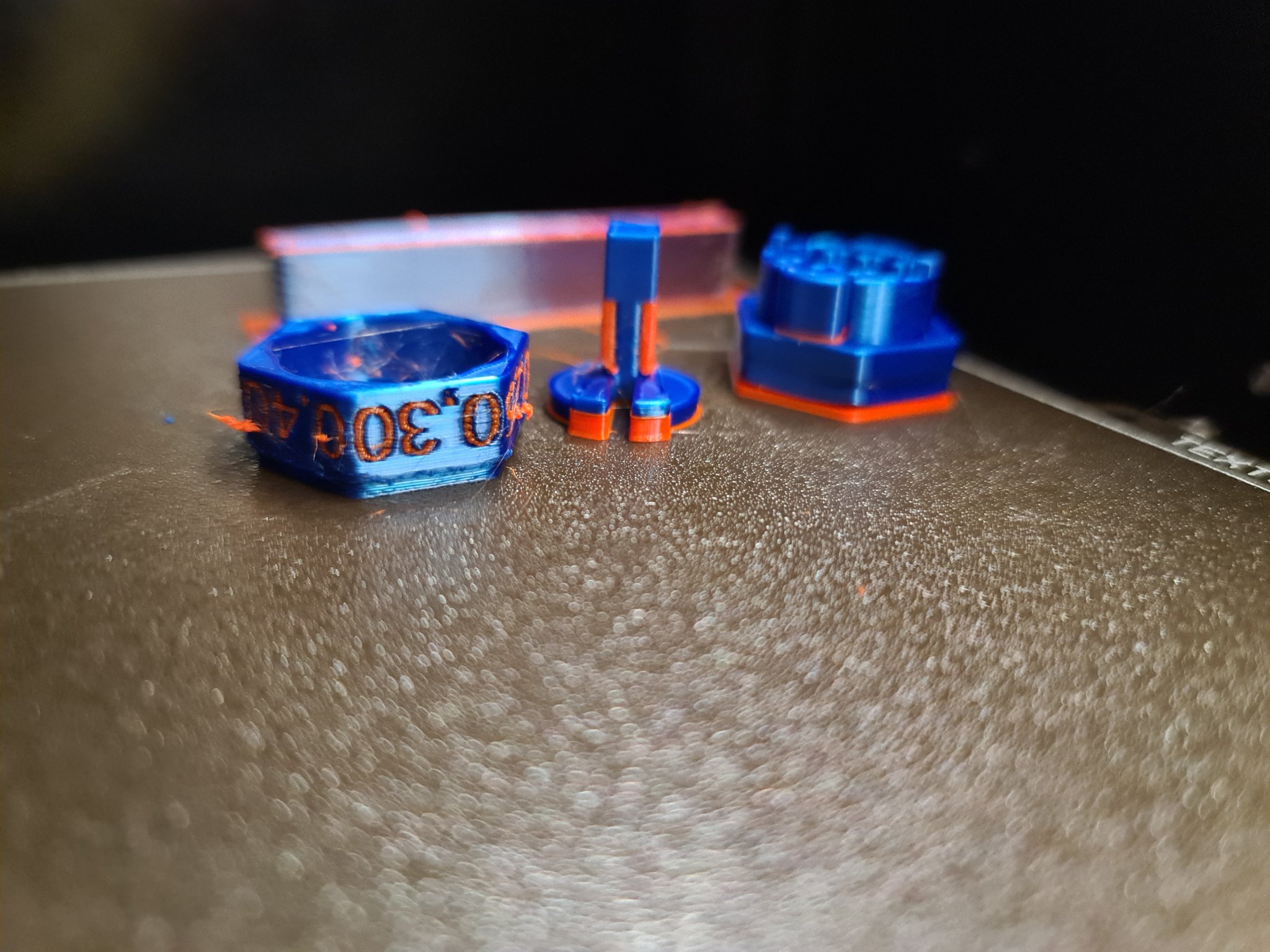

IMPORTANT: The File containes Support parts for the springs to be used as soluble support or the combination of PLA/PETG or vice versa as supports.

All number characters can be changed in colors, for thos who like the colors of the Revo nozzles. The Top 2 middle parts are needed for the whole construct to not wiggle around.

This turnable label marker needs to be printed with a 0.25mm nozzle . It was designed this way, since there is not enough space at this position to use more perimeters

Have fun!
