MX5/Miata power steering reservoir mount

Một bộ chuyển đổi để gắn một bể lái trợ lực hàng hóa vào một na mx5

👁️
622
Lượt Xem
❤️
9
Lượt Thích
📥
24
Lượt Tải
Cập Nhật Nov 22, 2025
Chi tiết
Tải xuống
Bình Luận
Khoe bản in
Remix

Mô tả

I was having issues with the power steering reservoir spitting fluid when i was on the track.

I tried the usual synthetic fluid + cooler, but it still did it. I think it's because there just isn't enough head room in the stock res and the o-ring on the dip stck just can't cope.

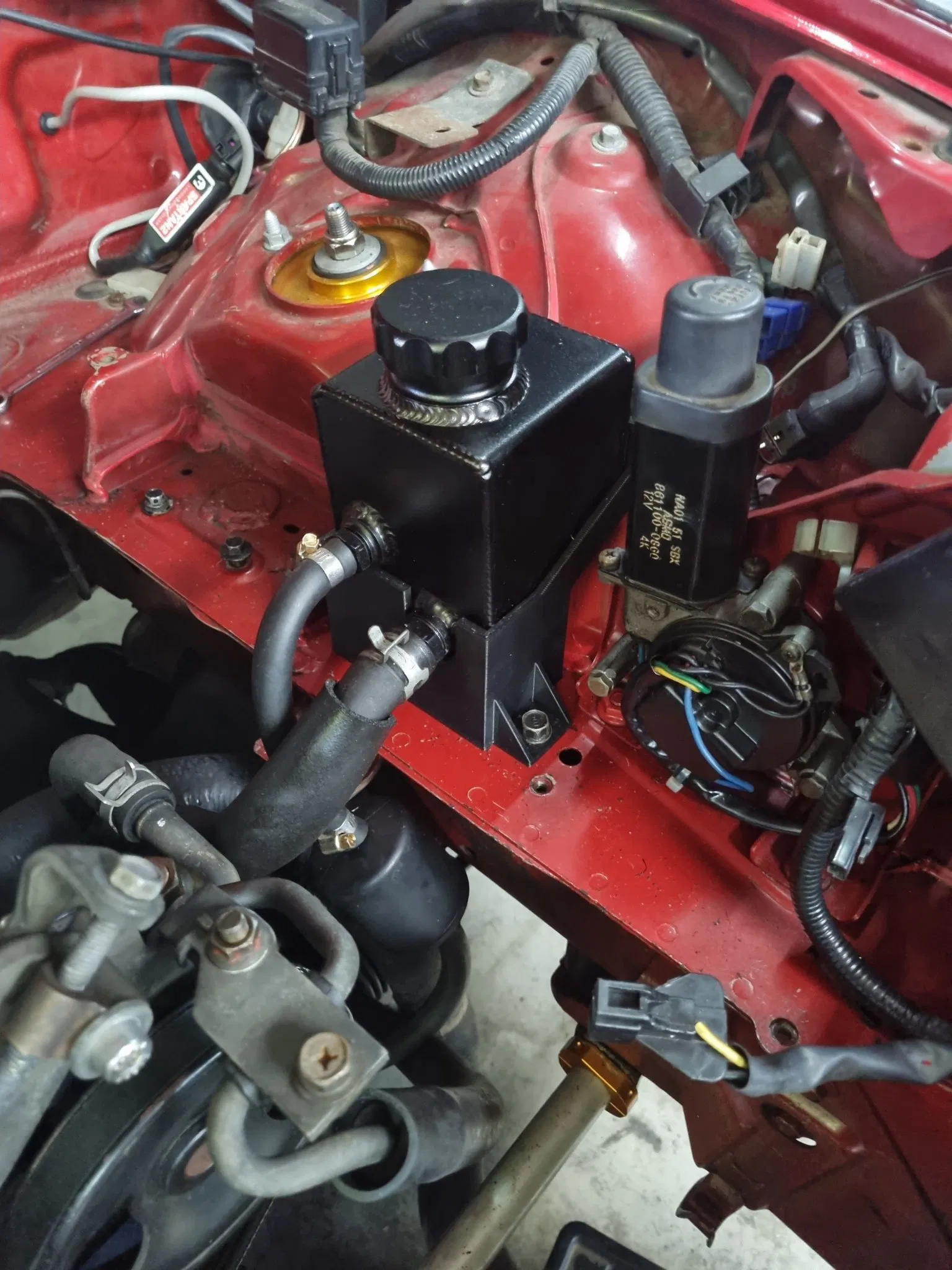

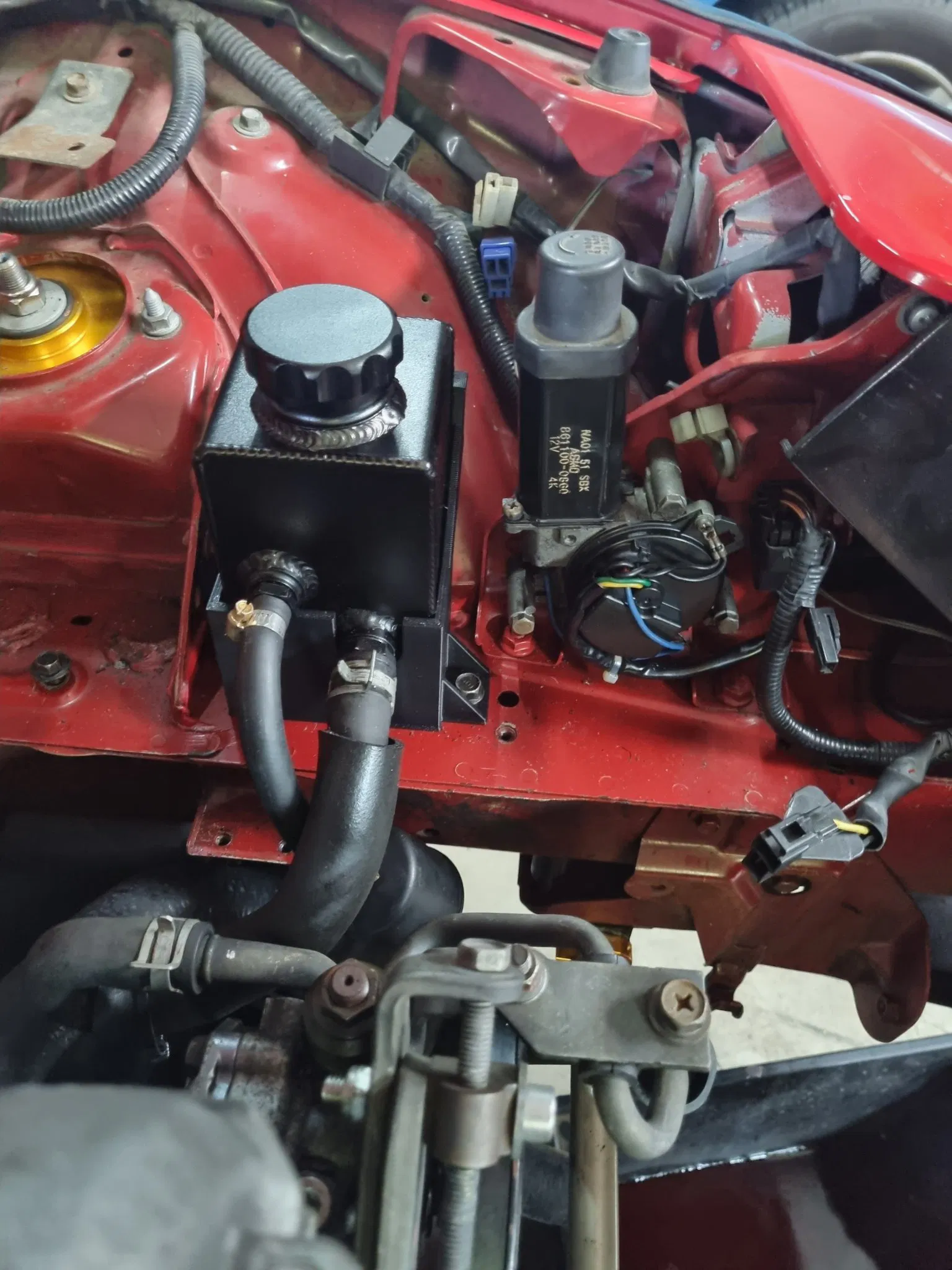

I switched to a cheapy ebay reservoir designed for a Commodore which has a larger volume and a screw-on cap. I printed up a mount to bolt it into existing mounting holes. Once it was installed I thought it was a bit dodgy & expected i'd have to re-design it, but it's been running fine for nearly a year, even the flimsy retaining clamp has done its job really well.

Just print it in something heat resistant - I just used ABS.
