I wanted a nicely mountable Panel for buttons, read in with my nodemcu v2 ESP8266 board

Basically im using a WLED-Base software and i wanted to publish button-push via mqtt to my smarthome

This panel just gives the following "features":

• 8 Buttons can be mounted
• Cable management support integrated
• Mounting wholes for flexible adjustment
• Nodemcu directly integrated

Parts:

• Buttons
• Nodemcu v2 ESP8266
• Pre-Assembled Wires

Attention:

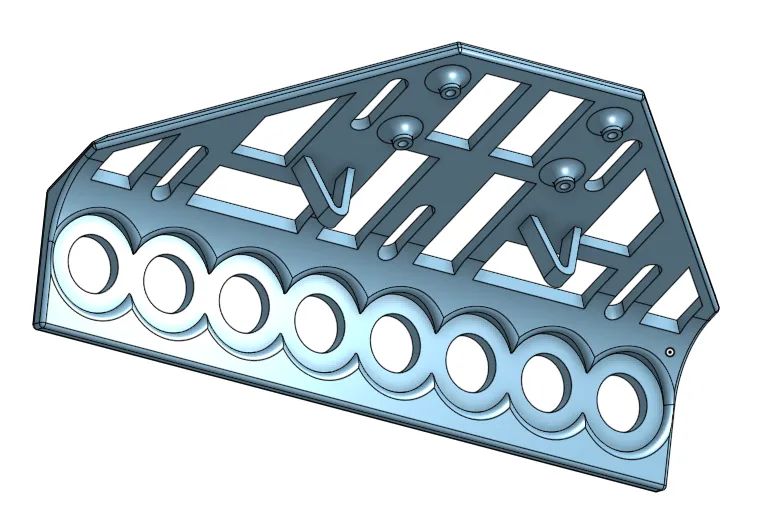

• The provided STL file already shows a upgraded version
• The Photos is the first version --> So downloading the STL gives a even better result as seen on photos (which needed a bit of post-rework after printing)
• The used nodemcu was flashed with WLED because that was the main-purpose for my controller
• If you want to read additional GPIOs as buttons in WLED you have to make your own WLED build and add something like -D WLED_MAX_BUTTONS=8 to the build config
• This nodemcu only allowed me to use 6 GPIOs as input --> So two of the buttons are currently unused

Print Settings

Printer Brand:

Creality

Printer:
