Tiêu đề Ống kính góc rộng Logitech C270 và Ngàm T-Slot 2020 cho End

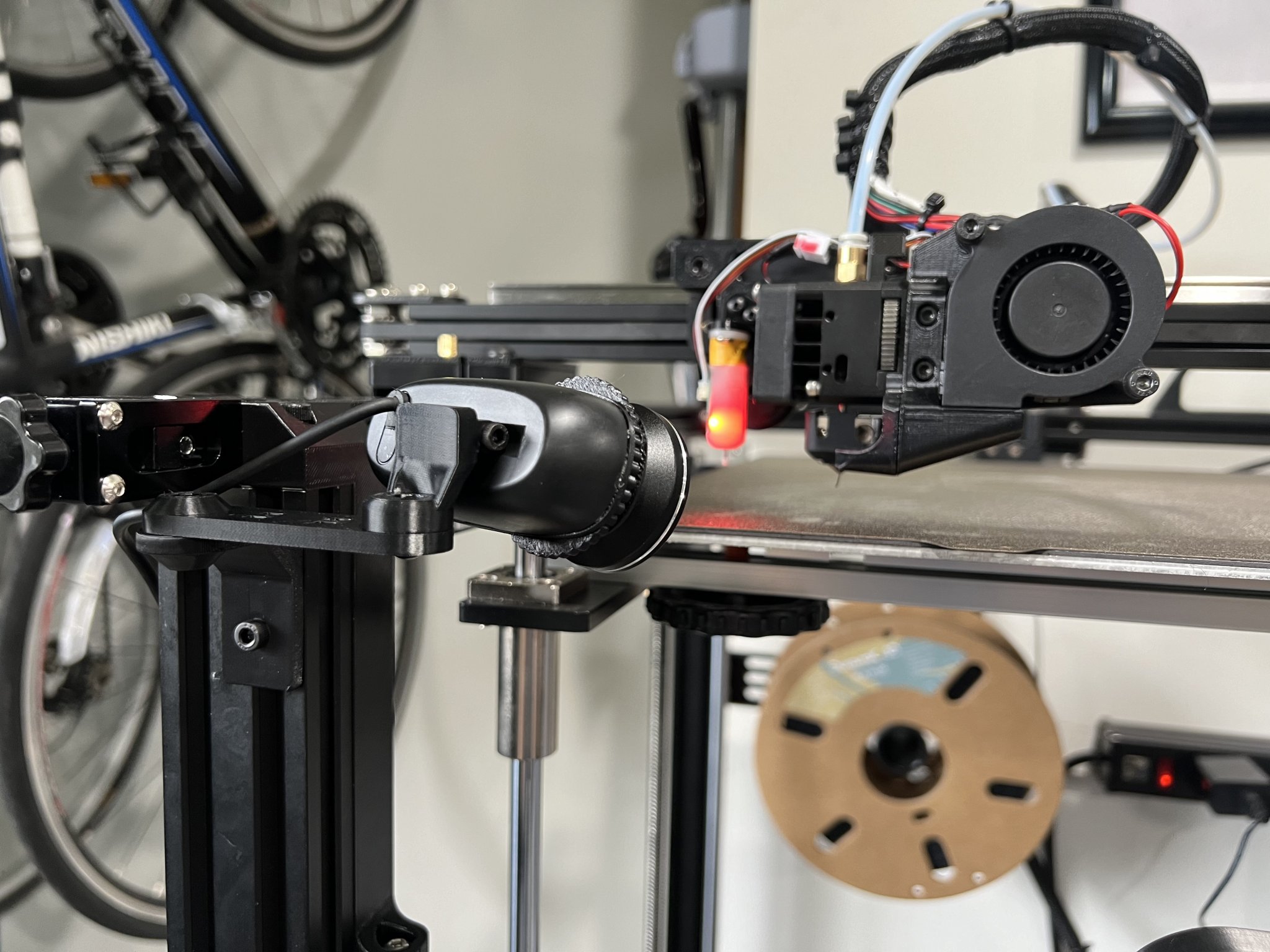

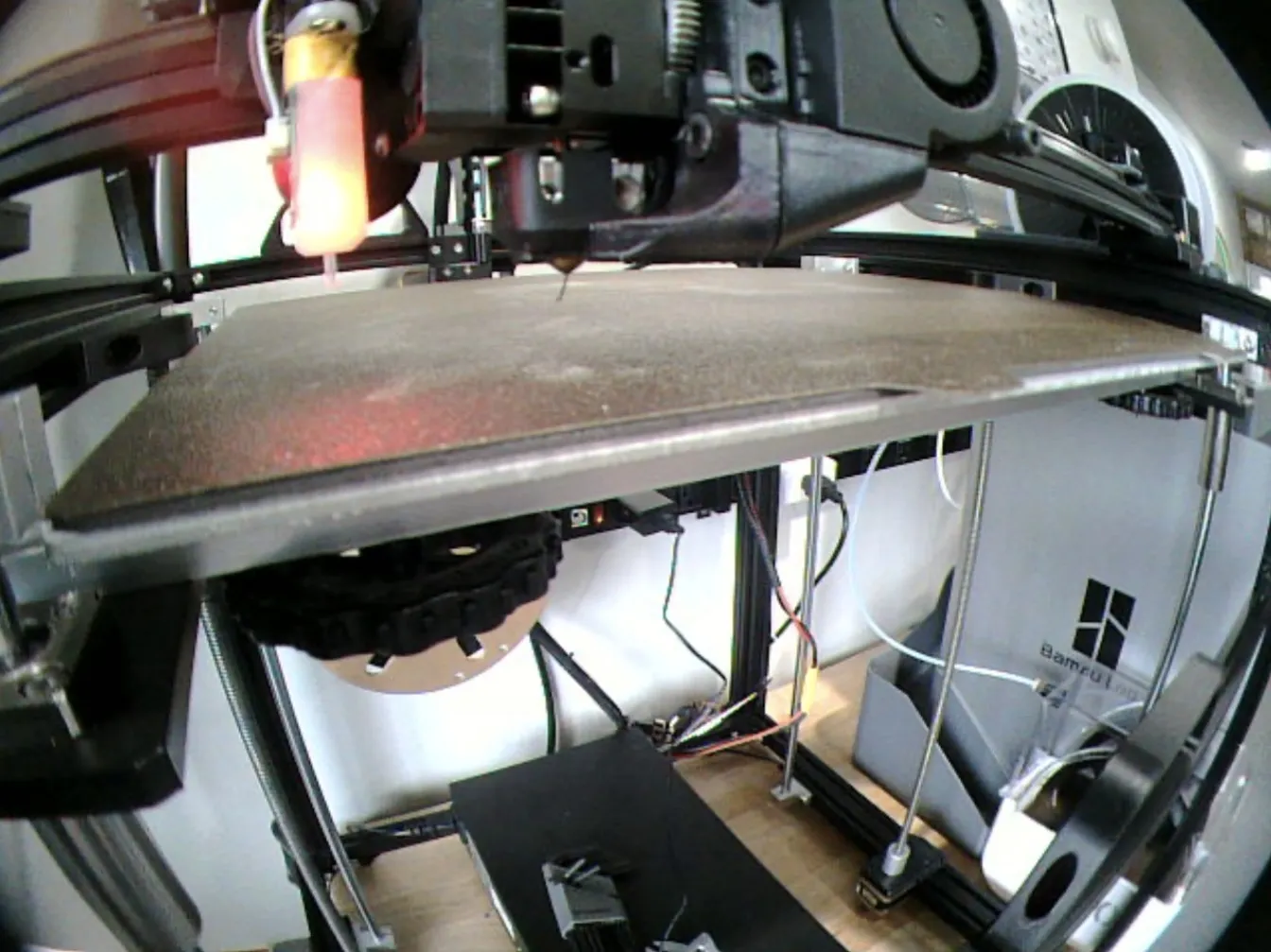

The excellent C270 shell model by GeekToybox is unfortunately incompatible with the wide angle lens in the materials list below. This remix modifies the shell and focus wheel to accommodate a 0.28X fish eye lens to give a full look at the massive Ender 5 Plus bed. The mount is remixed to fit the Ender 5 Plus T-Slot 2020 frame.

Re-use the screws from the C270 for the rear (inside) shell, and (2) M3x8mm flat head hex socket screws for the front (outer) shell.

The lens is secured to the front shell with a small bead of hot glue along the sides.

Printing:

• 0.4mm Nozzle, 0.2mm height, 3+ layer thick walls, 50% infill, ASA
• FlashForge ASA
• Alternatively, PETG or PC can be used. PLA is not recommended.

Materials:

• 0.28X Fish Eye Lens
• (2) of M3x8mm Flat Head Hex Socket Screws
• (2) of M3 Hex Nuts
• (1) of M3x10mm Button Head Screw (or Socket Head)
• (1) of M3x20mm Button Head Screw (or Socket Head)
• (1) of M4x10mm Socket Head Hex Screw (or Button Head)
• (1) of 20 Series M4 T-Slot Nut

Tools:

• Soft Jaw Pliers
• Allen Key Set
