Tiêu đề Tấm rốn V02 Dragon burner EBB36 Sherpa Micro Tóm tắt

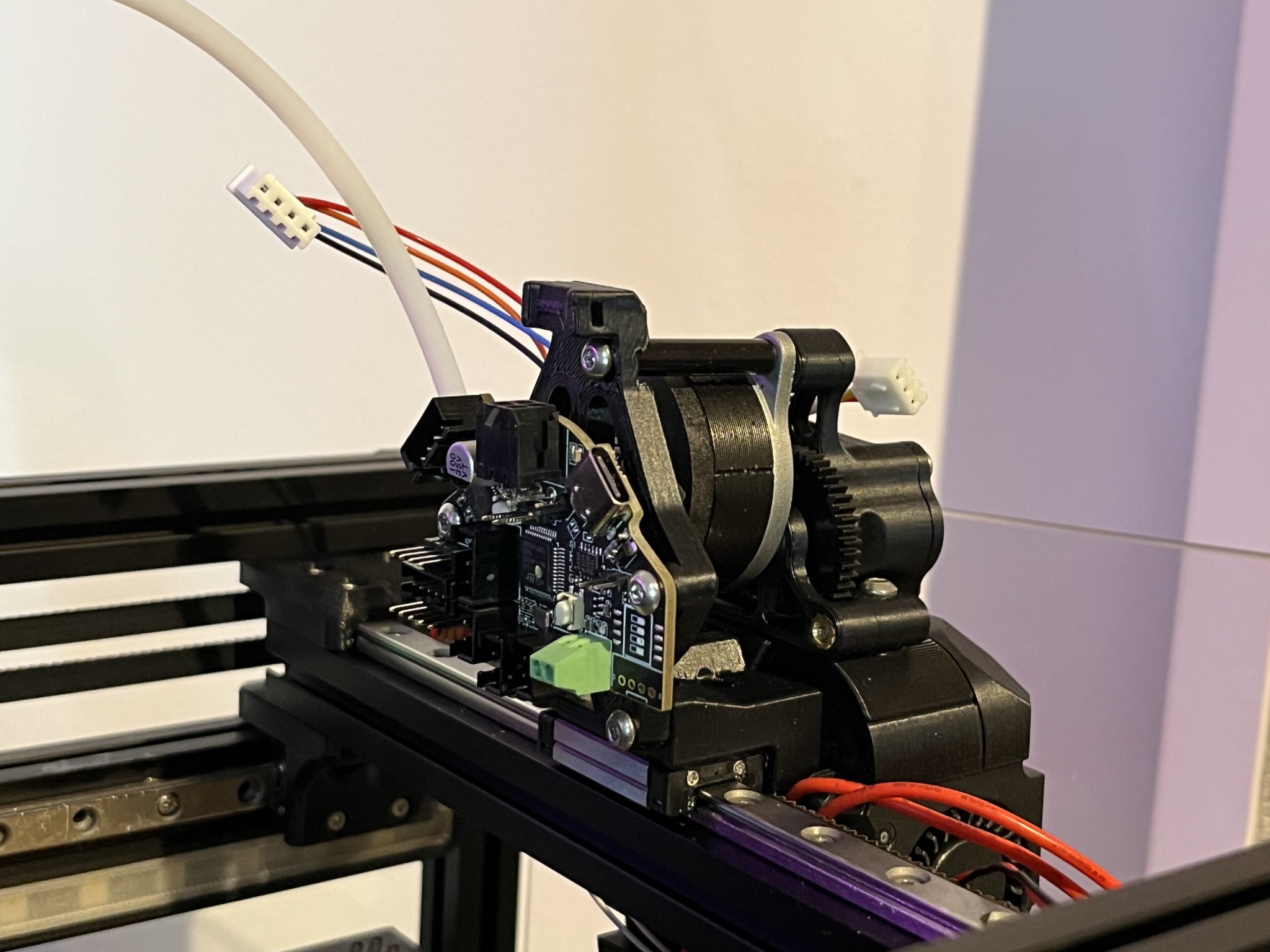

Used in a Voron 0.2 setup with:

• Dragon Burner
• BTT EBB36 CAN board - **warning**: not compatible with max31865 for now!
• Sherpa Micro extruder

BOM:

• 2x 25mm aluminum standoff
• 4x M3 x 6 mm BHCS
• 2x M3 x 10 mm BHCS
• 2x M3 x 4 x 5 mm heat insert

Important: You must use M3 BHCS (button head) screws! If you use SHCS screws, the screw head might touch and short-circuit your CAN board.

The CAD project is available via OnShape.
