Custom SAINTCON 10x10 Board Row Header Holder
Người giữ hàng tiêu đề bảng tiêu đề Saintcon Minibadge 10x10 tùy chỉnh để giúp hàn một hàng tiêu đề dễ dàng vào bảng một cách dễ dàng.
Mô tả

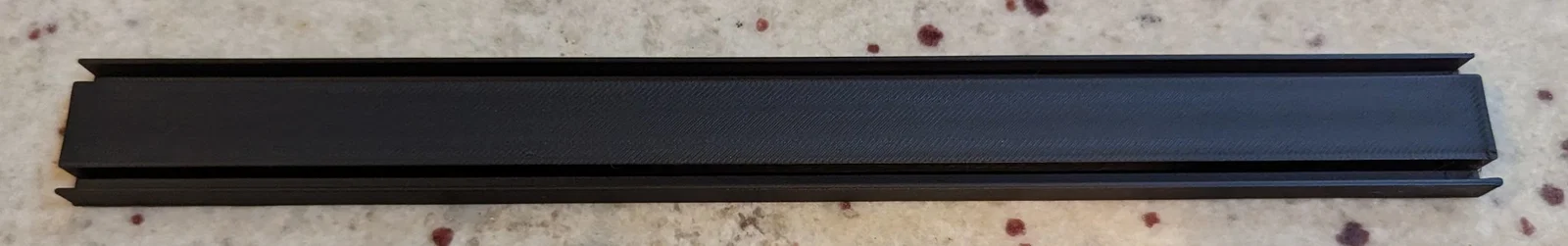

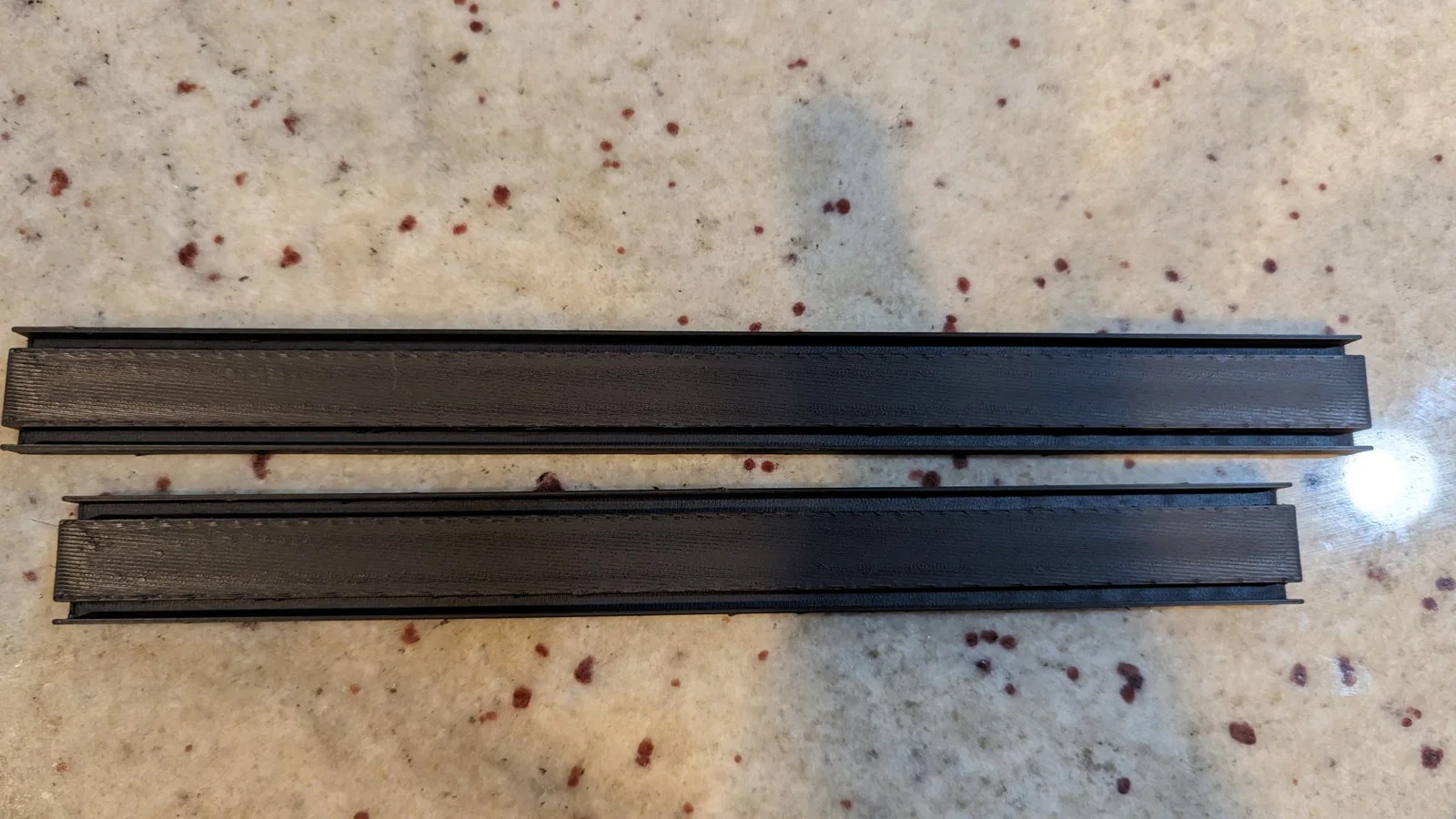

SAINTCON is a conference in Utah that has minibadges each year and as you collect them it becomes harder to display them. SAINTCON has a 10x10 board that will show off 100 of them and I developed a slightly smaller version of one and wanted a holder for the headers to easily solder 10 minibadges worth at a time (one row). This is what I came up with and if you have the store version then you need the longer Official Store marked .stl file which is 267mm or about 10.5 inches long. The one for my board it is the Custom marked .stl at 237mm or about 9.3 inches long version.
Steps to use the holder to solder on headers:

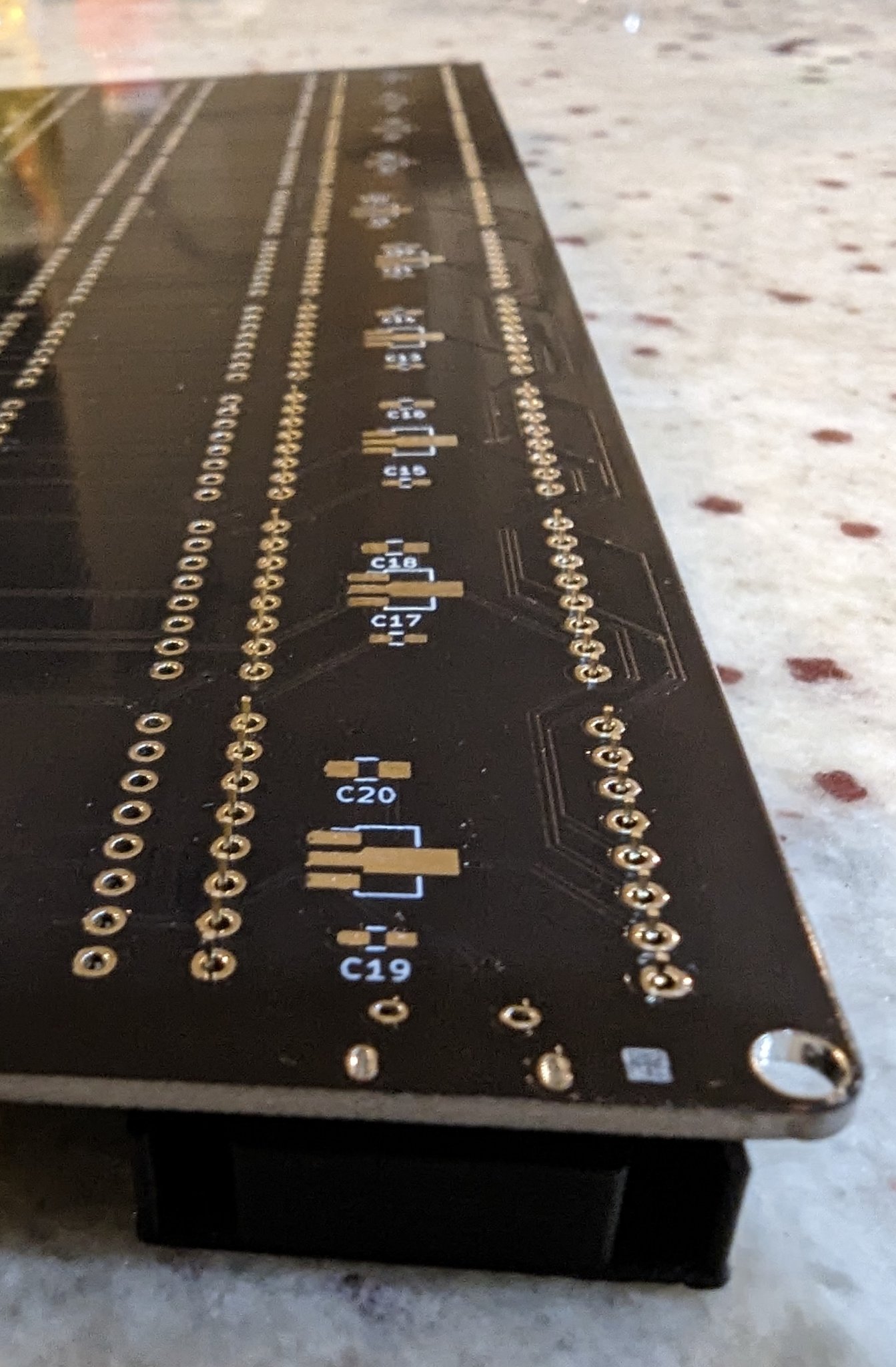

- place female headers into 10x10 board row

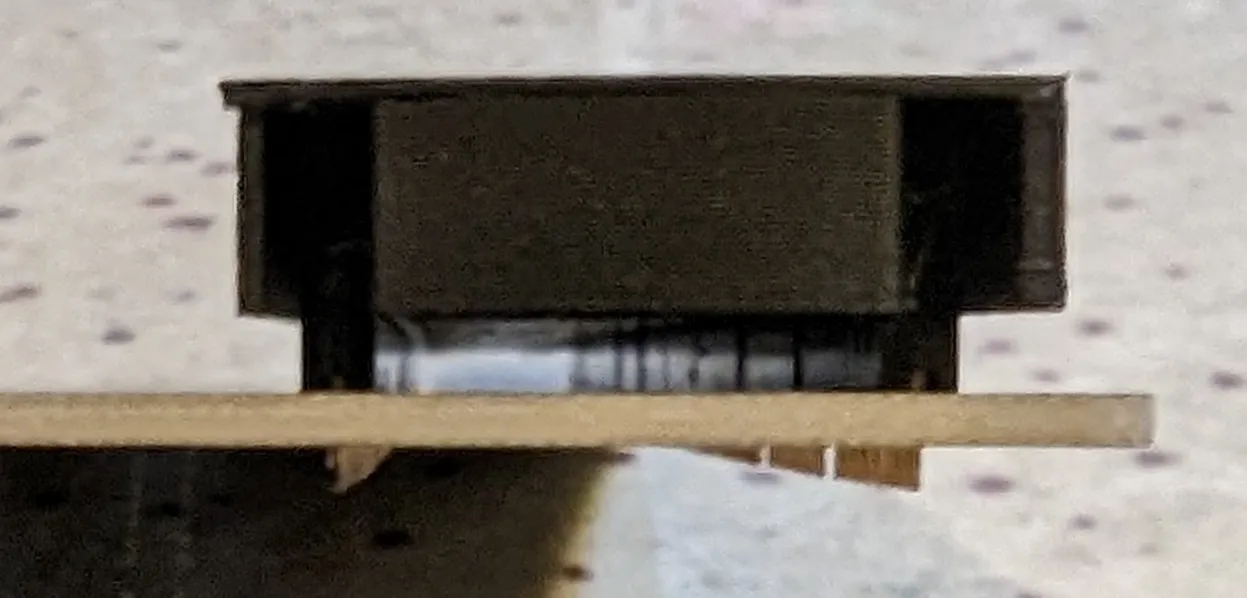

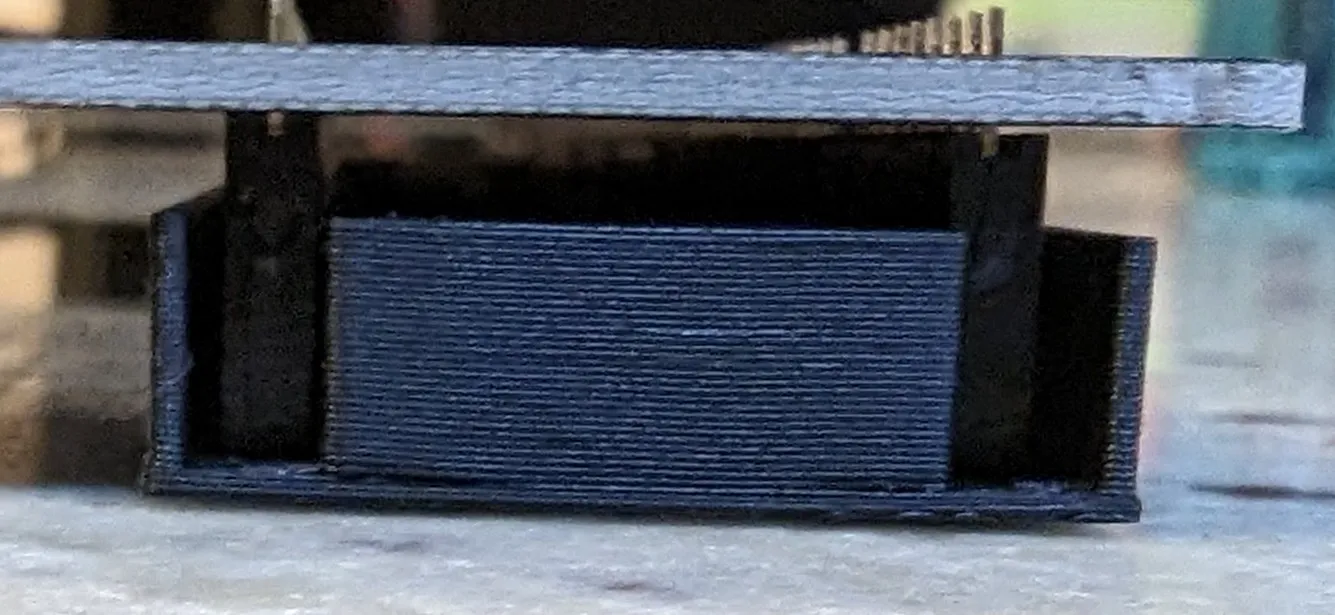

- slide 3D printed holder onto row so the female headers are in the grooves
- while holding header holder and board from the sides flip board over
- place on surface while keeping headers in holes of board
- solder headers in place
Youtube short showing how to use header helper:
