Tiêu đề Tronxy Crux 1 E3D Hotend Kit Tóm tắt Bộ chuyển đổi hote

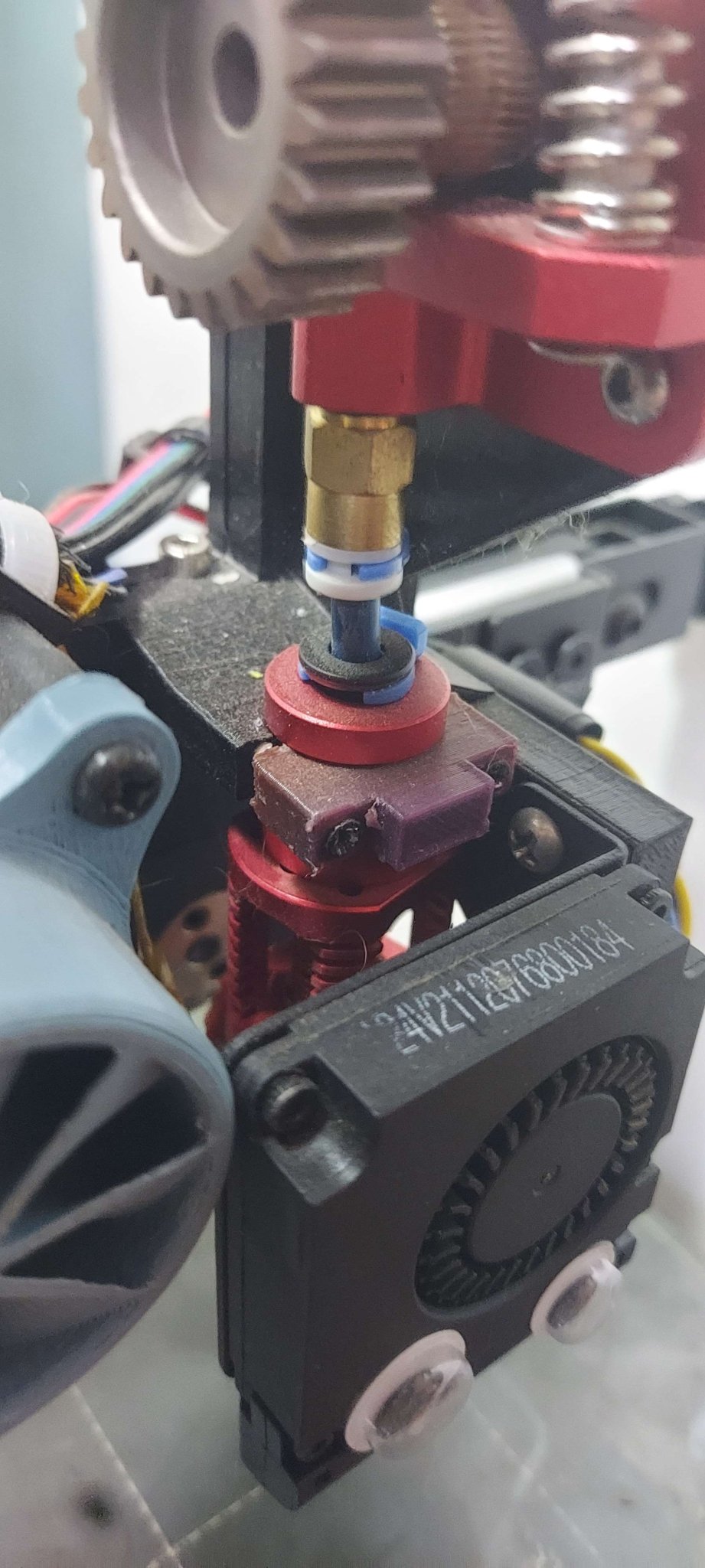

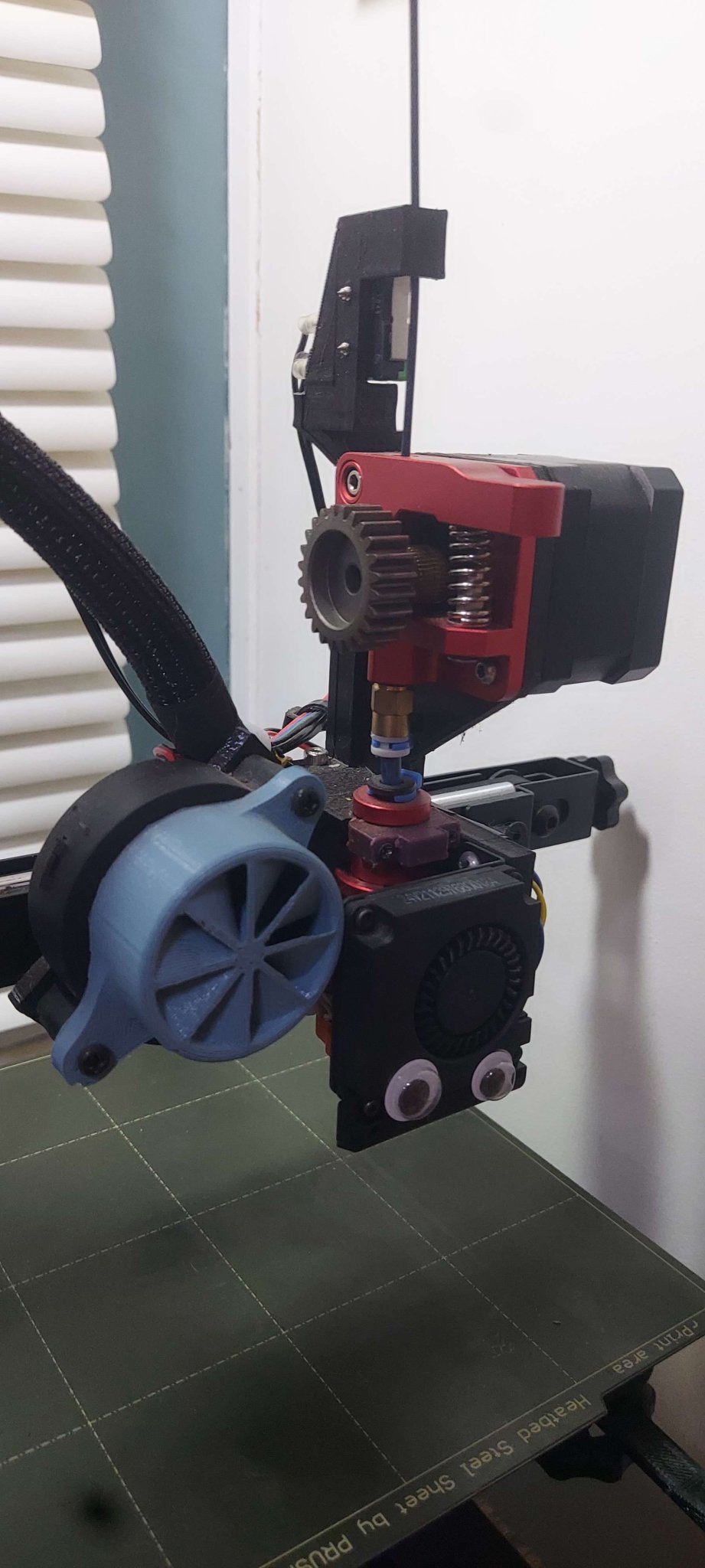

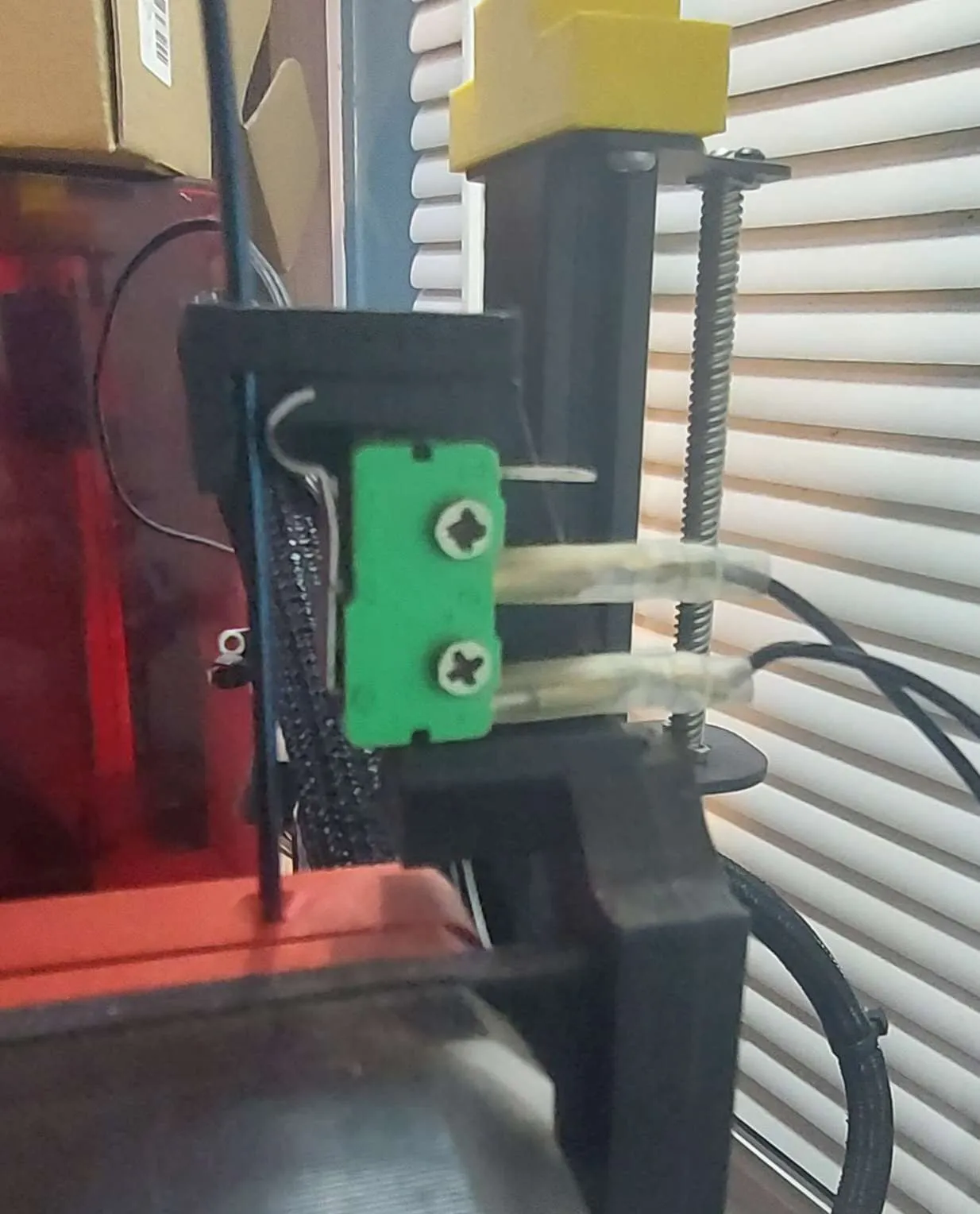

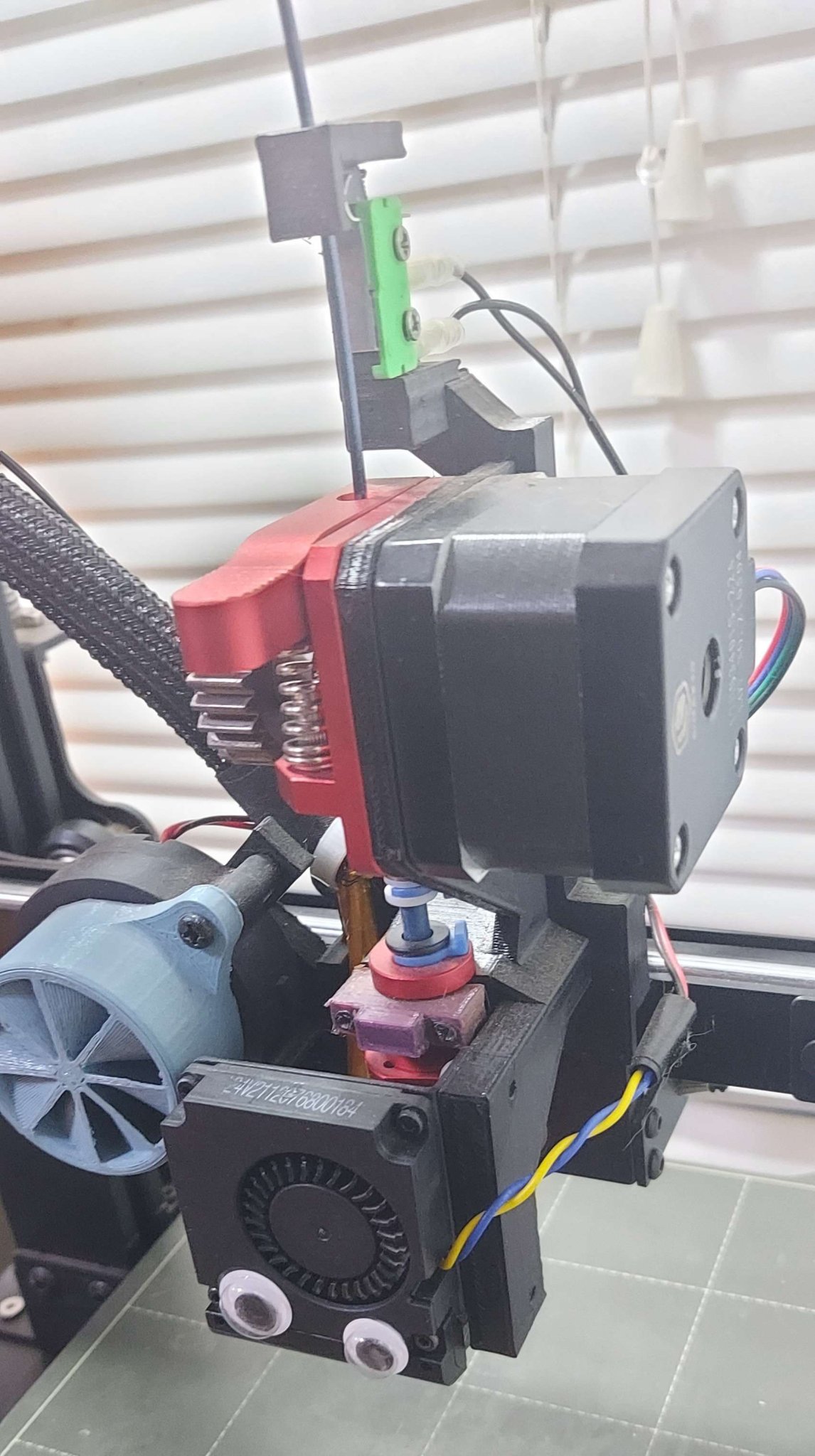

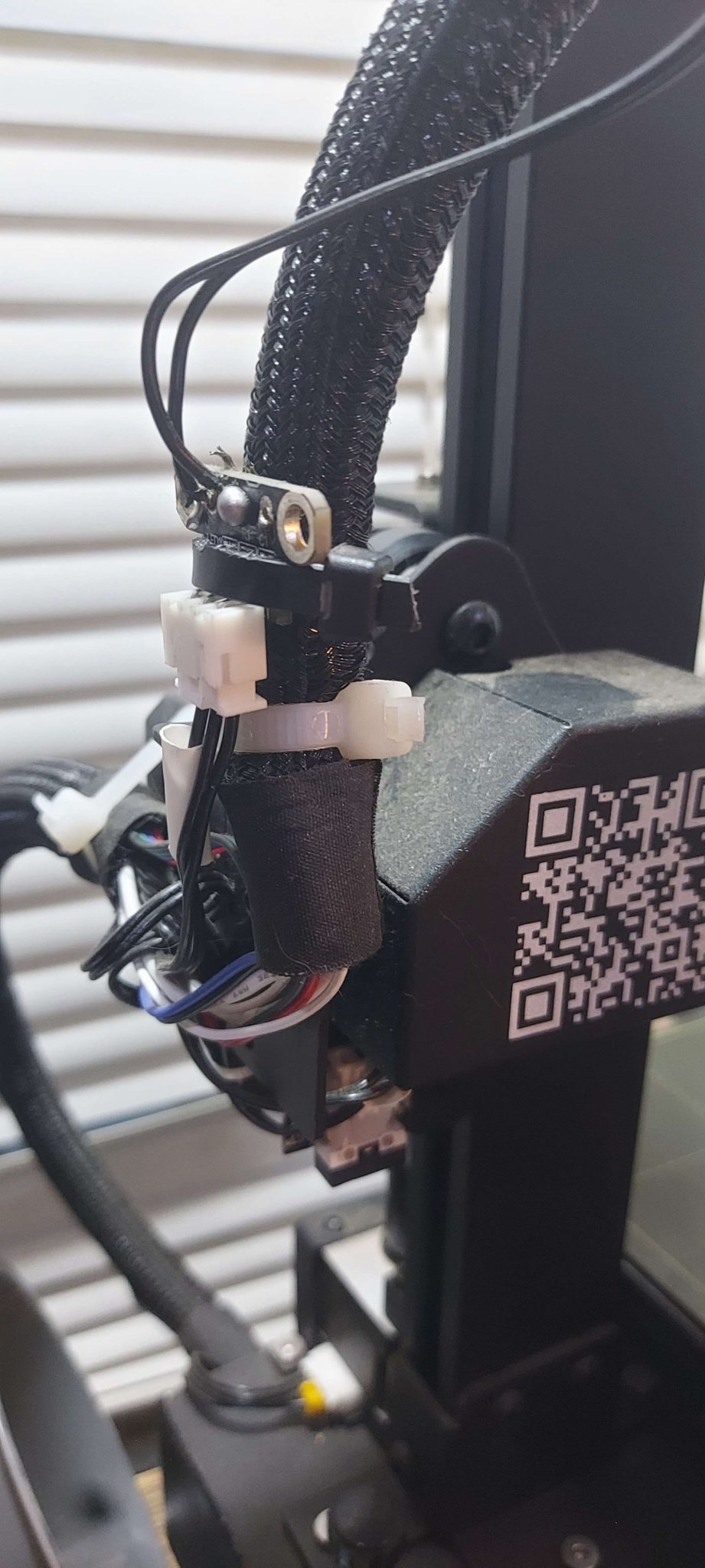

uses a creality style extruder & part cooling fan. and a 5015 blower fan for hotend cooling, the filament switch is taken out of the housing and mounted at the top. and the wires for it will have to be extended, im using a redlizard hotend. but it should work with other similar hotends

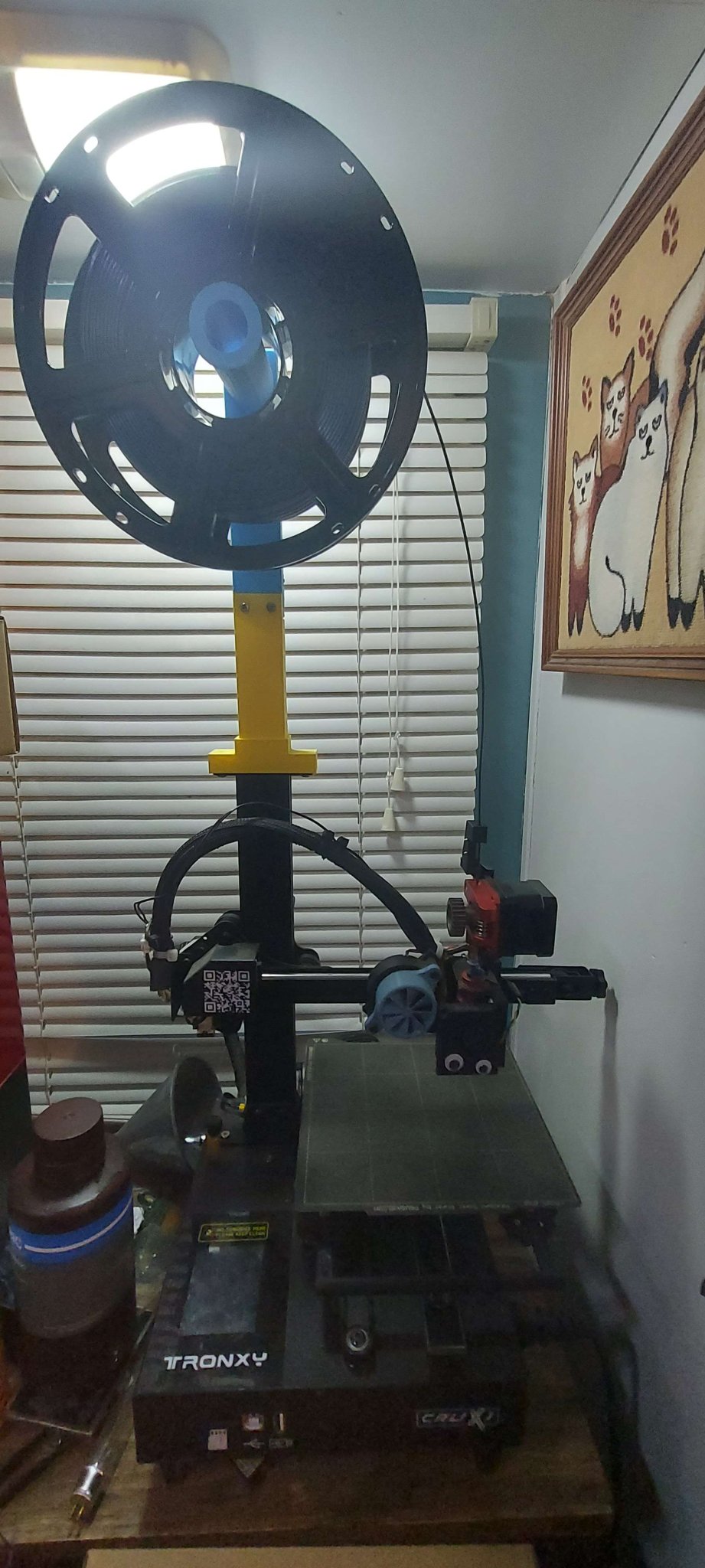

it will also require the taller top-mount spool holder i made in order for the spool to feed easily. and clear the taller hotend, you could probably add some sort of filament guide if you wanted it side mounted. but this is the most straightforward solution

you'll have to source the screws, other then the ones that be re-used, the rest i just got out of a big bin of random screws. and several thread into the plastic

i also added a fan silencer for the blower. and the metal gear on the shaft sticking out of the extruder motor for rotation visualizer. and to manually feed plastic in and out

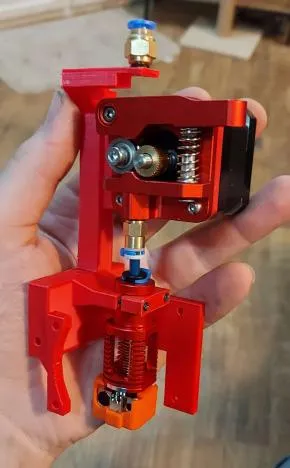

(the one with the red plastic is a older version, so some details are different. but it shows how the hotend & extruder are connected, with a piece of PTFE tube)

message me if you have any questions since its kind of a mess, didn't really intend for other people to have to deal with my design lol

(the taller filament spool holder →
