Sentinel Inductive Probe [2020]

Get that perfect first layer with a simple inductive probe! No loss in printable space, installed in just a few minutes.

Please be aware that this only works with a metal print-surface.

Im using the endstop from a sidewinder X1, but you can buy the probe from aliexpress HERE (GX-H8A) Im using the E0 plug on my SKR mini board, both the V2 and V3 have the same pin number.

I've included a config HERE to get you started, remember to add BED_MESH_CALIBRATE to your start macro

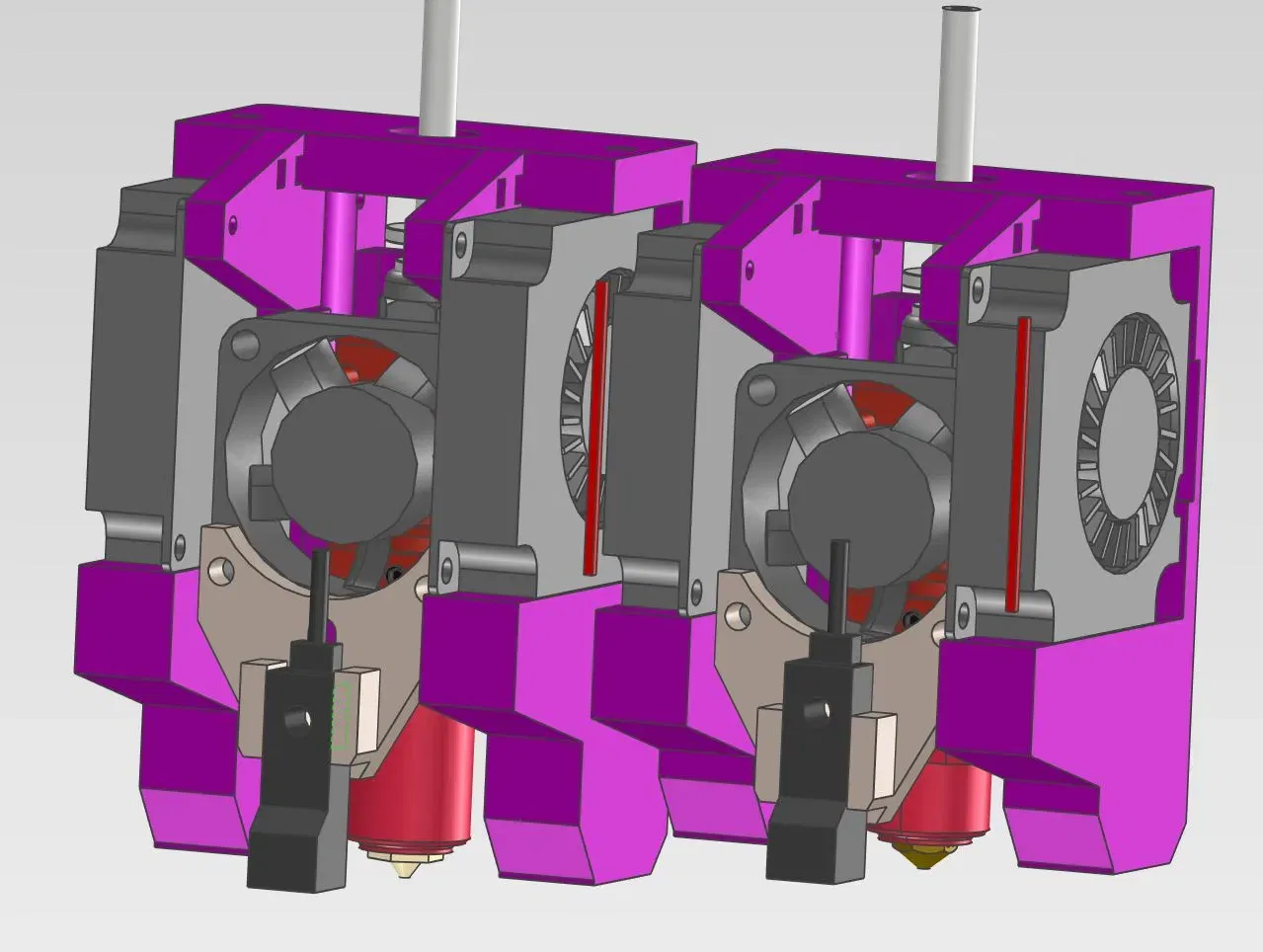

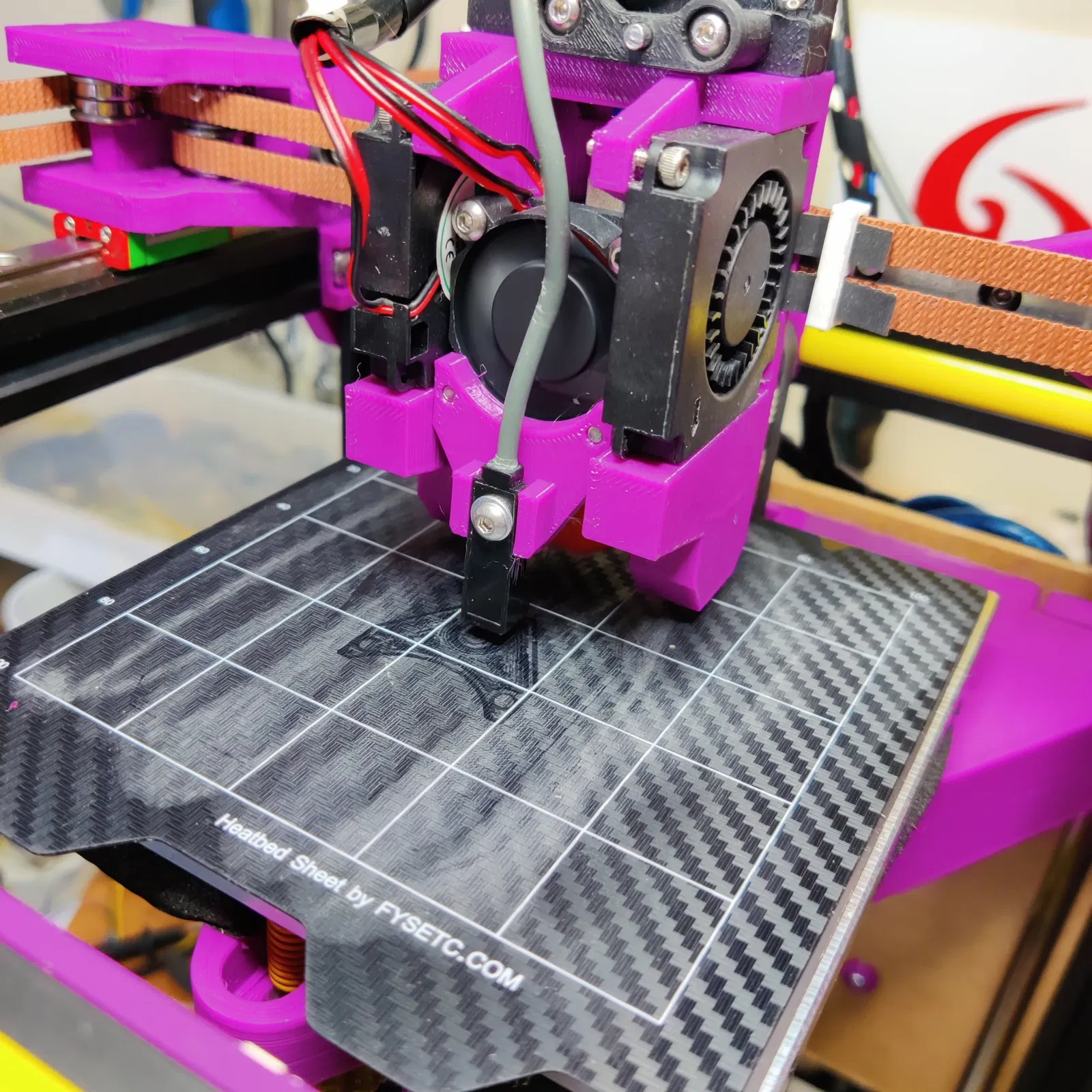

Installation is fairly simple, bolt the probe to the printed part and the printed part to your hotend-fan, make sure the probe is about 1-2mm higher than your nozzle, plug the sensor into E0 on the SKR mini E3 V3 and run the probe_calibrate command to set your z-height.

(if not using the skr mini e3 v3, you need to change the pin in the config)
