Prusa Enclosure camera mount for Logitech C920

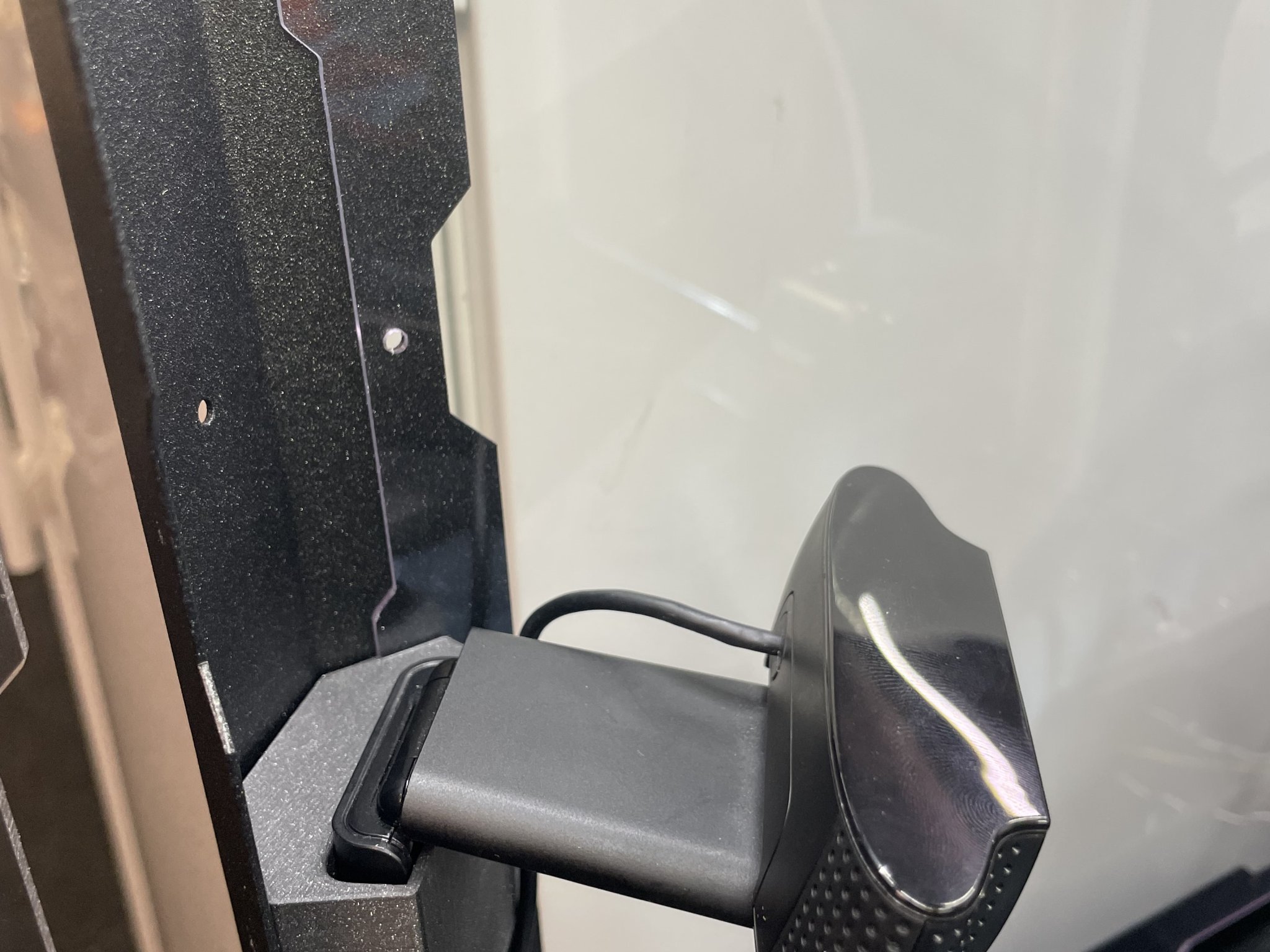

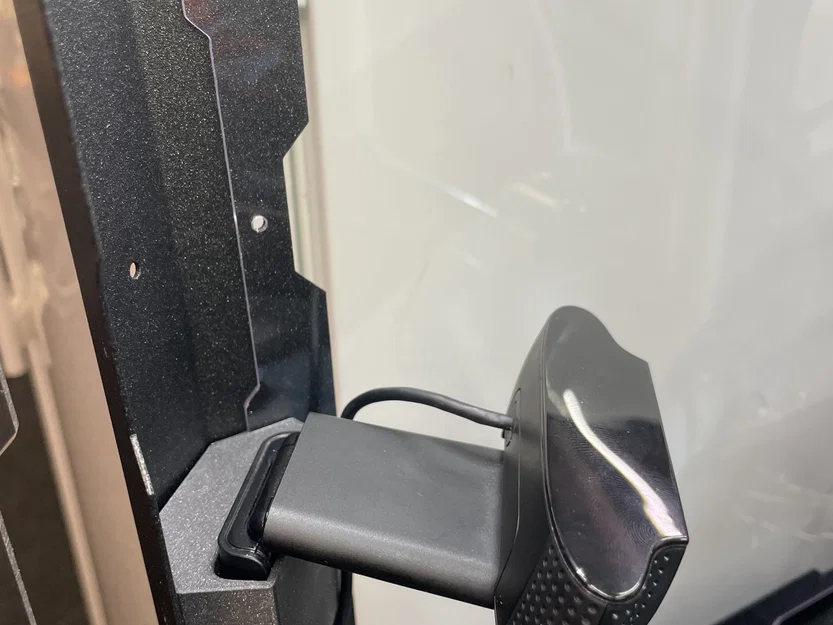

Một dễ dàng để vặn vít trên camera gắn. Chân dưới của C920 trượt vào túi để giữ nó ở vị trí.
Mô tả

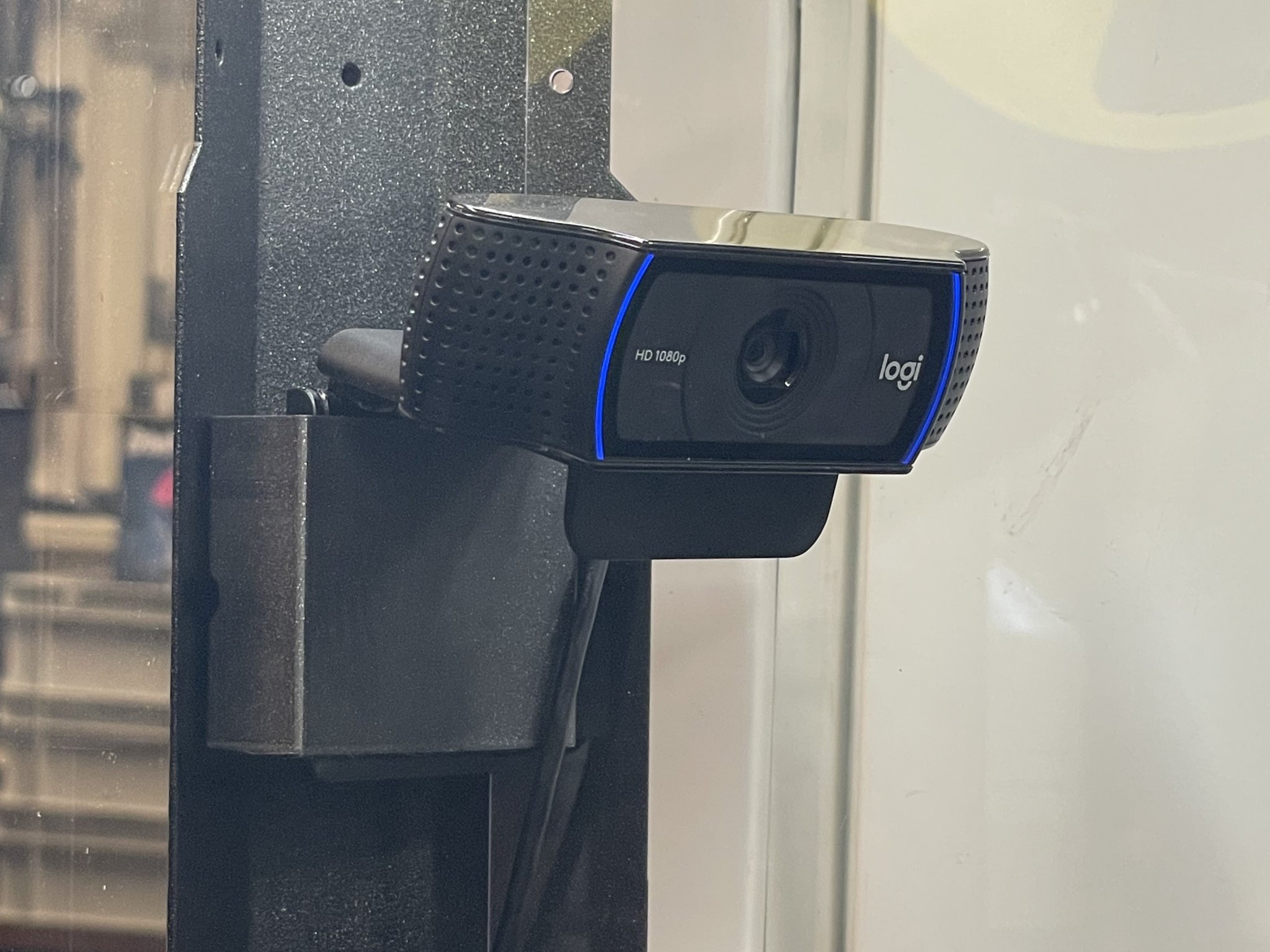

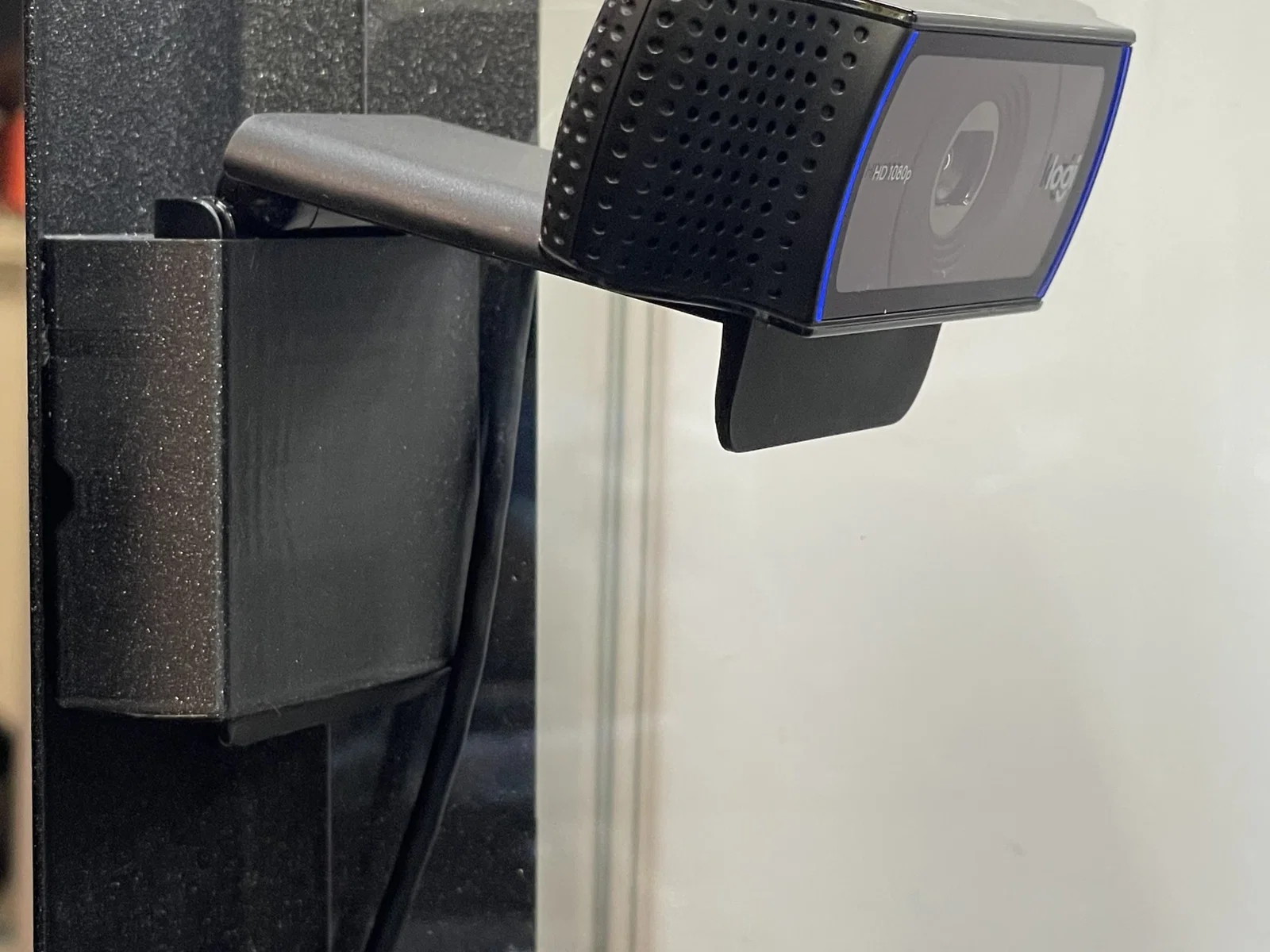

This is my second version of a camera mount for a Logitech C920 camera. It can be used for either mounting to the left or right corner of frame.

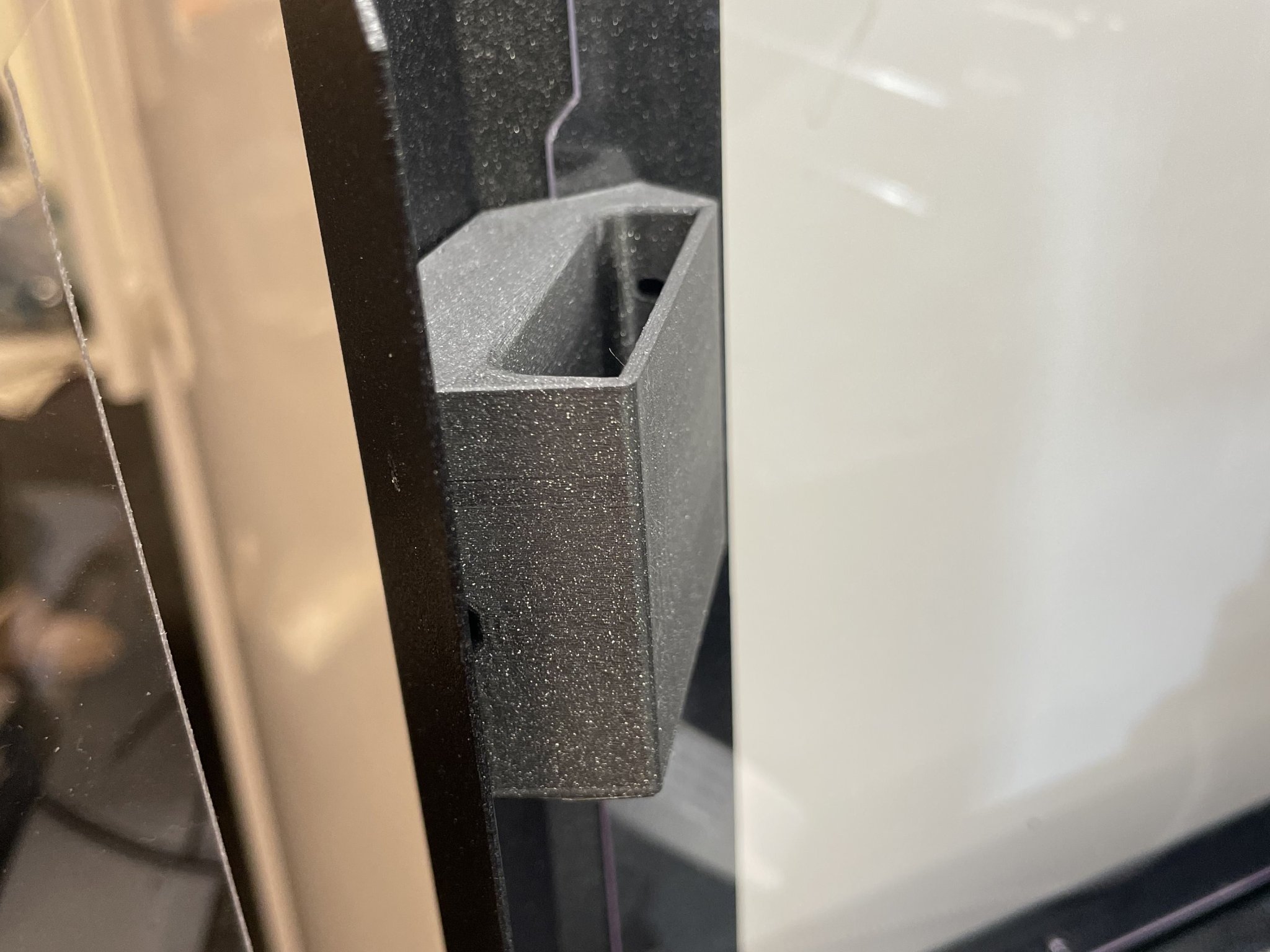

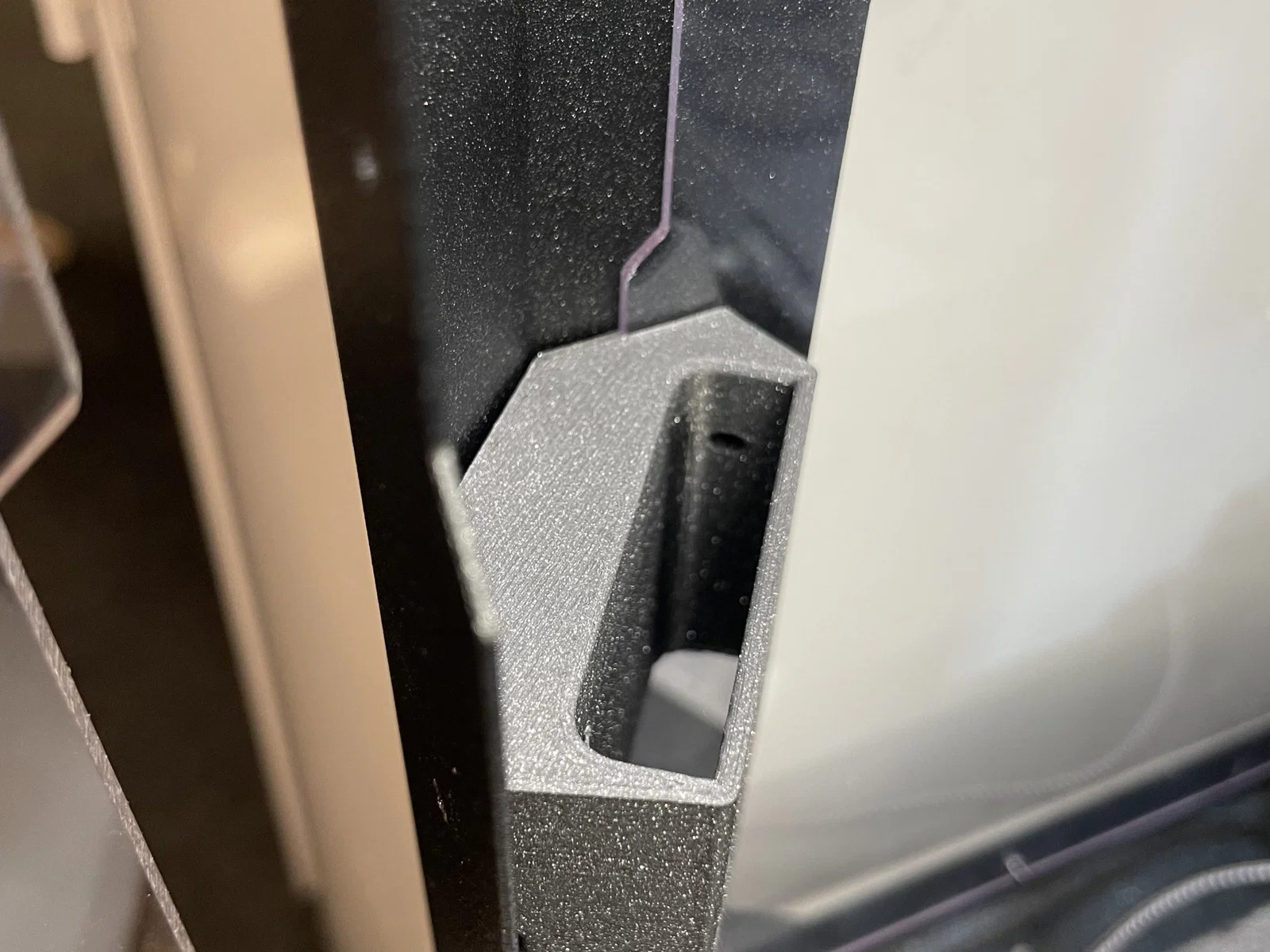

Use two M3x8 (or M3x6) screws to mount it to the inside corner of the enclosure. One of the rivets needs to be removed. For nice aesthetics, it's best to use black screws. If you dont have any spare, you can use a black marker to colour the screw-heads black.
Tip: Before mounting into enclosure it is best to prepare the M3 treads in the printed part to once fully screw in the M3 screw and remove it.
After the first version I upgraded the model to be used for both Left or Right position. The back side aids in correct orientation.
For Left-Front position read/use: ◄Left Top Front ►
For Right-Front position read/use ◄Front Top Right ►
