Hex Fabric Curtain

Overview

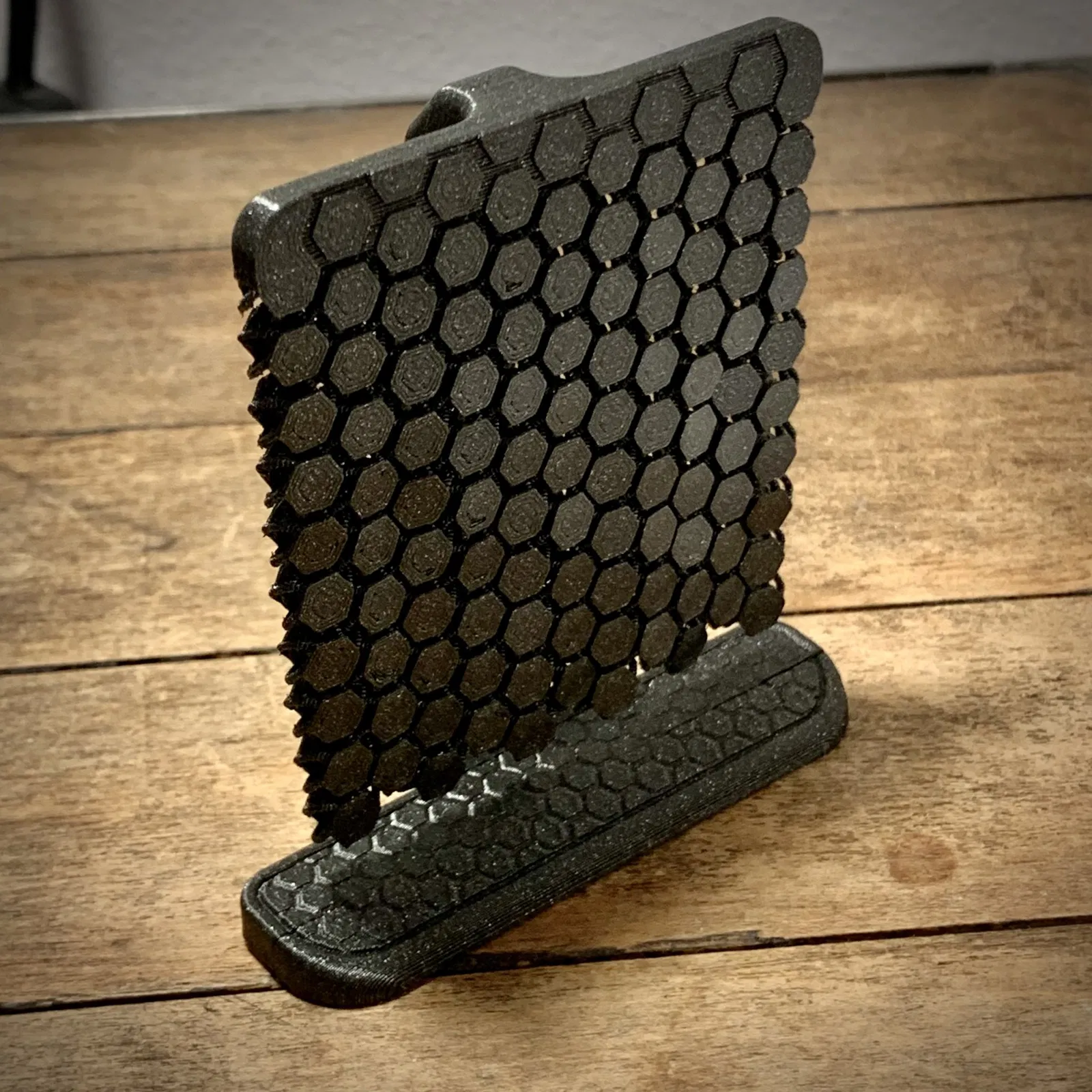

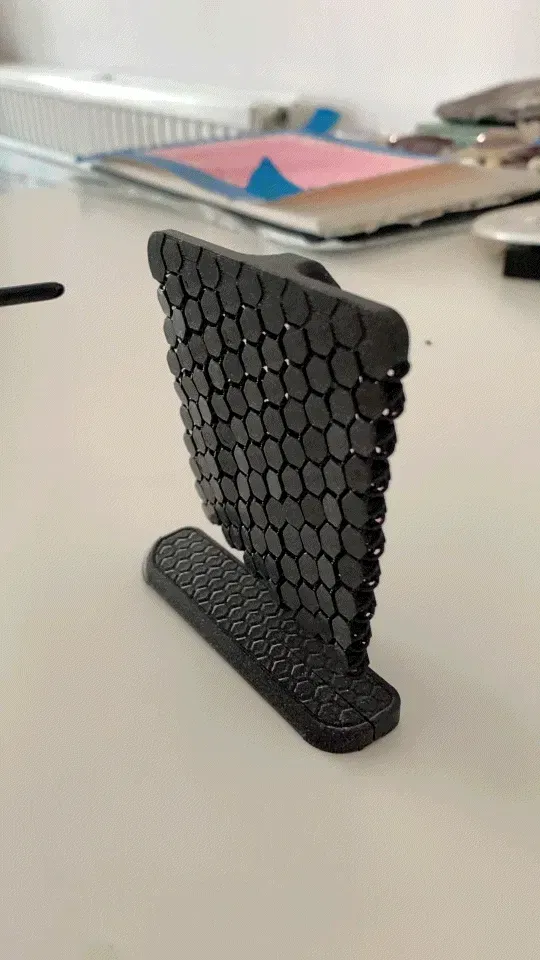

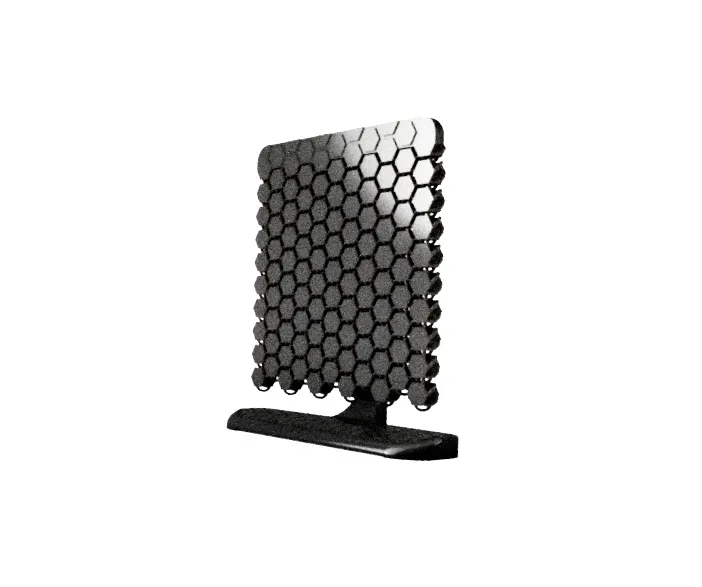

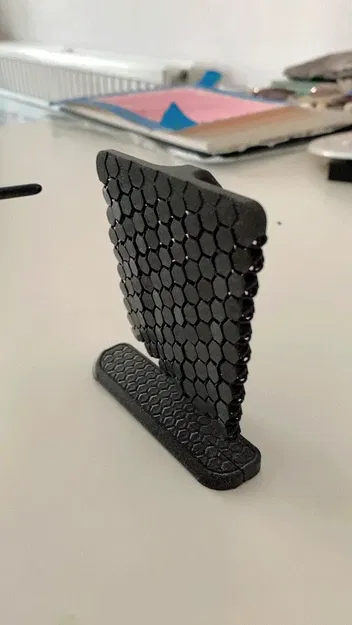

This is a cool mini sculpture that shows off the power of 3D printing. The print-in-place chainmail style fabric structure reacts to touch by conforming to any perturbing force and gently swings when released, offering a brief distraction from the daily grind while being a great little display piece.

Model components

• Main structure x1
• Foot x1
• Dovetail pegs x3

Recommended print settings

• Print profile: eSlicer 0.2mm QUALITY
• Perimeters: 3
• Material: PLA (Prusament Galaxy Black used in pictures)
• Printer: Prusa Mini+

Assembly instructions

1. Gently remove the main structure, foot and dovetail pegs from the build plate
2. Loosen the hex elements by wiggling them around until they move freely. The looser they are, the better! Care should be taken not to break the tiny links holding the together.

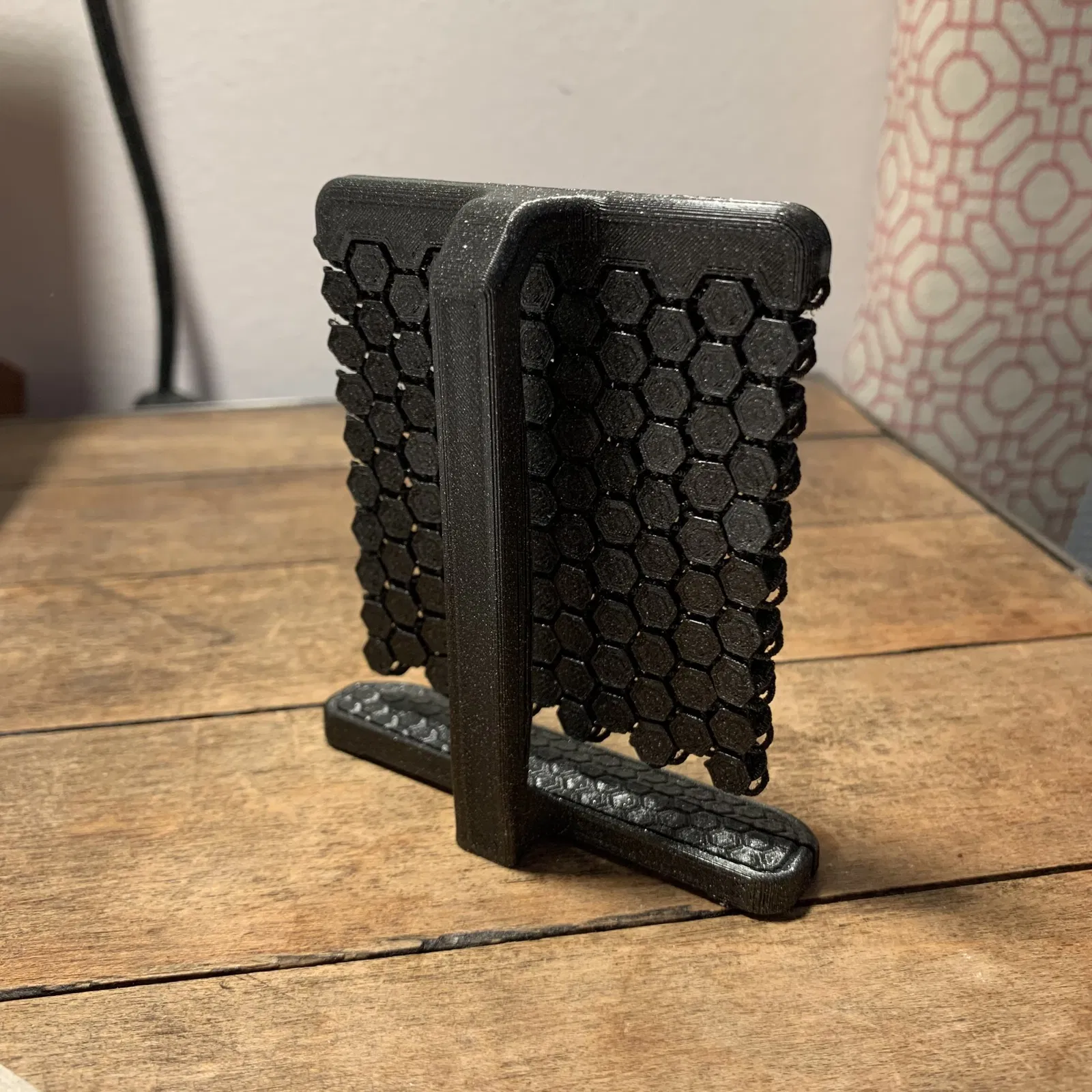

3. Insert the three dovetail pegs into the foot slots. If loose, use a small dab of super glue to secure them in place.
4. Push the other end of the dovetail pegs into the main structure. Super glue them as well if necessary.
5. Done! Flick the links gently to get them swinging
