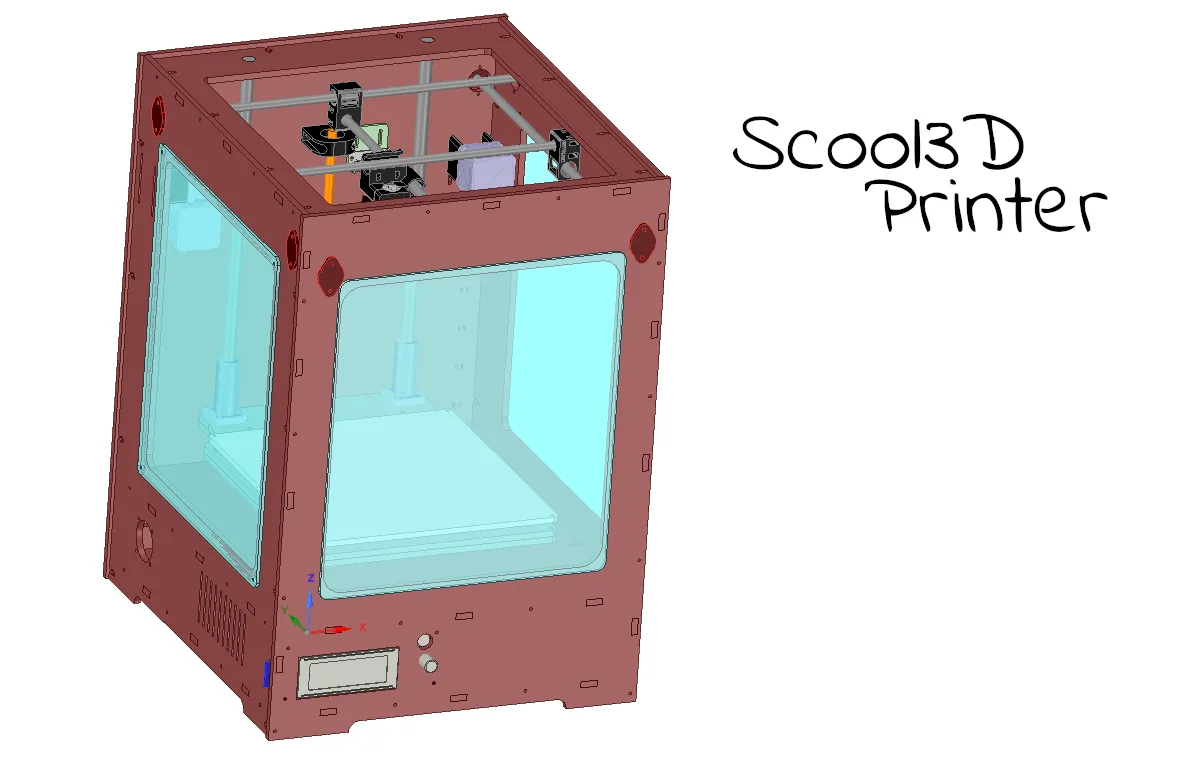

Tiêu đề Máy in Scool3D Tóm tắt httpsyoutube-Luoi57LNdA Quy cách

Specification:

• Size box 358x368x511mm
• Work area 230x230x230mm Electronics:
• Arduino MEGA/MKS 1.0 L
• RAMPS 1.4
• LCD 2004
• 4x Stepper motor NEMA17
• HotEnd E3D or china clone v6
• Silicon Heated plate 20x20cm
• Supply Power 12v 30A
• Endstops modules (x3) Mechanical:
• LMK12LUU x2
• LM8UU or RJM-01-08 x4
• LM8LUU x2
• T8 Leadscrew 300mm
• Cylinder Liner Rail Linear T6 x1 334mm
• Cylinder Liner Rail Linear T6 x1 330mm
• Cylinder Liner Rail Linear T8 x2 386mm
• Cylinder Liner Rail Linear T8 x2 477mm
• Cylinder Liner Rail Linear T12 x2 481mm
• 608 ZZ bearing (8x22x7) x9 or 1x 608 ZZ and 8x KFL08
• GT2 20T pulley x2 fi5mm
• GT2 20T pulley x6 fi8mm
• Coupler 5mm to 8mm
• GT2 belt

Print instructions

Category: 3D Printers Print Settings

Printer: HBot3D

Rafts: Doesn't Matter

Supports: Yes

Resolution: 0.2

Infill: 45

Filament: noname ABS rainbow Notes:

Can use PLA but remember when you want print in a closed chamber on this printer better use ABS
