IKEA PS2014 | Motorized Lamp Fixtures

Disclaimer

This has not reached its final form, and I'm seeing this version as a proof of concept. I'm not sharing a tutorial, code, schematics or anything else just yet :)

Intro

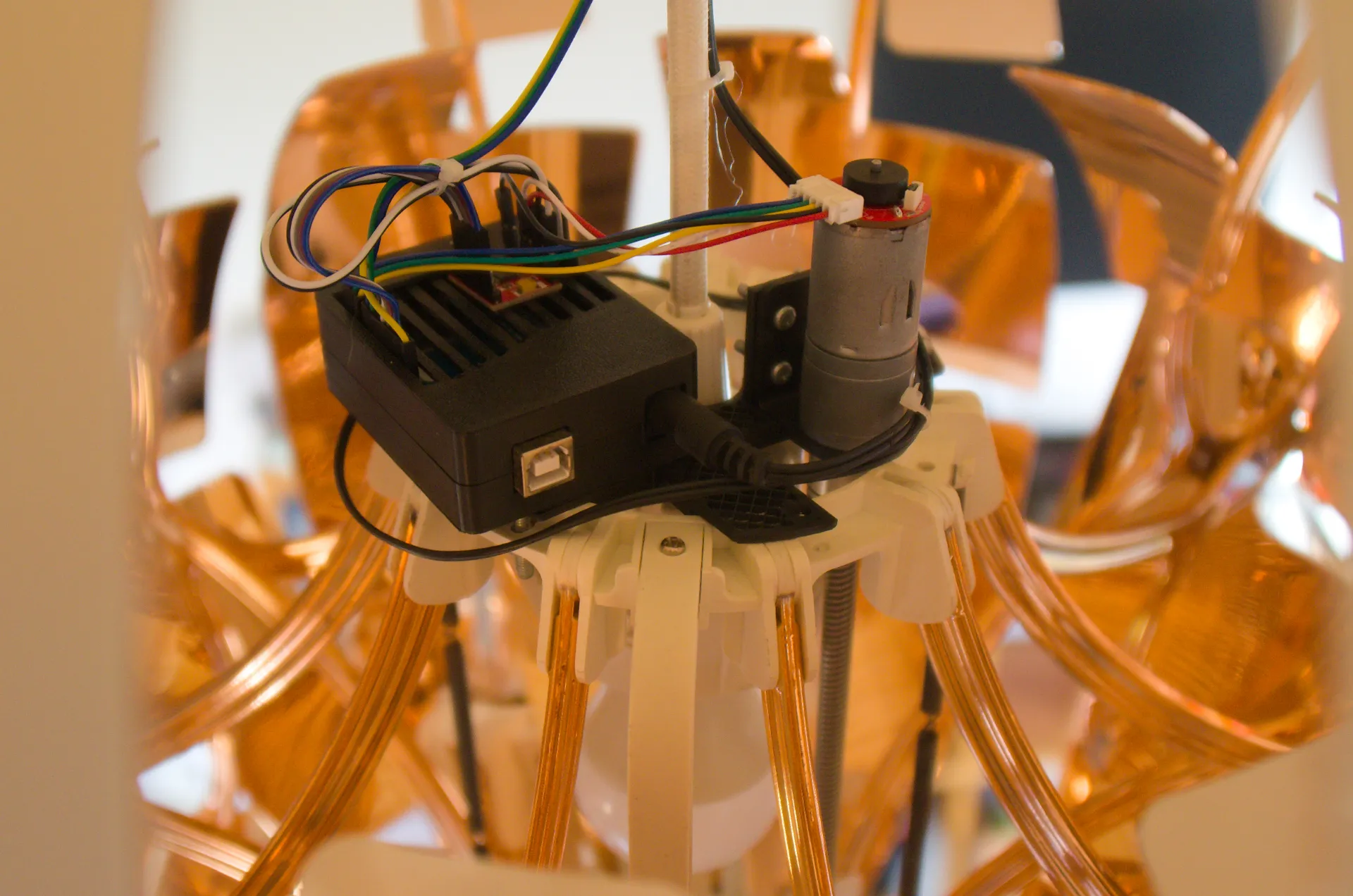

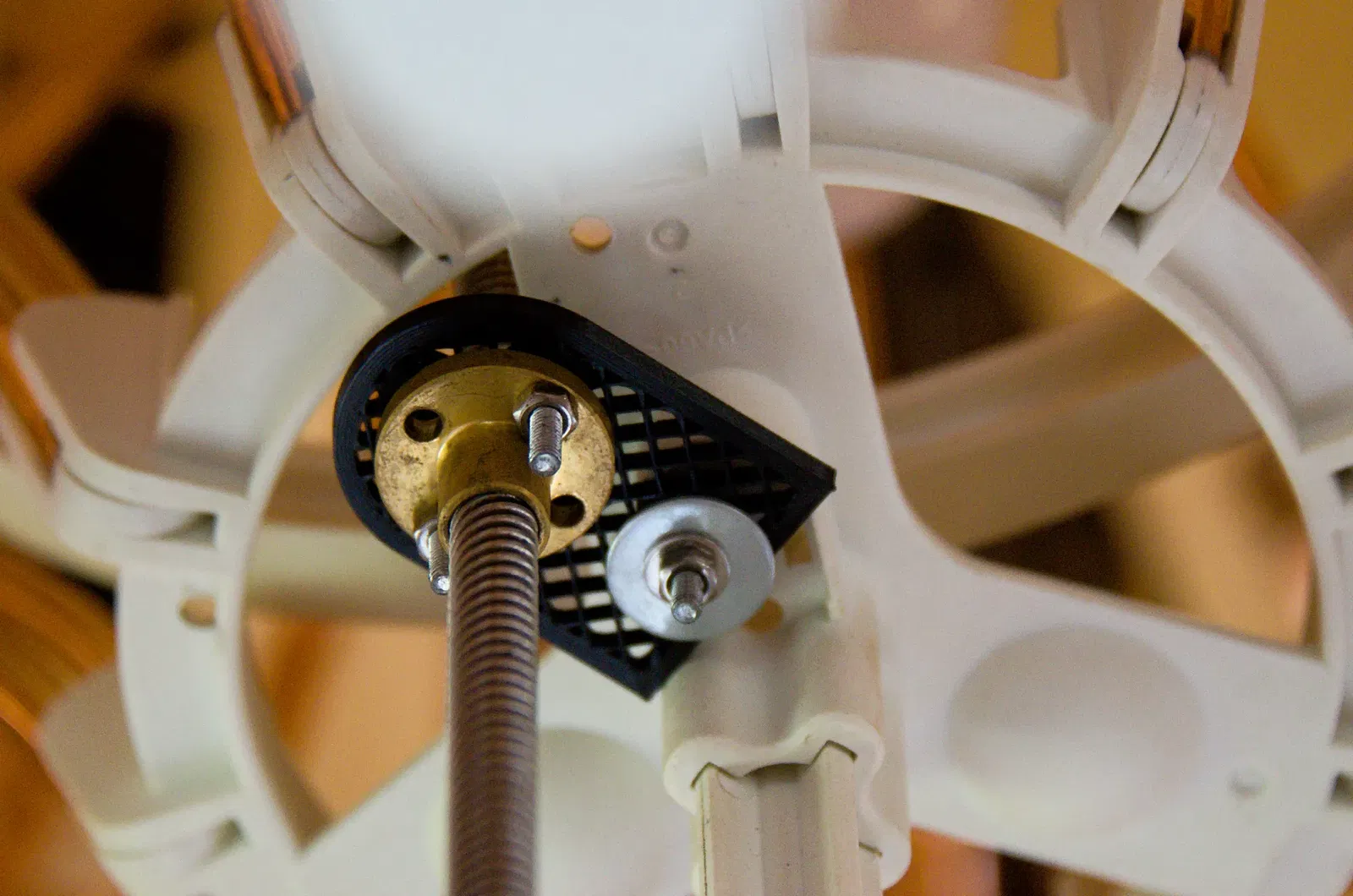

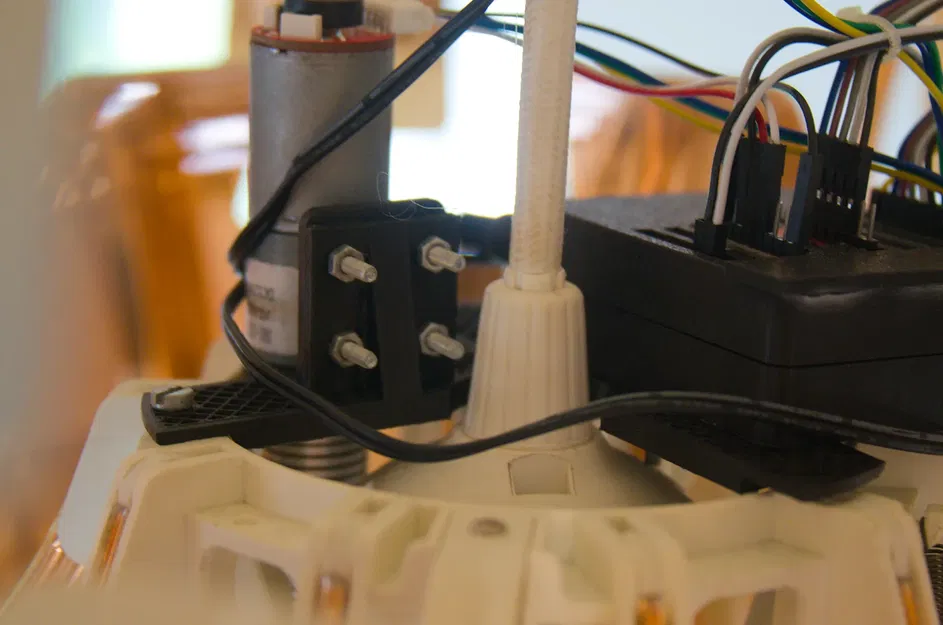

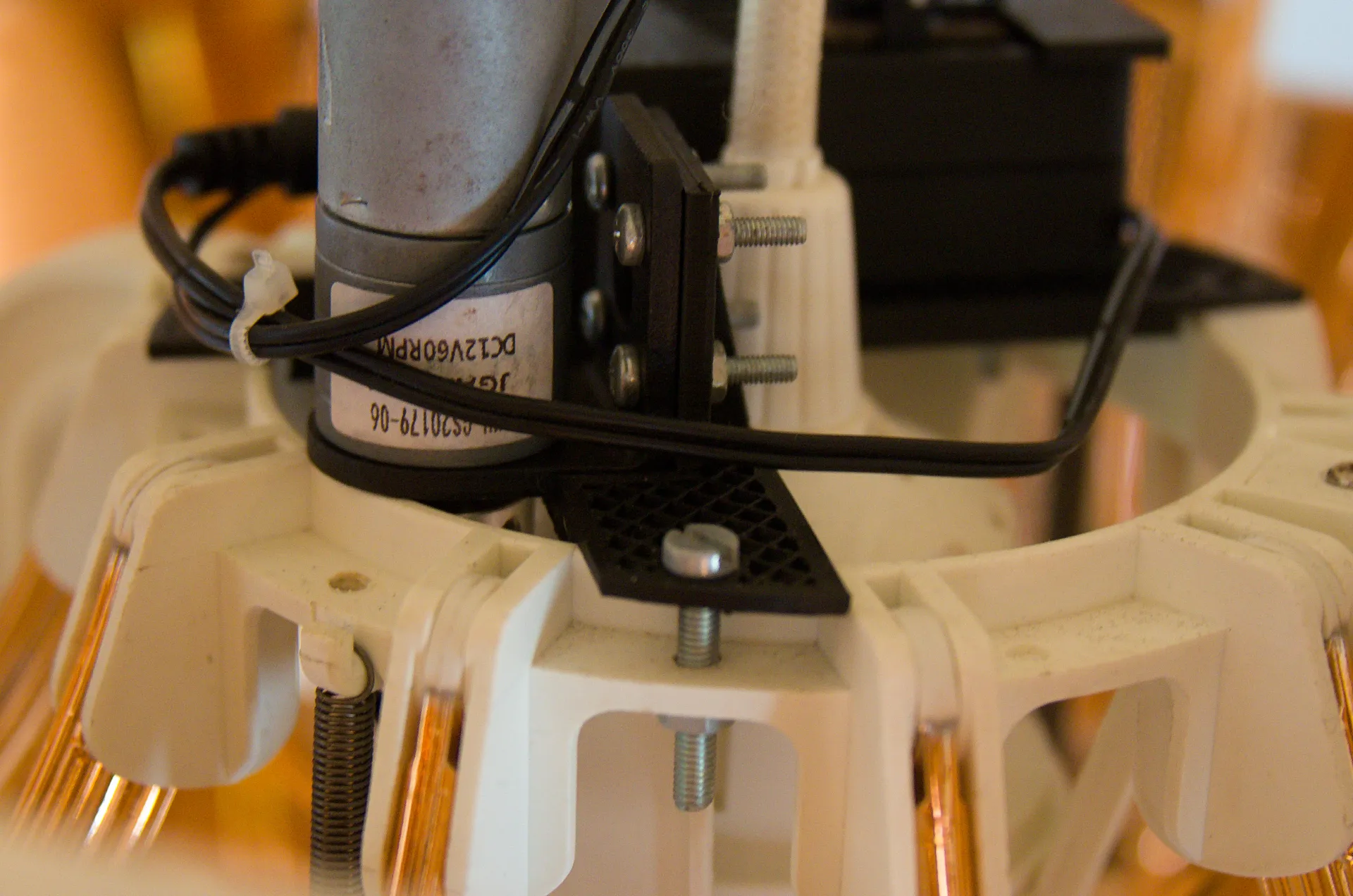

This version of the motorized PS2014 uses an Arduino UNO, a geared DC Motor and a lead screw. Everything is mounted on top of the lamp's corpus, which allows usage of a regular lightbulb.

There are several variants of the PS2014 lamp, this model is designed for the bigger, 52cm version.

Pieces

• Motor with encoder and bracket: https://amzn.eu/d/1Zfk6bz
• Arduino case: https://www.printables.com/model/41748-simple-arduino-uno-case
• A microcontroller
• An infrared receiver
• A motor h-bridge controller
• An M8 lead screw and nut
• A bunch of M3 nuts and screws
• A few M4 nuts and screws

Printing

My tests have proven that printing without top/bottom layers and using any stale infill at around 25-35% is enough. Disable combing mode if you want the visible infill to look pretty.

Printing with higher infill, top/bottom layers, or editing the model to add more thickness are all viable options if you need more rigidity.

Files

I have uploaded the specific files for my version, usable with the exact motor and bracket.

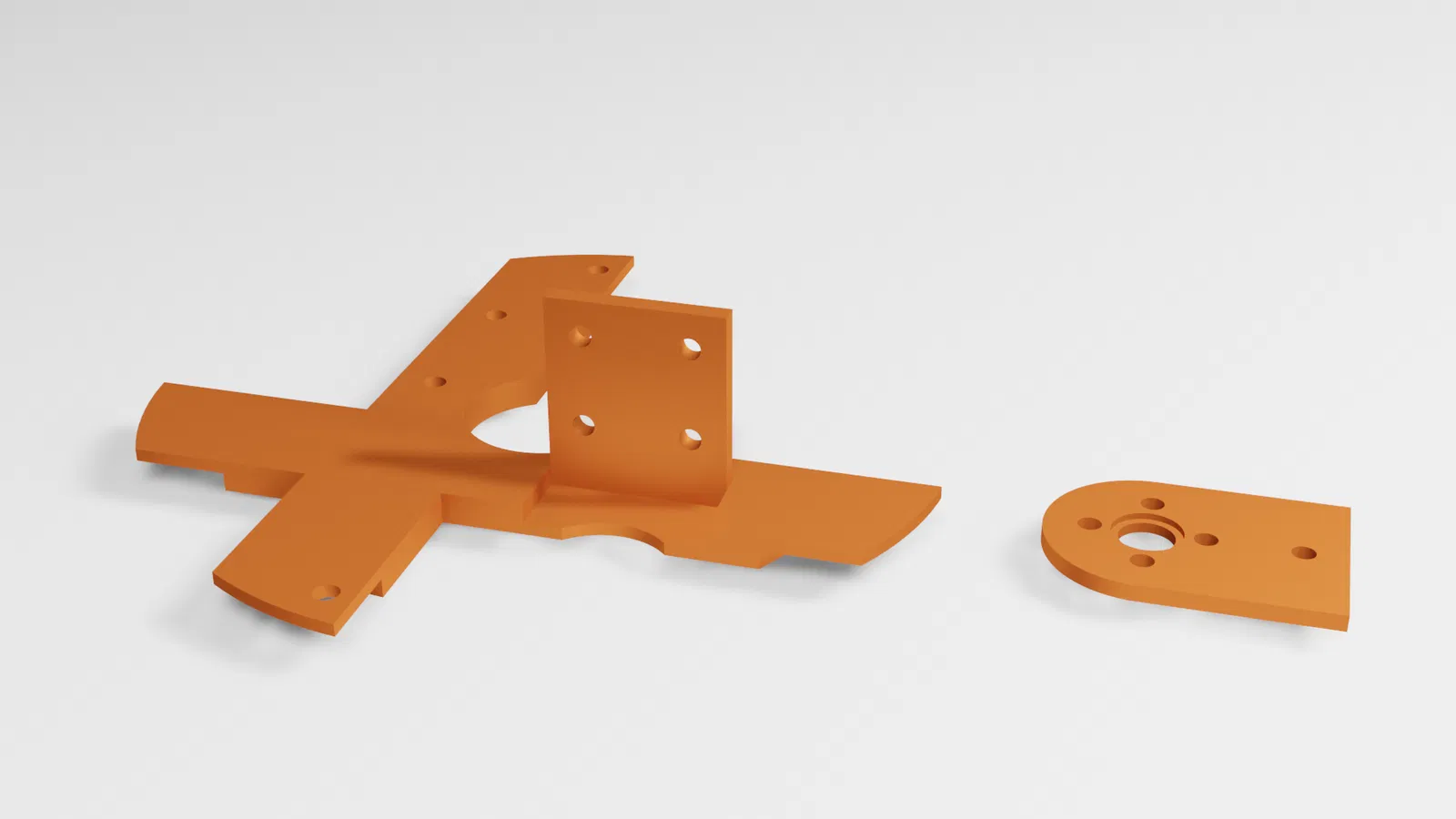

You will also find “raw” platforms to build your own version with.
