Tiêu đề Giá đỡ cáp loại 2 sang bộ chuyển đổi dầm gỗ 57 mm
Một bộ chuyển đổi đơn giản giữa thiết kế @HegreEngineering và chùm gỗ rộng 57 mm
322
Lượt Xem
10
Lượt Thích
21
Lượt Tải
Cập Nhật Nov 22, 2025
Mô tả

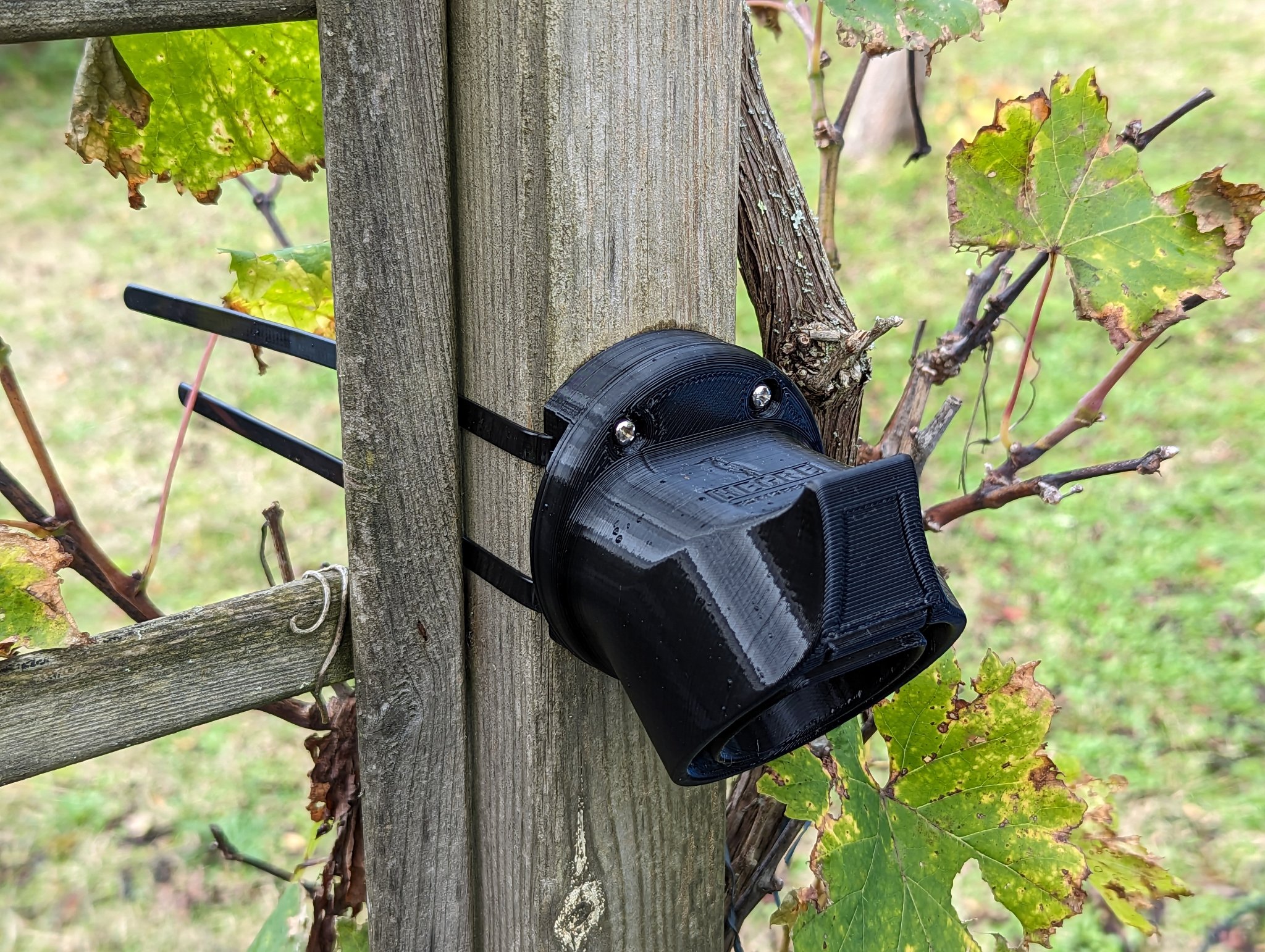

A simple adapter between @HegreEngineering beautiful design and a 57mm wide wooden beam. This adapter was designed as an addon because I plan to reuse the cable holder later on. As zip tying it to a wooden beam is only temporary.
Hardware needed:
- This adapter was designed to be held to the beam with 2 big 7.5x350mm zip ties (found in France at most Action shop as “Reusable cable ties”). All zip ties less than 7.5mm in width, and less than 1.4mm in thickness will easily fit.
- The cable holder in itself is screwed into the adapter using 3 x M4 short threaded inserts and corresponding M4 8mm screws.
- Obviously, the type 2 cable holder from @HegreEngineering
A will potentially create other files for other widths if asked in the comment section.
