Tiêu đề Bộ chuyển đổi Brita OnTap Teka SP995 Tóm tắt Adapter

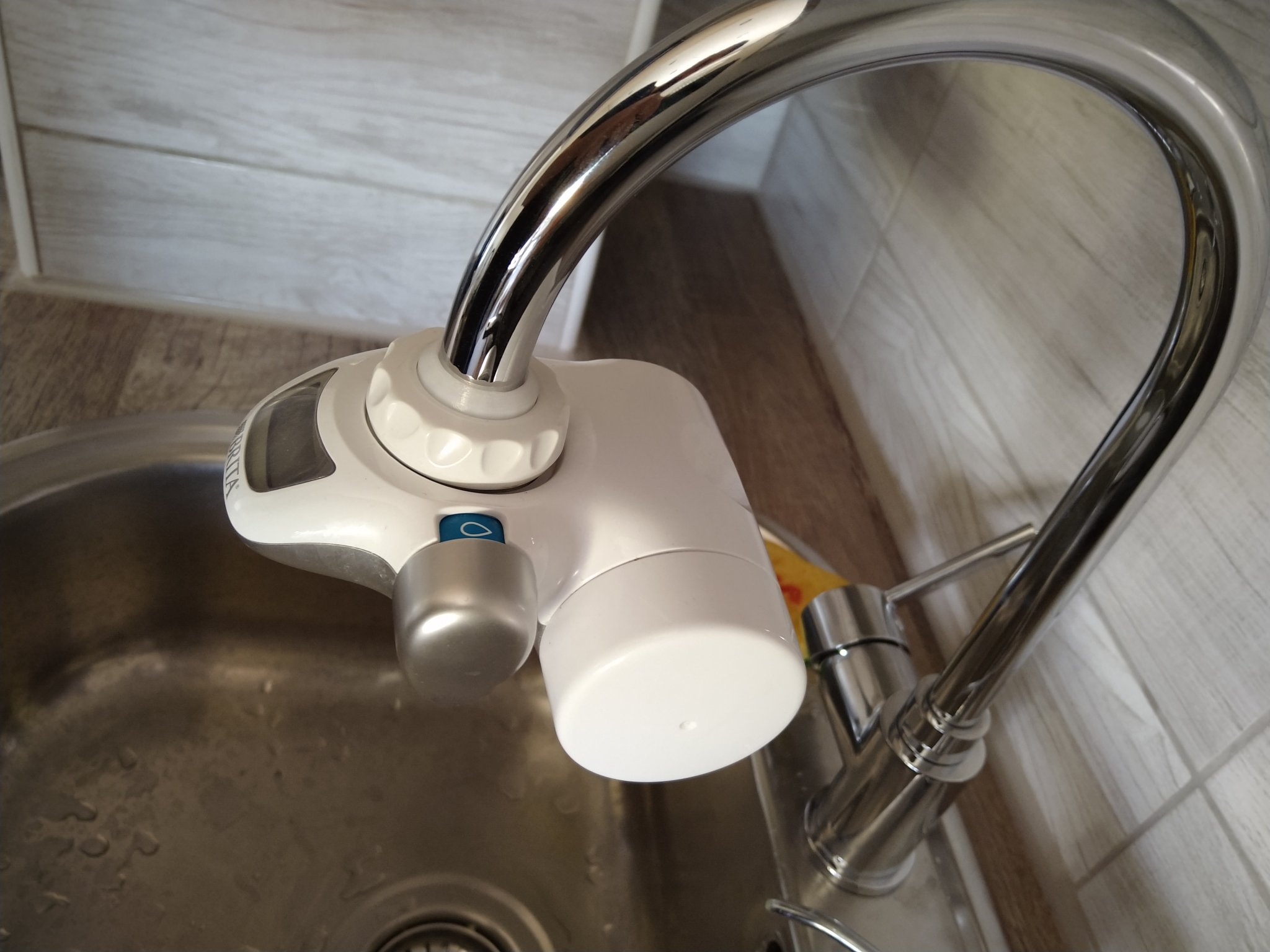

Adapter to mount Brita OnTap water filter on a Teka SP995 faucet

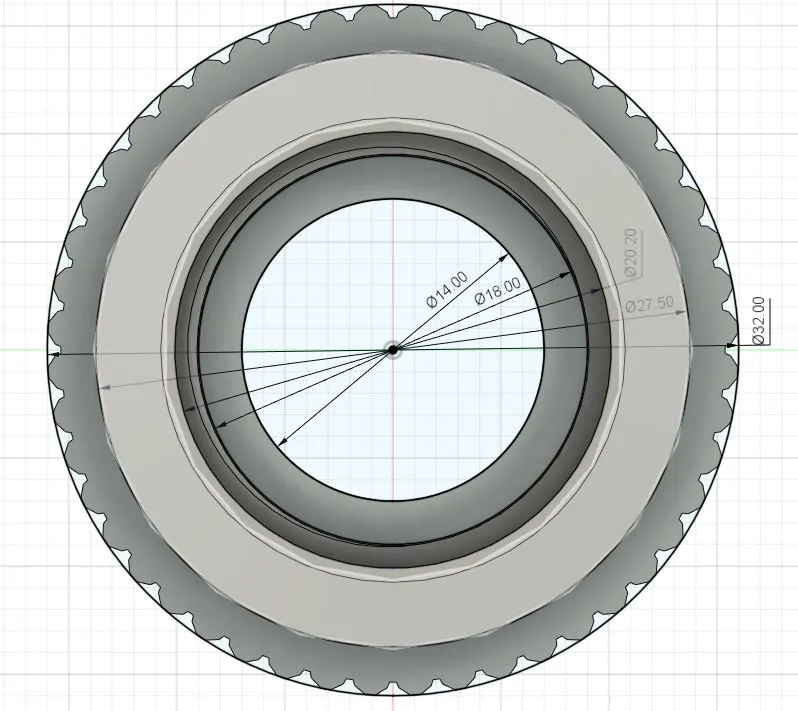

Dimensions shown on picture.

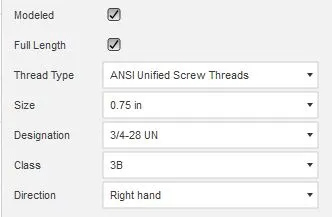

Thread size: ANSI 0.75in x ¾-28 UN

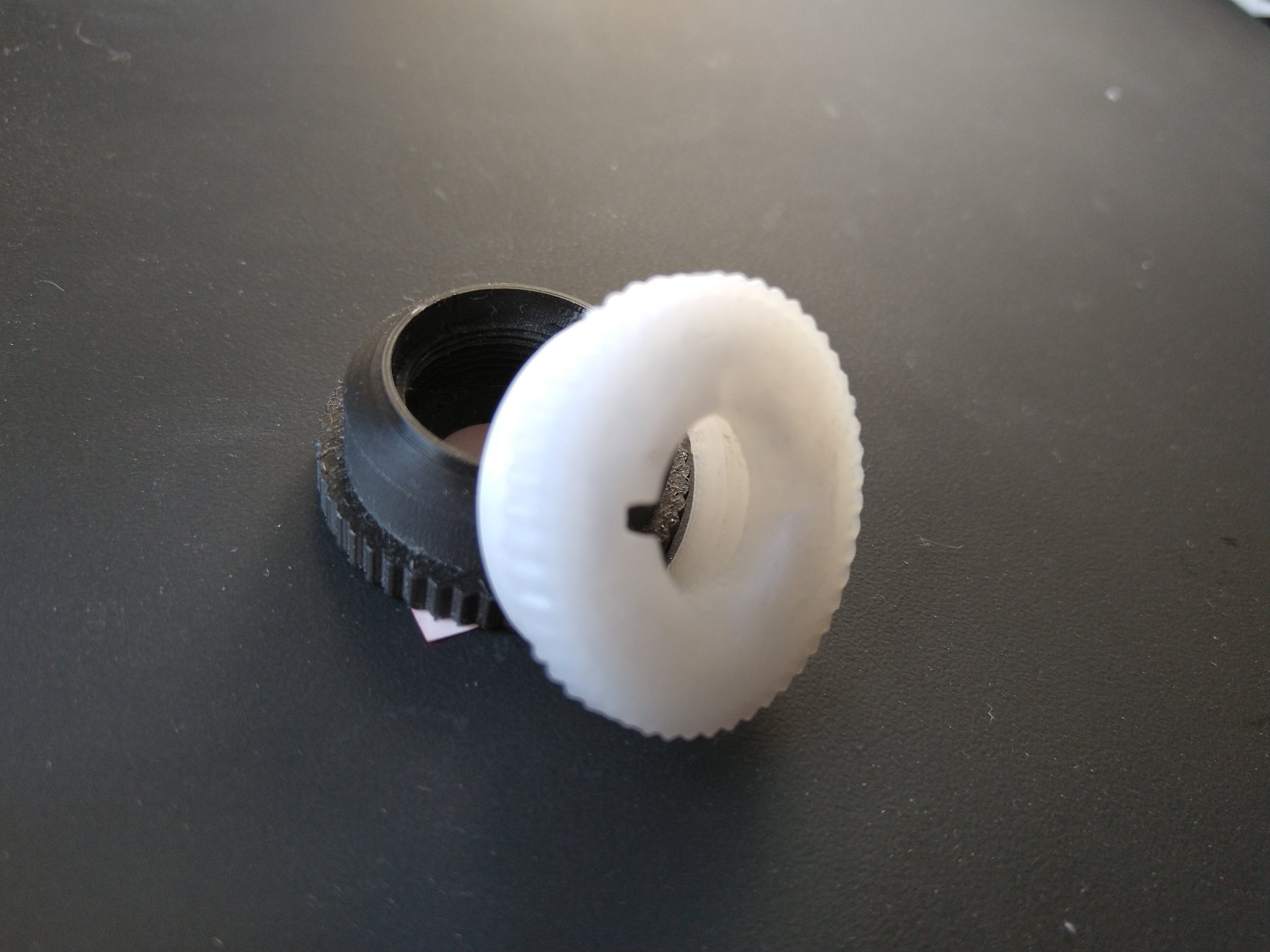

Was prototyped as PLA, final printed with PA.

When printing with PA don't forget to upscale the model in slicer due shrinkage (for me 1.7% up-scaling worked perfectly).

File for F360 shared too, so you can edit thread type to your liking.
