Minimalistic Table Lamp

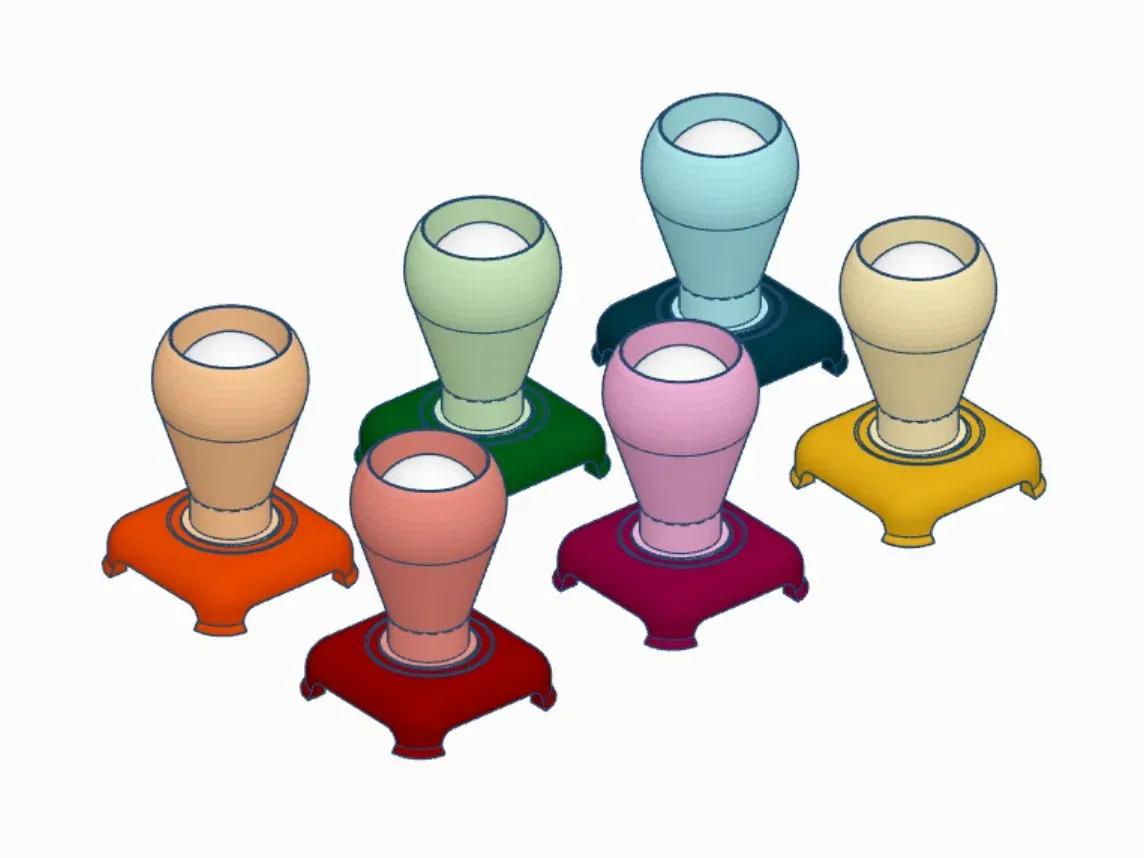

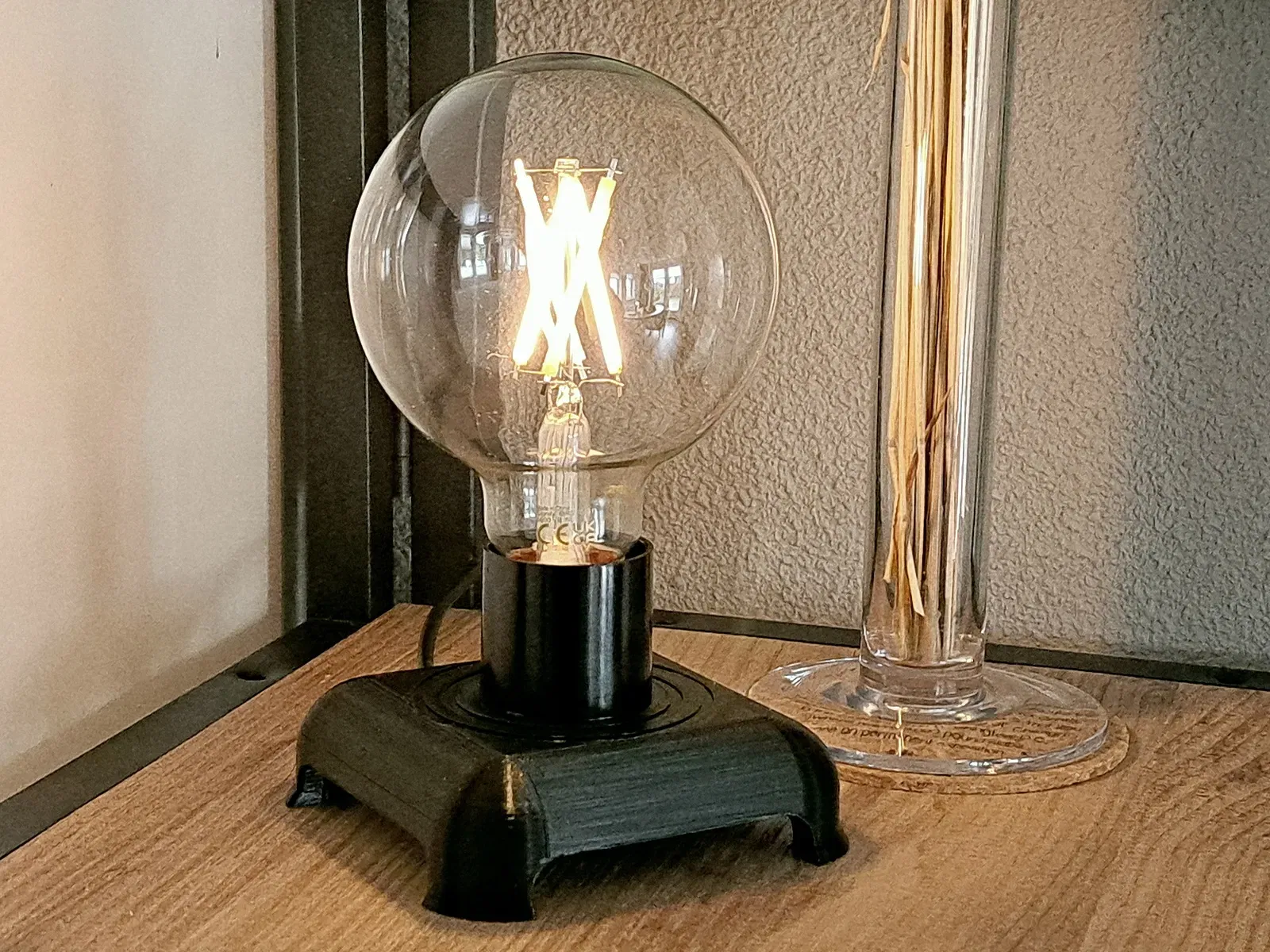

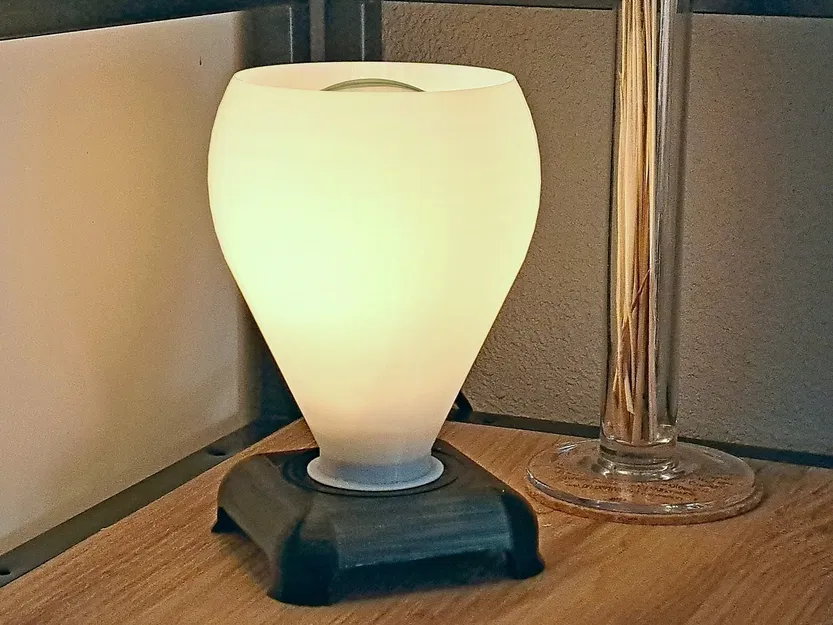

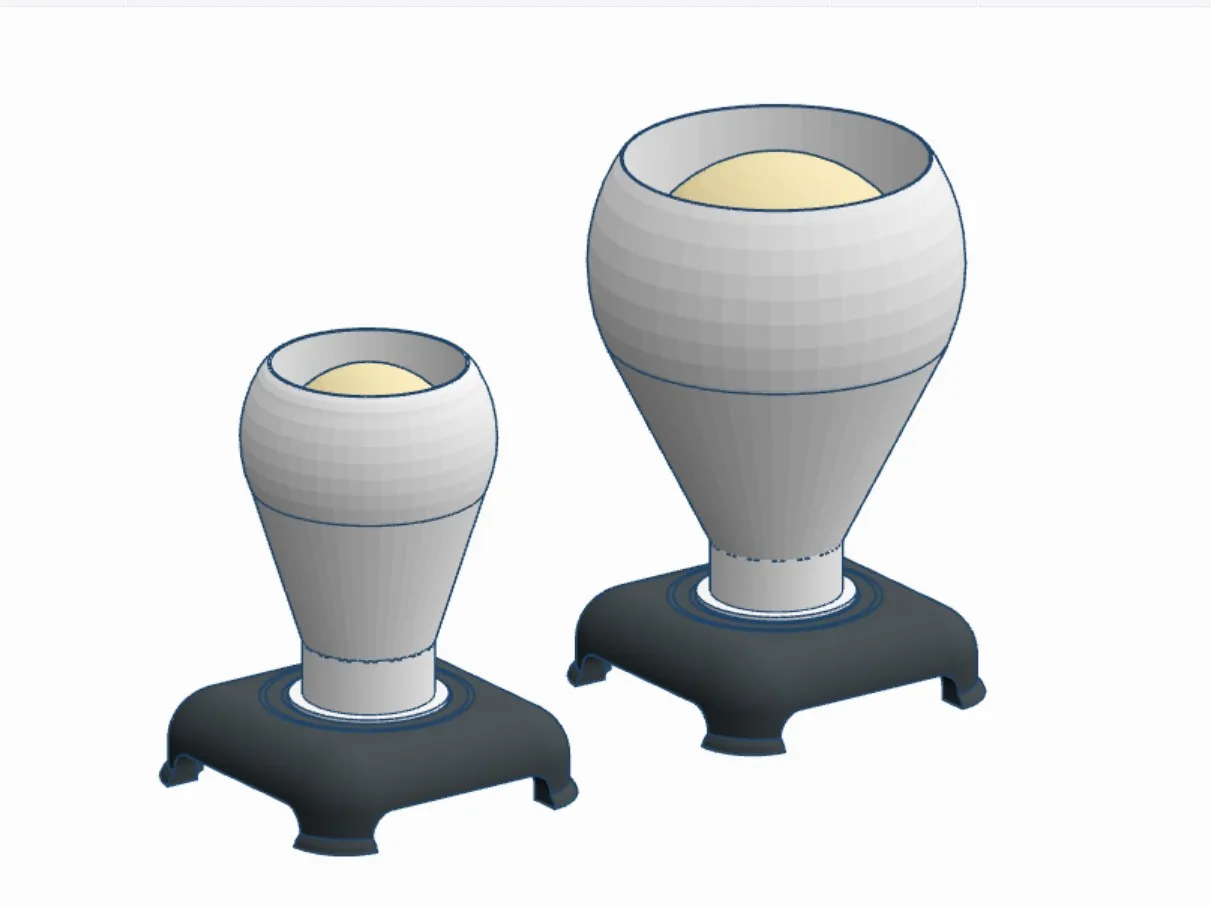

Minimalistic Table Lamp for a E27 lamp socket. We needed a table lamp for a lying around WIZ lamp Ø 95 mm. I added a second lamp shade for a regular Ø 60 mm bulb. Print the lamp in any colour you want!

PRINTING I printed with PLA+ Filament, 0.2 mm layer height. The lamp shades are printed in Vase Mode: 0.2 mm layer height, 5 bottom layers.

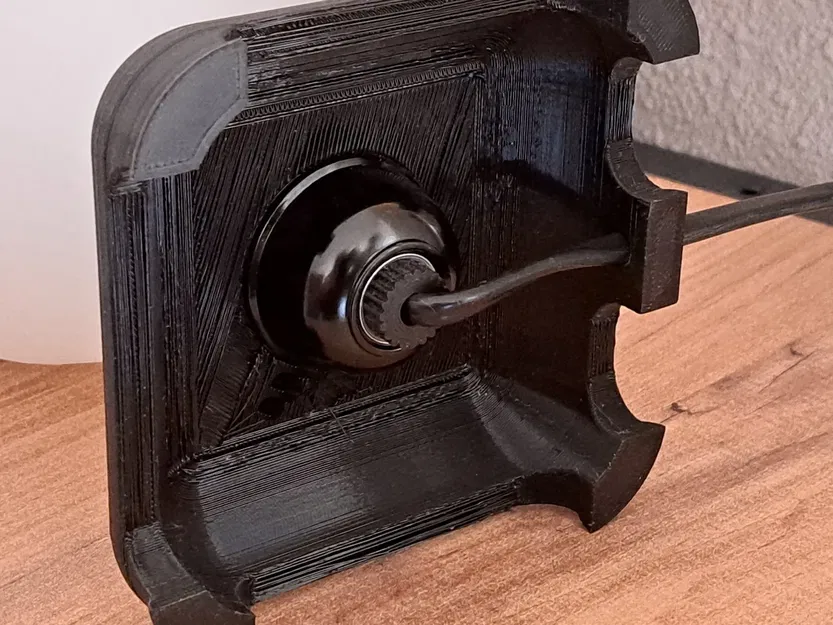

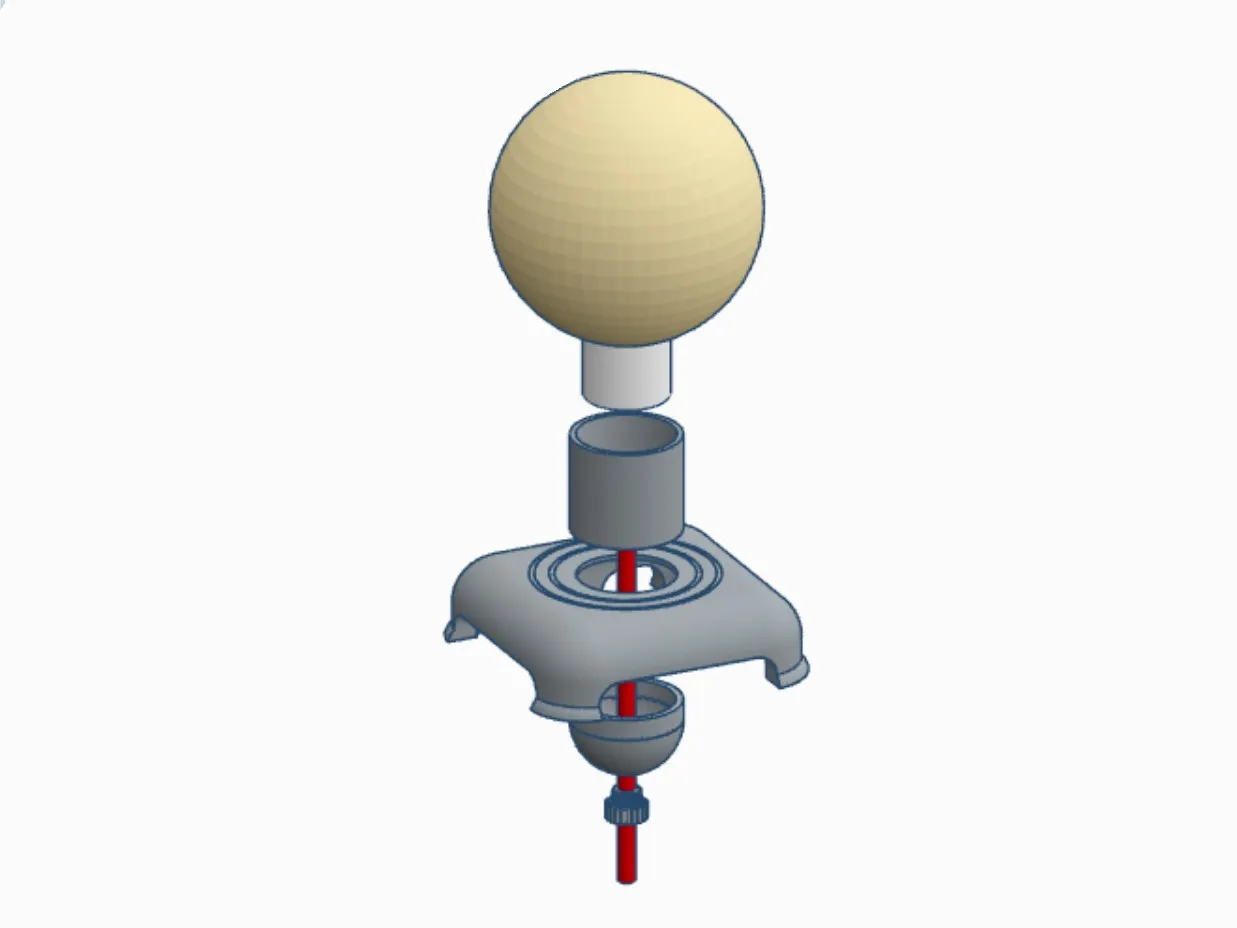

ASSEMBLY You need a E27 lamp socket Ø 39 mm, and 2 meters of electric cord with plug. And of course a E27 LED bulb. Lead the electric cord through the small hole in the side of the Base Stand and through the Socket Insert. Then connect the electric cord to the E27 lamp socket and mount the lamp socket through the top hole of the Base Stand. Place the Lamp Shade over the lamp socket. You may need to glue the shade to the base if there is too much play between the Lamp Shade and the lamp socket. Place the bulb in the lamp socket.

Only use LED bulbs! All other bulbs will melt your table lamp.

Enjoy.
