Replacement Foot for Dometic Cooktop Grate

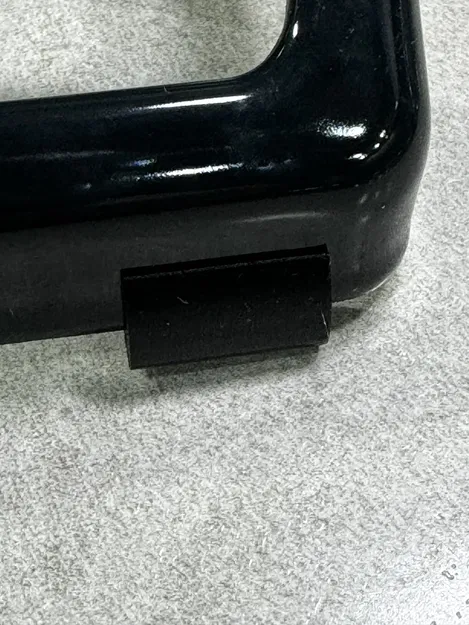

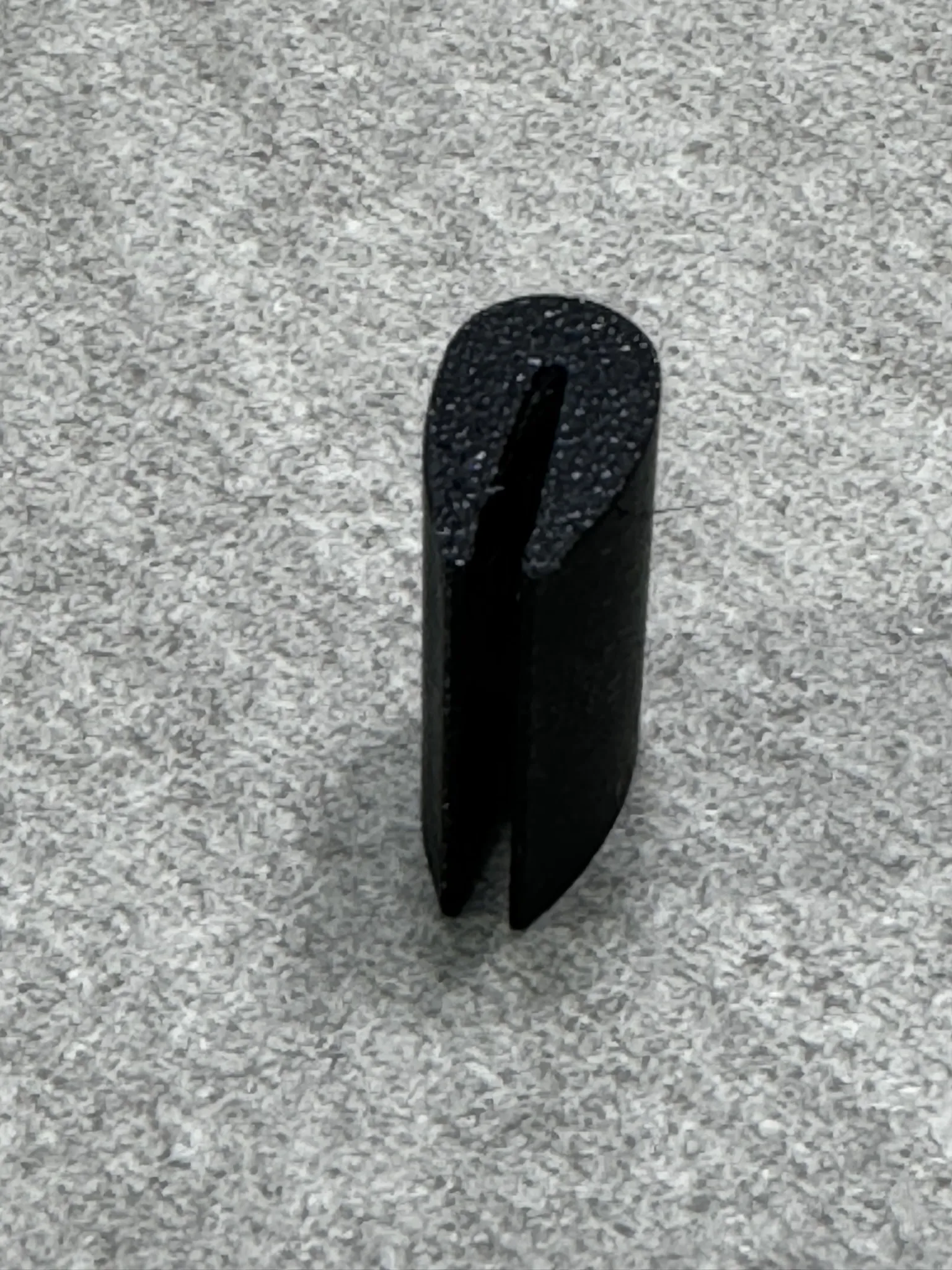

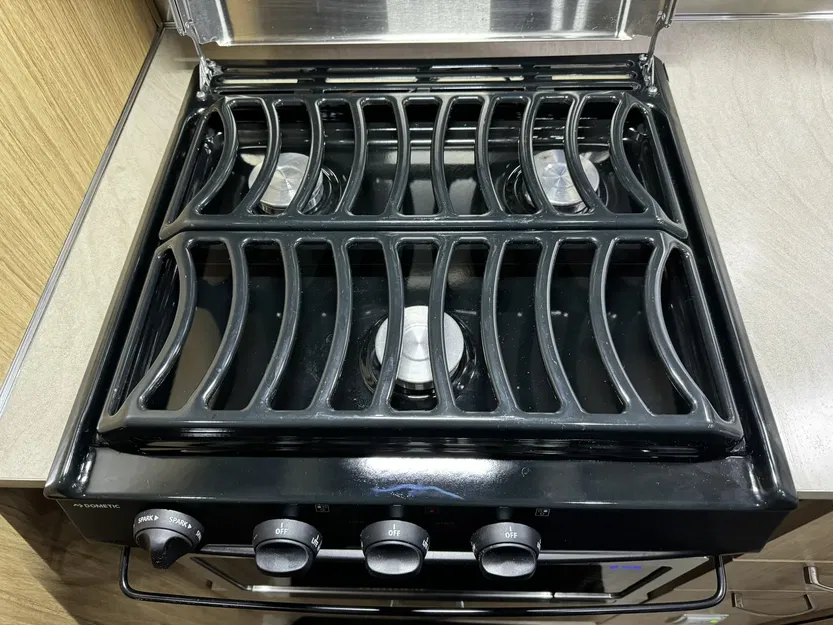

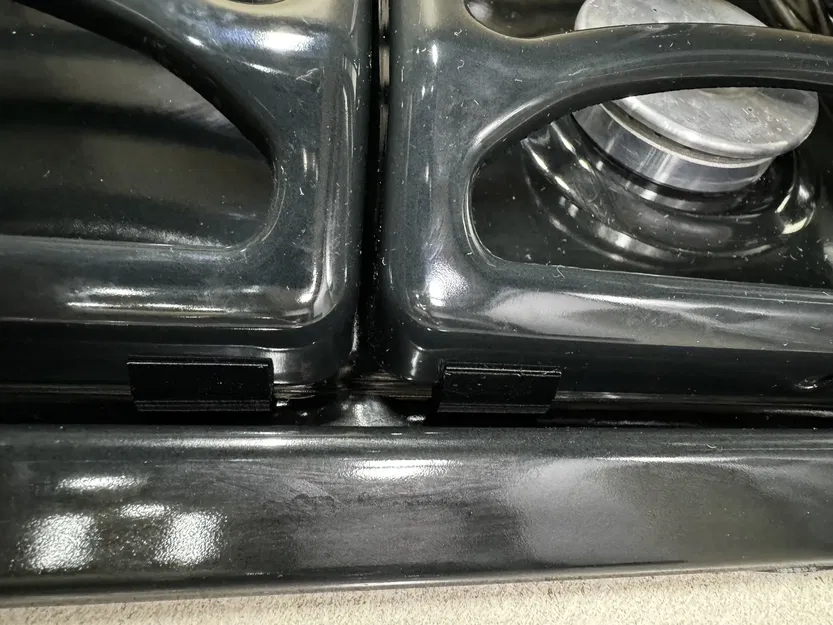

This is a replacement for the foot that goes on the bottom of the Dometic cooktop cooking grate in between the grate and the cooktop. This propane cooktop is very common in Airstream and other travel trailers. They wear out after a while and are also pretty easy to lose, so best to make a few extra when you print these.

You cannot use a hard plastic like PLA or PETG for this; you must use TPU or a similar filament that will act as a cushion. A shore hardness of 95A is probably the maximum.

Settings: Layer height: 0.20 No brim Position objects to print vertically

Material: TPU 95A (can also use a softer TPU if desired) << Important <<
