Tiêu đề Vôn kếAmpe kế cho fischertechnik Tóm tắt Vỏ cho một
Nhà ở cho một volt-/ampeemeter giá rẻ từ AliExpress cho FischerTechnik.
186
Lượt Xem
2
Lượt Thích
22
Lượt Tải
Cập Nhật Nov 22, 2025
Mô tả

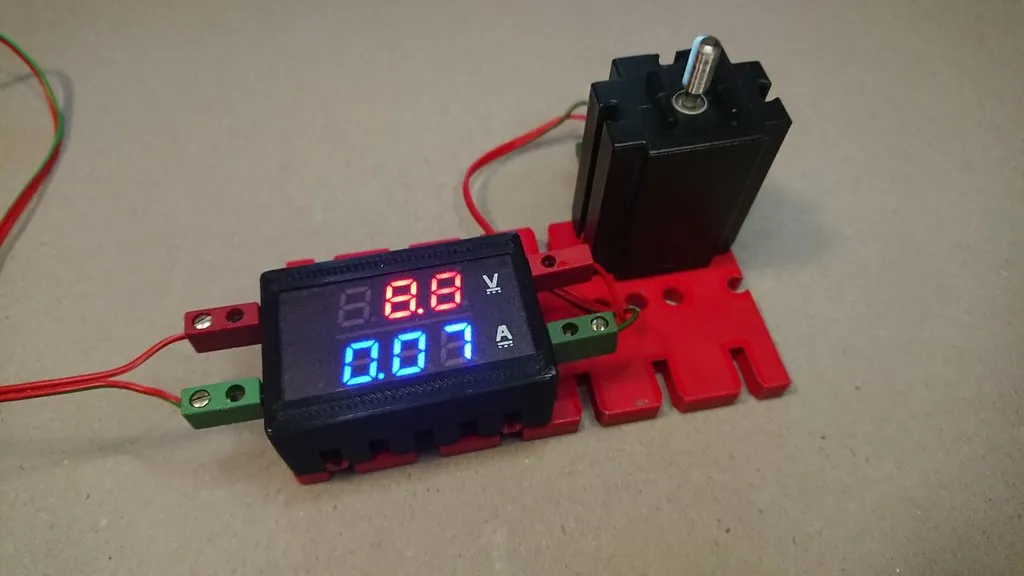

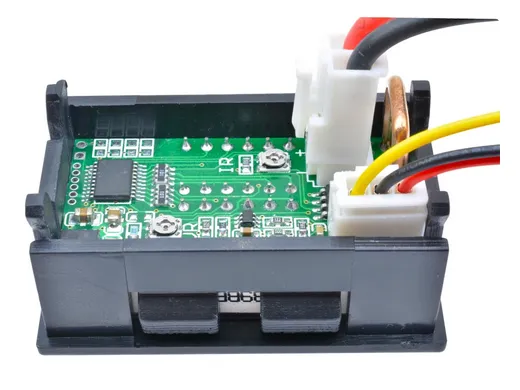

Housing for a cheap volt-/amperemeter from aliexpress for fischertechnik. Compare the images, there are a couple of similar variants. Note that the ammeter's precision is only 10mA and it will start measuring amperage only from 20mA upwards.

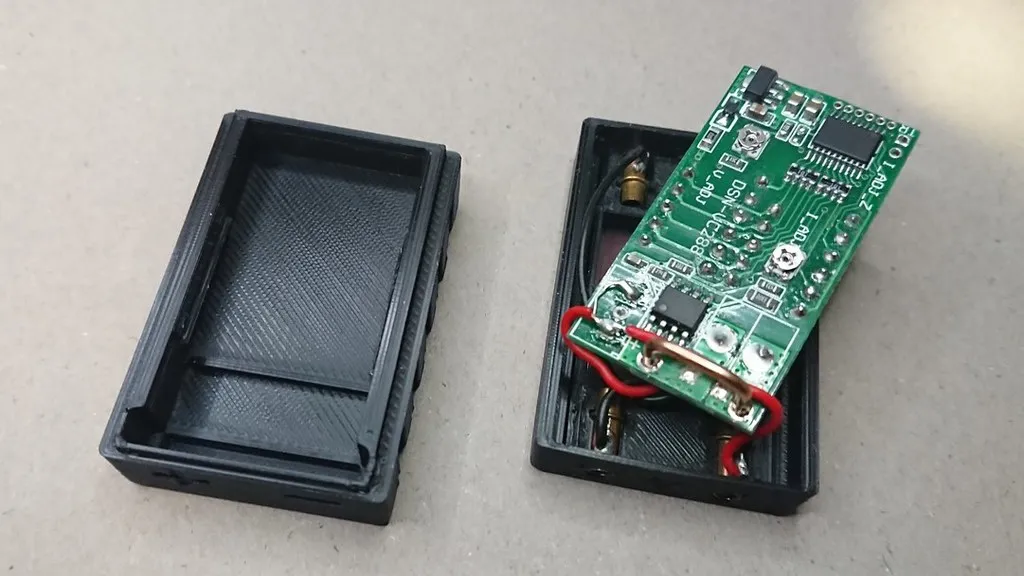

Remove the housing, cut the PCB's two side flanges, and desolder the white connectors. Solder the four fischertechnik Bundhülsen to the PCB according to the "share power source"/"direct power supply" wiring option, which will make it usable only above 4V, though.
Category: Electronics
